Presentación sin título

Open Ended

Describe a situation where knowledge of elastic settlements would be crucial for a civil engineer.

Multiple Choice

Why is understanding settlements important in geotechnical engineering?

• It helps prevent structural failures

• It improves soil fertility

• It reduces construction costs

• It increases water retention

Multiple Choice

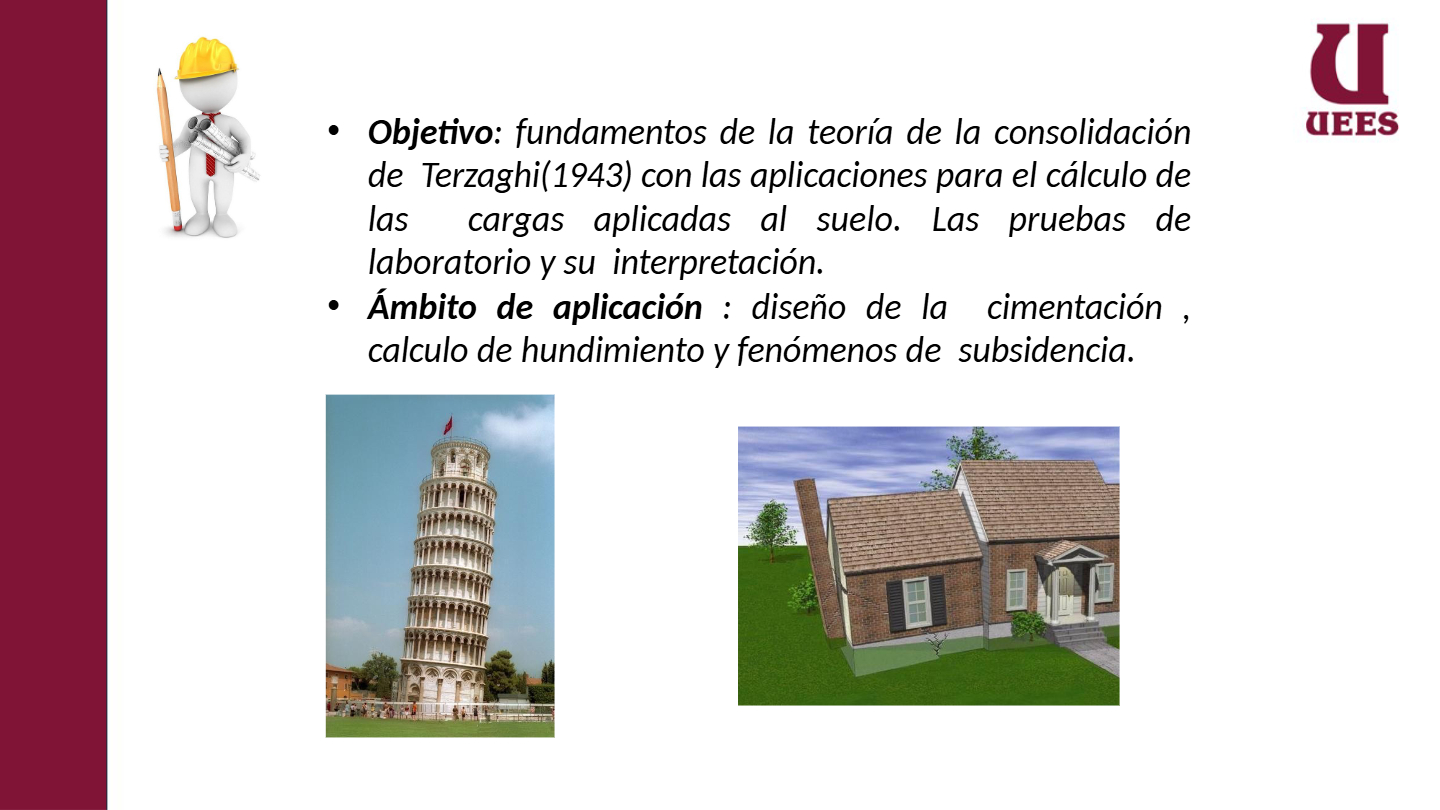

What is the main application of Terzaghi's consolidation theory in civil engineering?

• Design of foundations and calculation of settlement phenomena

• Calculation of building heights

• Determining the color of construction materials

• Estimating construction costs

Open Ended

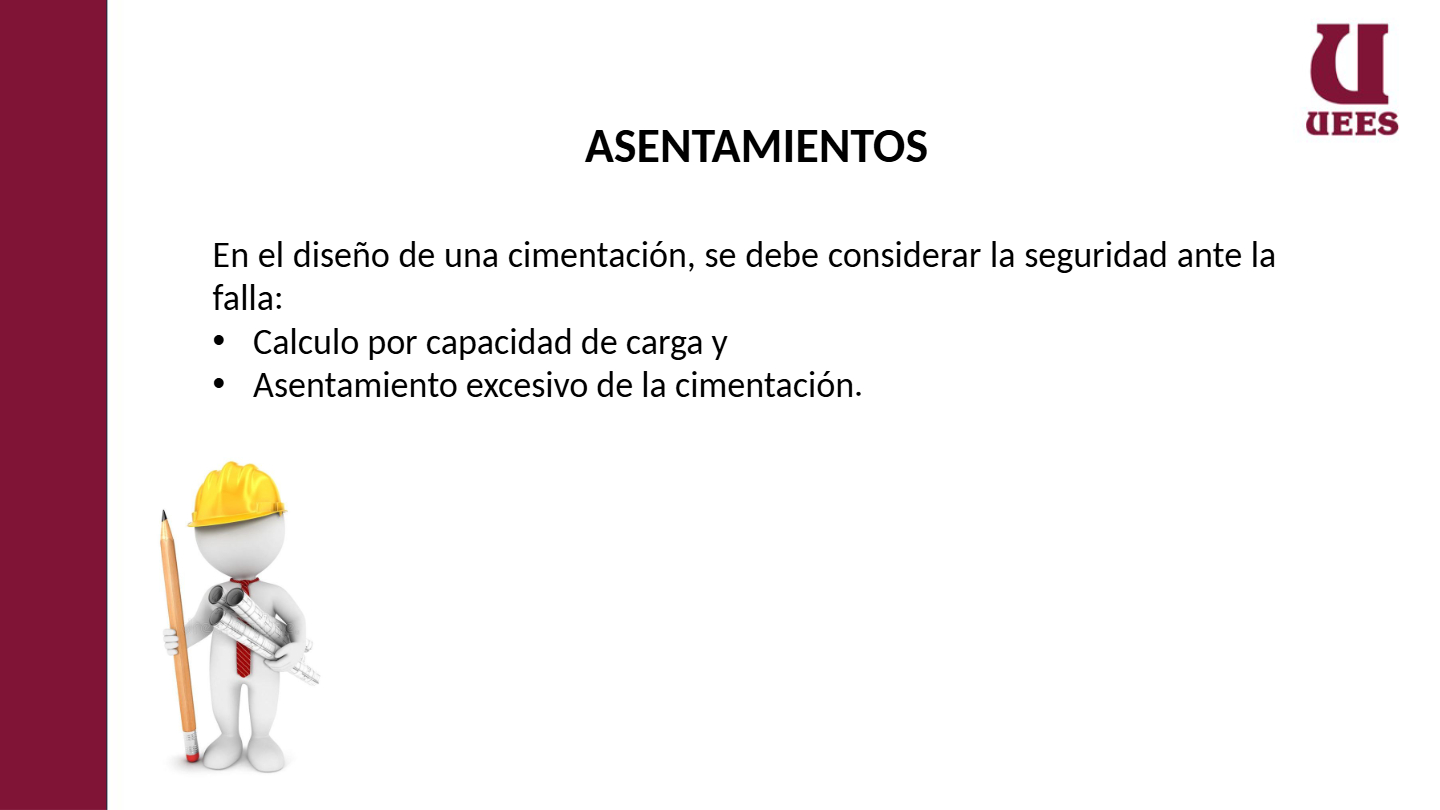

Explain how excessive settlement can affect the safety and stability of a building's foundation.

Multiple Choice

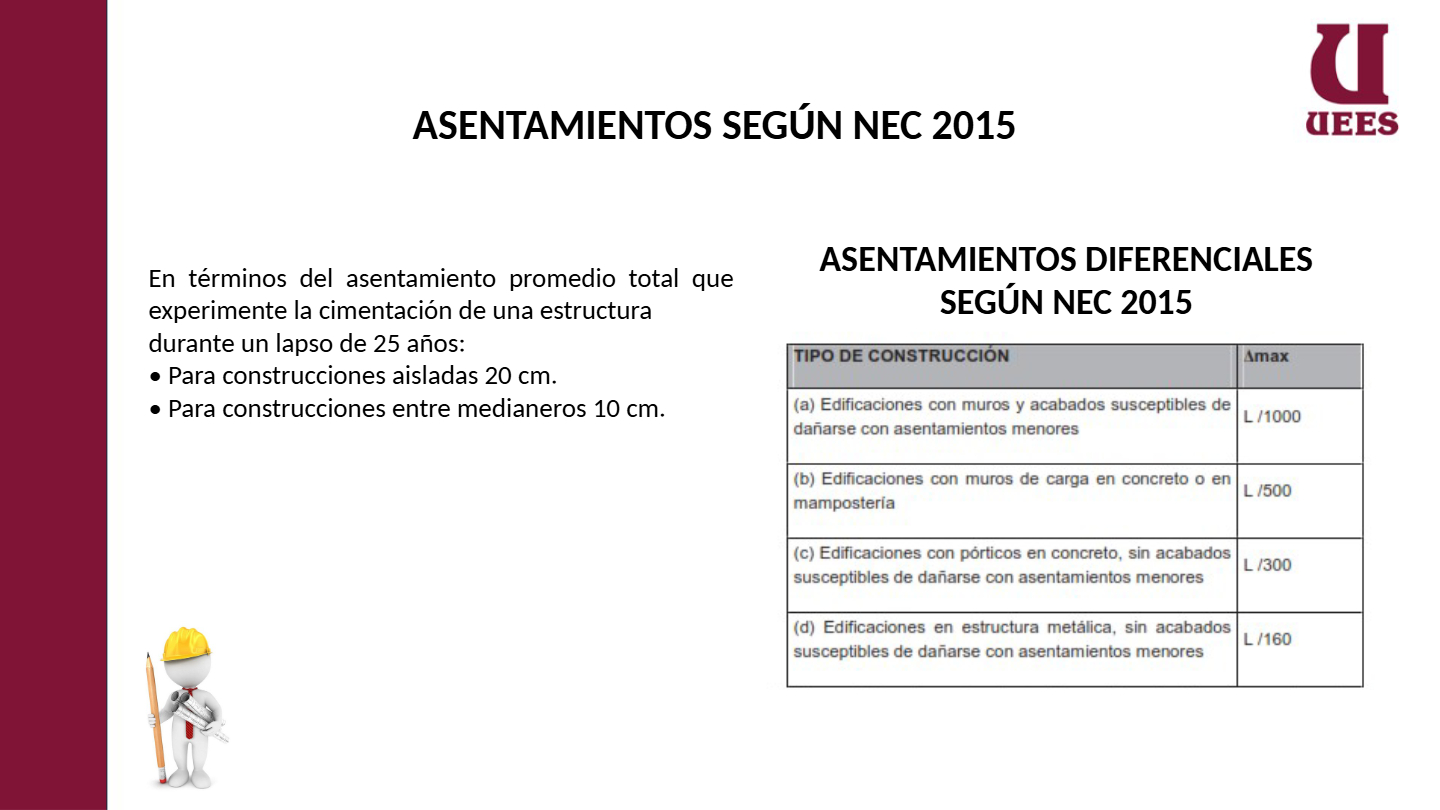

Which types of construction, according to NEC 2015, have a maximum differential settlement of L/500?

• Buildings with walls and finishes susceptible to minor settlements

• Buildings with load-bearing walls in concrete or masonry

• Buildings with concrete frames, without finishes susceptible to minor settlements

• Buildings with metallic structures, without finishes susceptible to minor settlements

Multiple Choice

According to NEC 2015, what is the maximum average total settlement allowed for isolated constructions over 25 years?

• 10 cm

• 20 cm

• 30 cm

• 5 cm

Open Ended

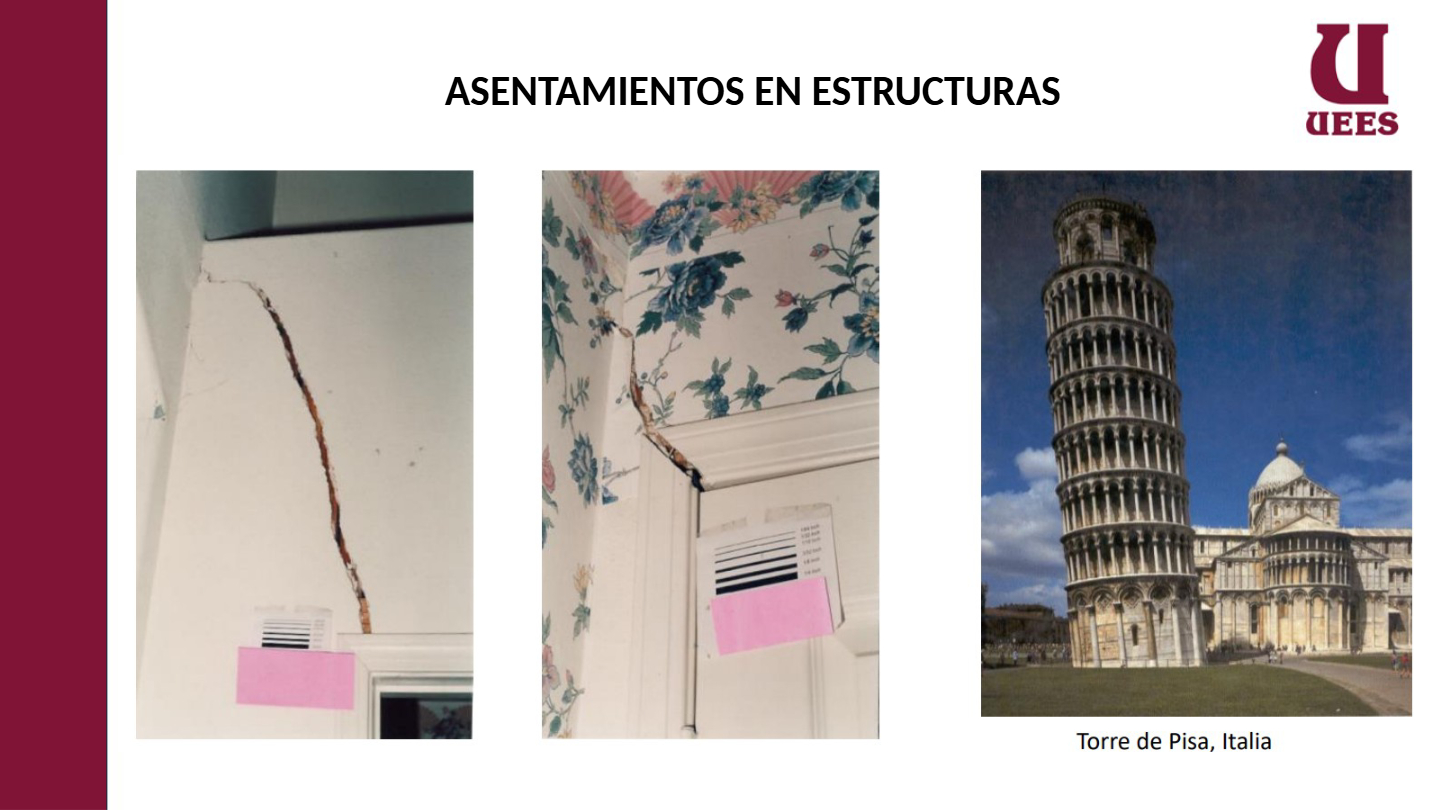

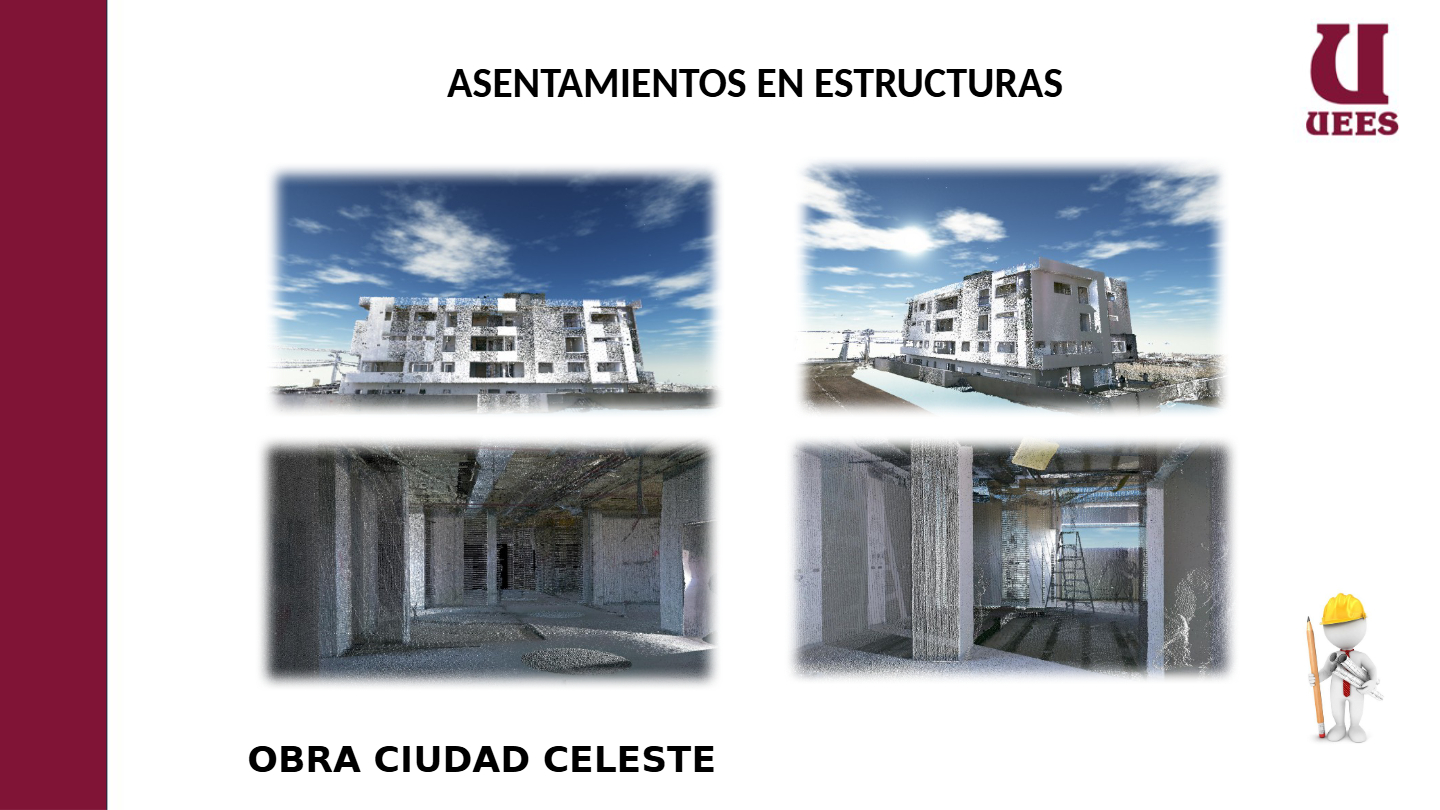

Describe two visible signs of settlement in building structures, as shown in the images.

Multiple Choice

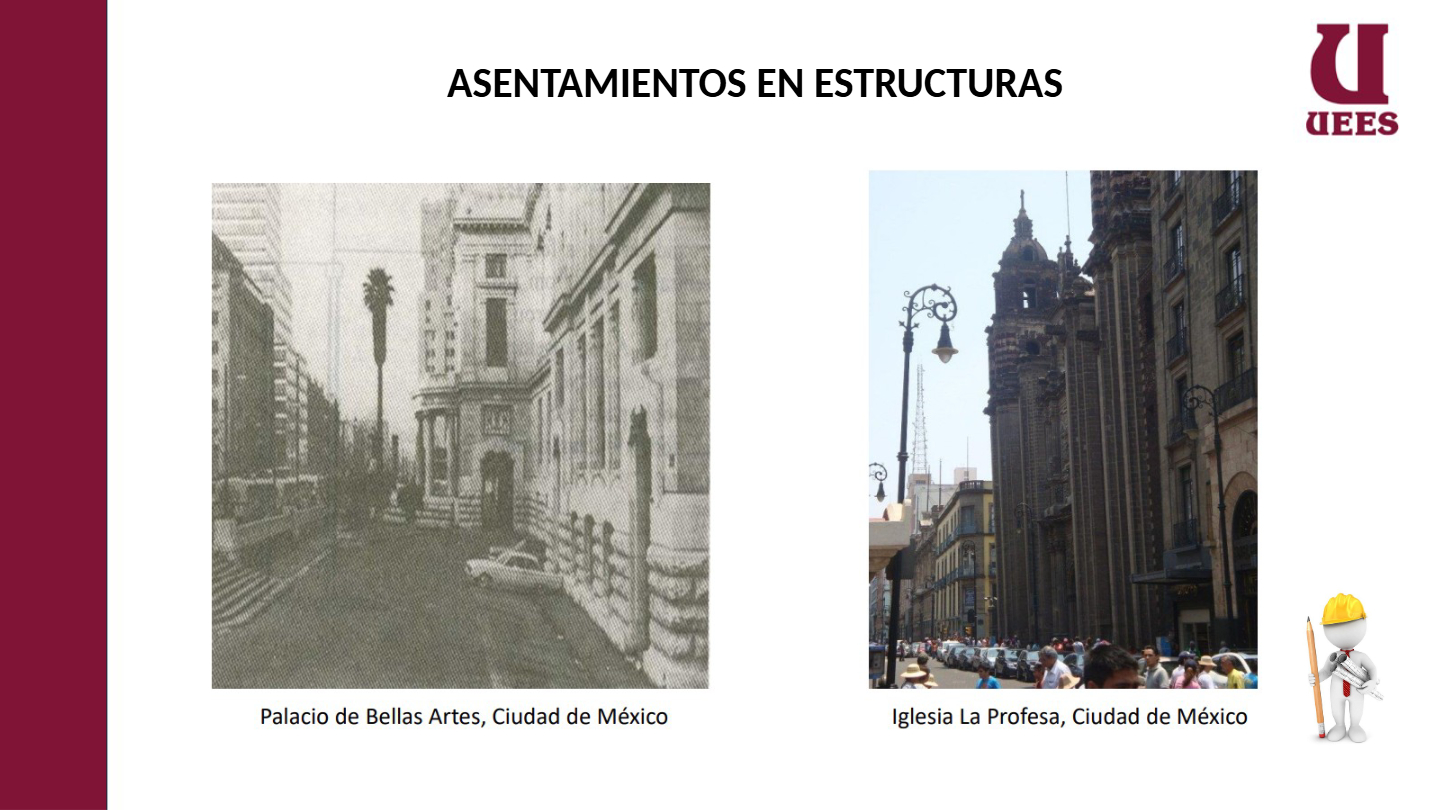

Which of the following buildings is an example of structural settlement in Mexico City?

• Palacio de Bellas Artes

• Eiffel Tower

• Iglesia La Profesa

• Statue of Liberty

Open Ended

Describe the visual evidence of structural settlement that can be observed in the buildings shown in the first two slides. What might be the causes of these settlements?

Multiple Choice

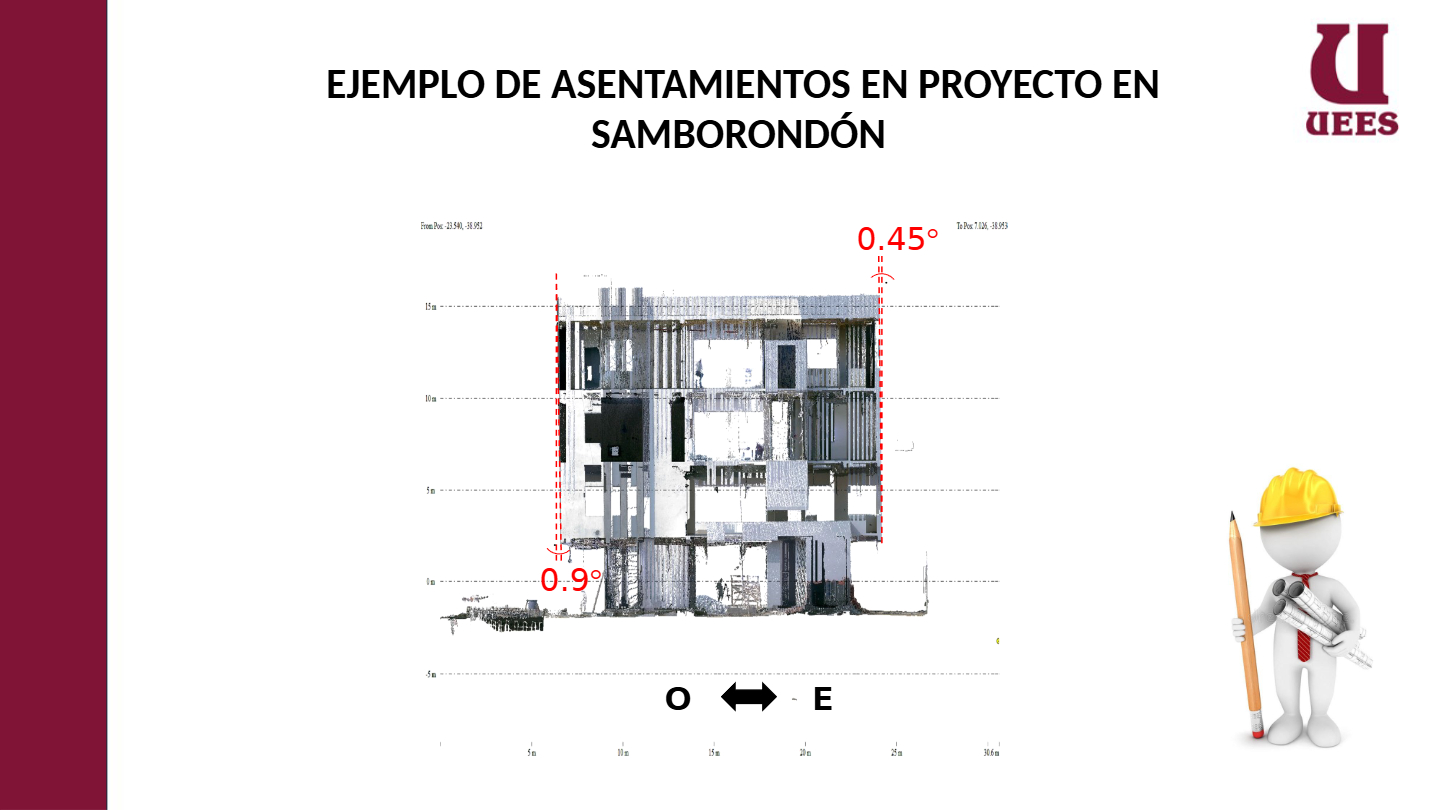

In the example of the Samborondón project, what do the angles 0.9° and 0.45° represent in the context of structural settlement?

• The inclination of the building due to differential settlement

• The temperature difference across the building

• The angle of sunlight hitting the building

• The slope of the roof

Open Ended

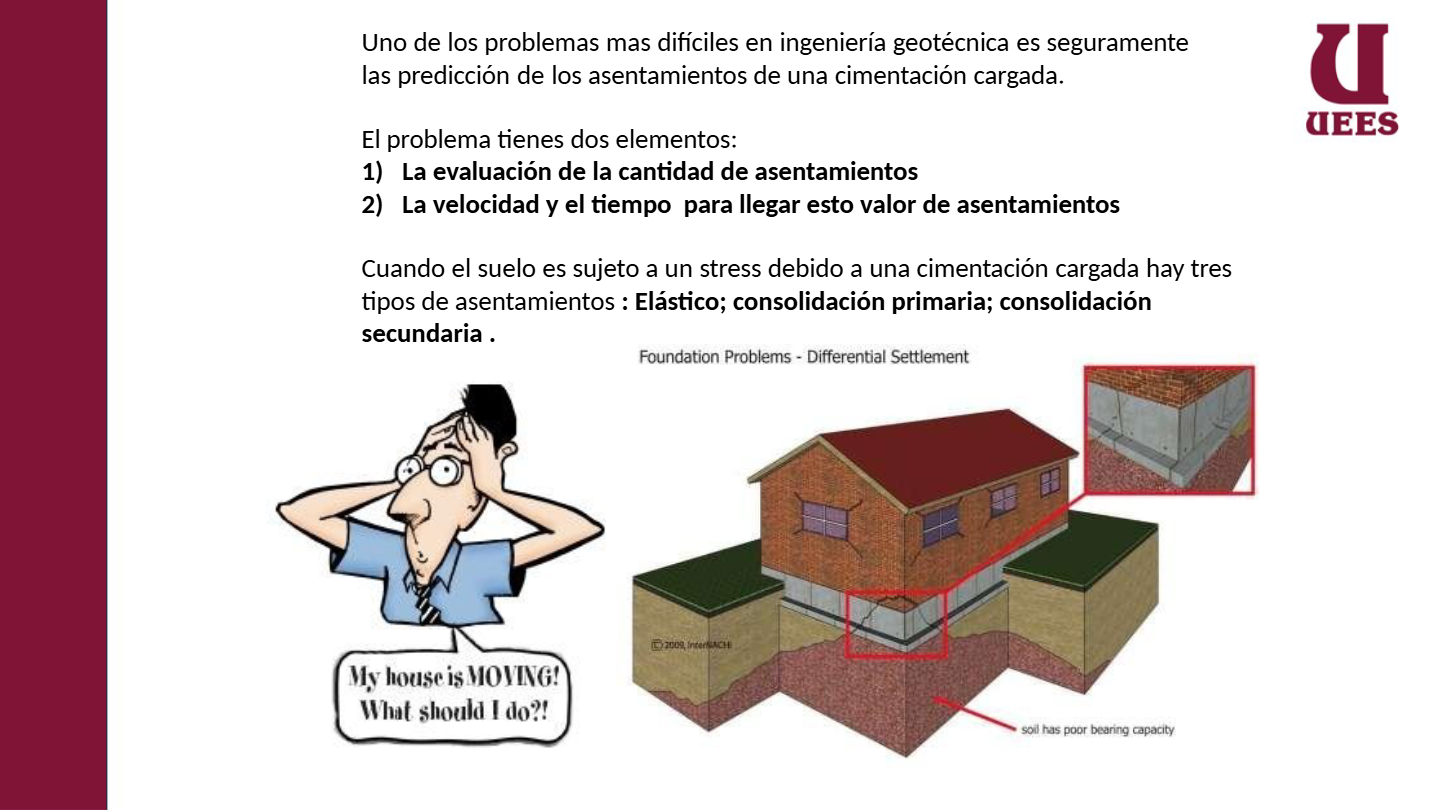

Explain the challenges in predicting settlements in geotechnical engineering and discuss the two main elements involved in this prediction.

Multiple Select

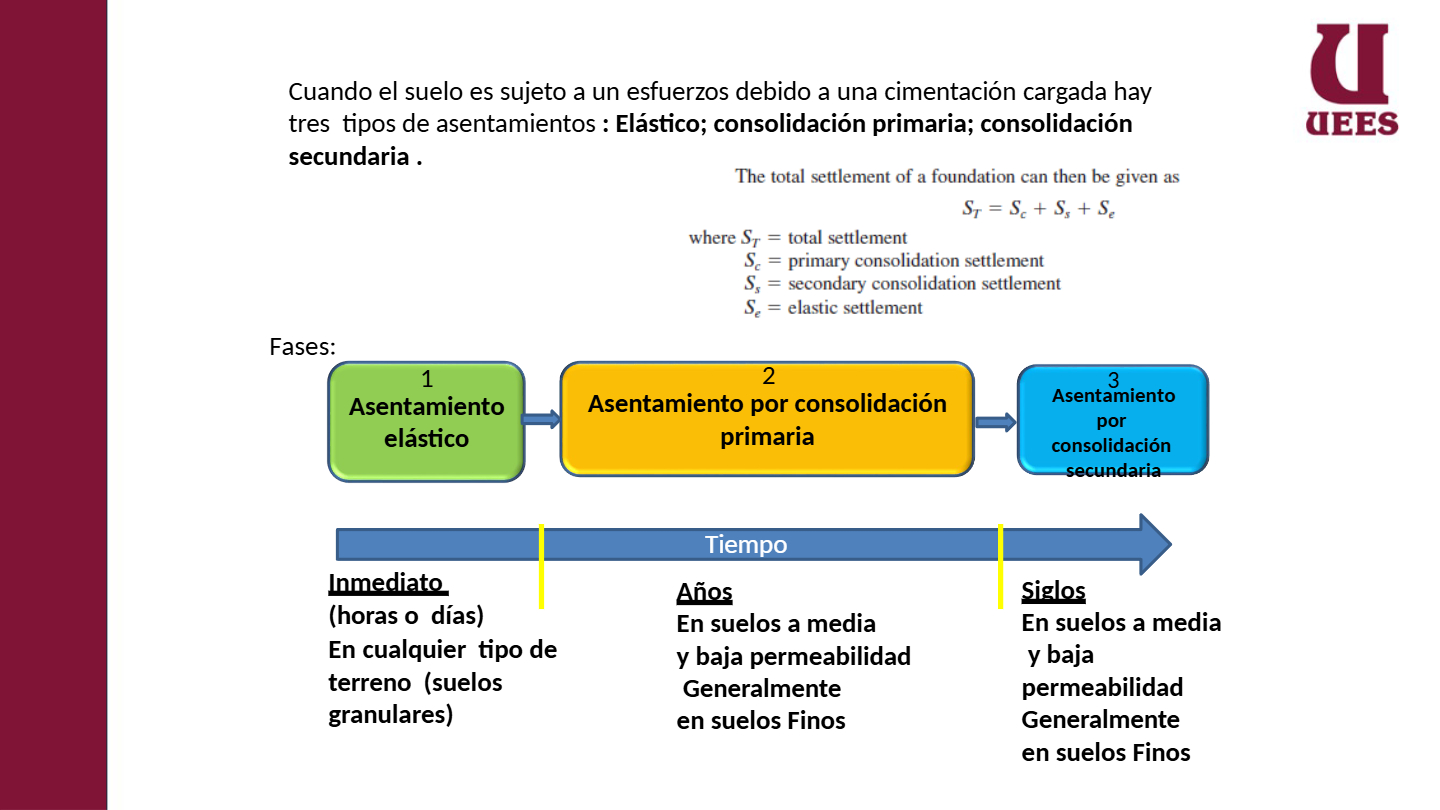

Which of the following are considered phases of settlement in soil under a loaded foundation?

• Asentamiento elástico

• Asentamiento por consolidación primaria

• Asentamiento por consolidación secundaria

• Asentamiento superficial

Multiple Select

Which of the following are considered granular soils where elastic settlements are produced?

• Gravel

• Sand

• Non-plastic silts

• Clay

Multiple Choice

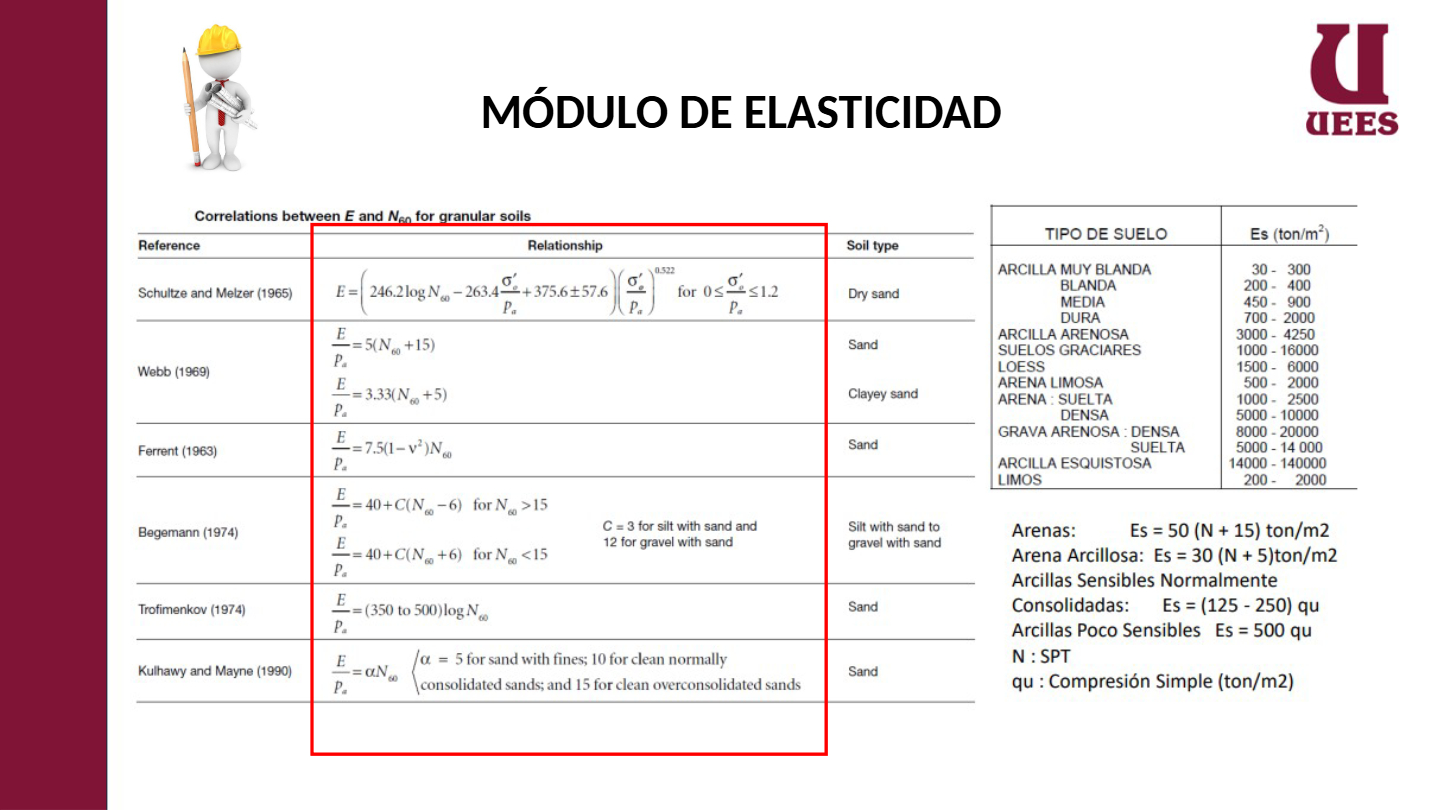

Which parameter is important for calculating elastic settlements in soils?

• Modulus of elasticity (Es)

• Soil color

• Water content

• Soil temperature

Open Ended

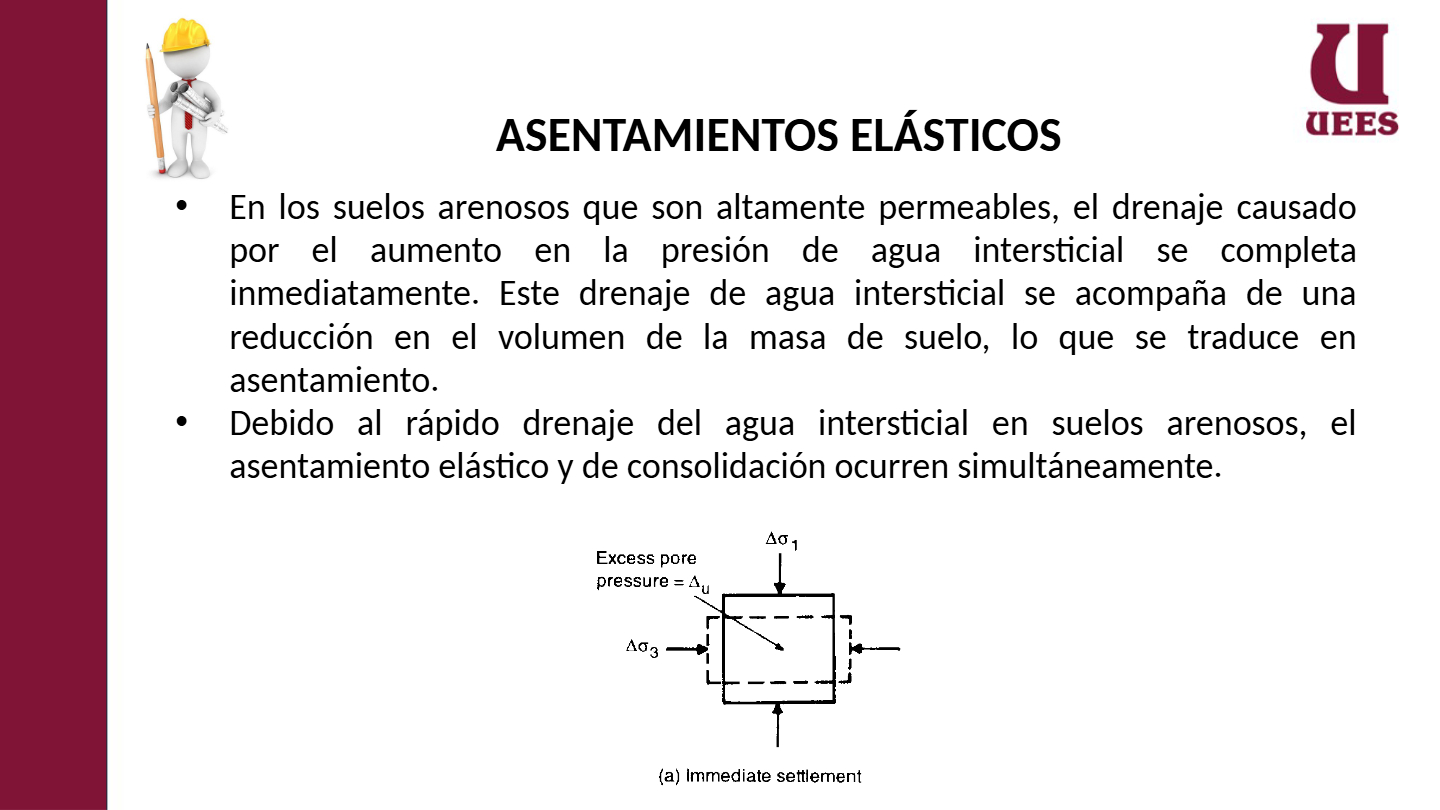

Explain how the drainage of interstitial water in sandy soils affects elastic settlement. Use evidence from the slides to support your answer.

Open Ended

Describe how the shape and location of a footing (zapata) influence the influence factor (I) in the elastic settlement calculation.

Multiple Choice

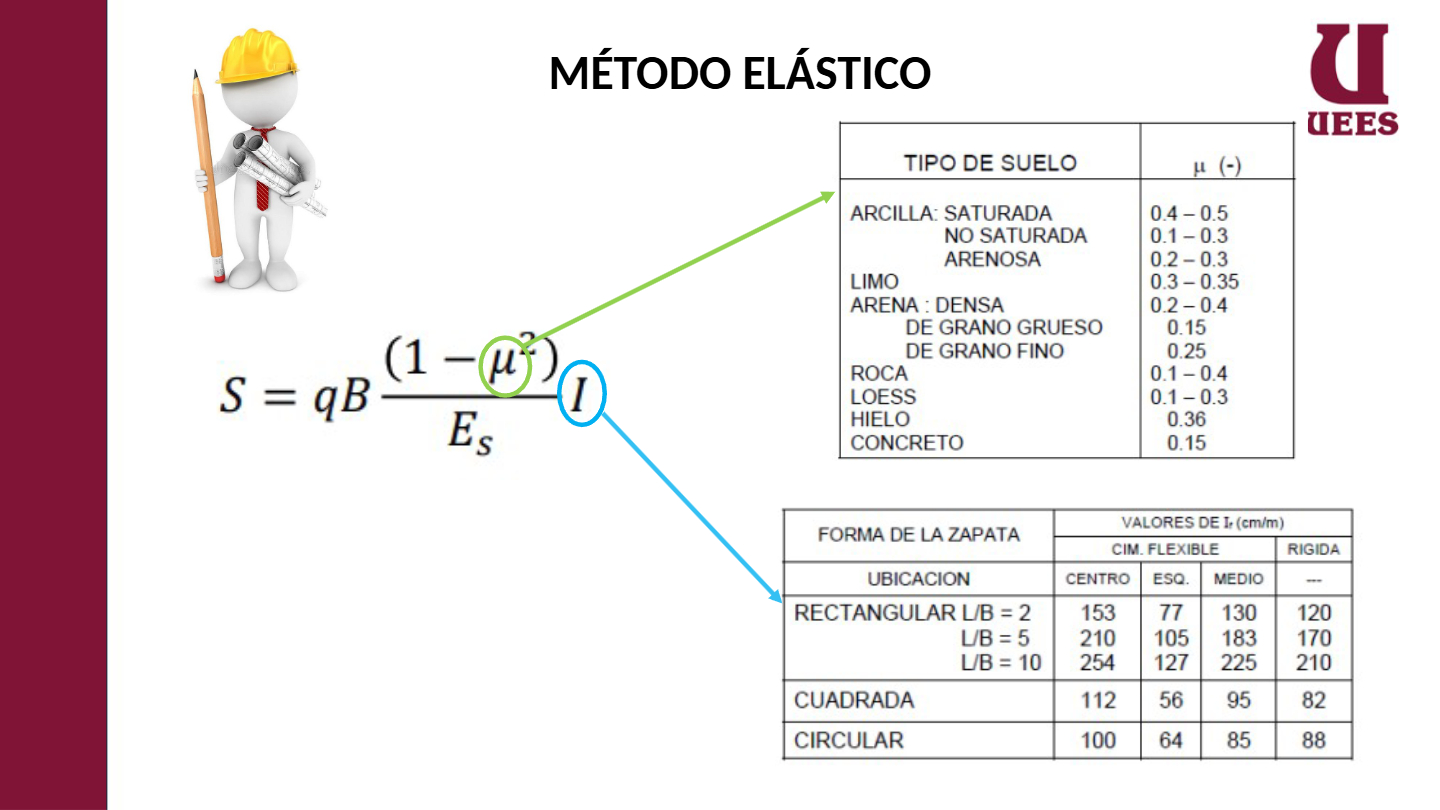

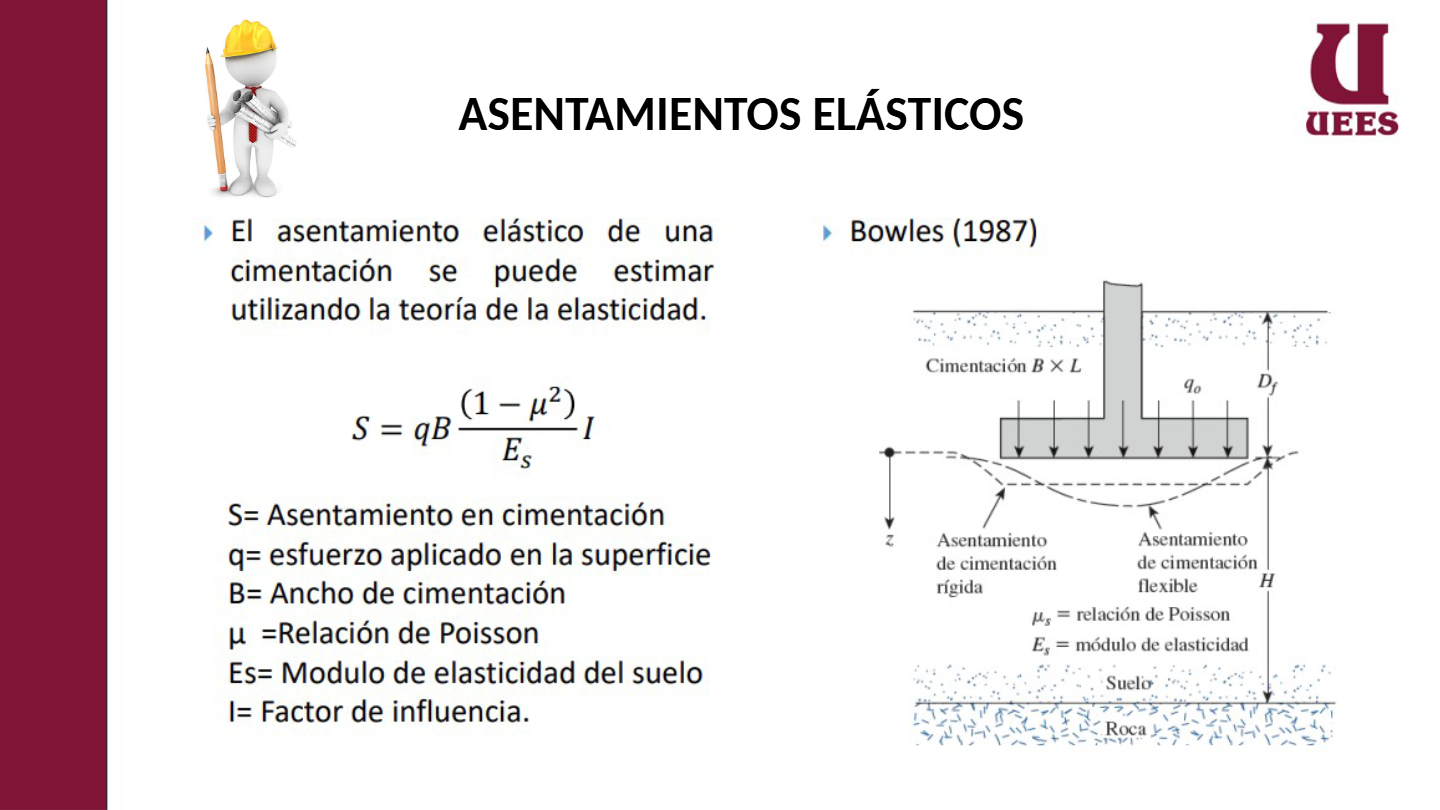

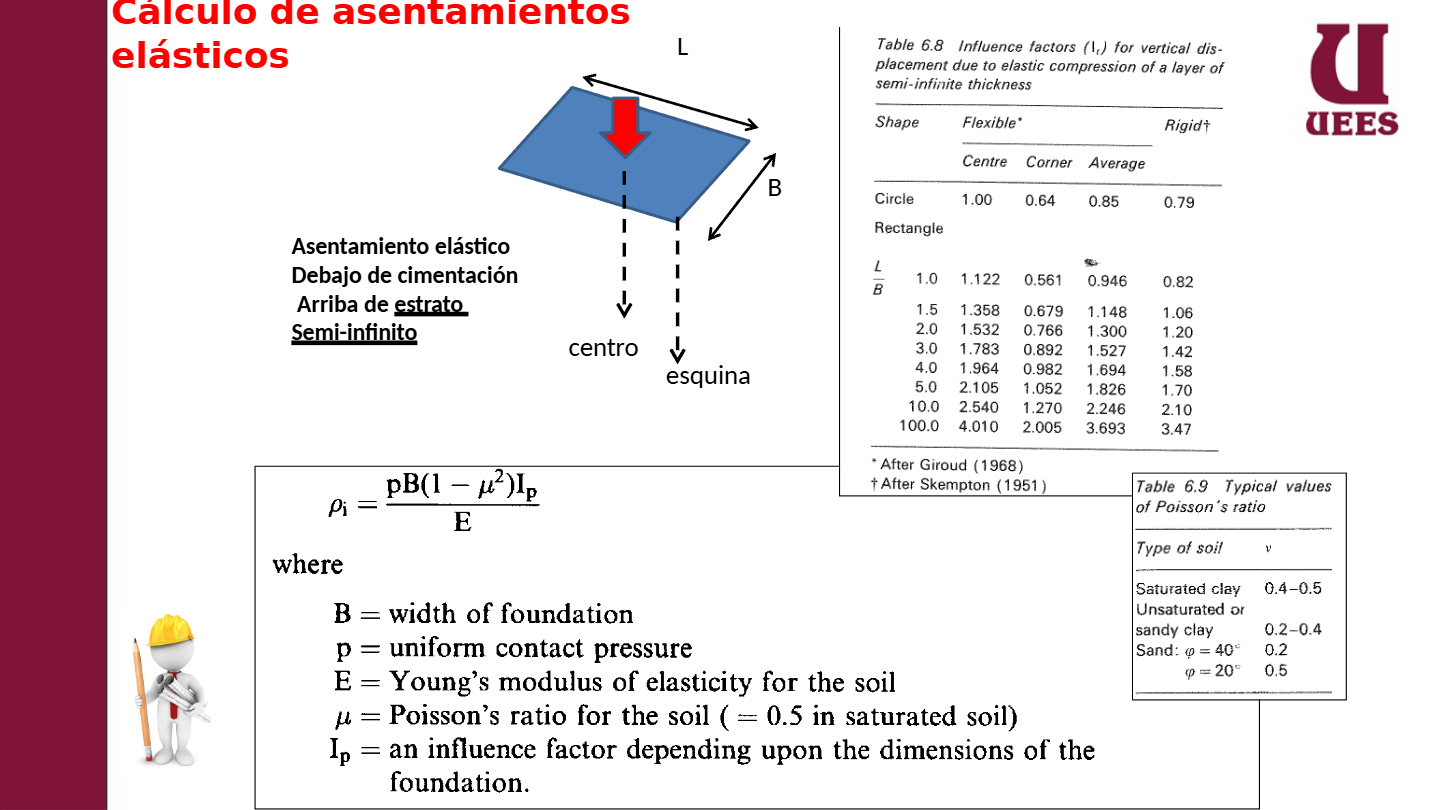

According to the elastic settlement formula S = qB(1-μ²)/Es * I, what does the symbol 'μ' represent?

• Poisson's ratio

• Soil density

• Foundation width

• Elastic modulus

Multiple Select

Which of the following values is the most appropriate for Poisson's ratio (ν) for saturated clay according to the provided table?

• 0.2

• 0.4

• 0.5

• 0.3

Multiple Choice

Which parameter in the elastic settlement formula represents the width of the foundation?

• B

• p

• E

• μ

Multiple Choice

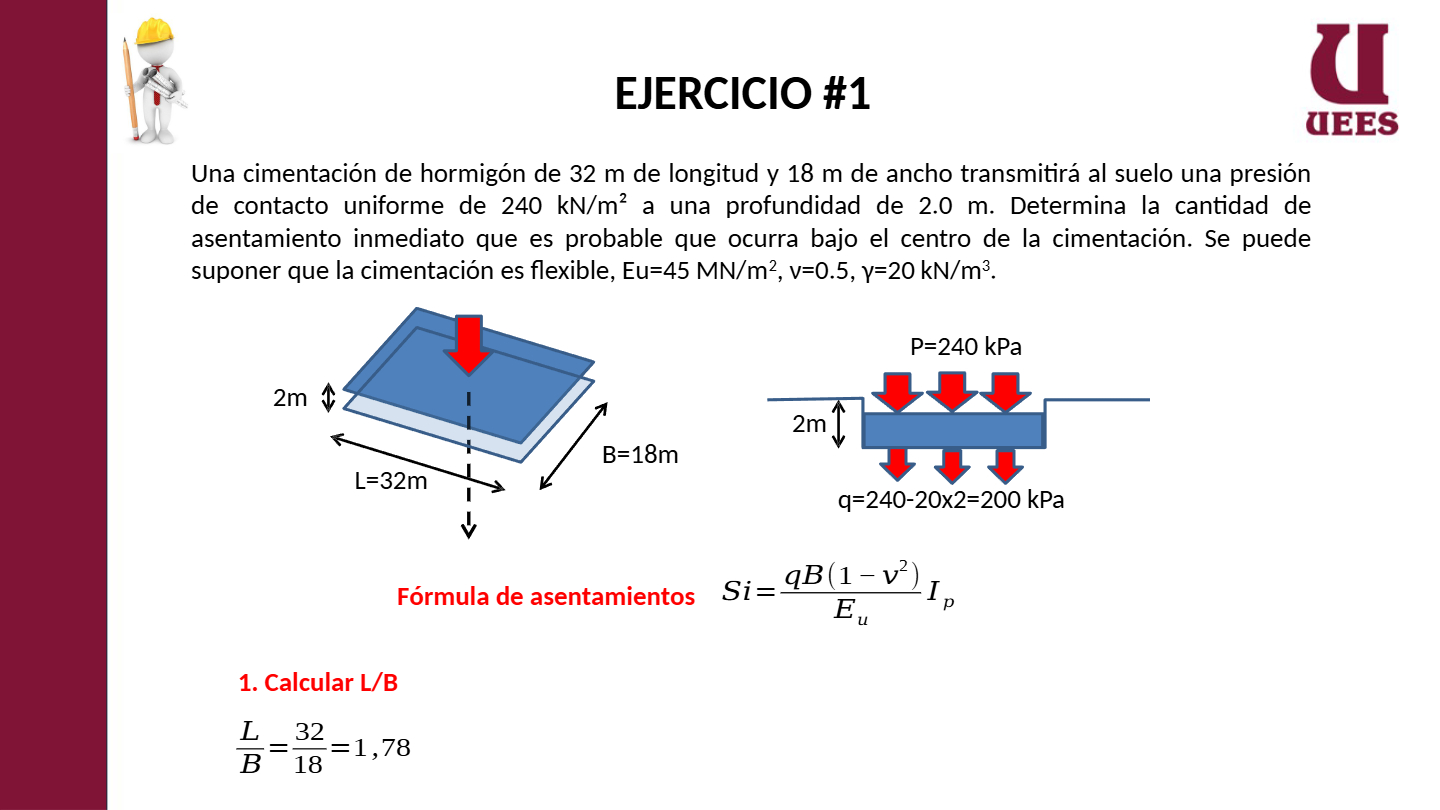

Given a foundation with L = 32 m and B = 18 m, what is the calculated value of L/B?

• 1.50

• 1.78

• 2.00

• 1.32

Open Ended

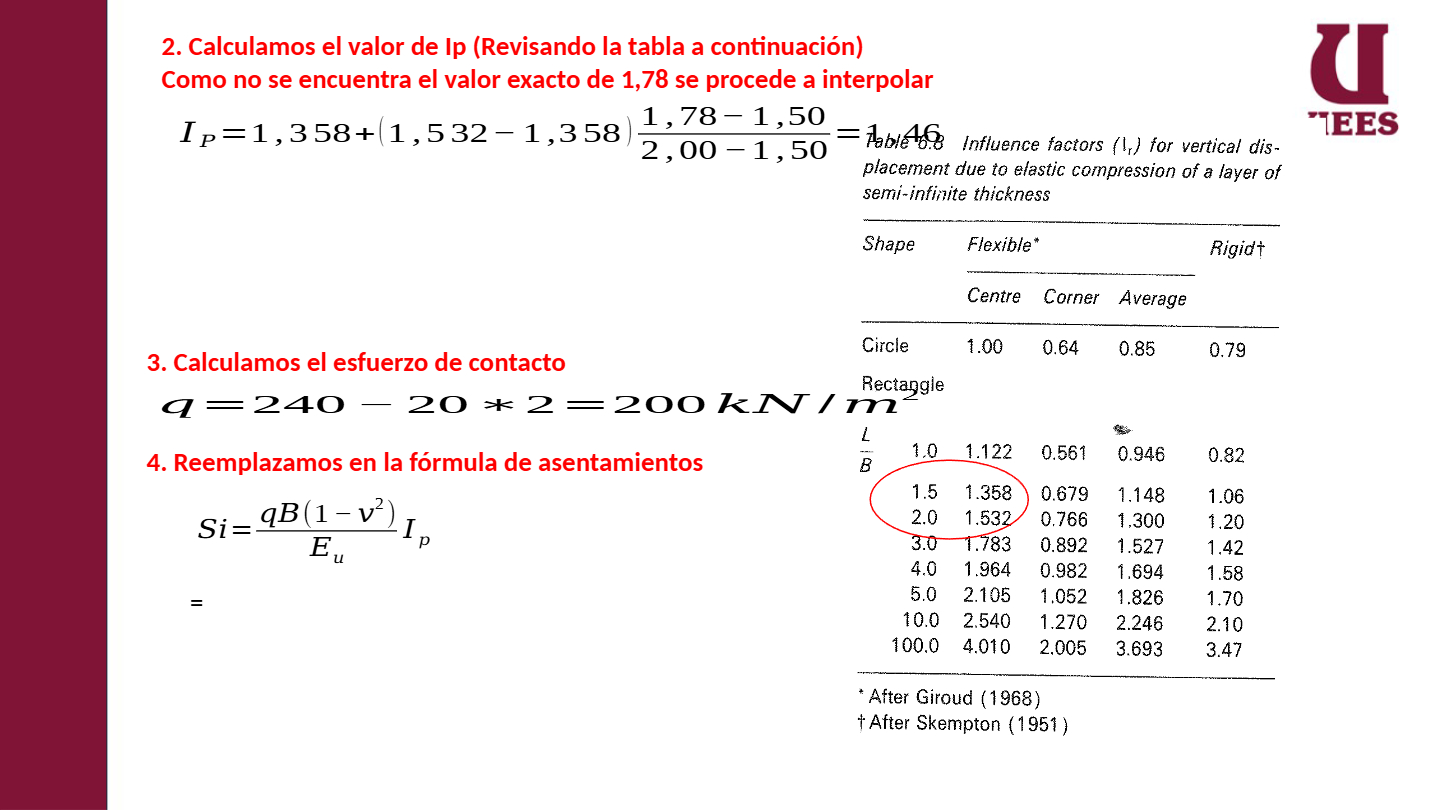

Explain the process of interpolating the influence factor Ip when the exact L/B value is not available in the table.

Open Ended

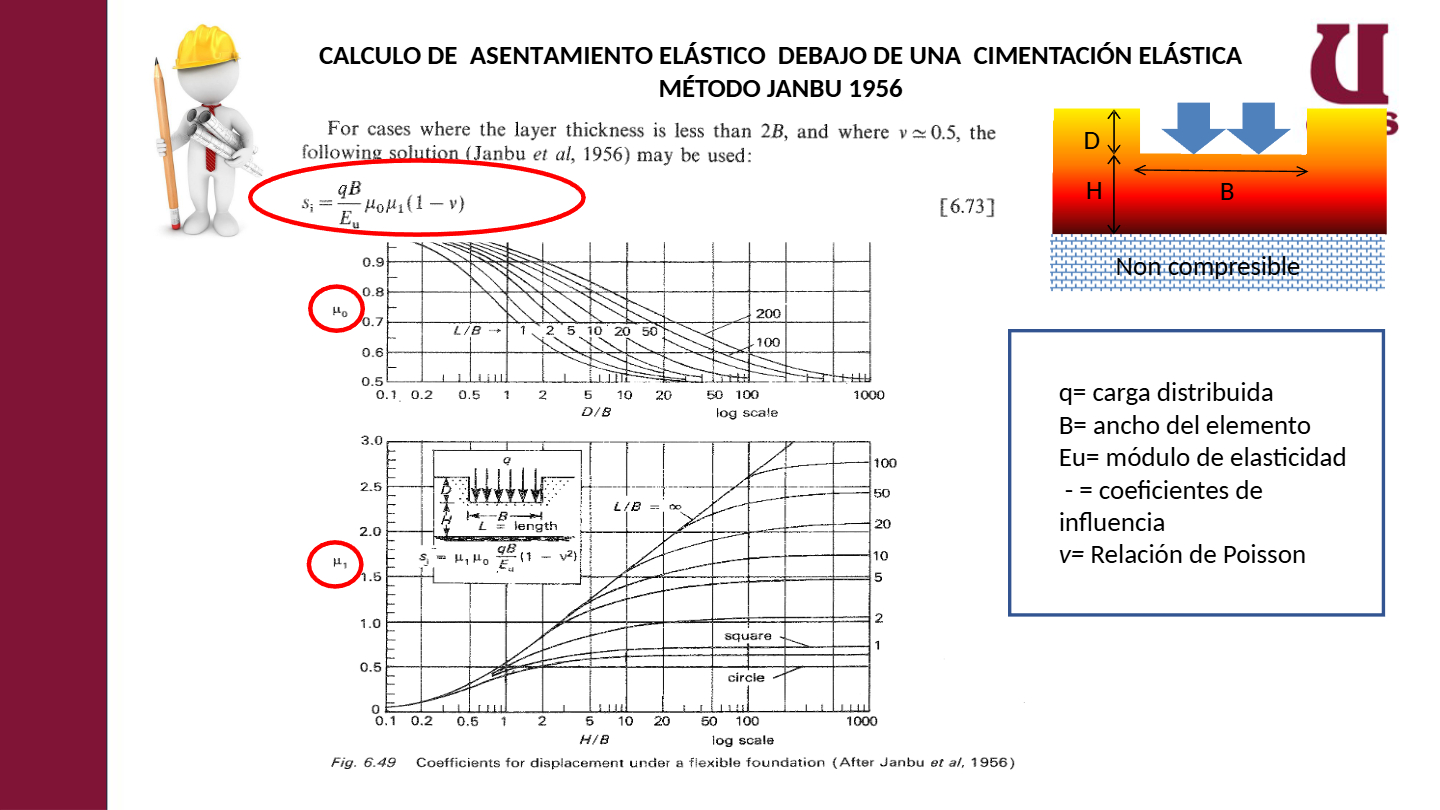

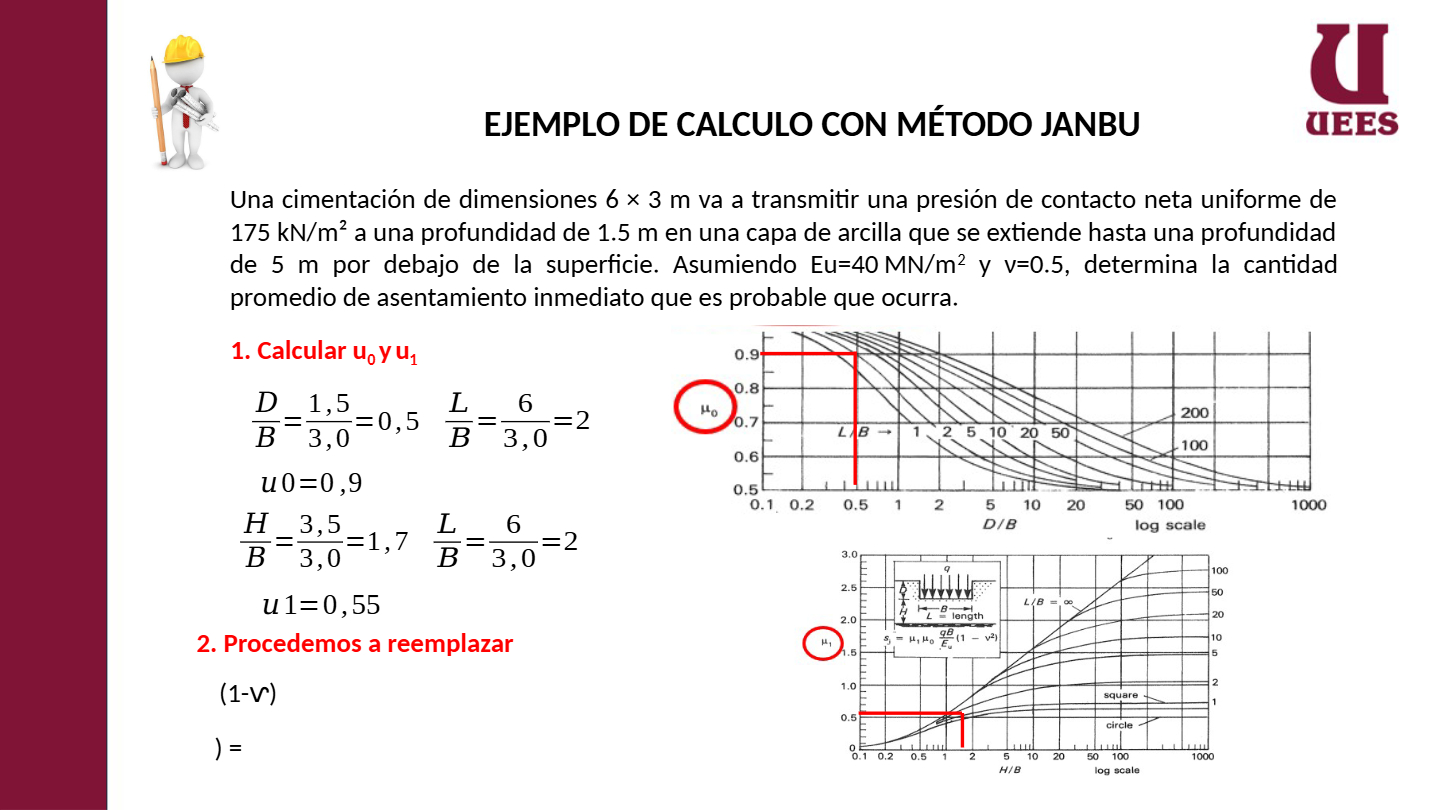

Compare the use of the influence factor Ip and the coefficients μ₀ and μ₁ in the calculation of elastic settlement for foundations. How do these approaches differ in terms of application and interpretation?

Multiple Choice

Which of the following topics was NOT covered in today's geotechnics session?

• Introduction

• Types of settlements

• Elastic settlements

• Soil compaction

Open Ended

Reflecting on today's lesson about settlements in geotechnics, what is one concept you found most interesting or would like to learn more about?
