DRILLING EQUIPMENT

Multiple Choice

What is the main objective of providing orientation to operators on Rotary, Pneumatic, and Hydraulic drilling machines?

• To prevent machine damage, time loss, project delays, and additional costs

• To increase the speed of drilling

• To reduce the number of operators required

• To eliminate the need for maintenance

Multiple Select

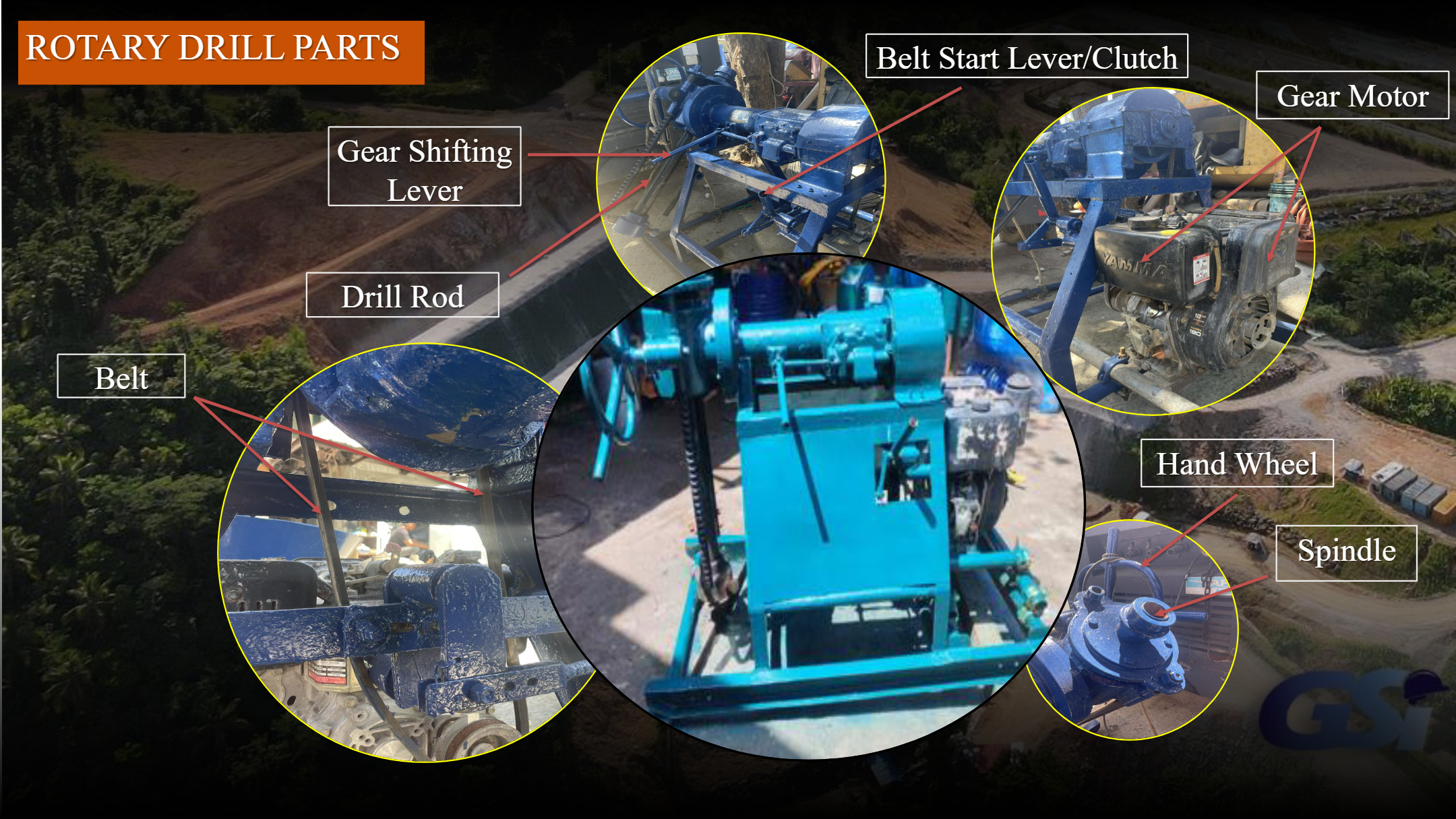

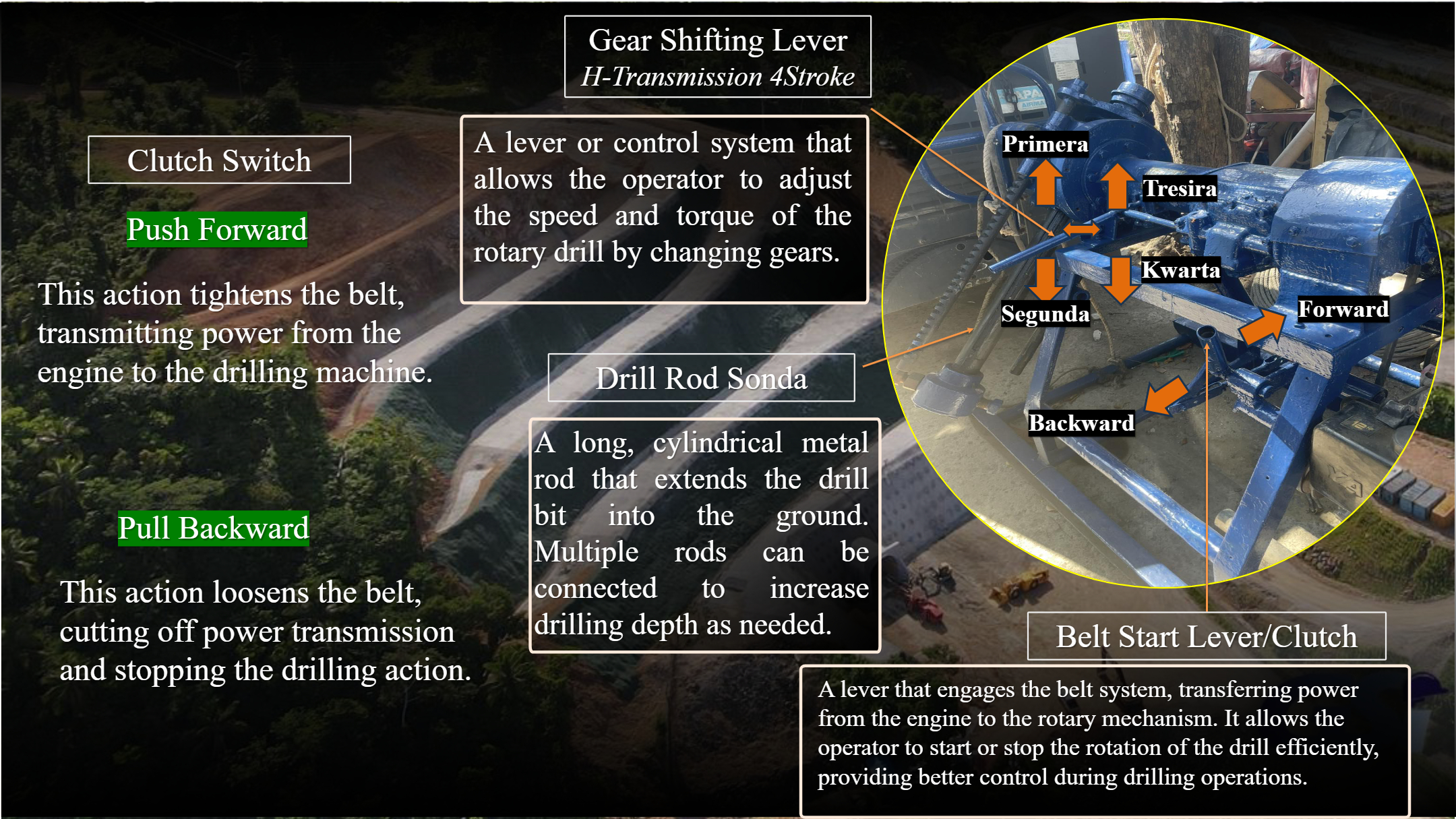

Which of the following are parts of a rotary drill?

• Gear Shifting Lever

• Drill Rod

• Belt

• Hydraulic Pump

Multiple Choice

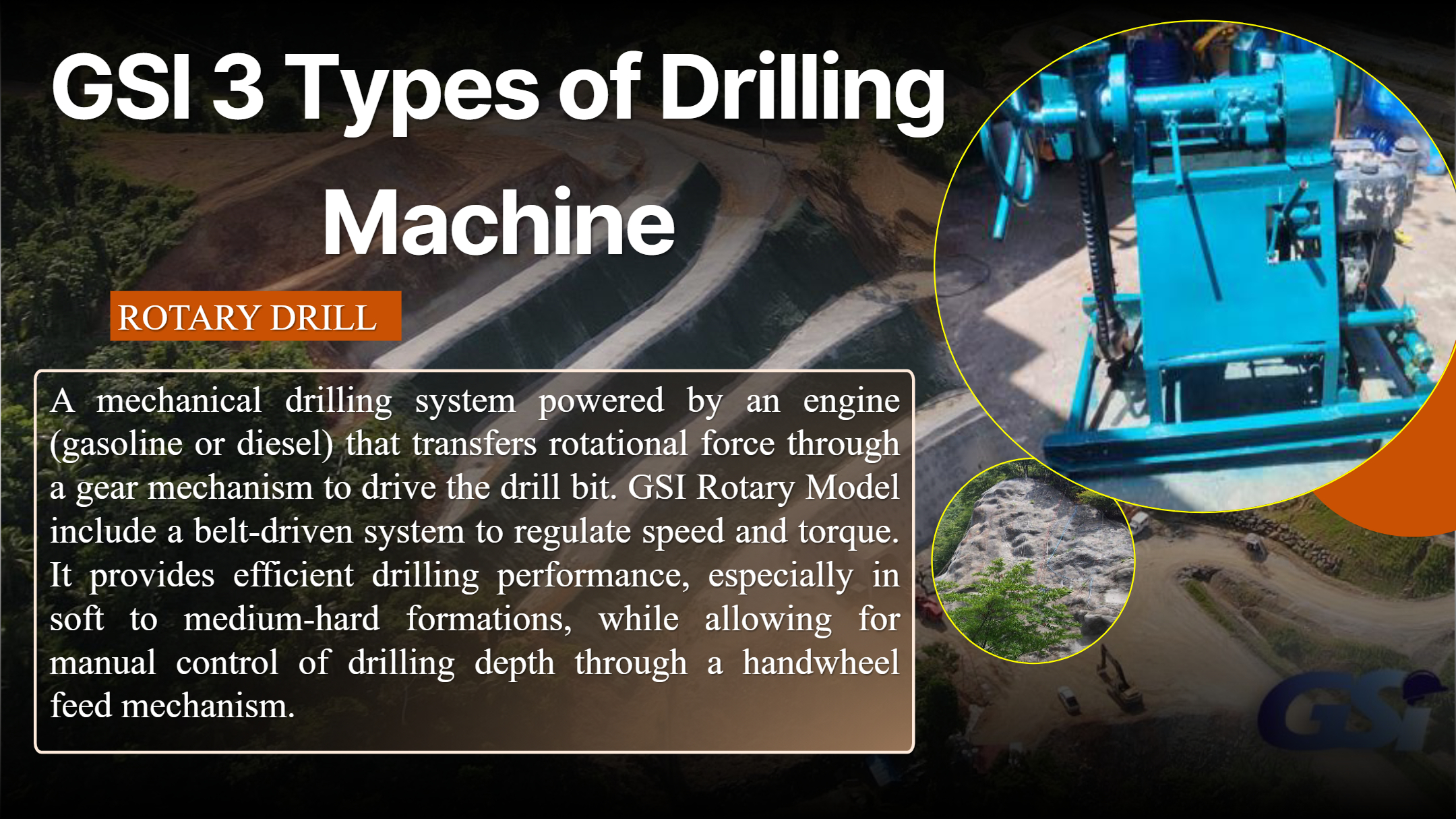

Explain how the belt-driven system in a GSI Rotary Drill contributes to its operation and performance.

• The belt-driven system transmits power efficiently, reduces vibrations, and ensures consistent speed, improving drilling performance.
• The belt-driven system is used to enhance the visual aesthetics of the drill design.
• The belt-driven system primarily focuses on cooling the drill bit during operation.
• The belt-driven system increases weight, causing slower drilling speeds.

Fill in the Blank

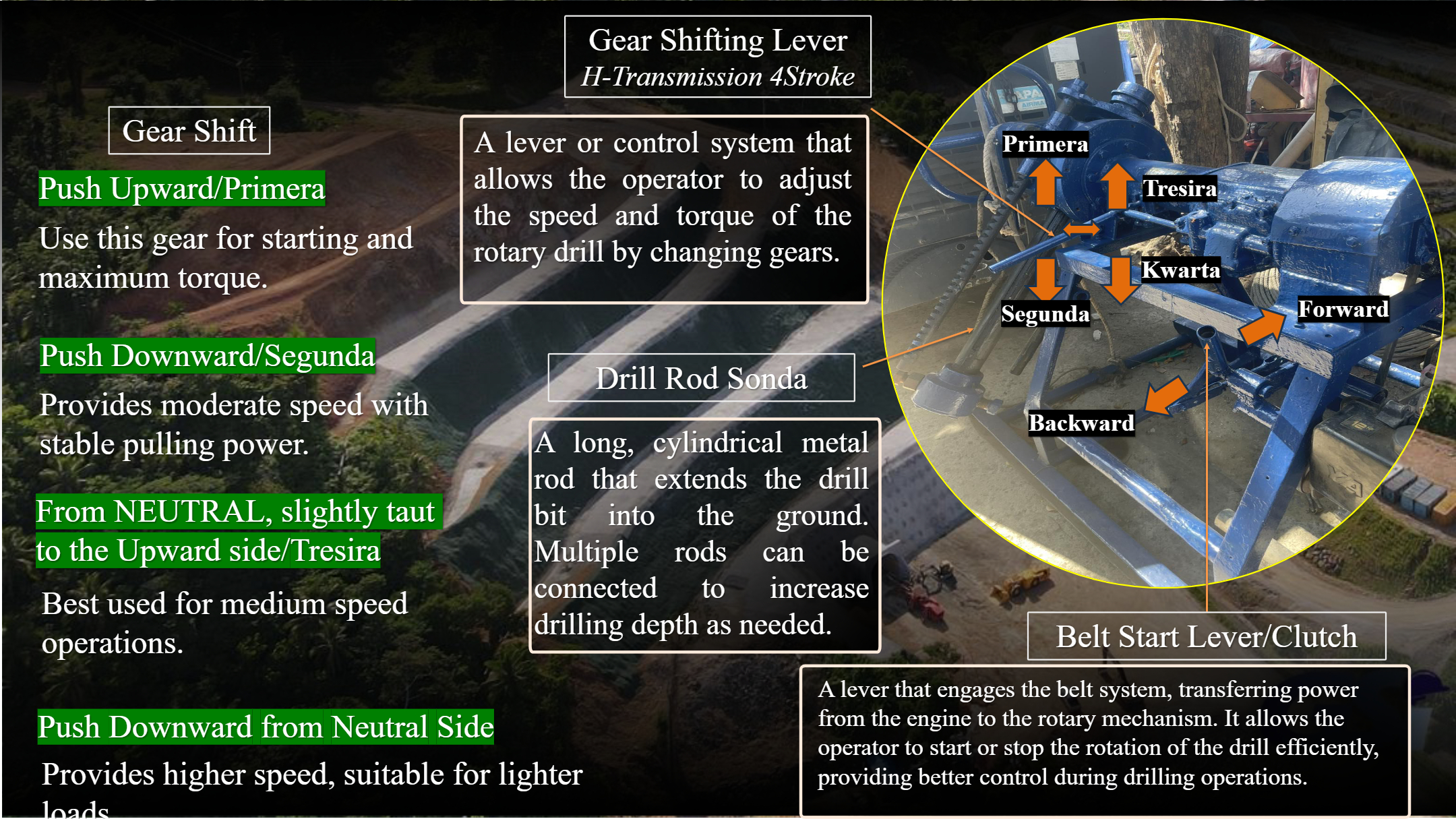

Push Upward/Primera gear is used for ___ torque.

Multiple Choice

Describe the function of the clutch switch in the rotary drill system and its impact on drilling operations.

• The clutch switch controls the engagement of the drill motor, impacting safety and operational control during drilling.
• The clutch switch adjusts the depth of drilling, ensuring consistent hole sizes throughout the operation.
• The clutch switch monitors the temperature of the drill motor, preventing overheating during use.
• The clutch switch regulates the speed of the drill bit, enhancing efficiency during operations.

Multiple Choice

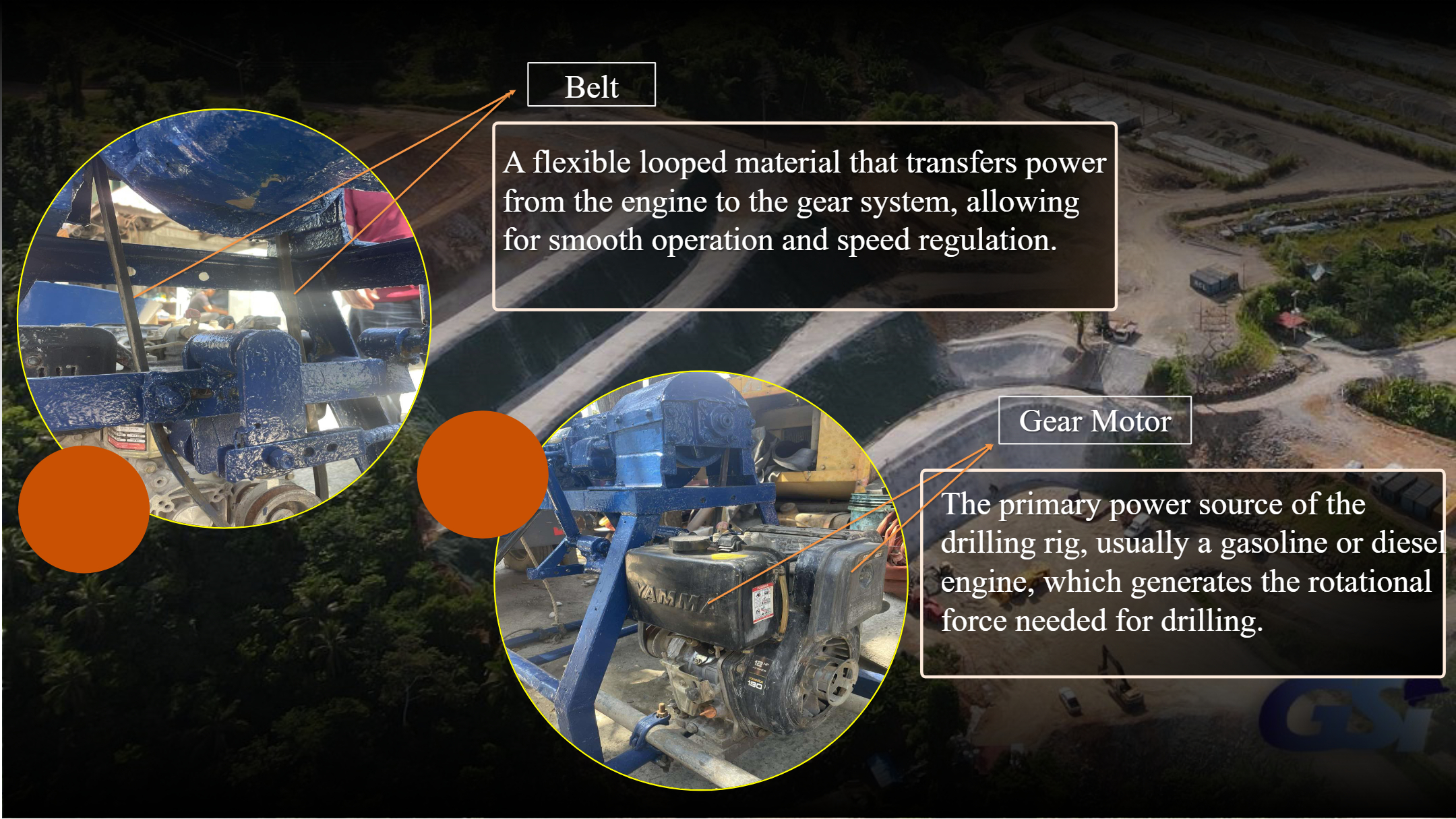

What is the primary role of the gear motor in the rotary drill system?

• To generate rotational force needed for drilling

• To regulate the speed of the drill

• To transfer power from the engine to the belt

• To control the depth of drilling

Fill in the Blank

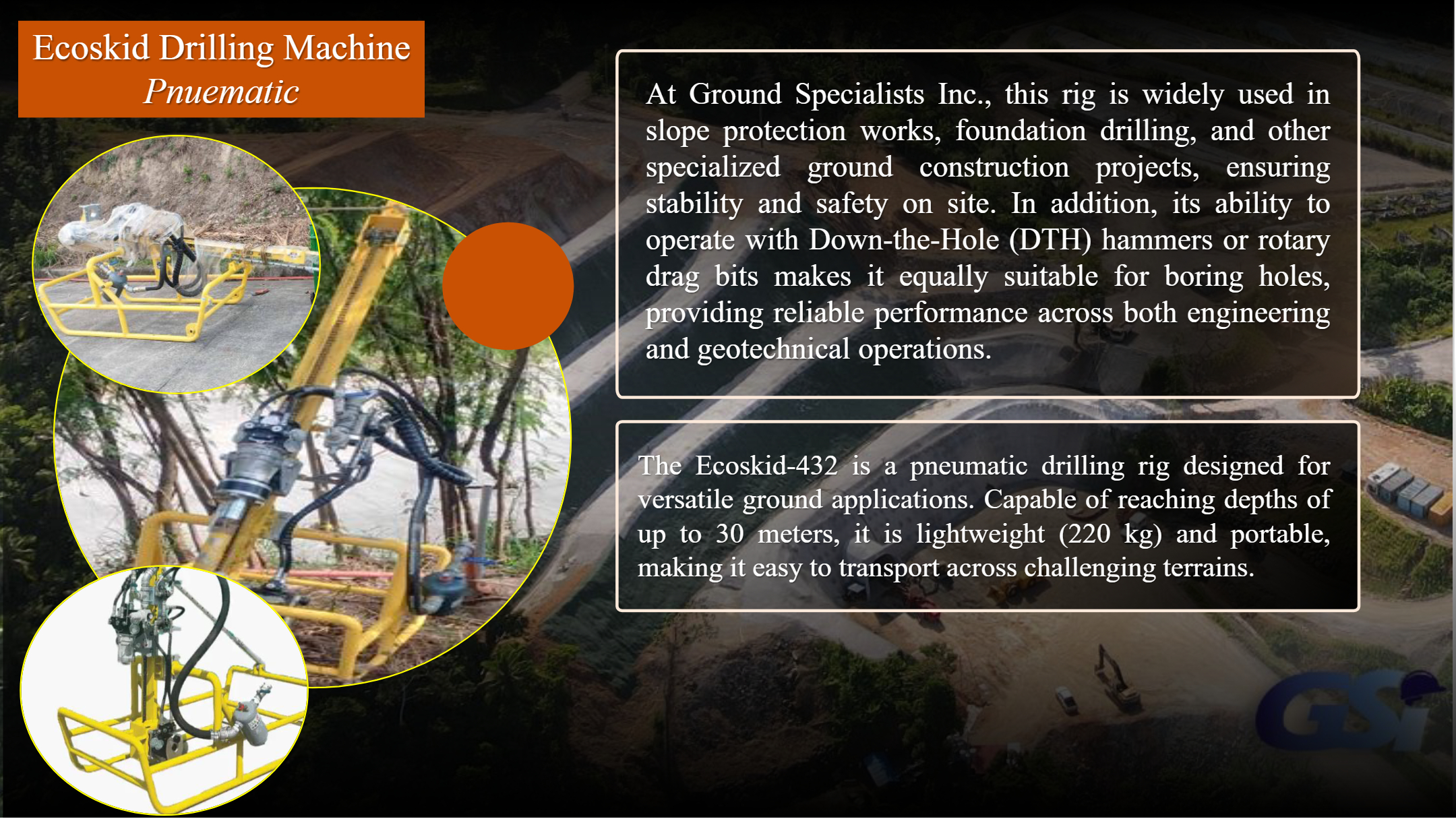

The required operating pressure for the Ecoskid Drilling Machine is ___ bars.

Multiple Choice

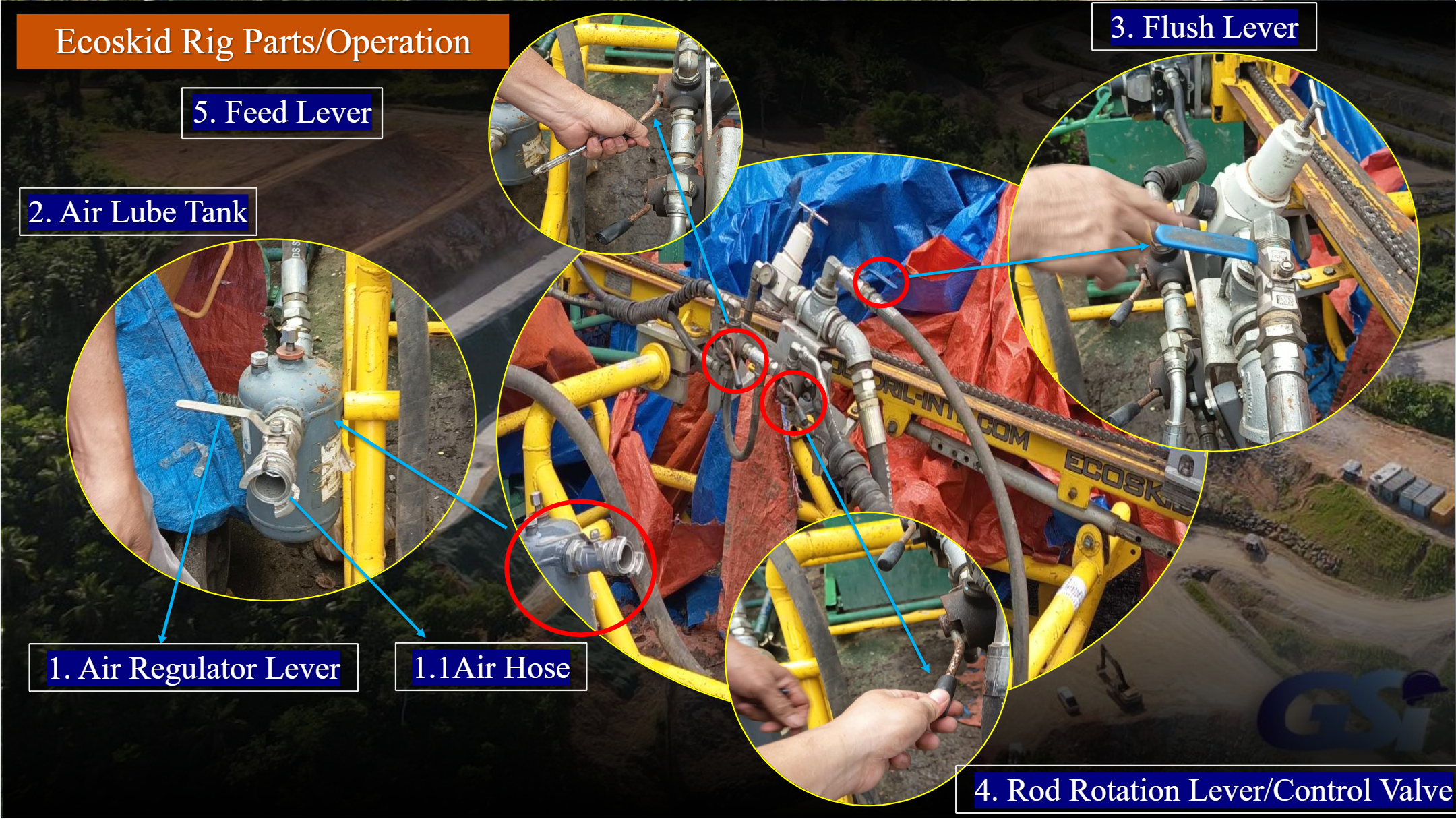

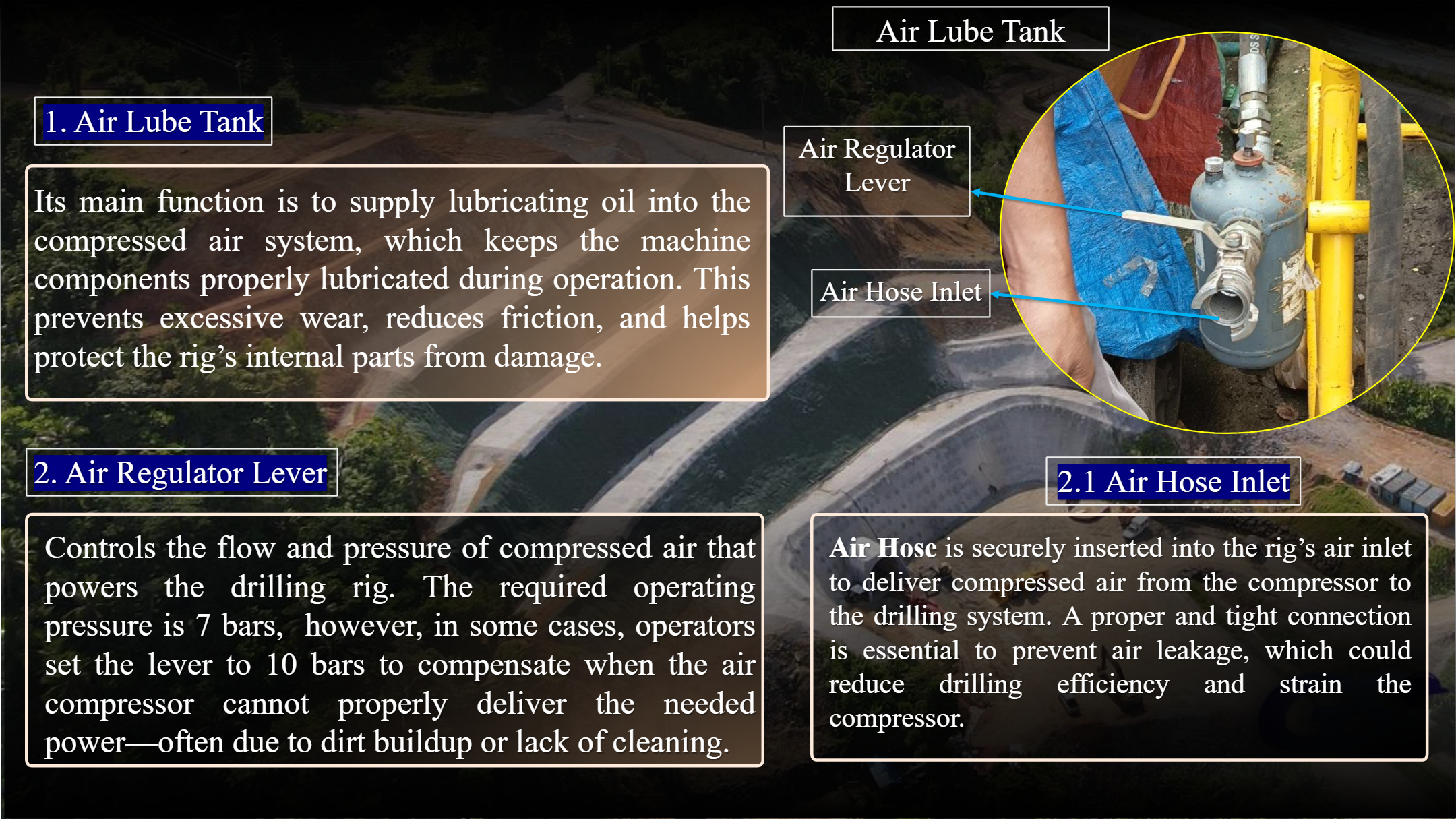

Which part of the Ecoskid Drilling Machine is responsible for controlling the flow and pressure of compressed air?

• Air Lube Tank

• Air Regulator Lever

• Flush Lever

• Feed Lever

Multiple Choice

What is the main function of the Air Lube Tank in the Ecoskid Drilling Machine?

• To supply lubricating oil into the compressed air system

• To regulate air pressure

• To flush out dirt and debris

• To rotate the drill rod

Multiple Choice

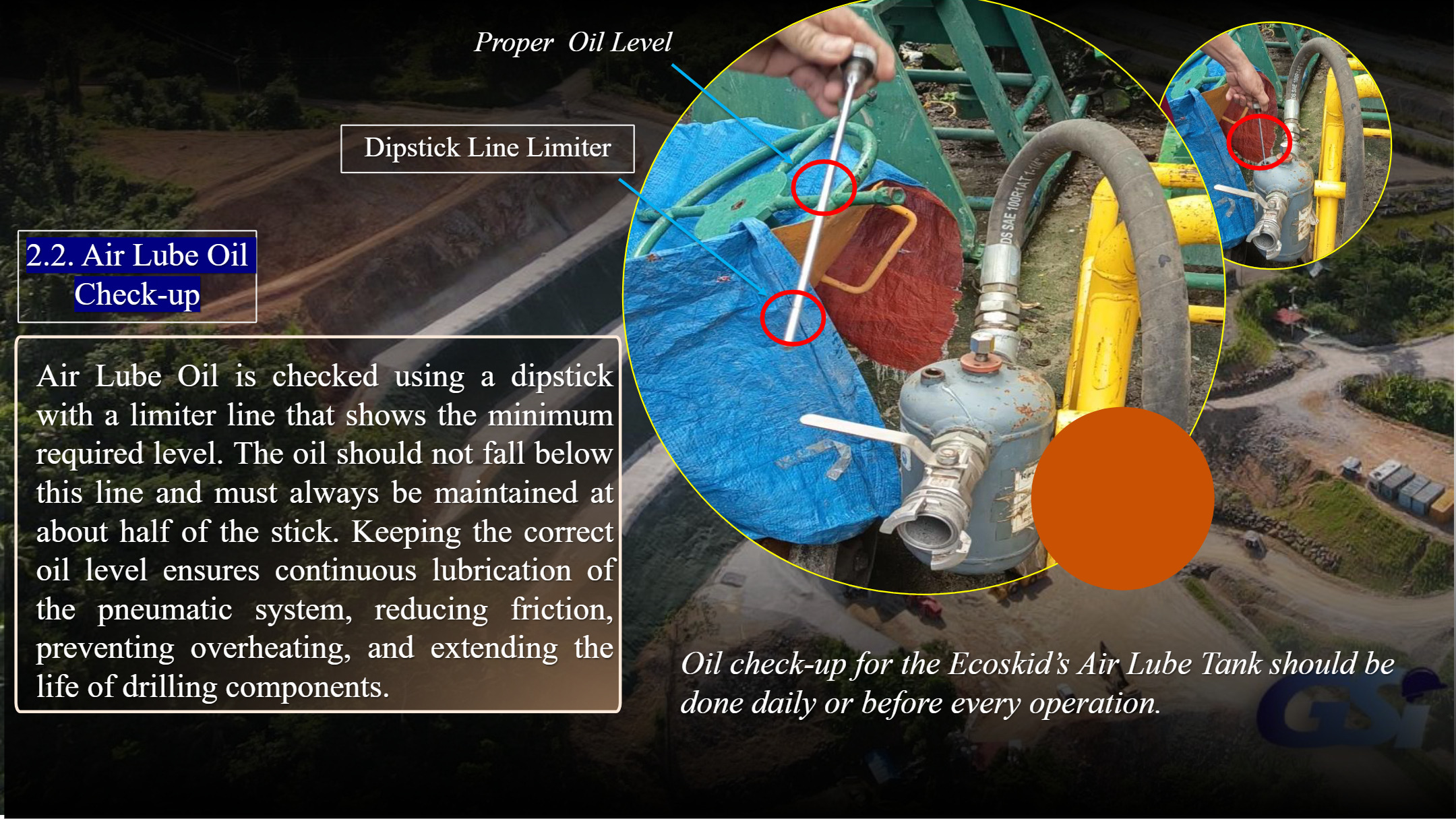

Explain the process and importance of checking the air lube oil level in the Ecoskid Drilling Machine before operation.

• Checking the air lube oil level is only necessary after extensive use.
• Monitoring the air lube oil level has no impact on machine performance.
• The air lube oil level should be checked only during maintenance schedules.
• Checking the air lube oil level is essential for ensuring proper lubrication, preventing overheating, and extending the lifespan of the Ecoskid Drilling Machine.

Multiple Choice

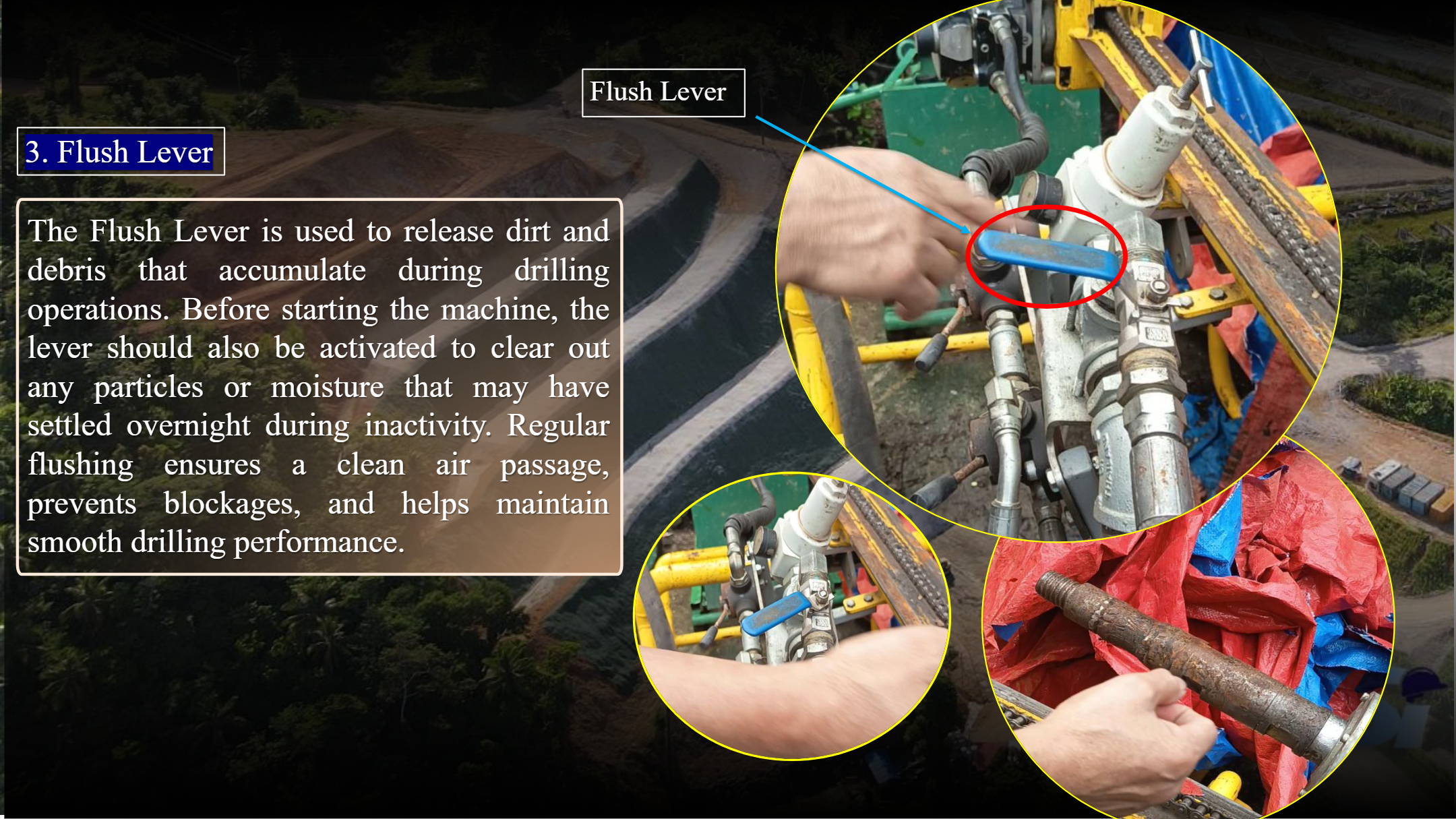

Which of the following are functions of the Flush Lever in the Ecoskid Drilling Machine?

• Releasing dirt and debris

• Regulating air pressure

• Ensuring a clean air passage

• Preventing blockages

Multiple Choice

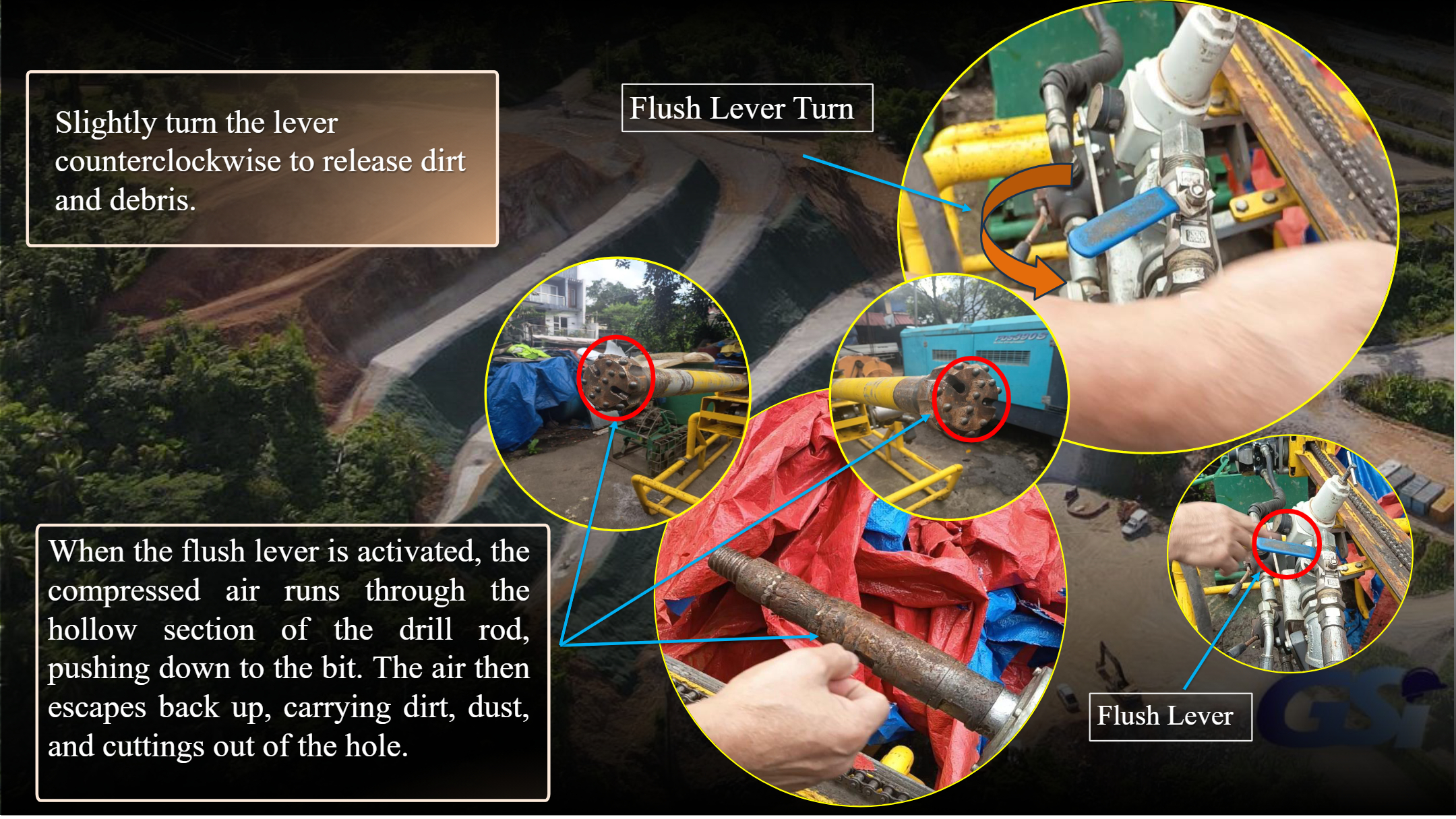

When the flush lever is activated, what happens to the compressed air in the drill rod?

• It lubricates the drill rod

• It escapes through the air hose

• It pushes down to the bit and carries dirt, dust, and cuttings out of the hole

• It increases the pressure in the air lube tank

Multiple Choice

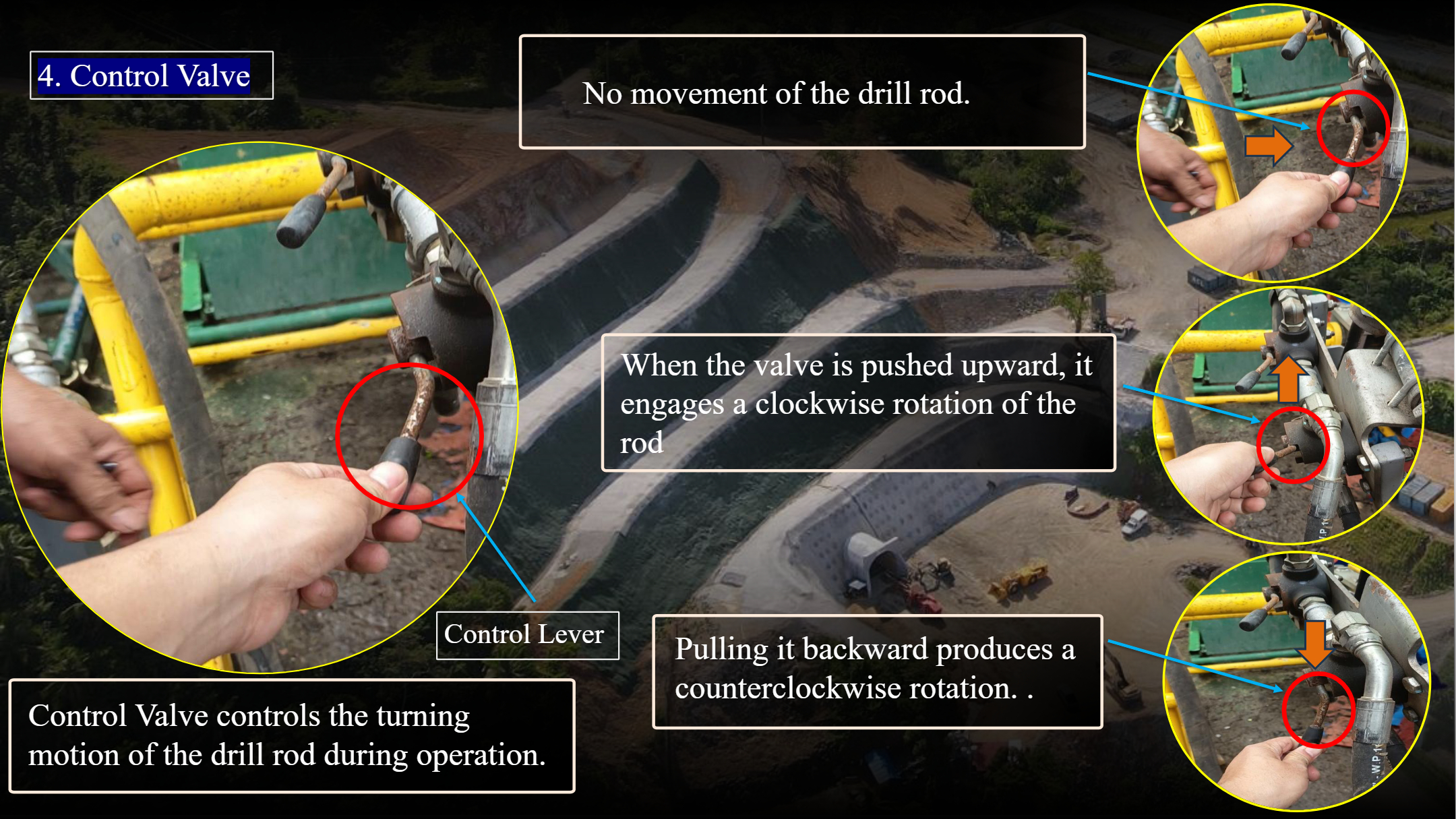

What is the function of the control valve in the operation of the drill rod?

• It controls the speed of the drill rod.

• It controls the turning motion of the drill rod.

• It controls the temperature of the drill rod.

• It controls the pressure in the drill rod.

Multiple Choice

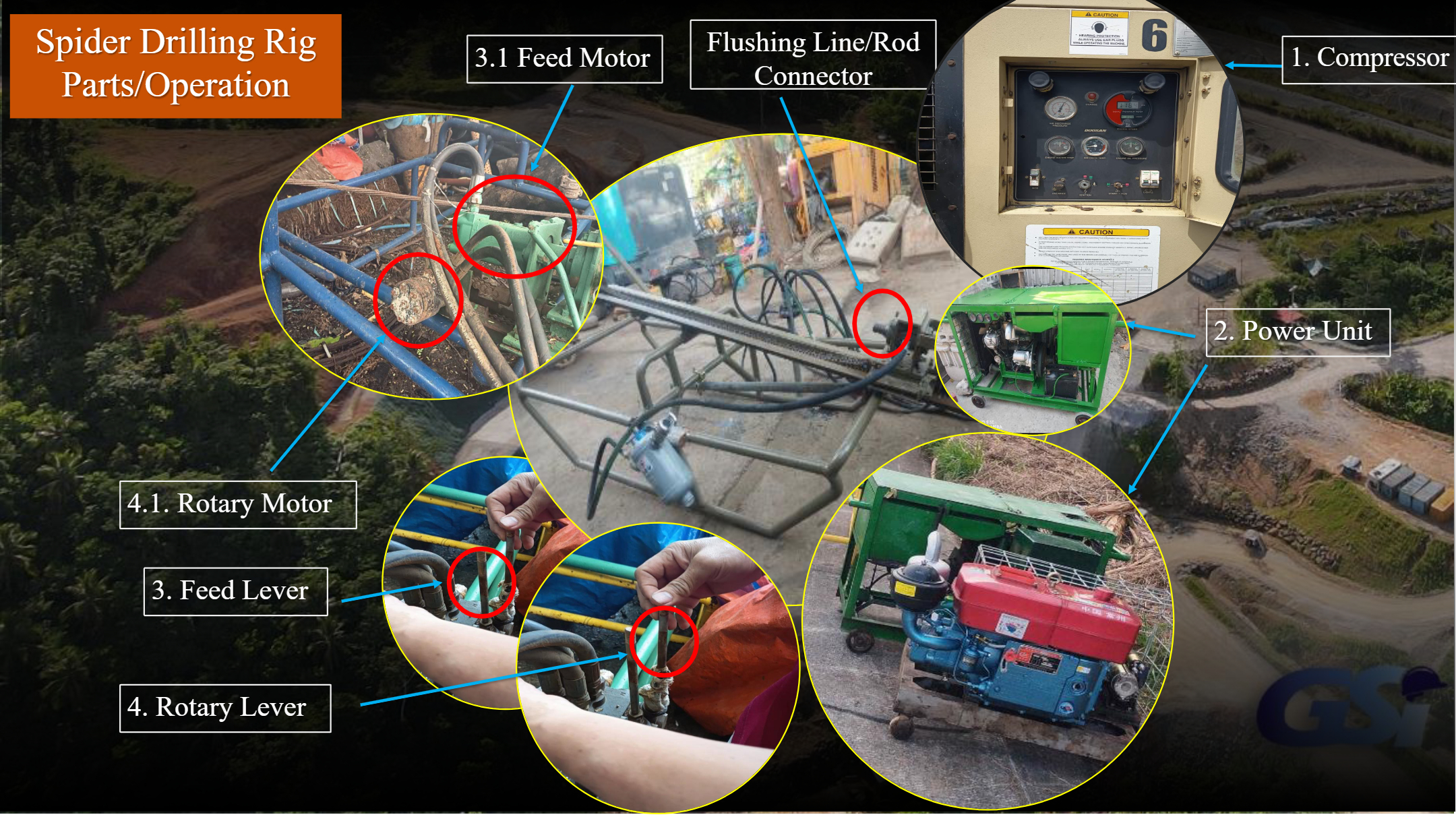

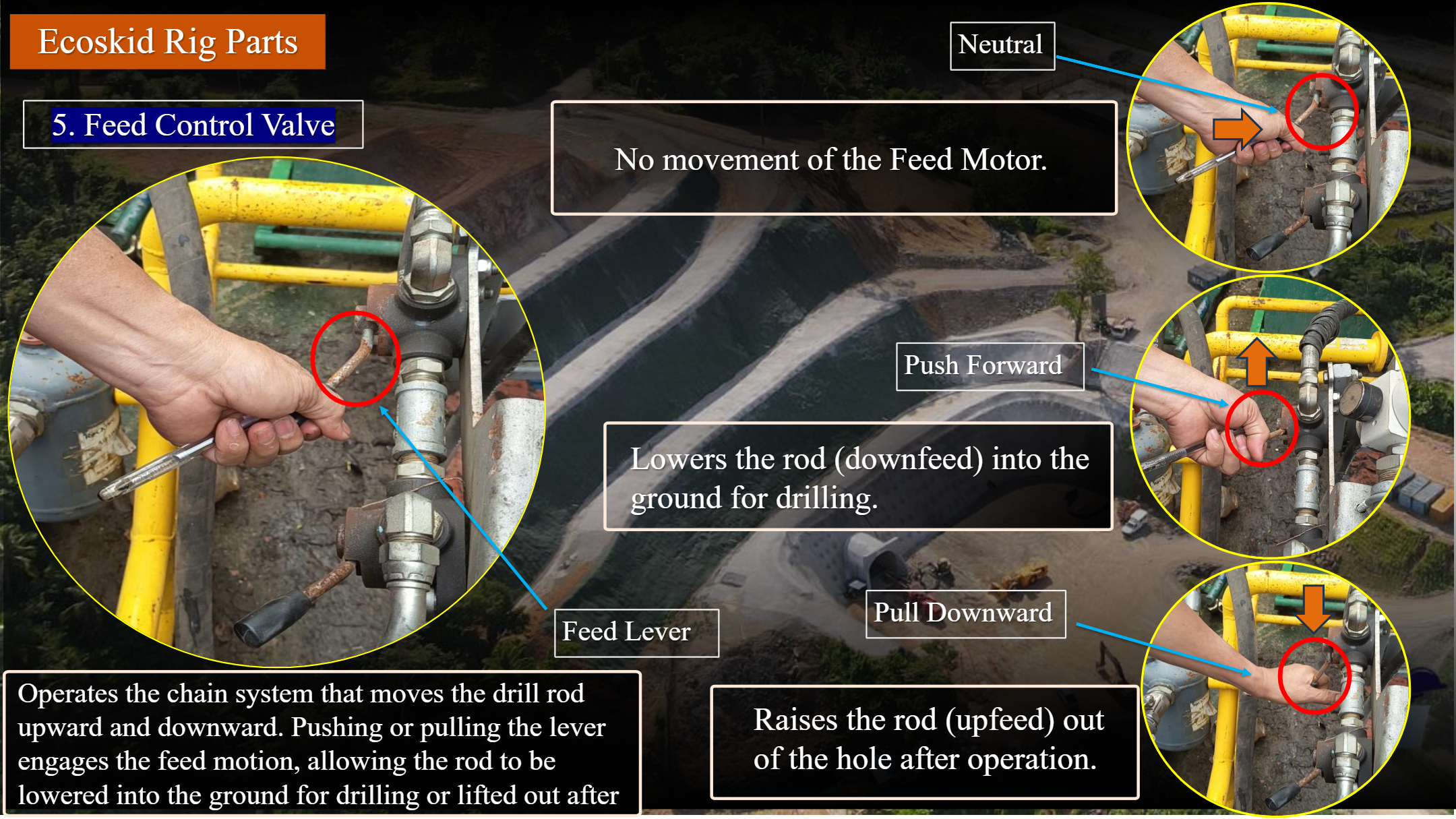

Which actions are performed by pushing or pulling the feed lever on the Ecoskid rig?

• Lowers the rod for drilling

• Raises the rod out of the hole

• Turns the rod clockwise

• Stops the feed motor

Multiple Choice

Explain how the feed control valve operates the chain system to move the drill rod upward and downward.

• The feed control valve operates by regulating hydraulic fluid flow to move the drill rod upward and downward through a connected chain system.
• The feed control valve manages the electrical signals to the drill rod for movement.
• The feed control valve directly powers the drill motor to control its speed.
• The feed control valve adjusts the temperature of the drill rod for optimal performance.

Multiple Choice

What are the three main categories identified for operational risks in Ecoskid utilization?

• Root cause, contributing factors, corrective actions

• Mechanical failure, human error, weather conditions

• Planning, execution, evaluation

• Inspection, maintenance, operation

Multiple Choice

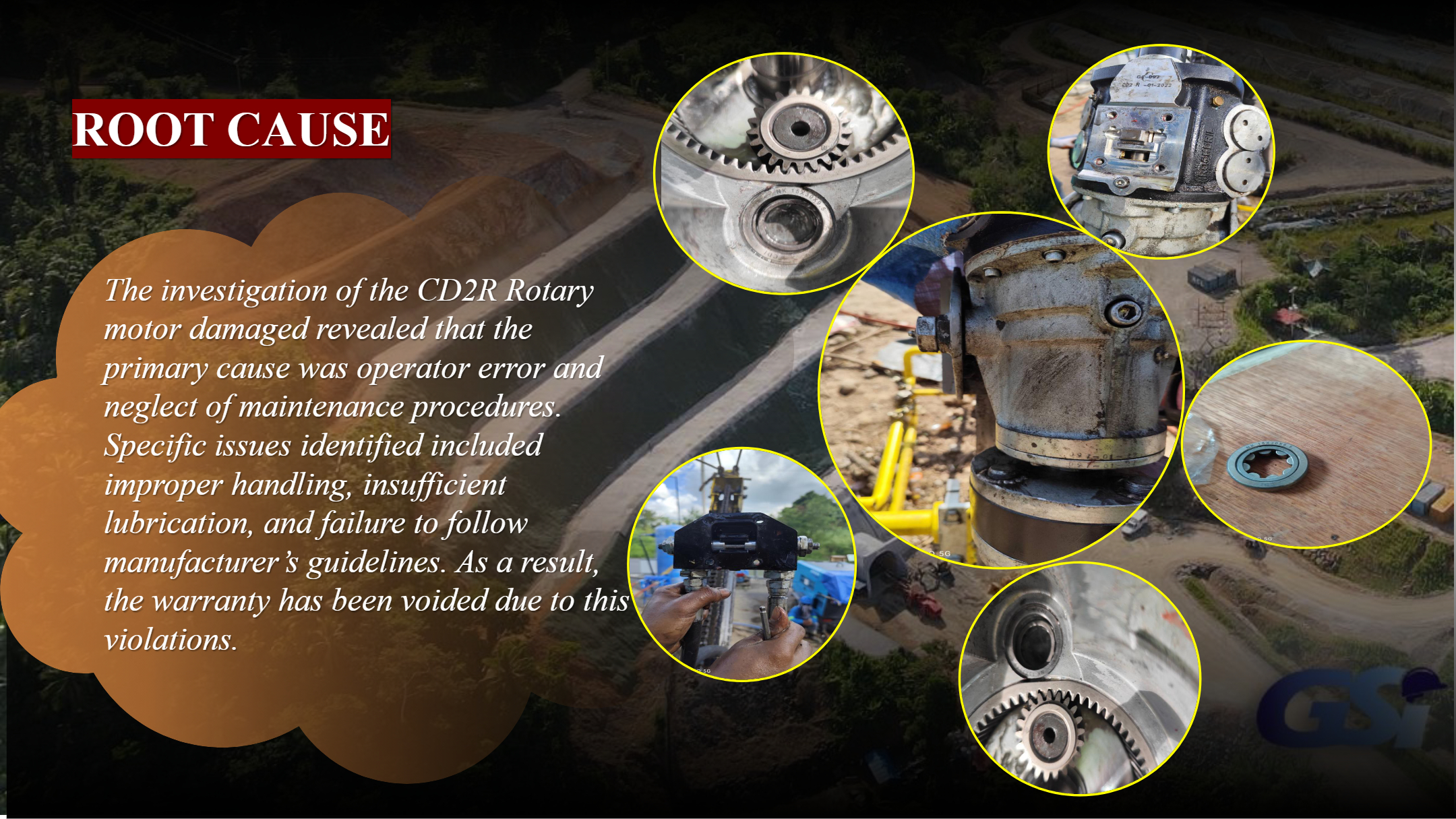

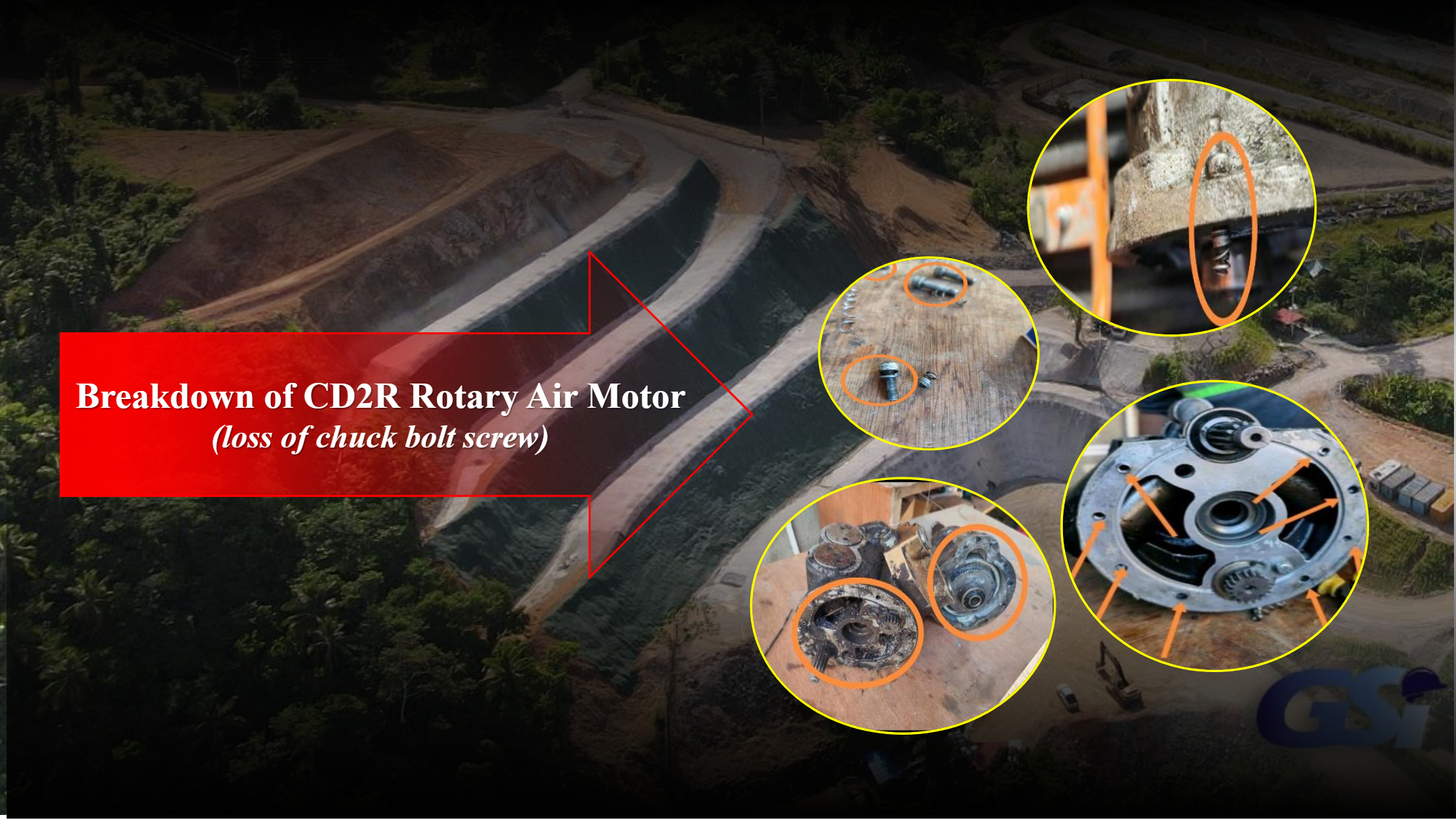

Describe the root cause of the breakdown of the CD2R Rotary Air Motor as shown in the images.

• Contamination of air supply resulting in reduced performance.
• Wear and tear on internal components leading to loss of pressure and efficiency.
• Improper assembly leading to misalignment and noise.
• Insufficient lubrication causing overheating and failure.

Fill in the Blank

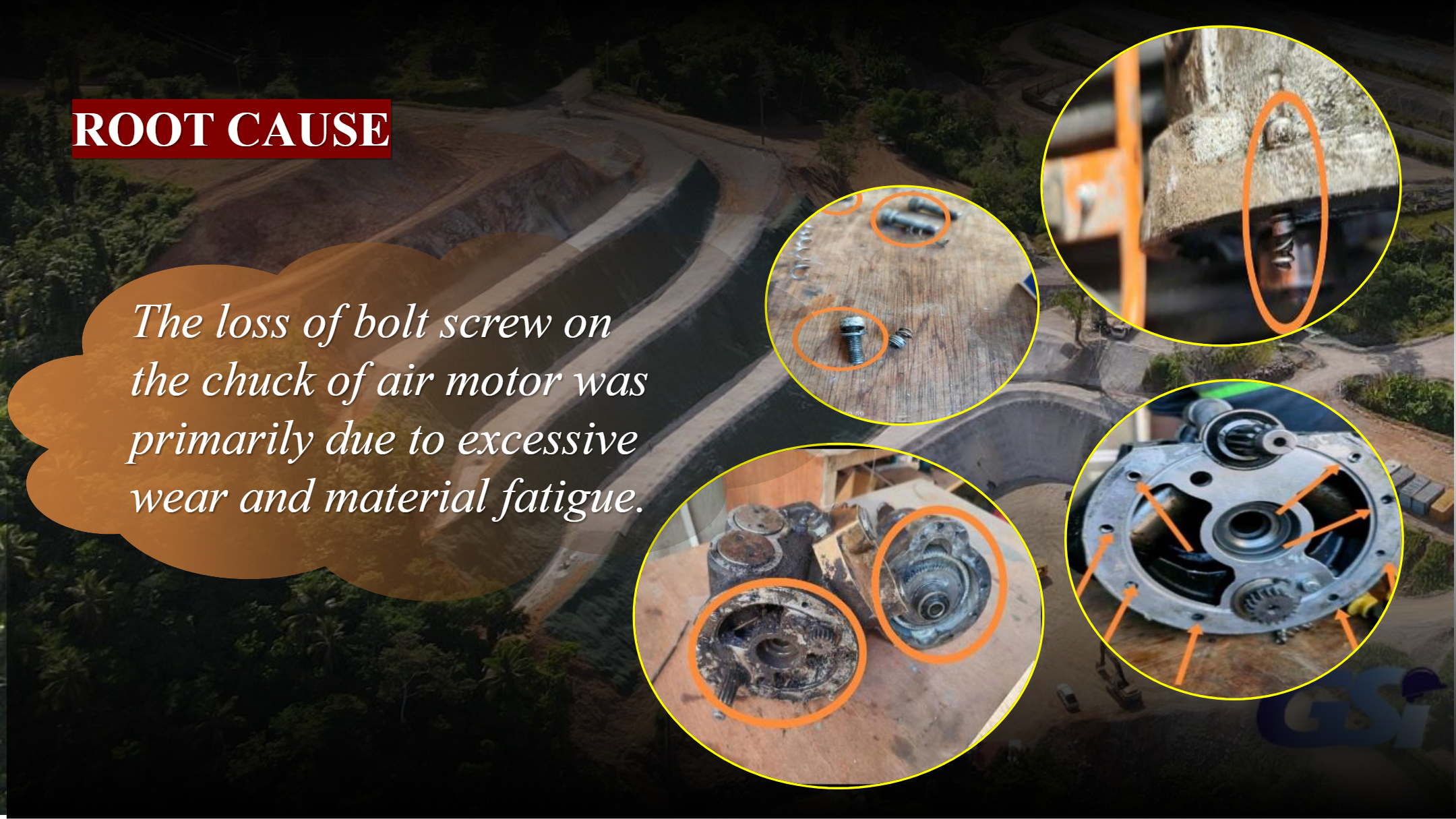

The loss of bolt screw on the chuck of air motor was primarily due to excessive ___ and material fatigue.

Multiple Choice

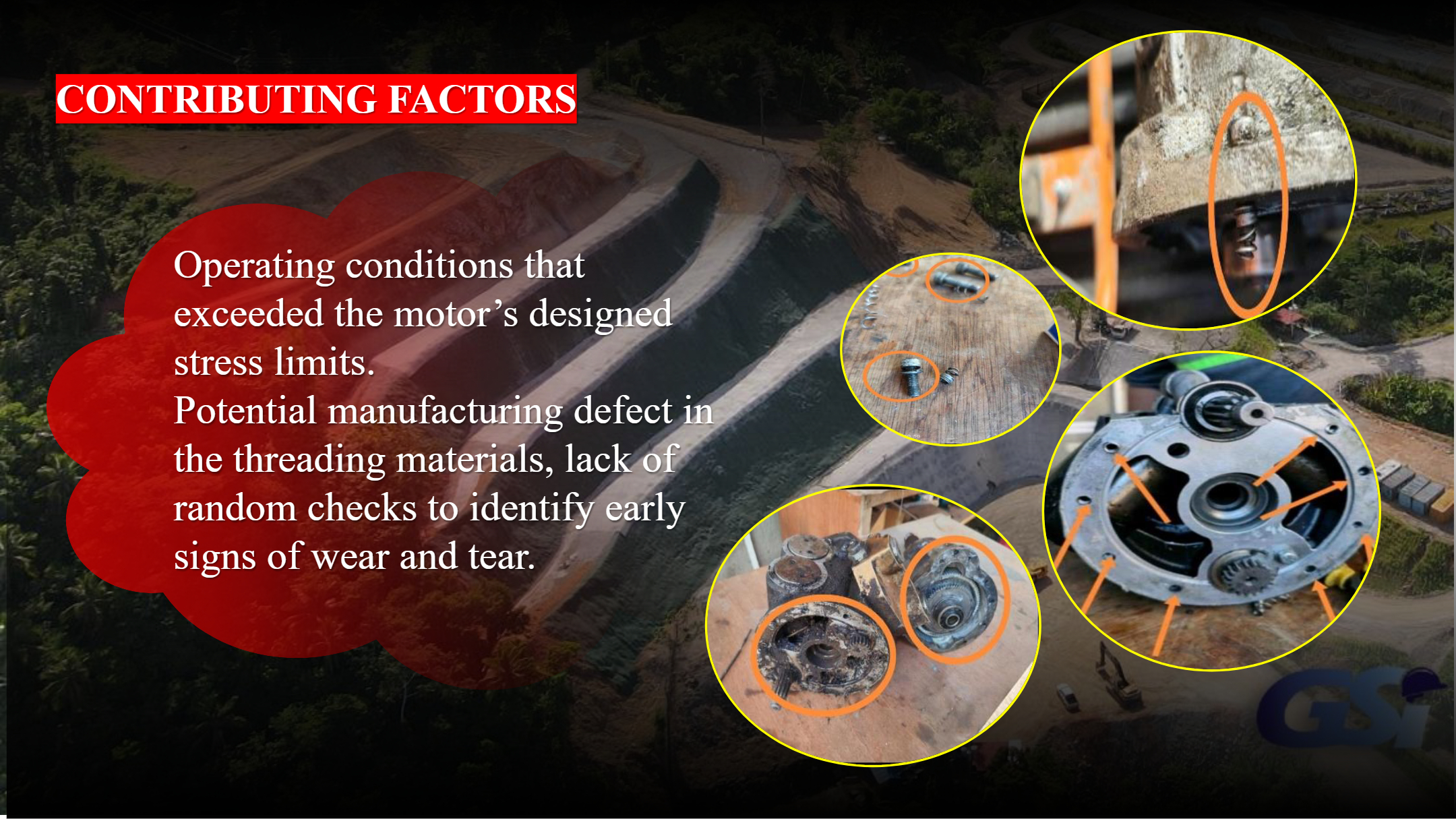

Which of the following is NOT a contributing factor to motor failure as described in the images?

• Operating conditions exceeding designed stress limits

• Potential manufacturing defect in threading materials

• Regular random checks to identify wear and tear

• Lack of random checks to identify early signs of wear and tear

Open Ended

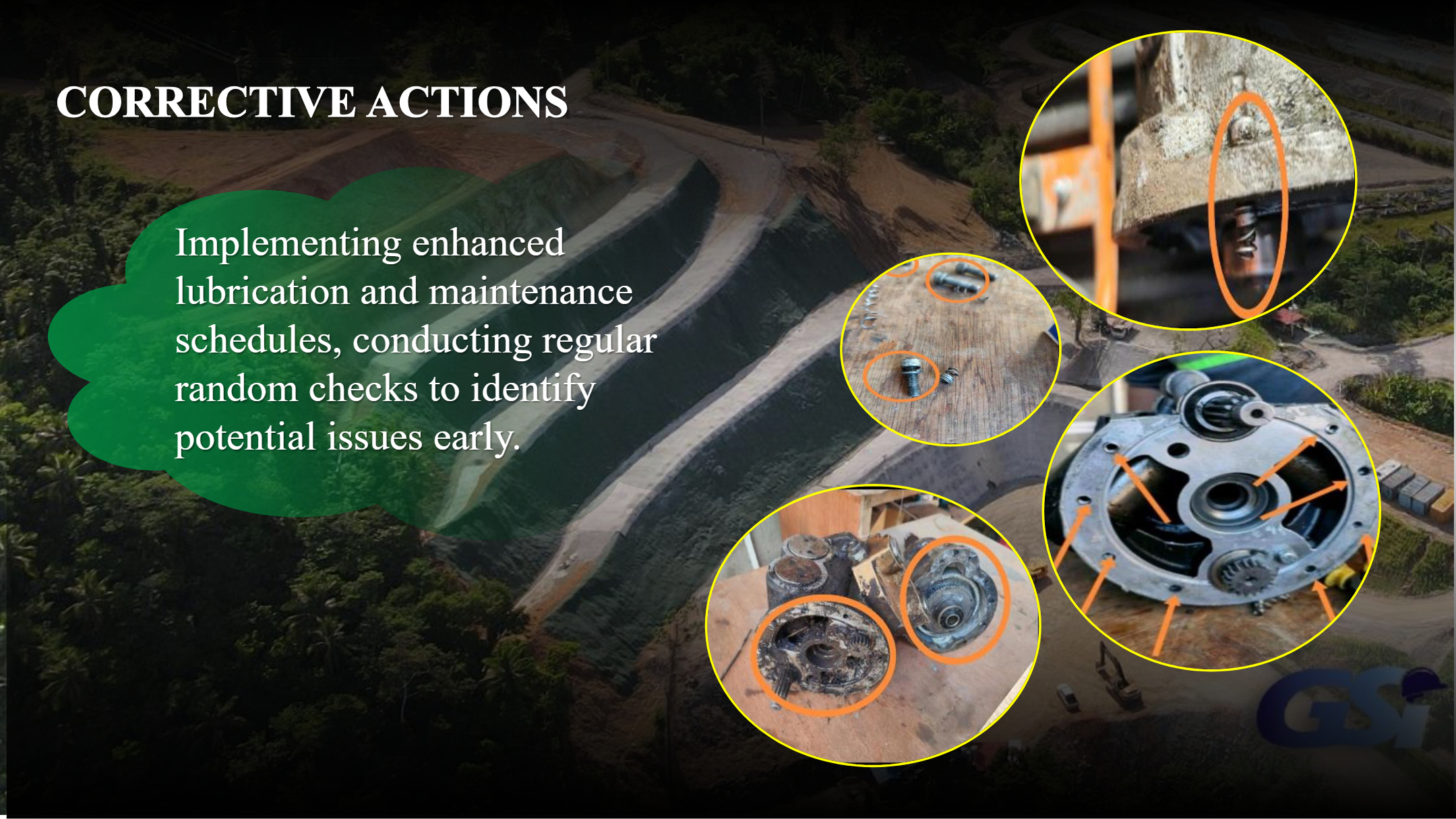

How do enhanced lubrication and maintenance schedules help prevent motor breakdowns?

Fill in the Blank

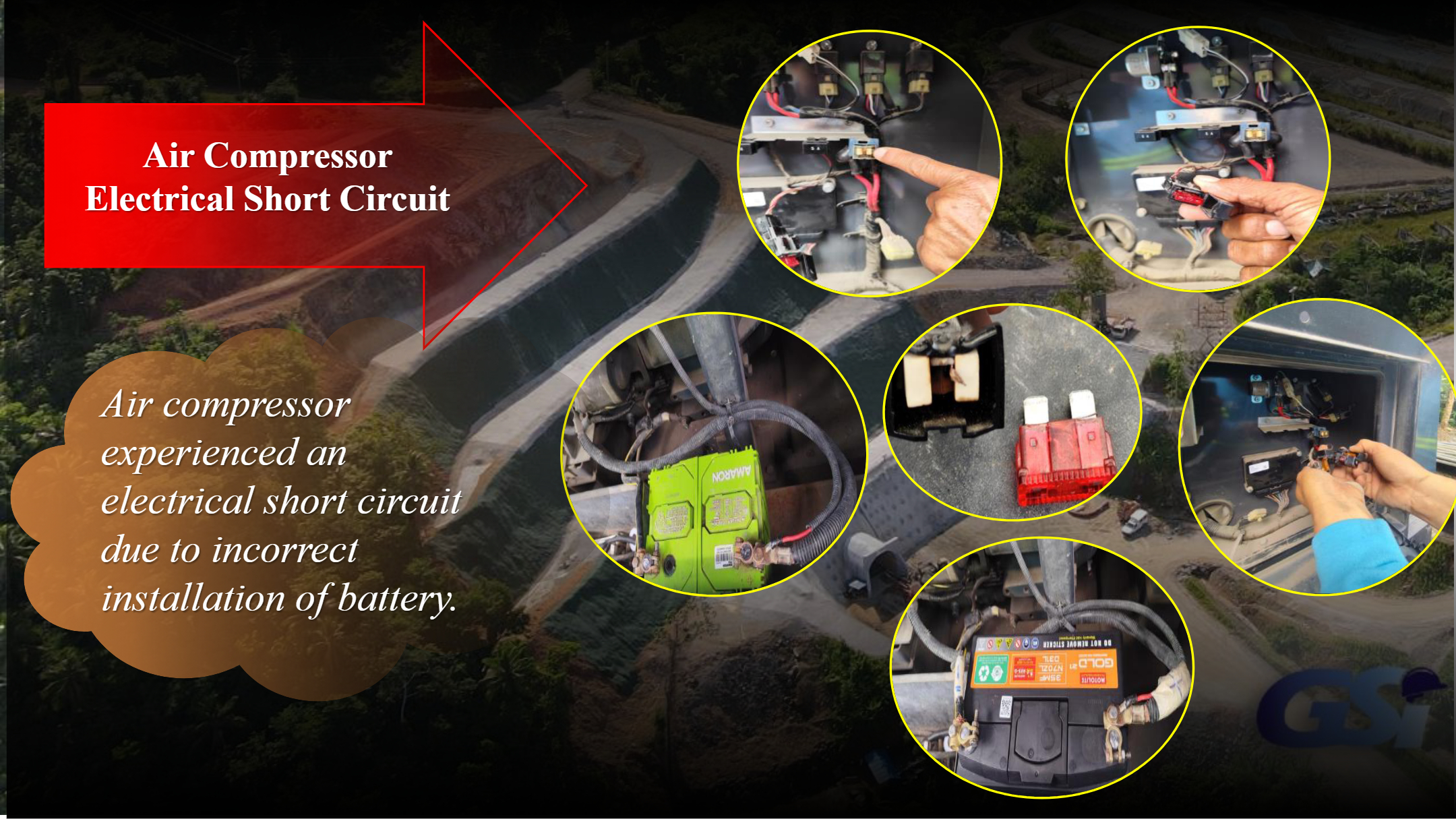

The air compressor experienced an electrical short circuit due to incorrect installation of ___.

Multiple Select

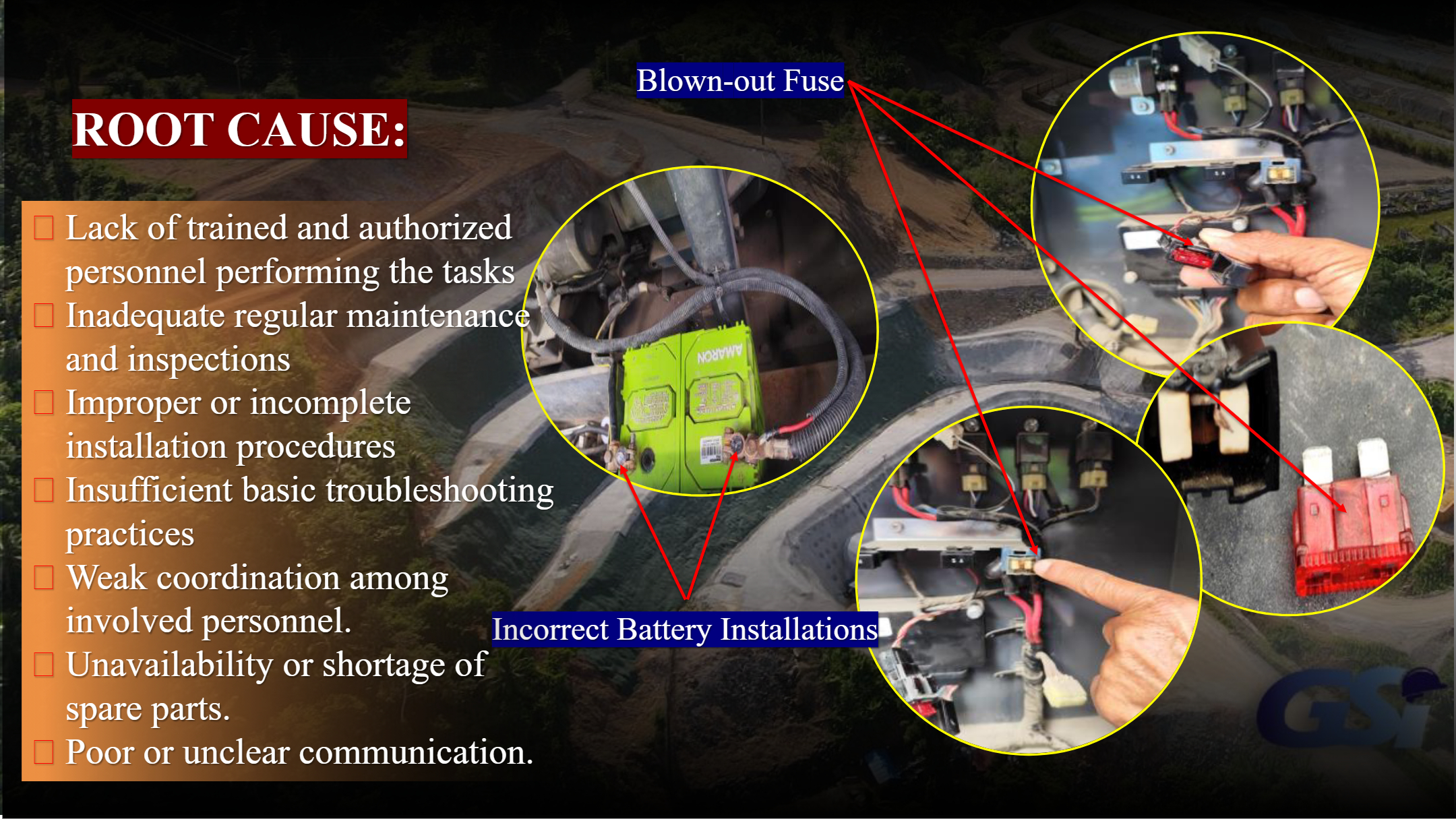

Which of the following are root causes for the air compressor electrical short circuit?

• Lack of trained personnel

• Improper installation procedures

• Availability of spare parts

• Inadequate maintenance and inspections

Multiple Choice

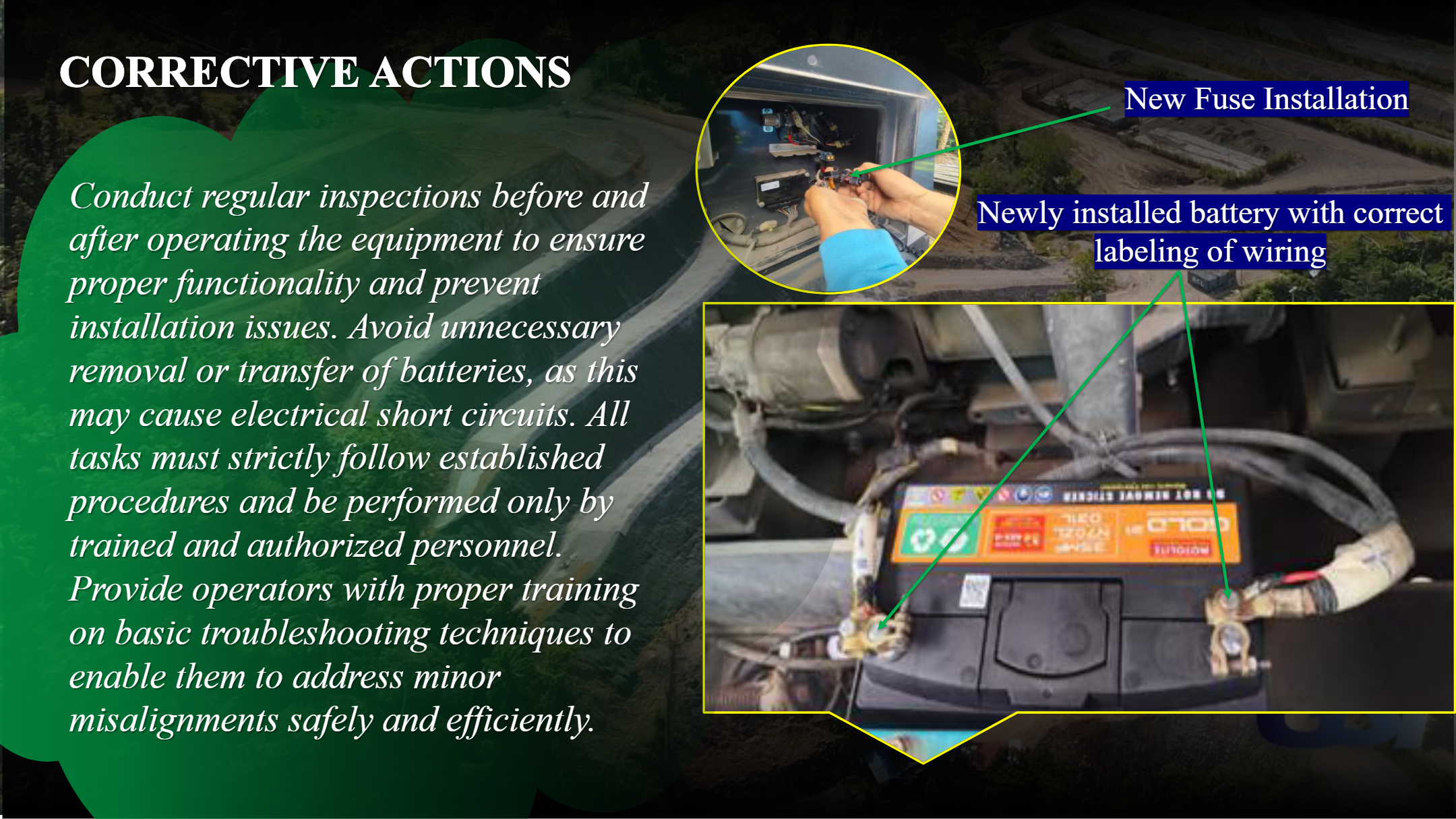

What corrective action is recommended to prevent electrical short circuits in air compressors?

• Avoid regular inspections

• Remove batteries frequently

• Follow established procedures and use trained personnel

• Ignore minor misalignments

Multiple Choice

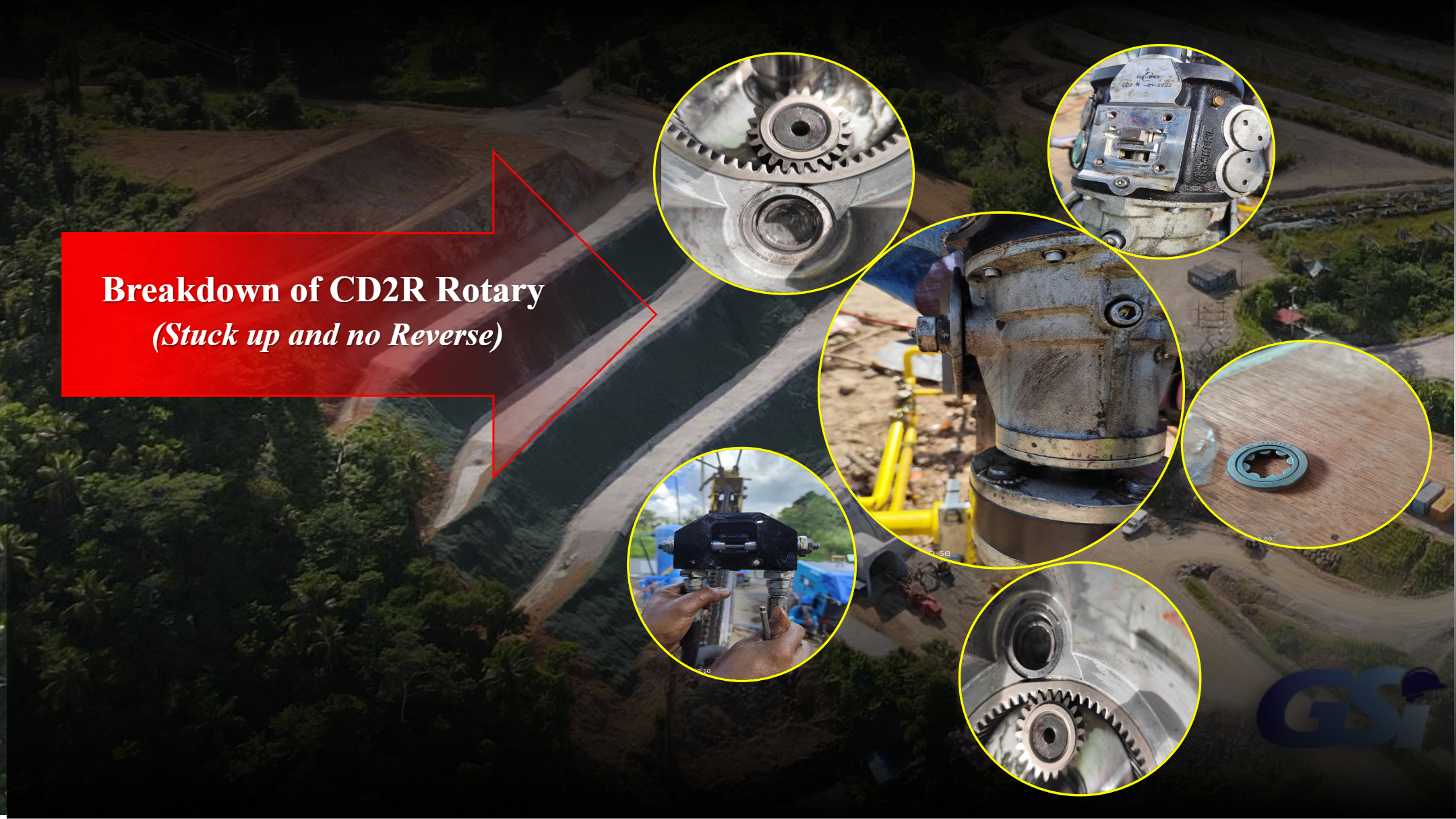

Describe the possible consequences of a breakdown in the CD2R rotary system and how it might impact operations.

• Operational delays, increased costs, safety hazards, and workflow disruptions.
• Faster processing, higher profits, fewer hazards, and stable performance.
• Increased productivity, lower expenses, minimal risks, and consistent operations.
• Improved efficiency, reduced costs, enhanced safety, and streamlined workflows.

Multiple Choice

Which of the following is a key feature of the drilling machines operated by Ground Specialists Inc.?

• Precision and durability

• Low cost and simplicity

• Manual operation only

• Limited to residential use

Multiple Choice

How do advanced drilling machines contribute to the stability and safety of foundation work and site operations?

• Advanced drilling machines improve stability and safety by ensuring precise drilling, minimizing soil disturbance, and enabling real-time monitoring of ground conditions.
• These machines are designed to operate without any real-time data analysis for ground conditions.
• Advanced drilling machines increase soil disturbance and reduce monitoring capabilities.
• They primarily focus on enhancing aesthetic appeal rather than safety measures.
