Welding joints positions, and symbols

Multiple Choice

Why do you think welding is considered an essential skill in modern manufacturing and construction industries?

• Welding is essential for creating strong, durable structures and components in manufacturing and construction.
• Welding is only necessary for small-scale projects and repairs.
• Welding is primarily used for decorative purposes in construction.
• Welding is a skill that is rarely used in modern industries.

Multiple Choice

Which of the following best describes the significance of understanding welding joints, positions, and symbols before starting a welding project?

• It helps ensure the strength and safety of the welded structure.

• It makes the welding process faster without affecting quality.

• It is only important for decorative welding.

• It is not necessary if you have advanced welding equipment.

Multiple Choice

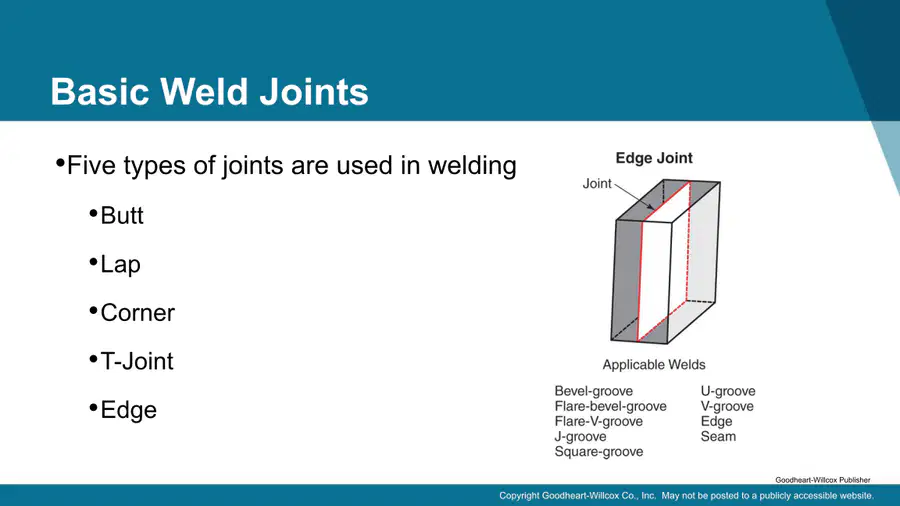

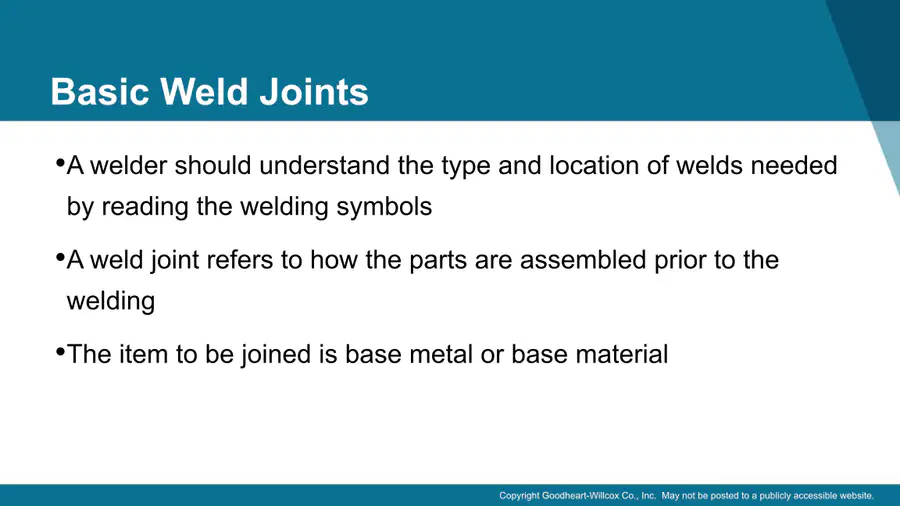

Which of the following is NOT one of the five basic welding joints?

• Butt

• Lap

• Corner

• Seam

Multiple Choice

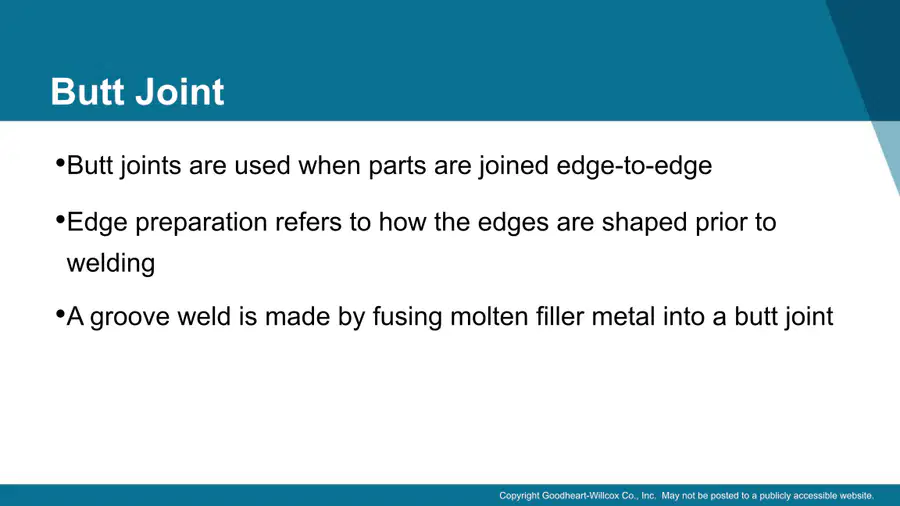

A groove weld is made by fusing molten filler metal into a ___ joint.

• lap joint
• corner joint
• butt joint
• tee joint

Multiple Choice

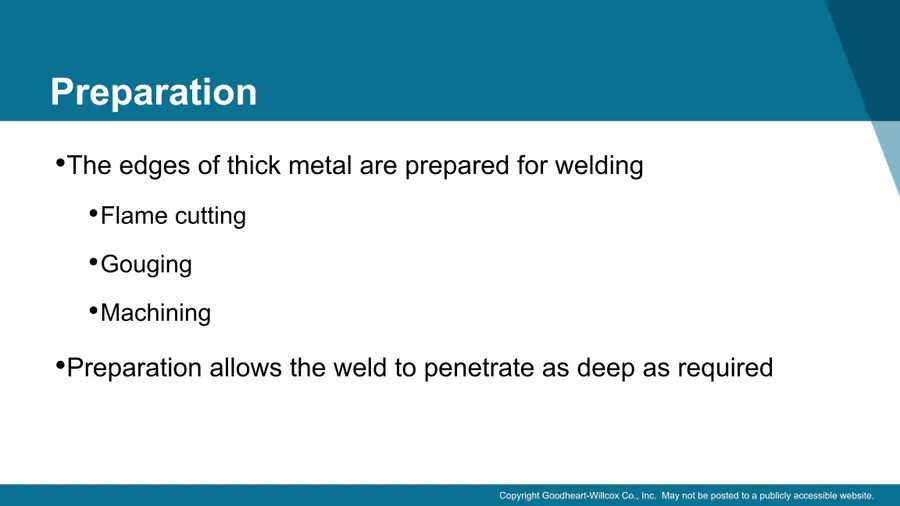

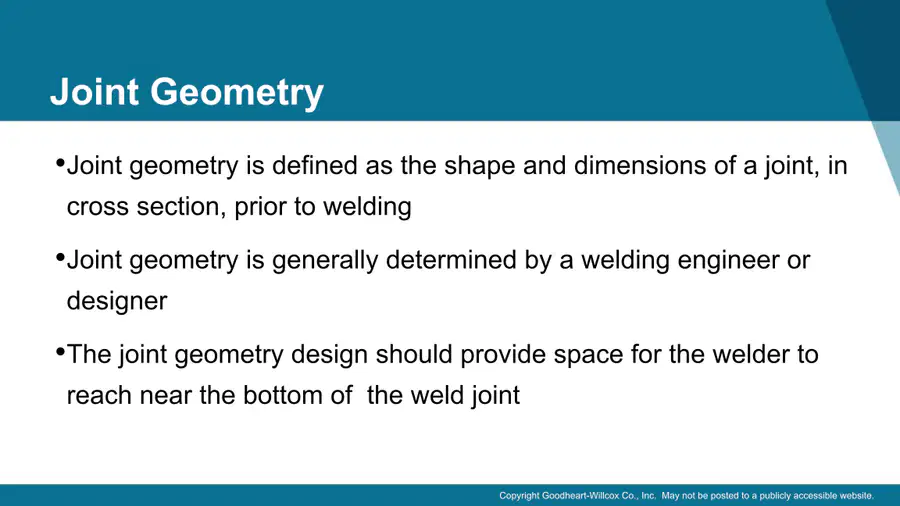

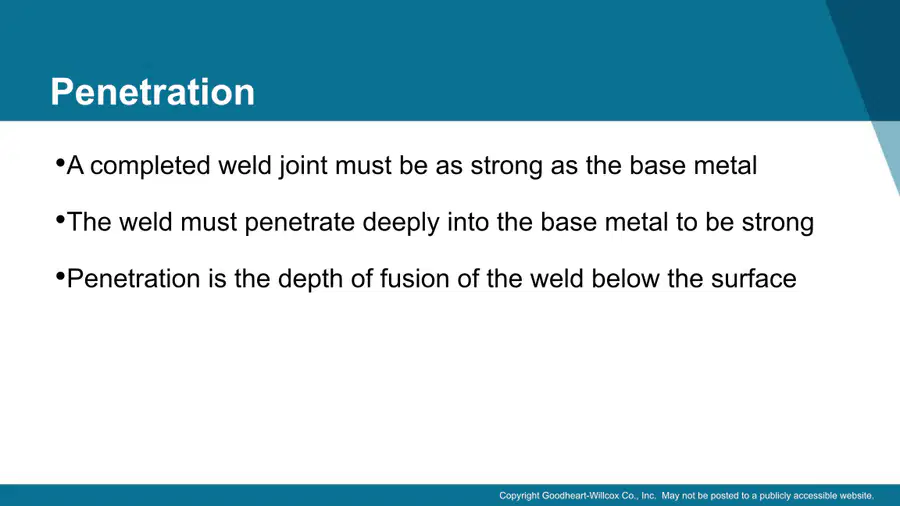

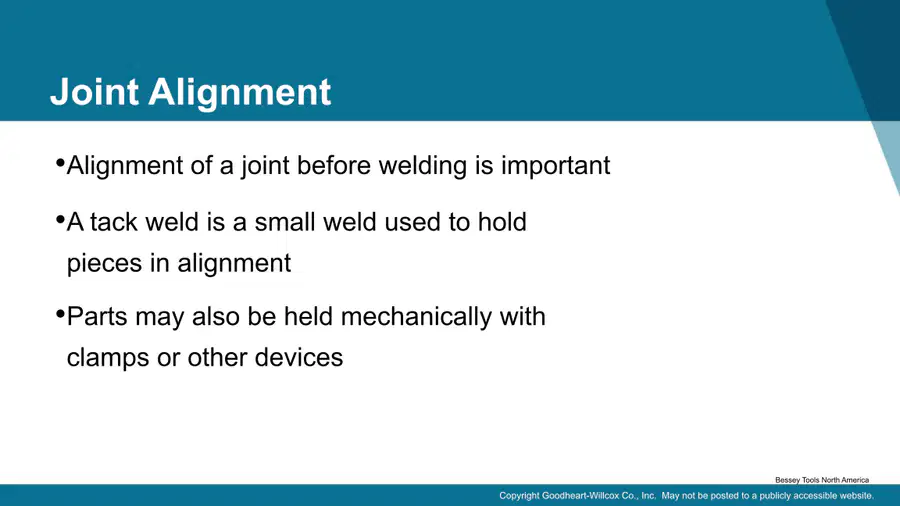

Explain the importance of edge preparation in the formation of a butt joint and how it affects the quality of the weld.

• Edge preparation enhances weld quality by ensuring proper penetration, reducing defects, and improving joint fit-up.
• Edge preparation only improves aesthetics and has no impact on weld strength.
• Proper edge preparation can lead to increased welding costs and time.
• Edge preparation is unnecessary for butt joints and does not affect weld quality.

Multiple Select

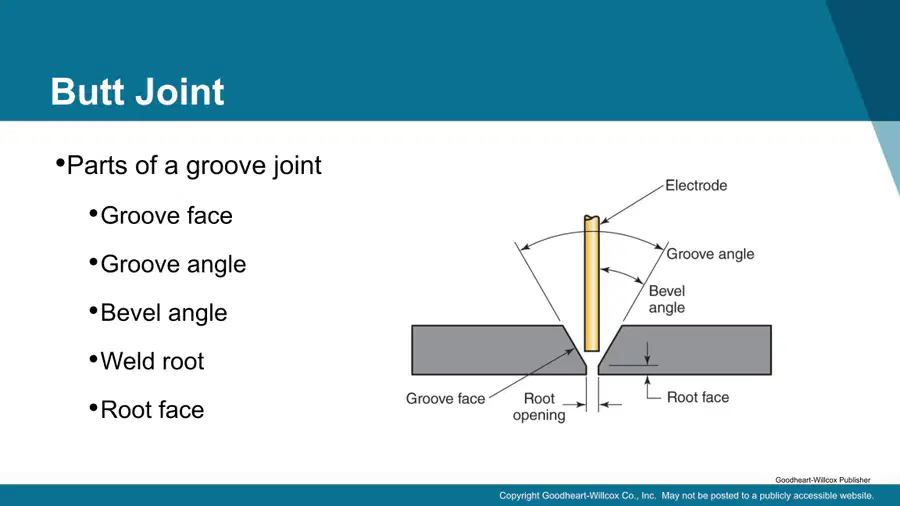

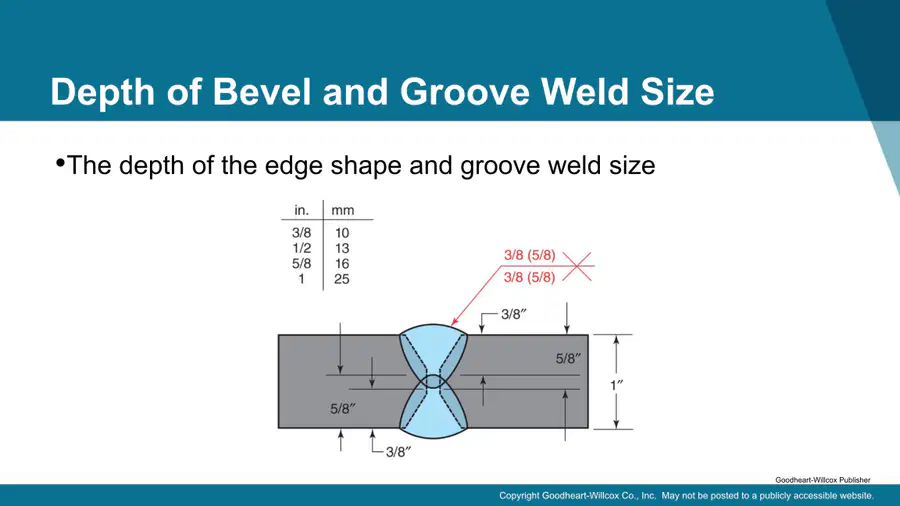

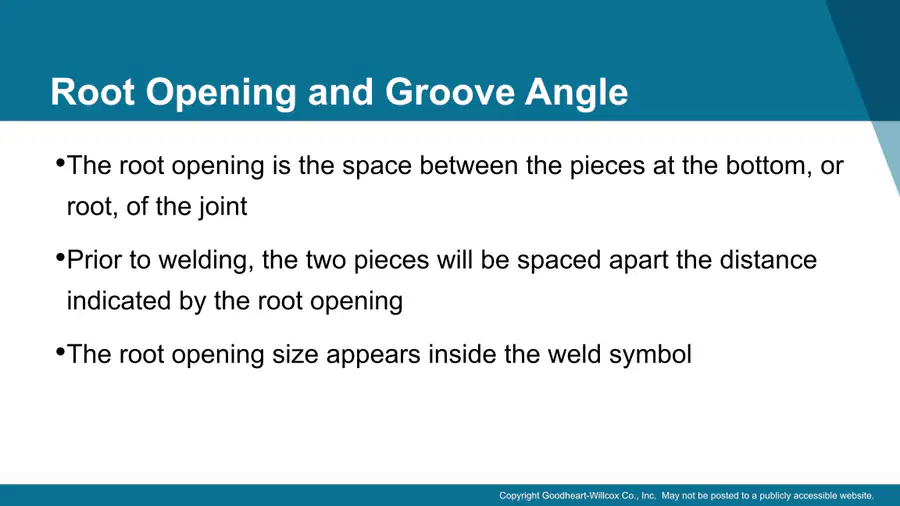

Which of the following are parts of a groove joint in a butt joint?

• Groove face

• Groove angle

• Lap joint

• Bevel angle

Multiple Choice

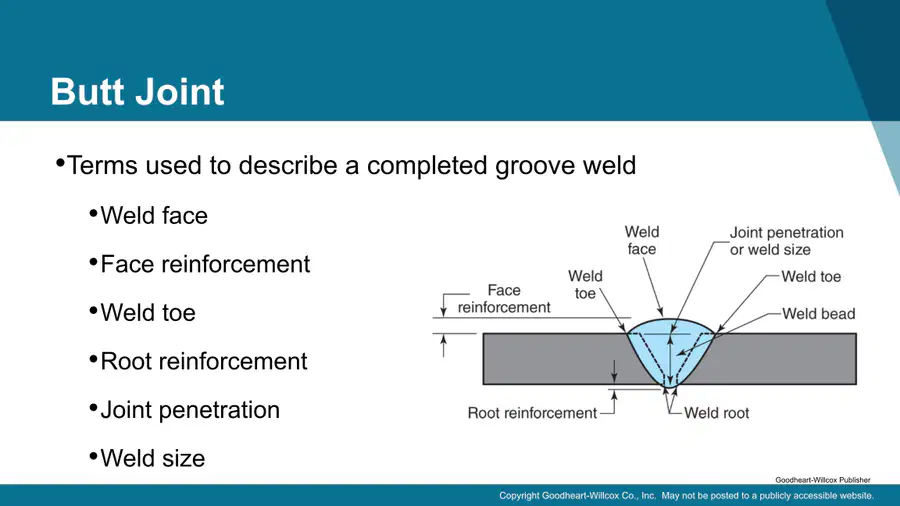

Which term describes the part of a completed groove weld that is located at the outermost edge of the weld bead?

• Weld toe

• Weld face

• Root reinforcement

• Face reinforcement

Multiple Choice

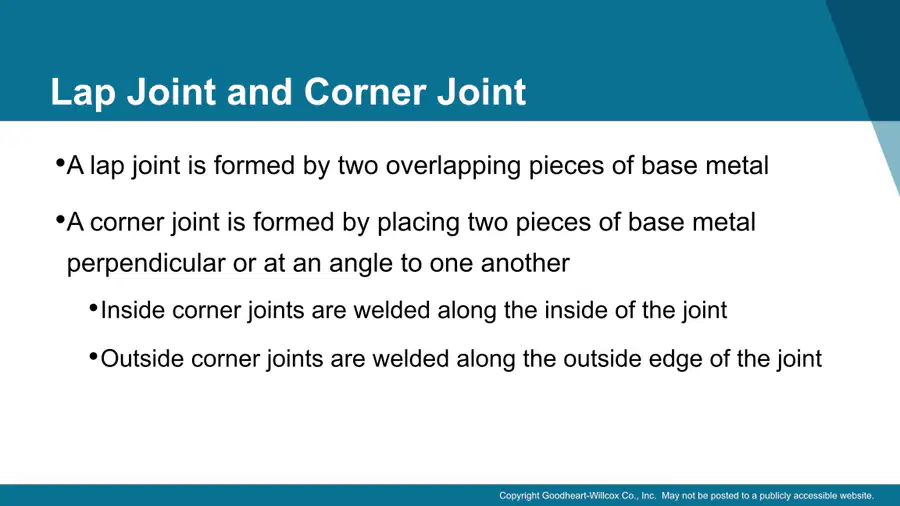

Compare and contrast the formation of lap joints and corner joints in welding. What are the key differences in their structure and application?

• Lap joints are used for vertical connections, while corner joints are for horizontal ones.
• Lap joints require more welding material than corner joints, which are simpler to execute.
• Lap joints are typically used in electrical applications, whereas corner joints are for plumbing.
• Lap joints involve overlapping metal pieces, while corner joints connect pieces at right angles.

Multiple Choice

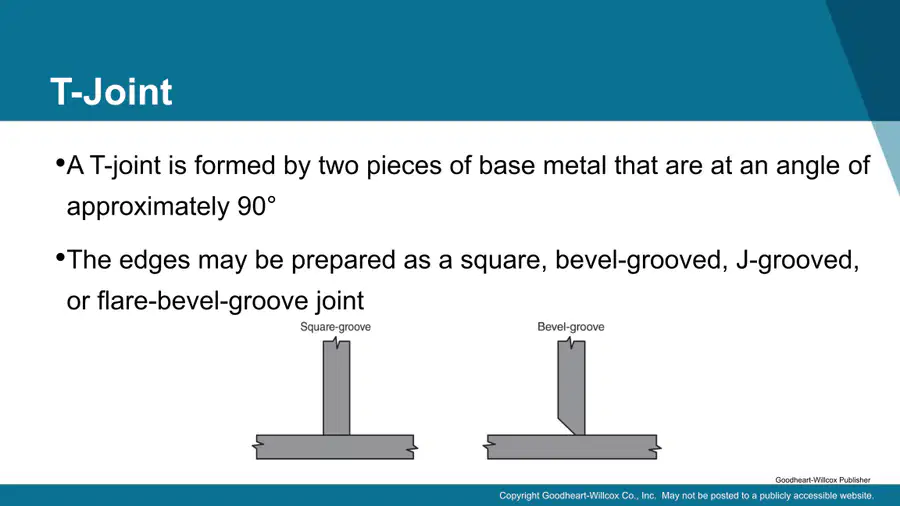

Which of the following edge preparations can be used for a T-joint?

• Square-groove

• Bevel-groove

• J-groove

• All of the above

Multiple Choice

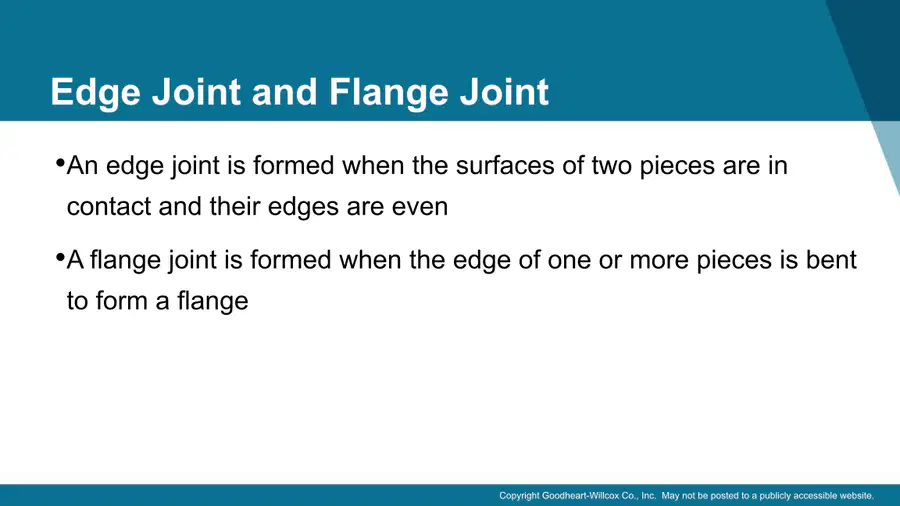

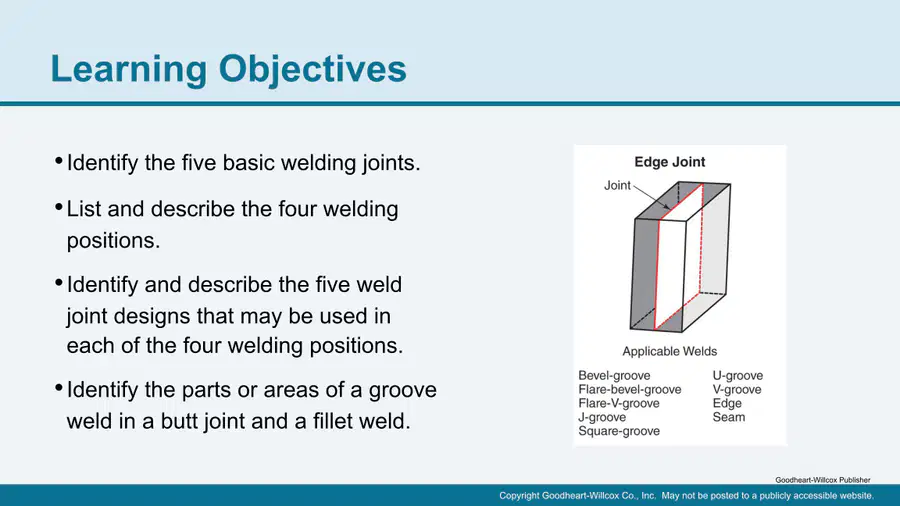

An edge joint is formed when the surfaces of two pieces are in contact and their edges are ___.

• curved
• aligned
• separated
• overlapped

Multiple Select

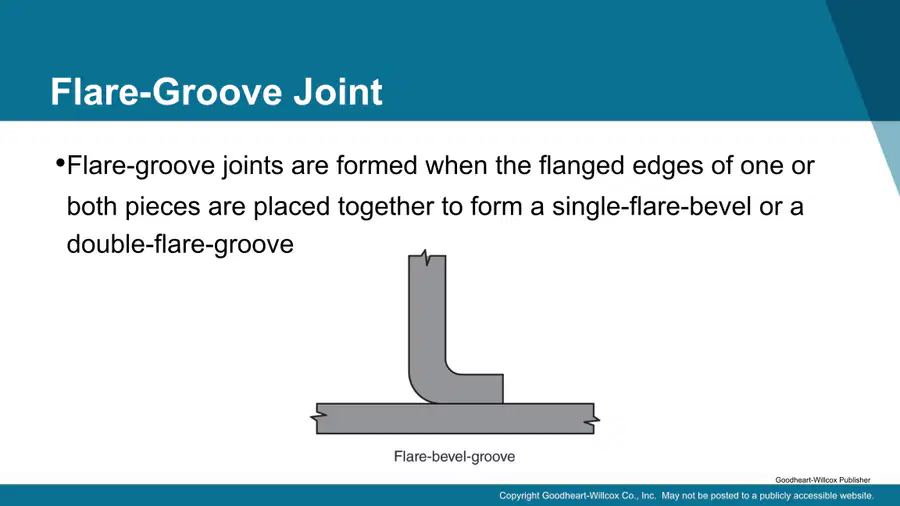

Select all joint types that involve the use of flanged edges in their formation.

• Flange joint

• Flare-groove joint

• T-joint

• Edge joint

Multiple Choice

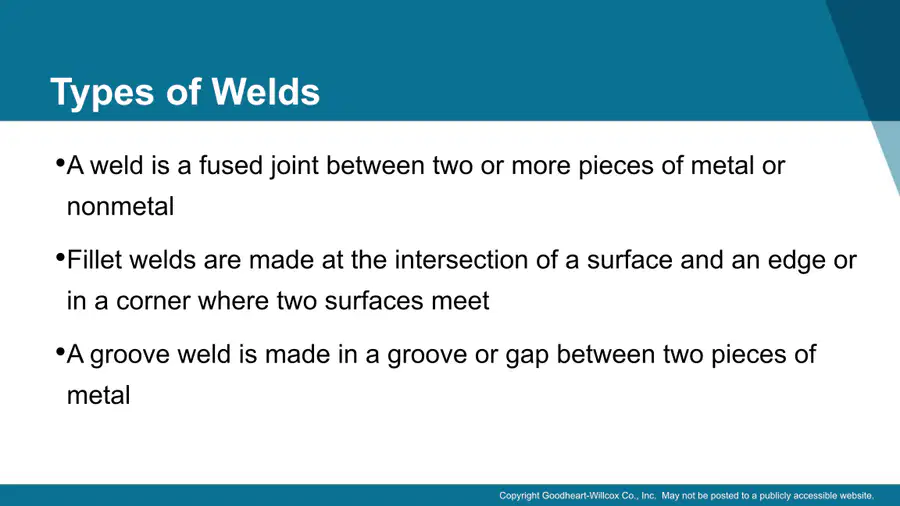

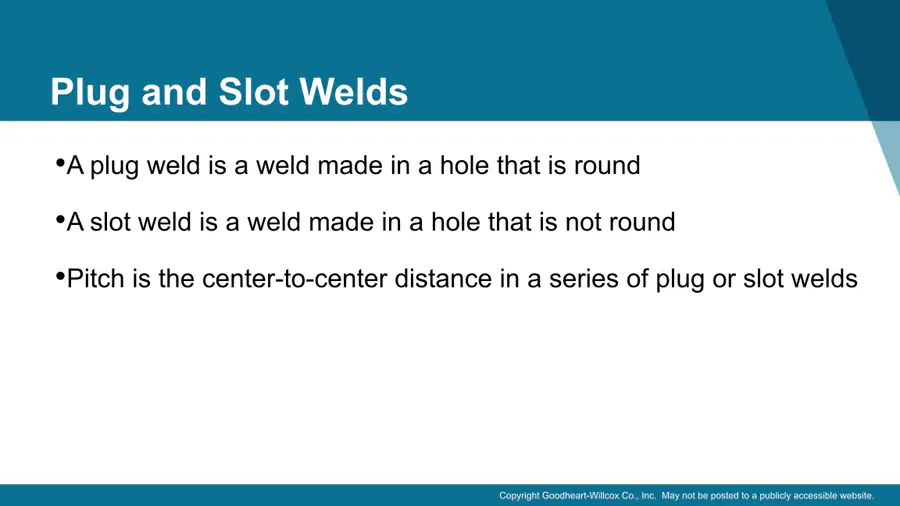

Explain the difference between fillet welds and groove welds, including where each type is typically used.

• Fillet welds are used for thicker materials, while groove welds are for thin sheets.
• Fillet welds are used in vertical joints, while groove welds are for horizontal seams.
• Fillet welds require deep penetration, while groove welds are for surface bonding.
• Fillet welds are used for corner and edge joints, while groove welds are used for thicker materials requiring deeper penetration.

Multiple Choice

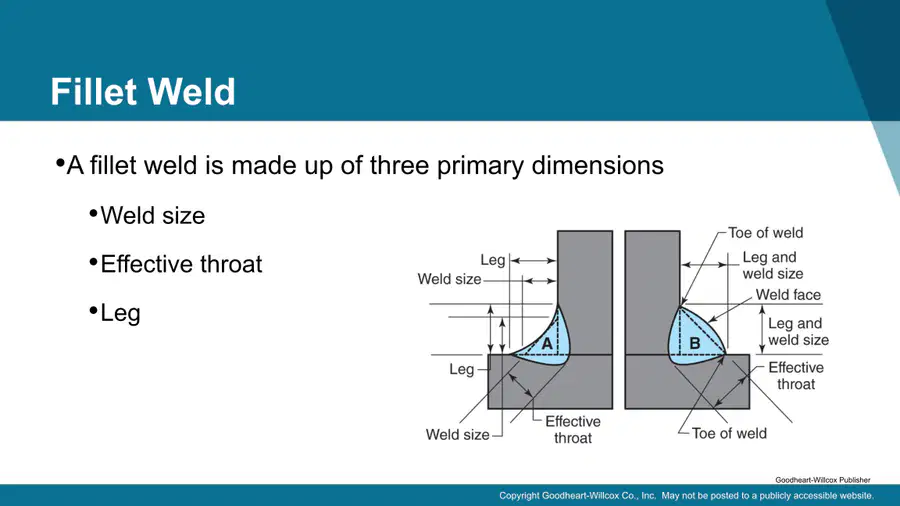

Which of the following is NOT one of the three primary dimensions of a fillet weld?

• Weld size

• Effective throat

• Leg

• Weld pool

Multiple Select

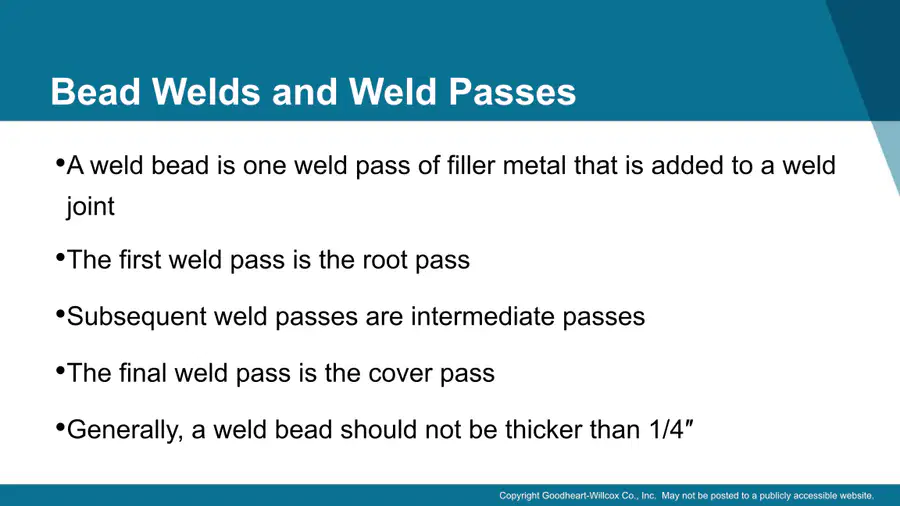

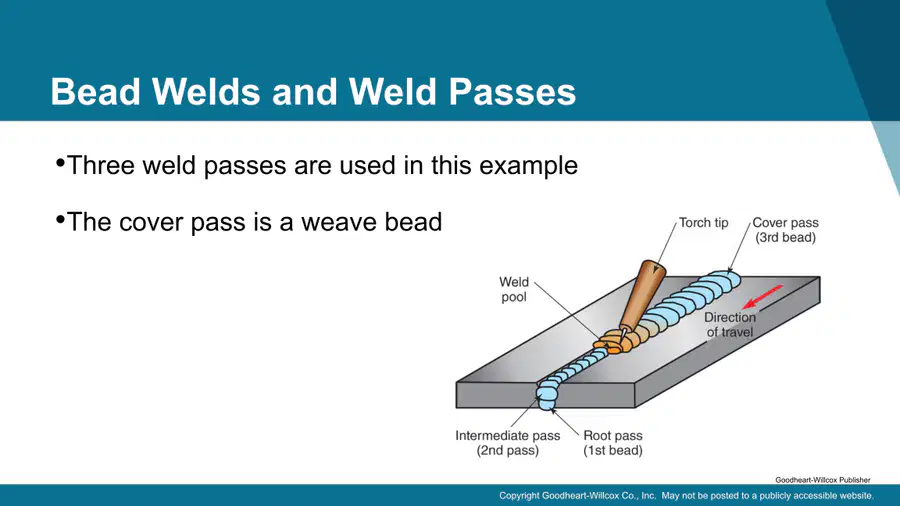

Which of the following statements about weld beads and weld passes are correct?

• The first weld pass is the root pass.

• Intermediate passes follow the root pass.

• The cover pass is always the first pass.

• A weld bead should generally not be thicker than 1/4 inch.

Multiple Choice

Explain the difference between a root pass, an intermediate pass, and a cover pass in bead welding.

• The root pass is the final layer, the intermediate pass is the first layer, and the cover pass is the second layer.
• The root pass is a decorative layer, the intermediate pass is for strength, and the cover pass is for aesthetics.
• The root pass is the initial weld layer, the intermediate pass builds up the weld, and the cover pass is the final protective layer.
• The root pass is the middle layer, the intermediate pass is the top layer, and the cover pass is the base layer.

Multiple Choice

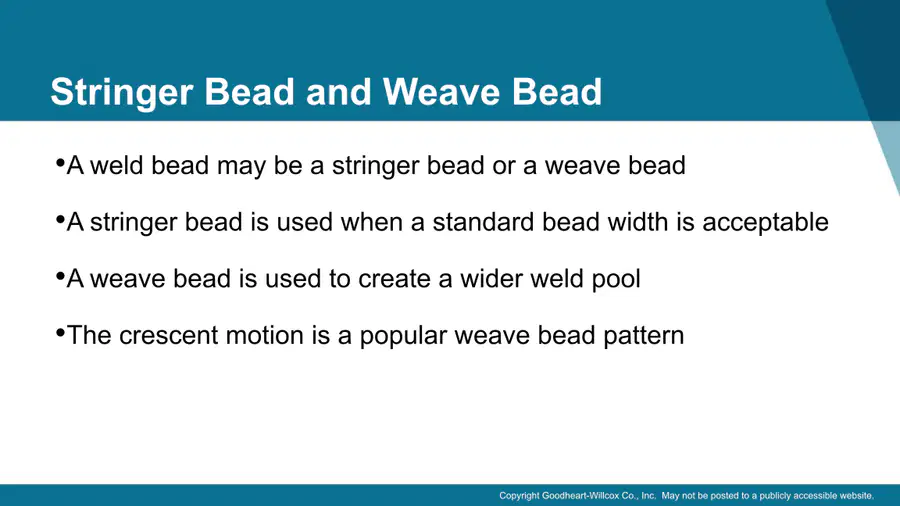

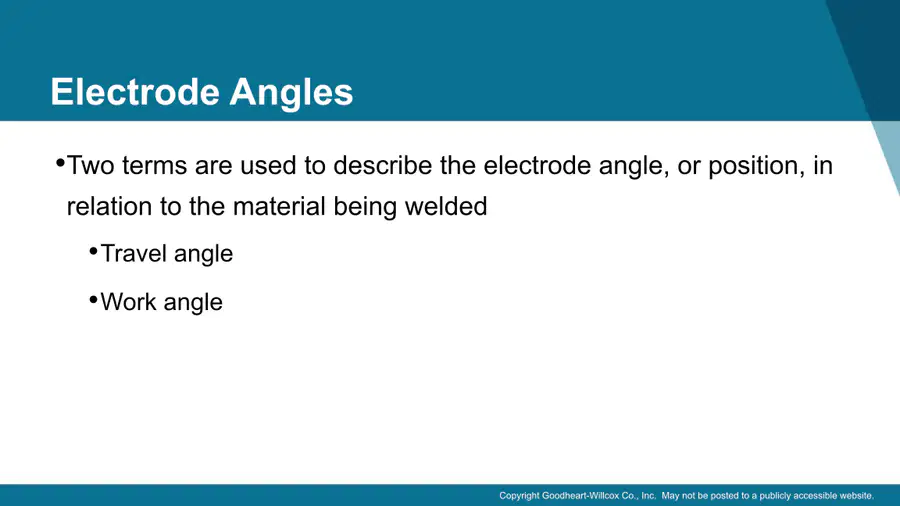

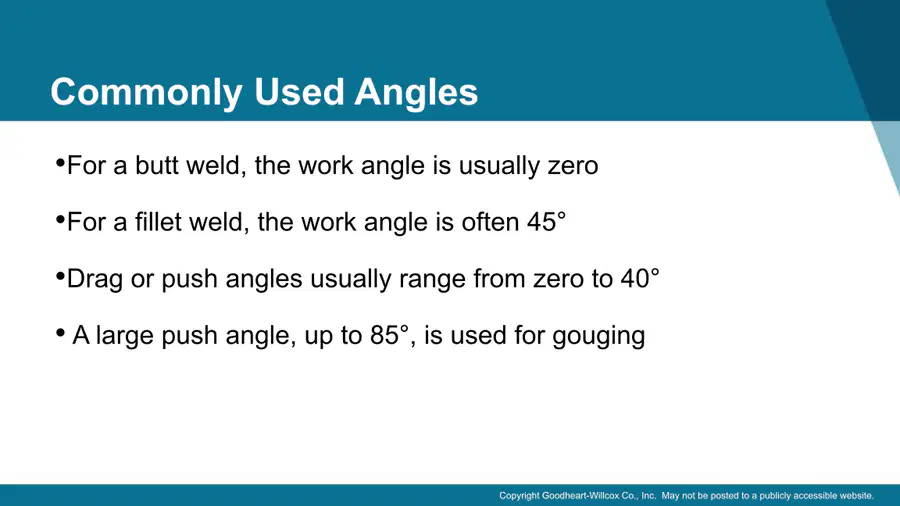

A ___ bead is used to create a wider weld pool.

• solder
• weave
• patch
• stringer

Multiple Select

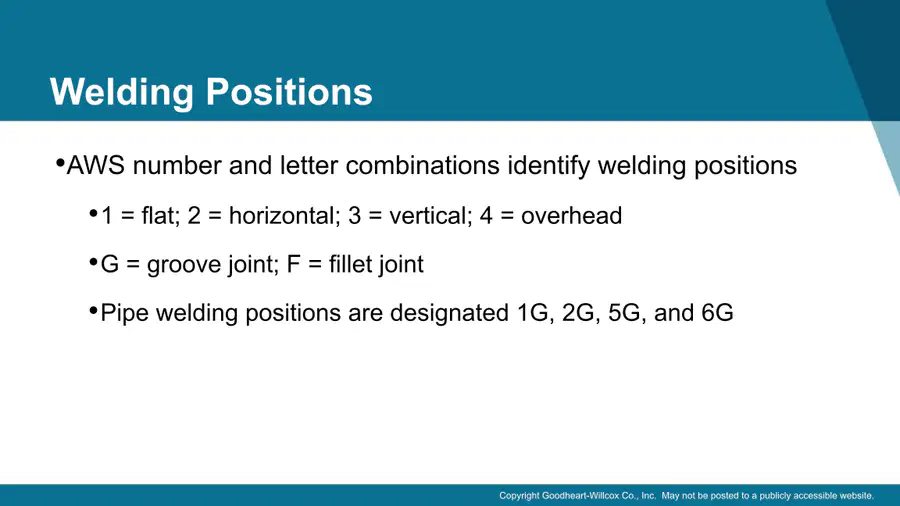

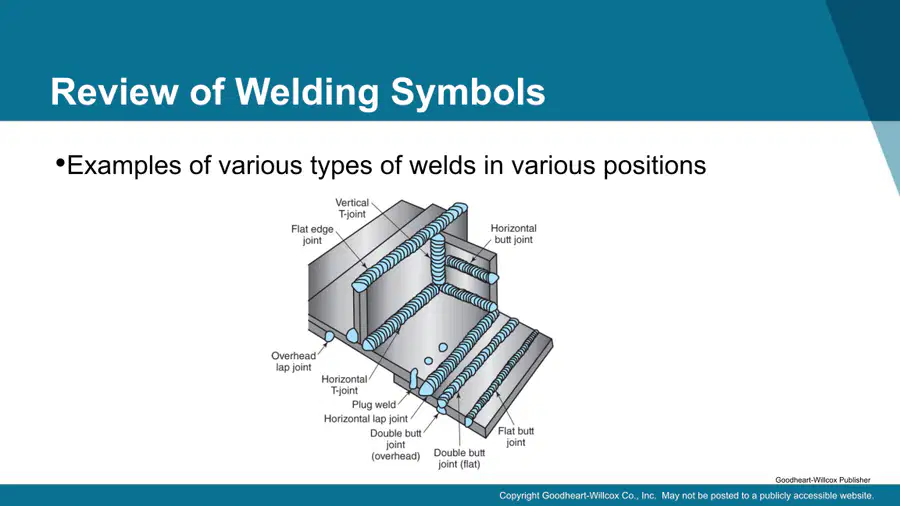

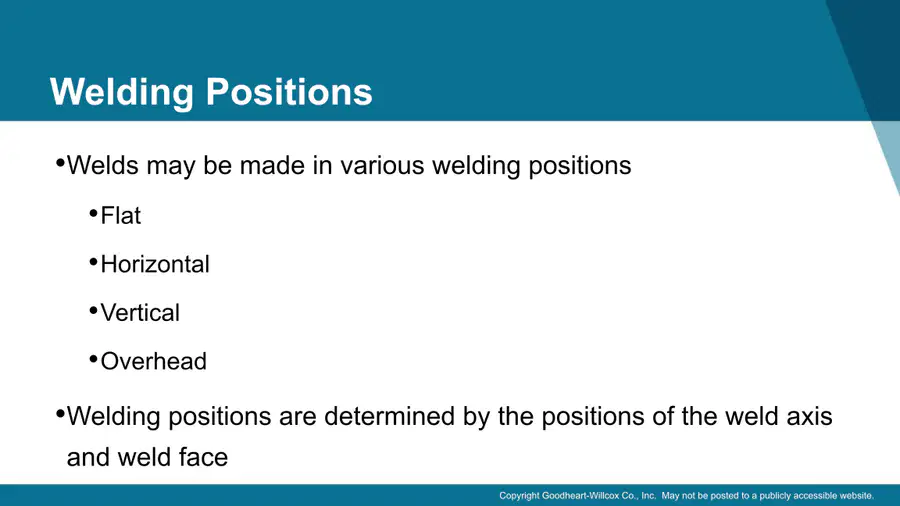

Which welding positions are commonly used? Select all that apply.

• Flat

• Horizontal

• Vertical

• Overhead

Multiple Choice

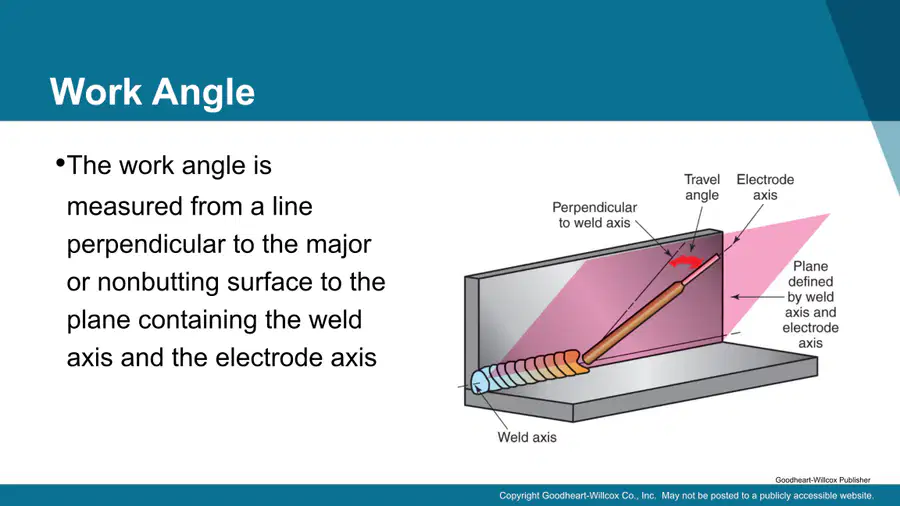

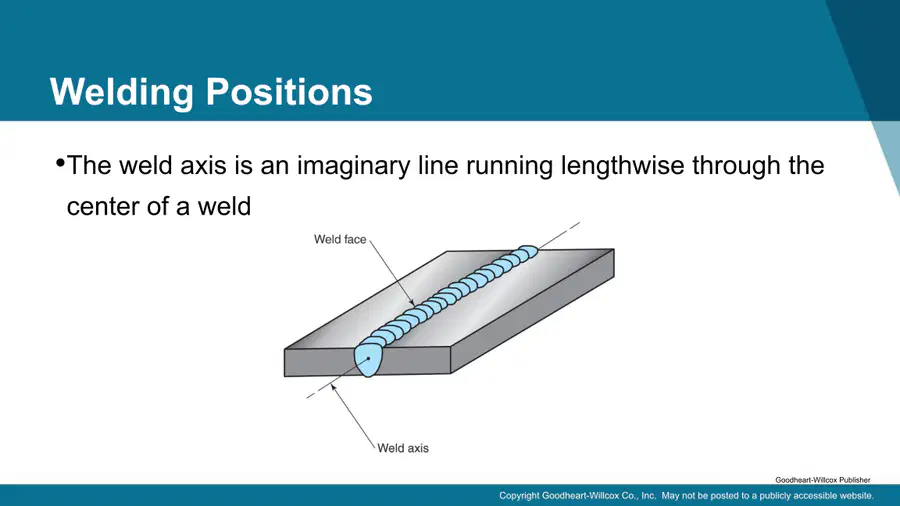

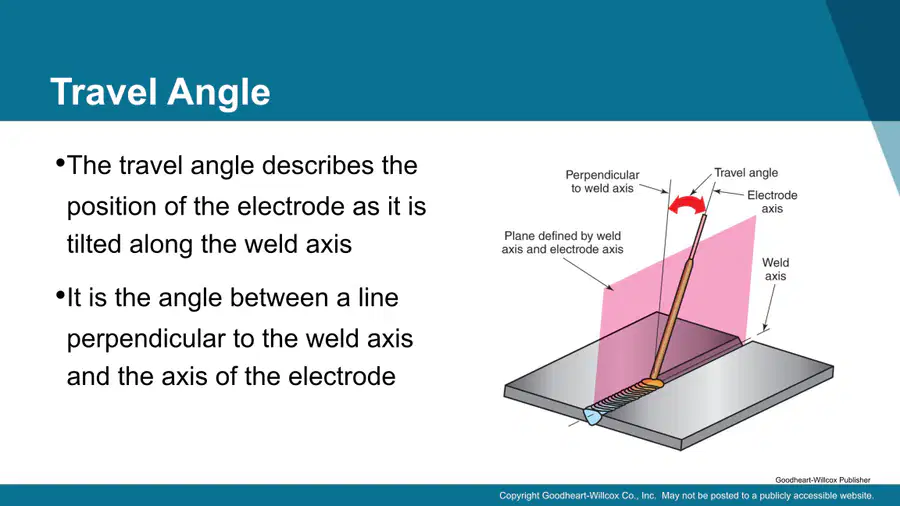

The weld axis is an imaginary line running lengthwise through the center of a ___.

• weld seam
• weld joint
• weld bead
• weld plate

Multiple Choice

What do the AWS number and letter combinations such as 1G, 2G, 5G, and 6G represent in welding?

• The AWS combinations denote material types.
• The AWS combinations signify equipment models.
• The AWS combinations represent welding positions.
• The AWS combinations indicate welding techniques.

Multiple Choice

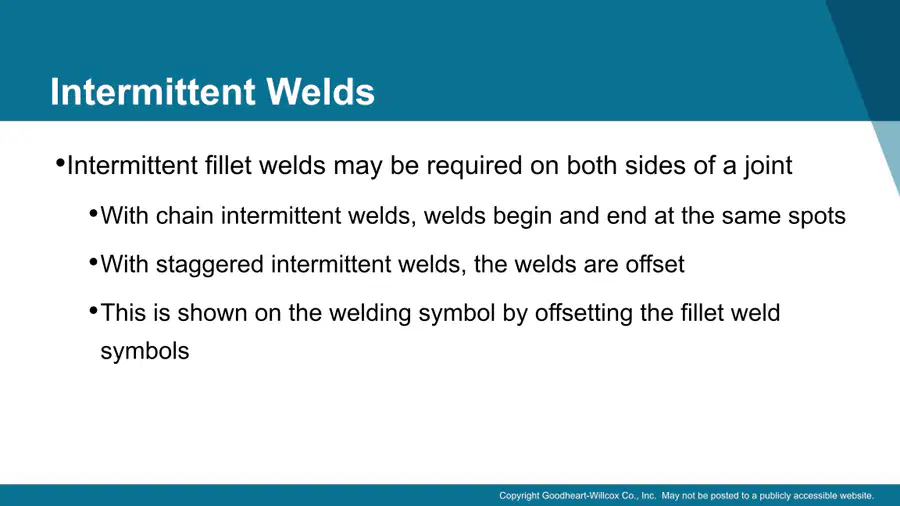

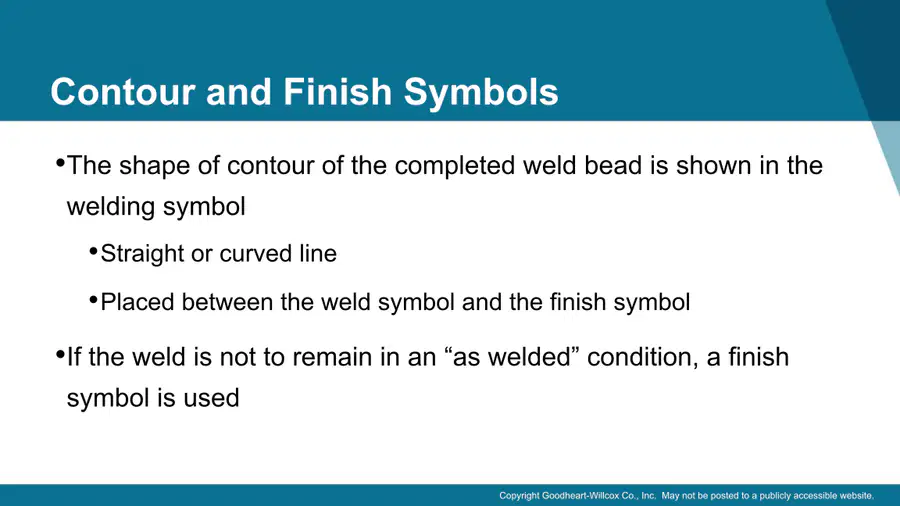

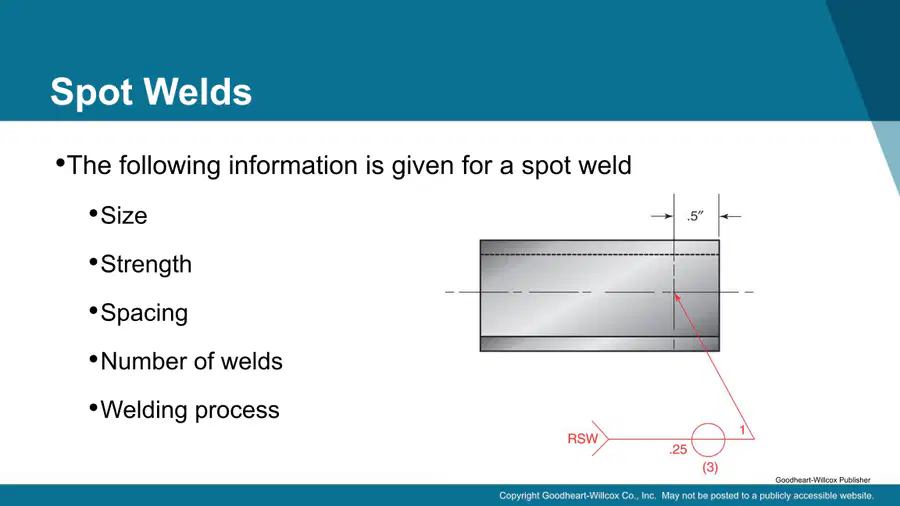

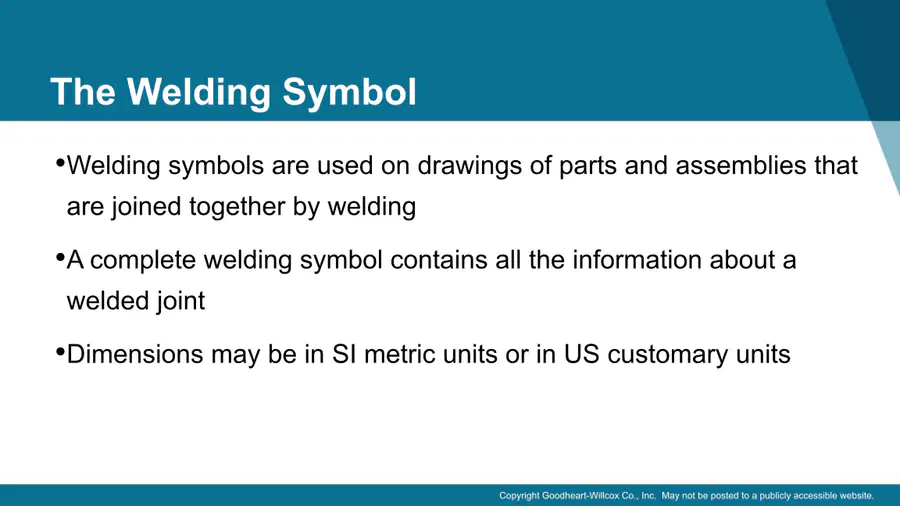

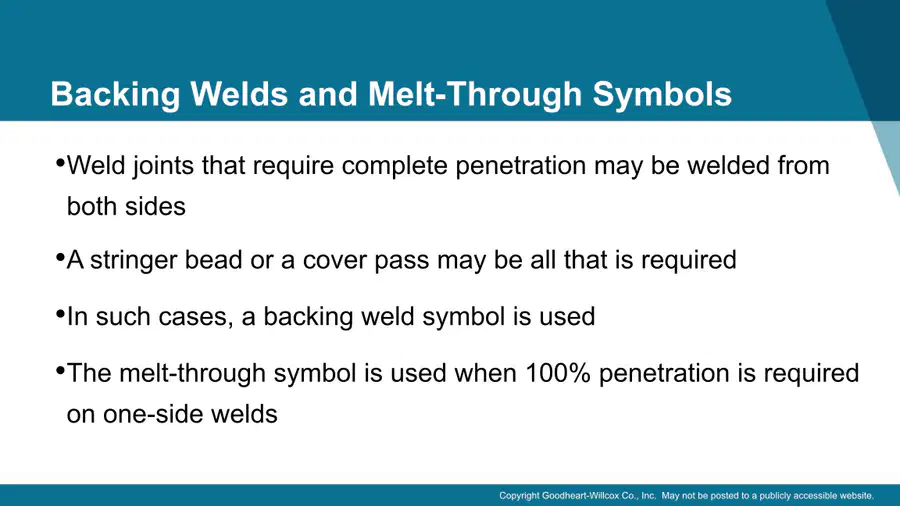

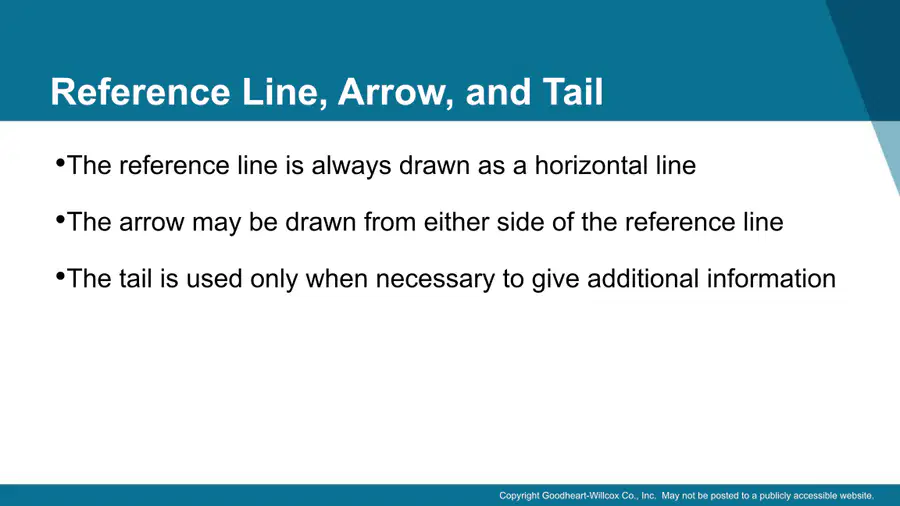

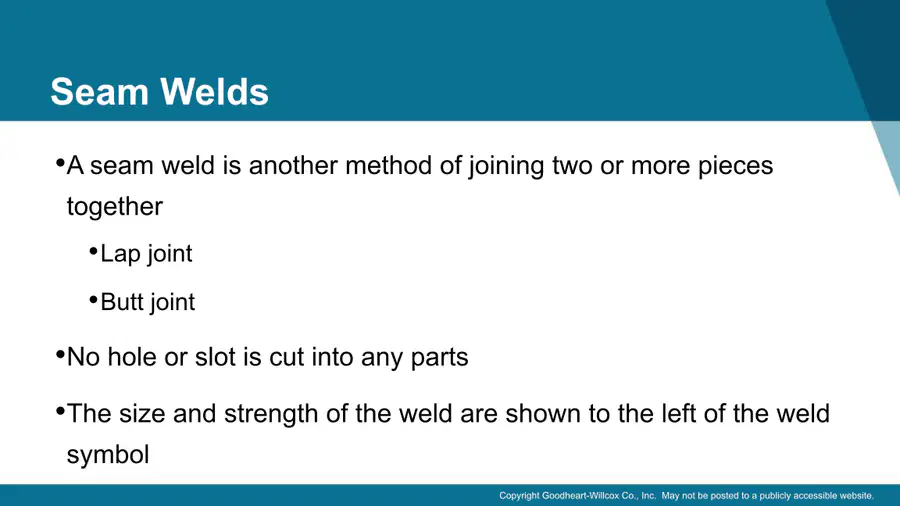

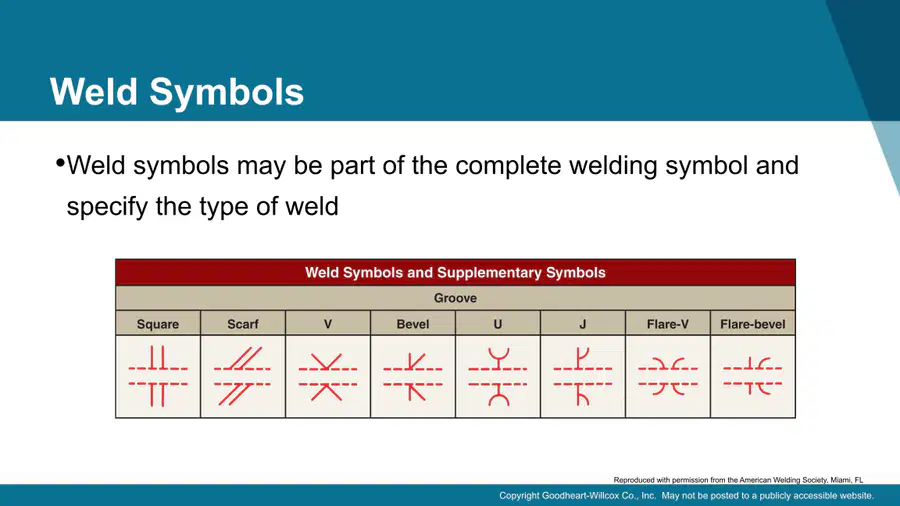

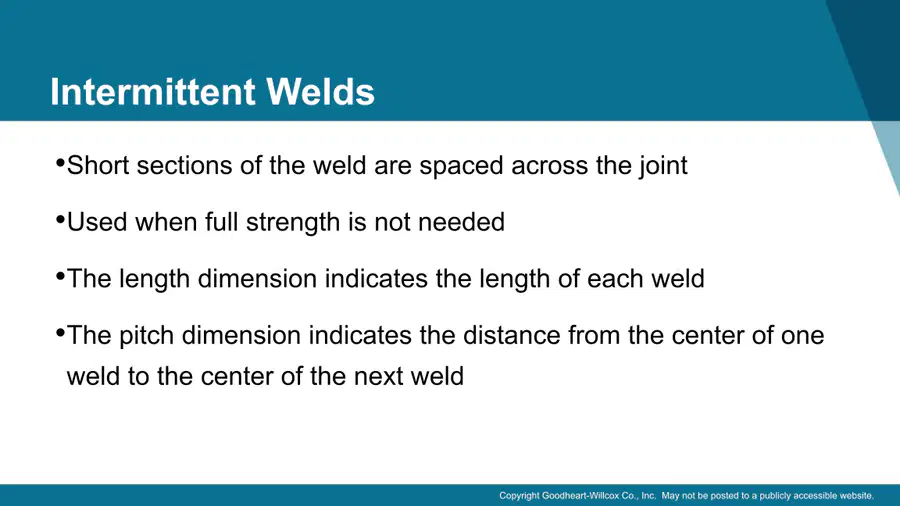

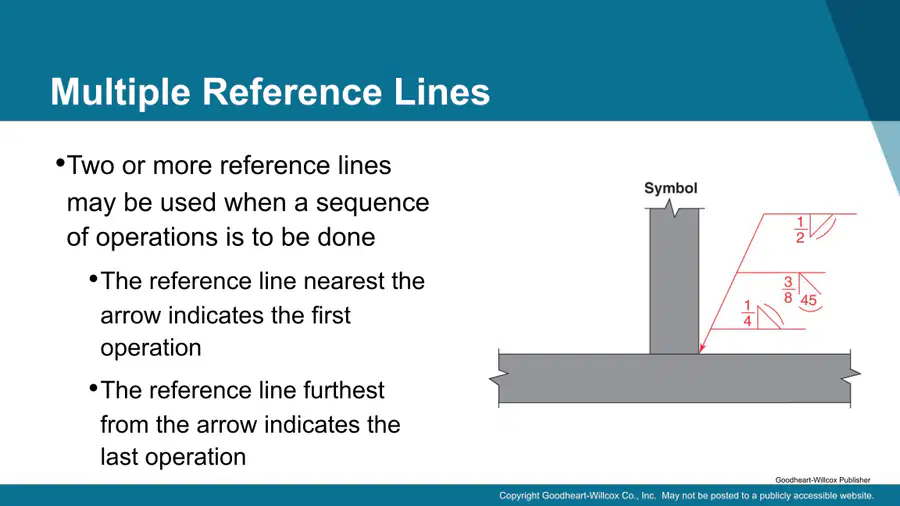

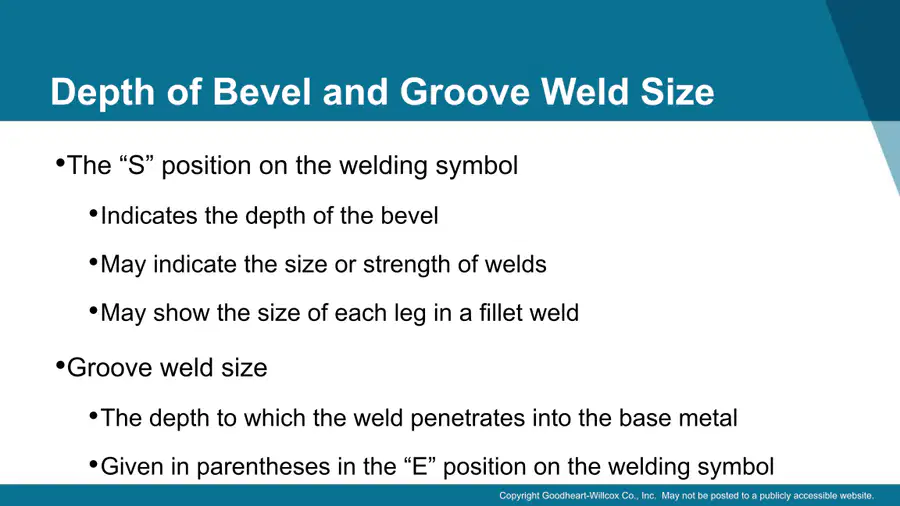

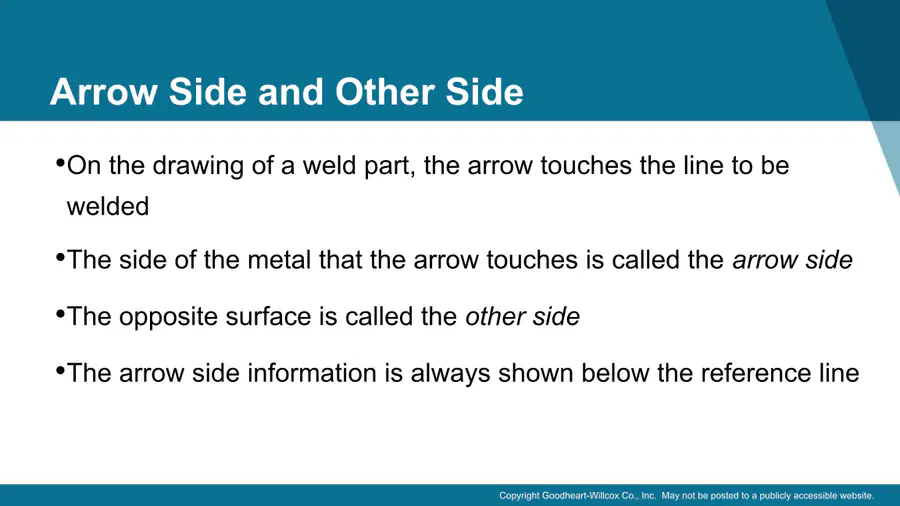

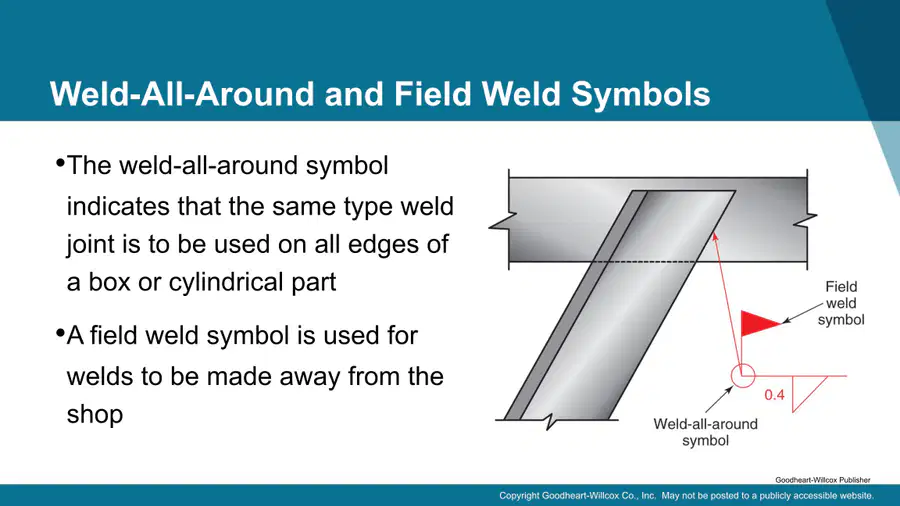

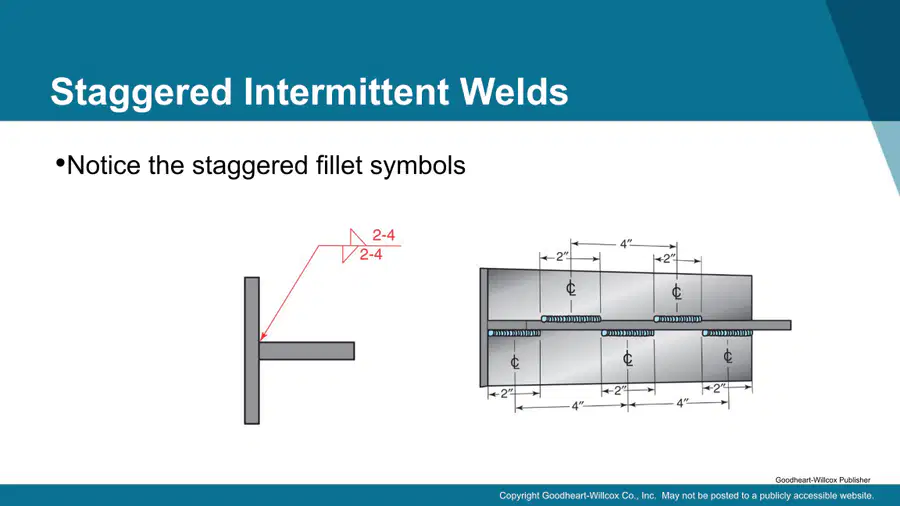

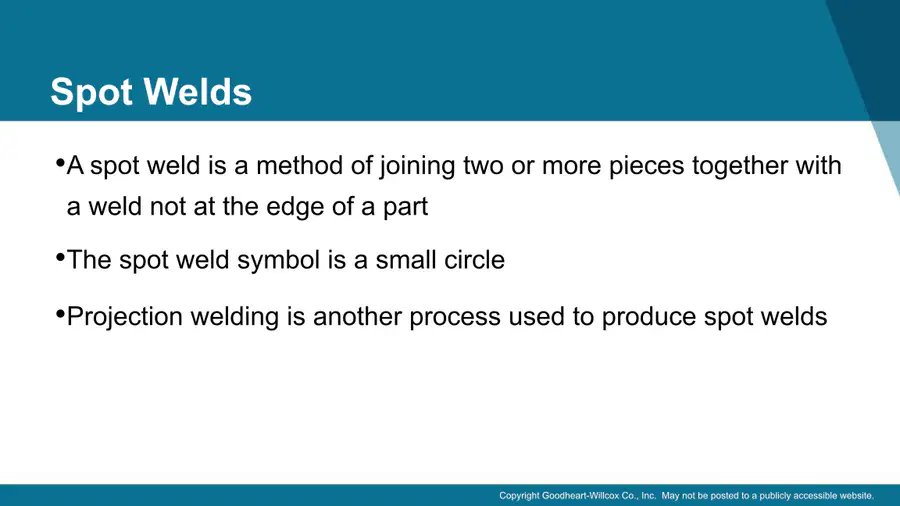

A complete welding symbol contains all the information about a ___ joint.

• weld
• connection
• joint
• fixture

Multiple Choice

Welding is a process used to join two pieces of metal by applying ___ and pressure.

• heat
• vibration
• light
• cold

Multiple Choice

Reflecting on today's lesson about welding joints, positions, and symbols, what is one concept you found most interesting or would like to learn more about?

• Types of welding equipment used.
• Welding techniques for metal types.
• Safety measures in welding processes.
• Welding symbols and their meanings.
