CW02_Types of supply into a property

Multiple Choice

What is the focus of Unit 214?

• Hot water

• Cold water

• Water supply

• Water drainage

Multiple Choice

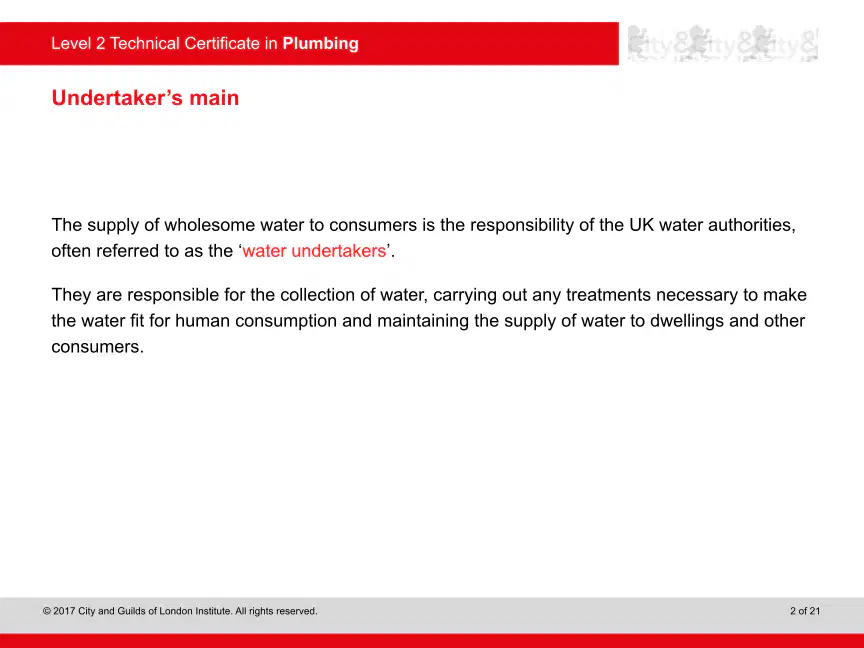

What is the primary responsibility of the UK water authorities, often referred to as 'water undertakers'?

• Collection of water

• Treatment of wastewater

• Distribution of electricity

• Maintenance of roads

Multiple Choice

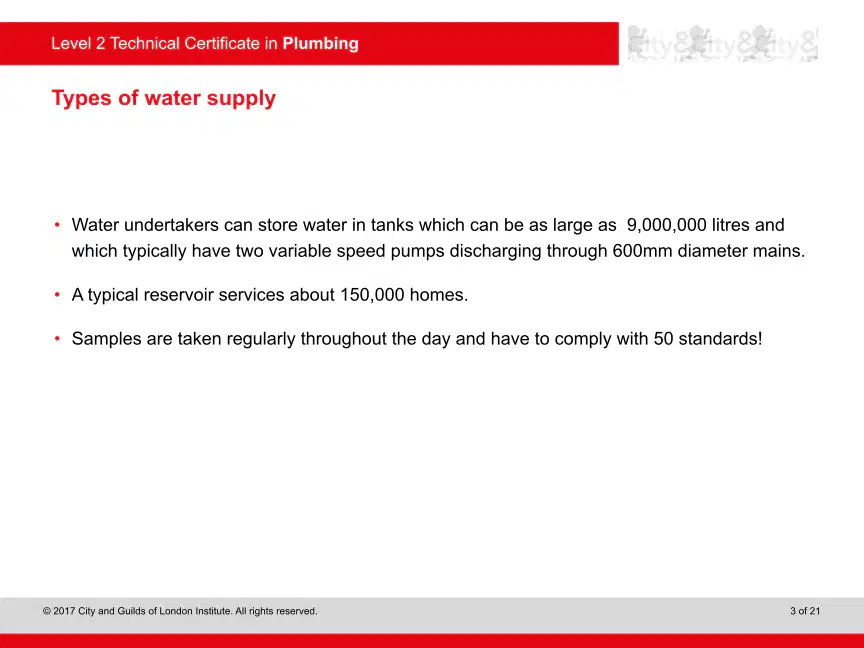

What is the capacity of the water tanks that water undertakers can store water in?

• 1,000,000 litres

• 5,000,000 litres

• 9,000,000 litres

• 15,000,000 litres

Multiple Choice

What is the purpose of dividing the 600mm main pipe into smaller pipes?

• To increase water pressure

• To serve different areas

• To reduce water flow

• To prevent leaks

Multiple Choice

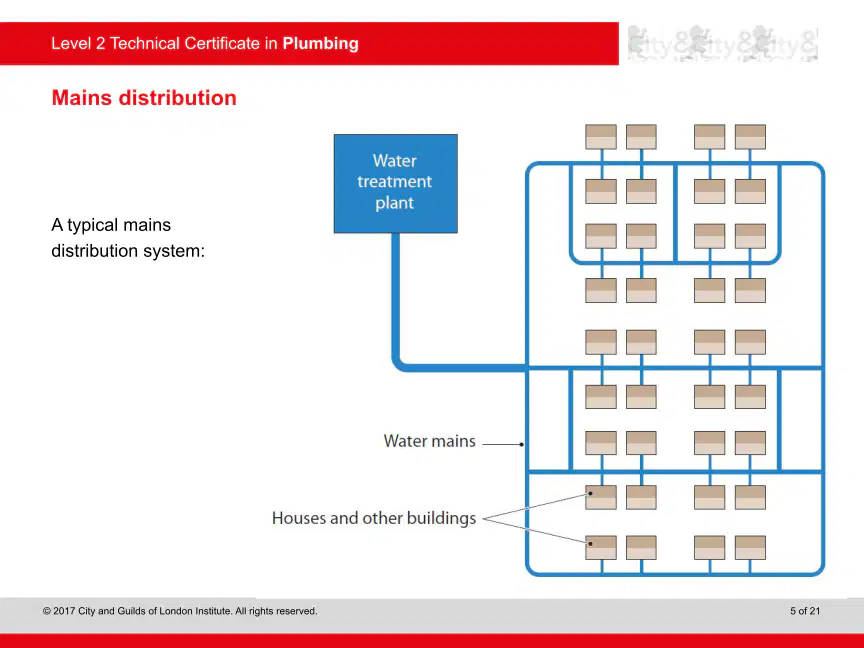

What is the purpose of the water treatment plant in a mains distribution system?

• To distribute electricity

• To treat water

• To store water

• To filter air

Multiple Choice

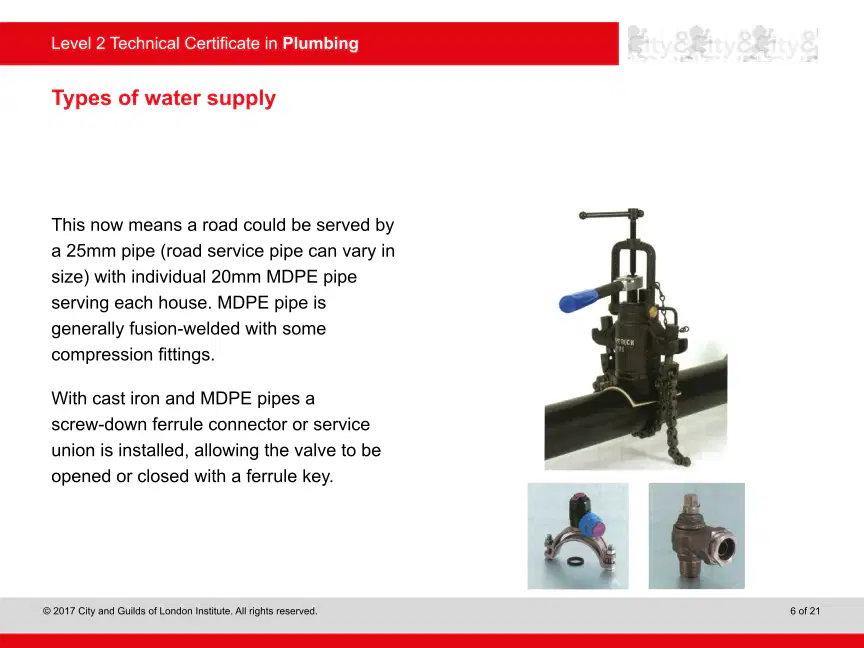

What is the purpose of a screw-down ferrule connector in plumbing?

• To connect two pipes

• To allow valve operation

• To measure water flow

• To prevent leaks

Multiple Choice

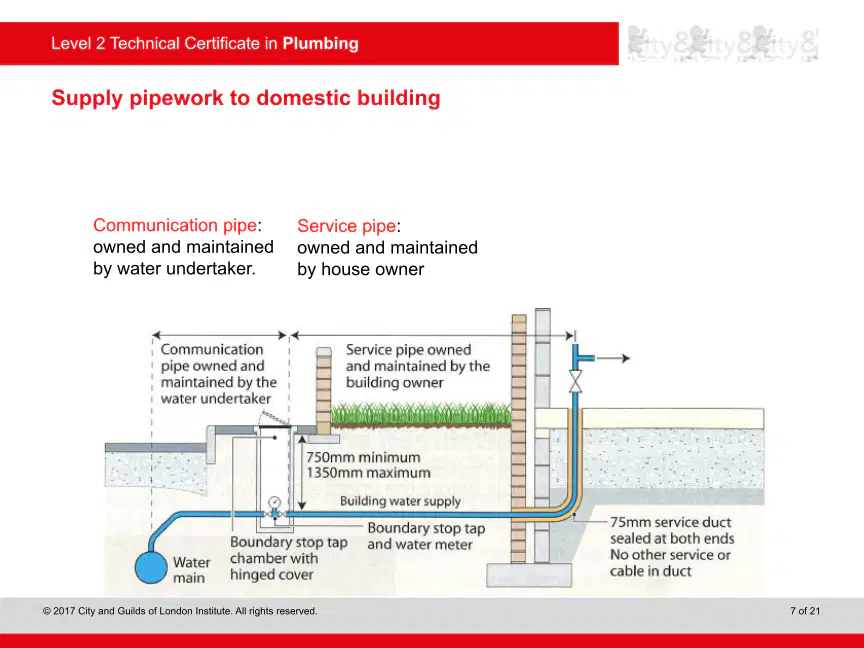

What is the difference between the communication pipe and the service pipe in terms of ownership and maintenance?

• Communication pipe is owned by the house owner

• Service pipe is owned by the water undertaker

• Communication pipe is maintained by the house owner

• Service pipe is maintained by the water undertaker

Multiple Choice

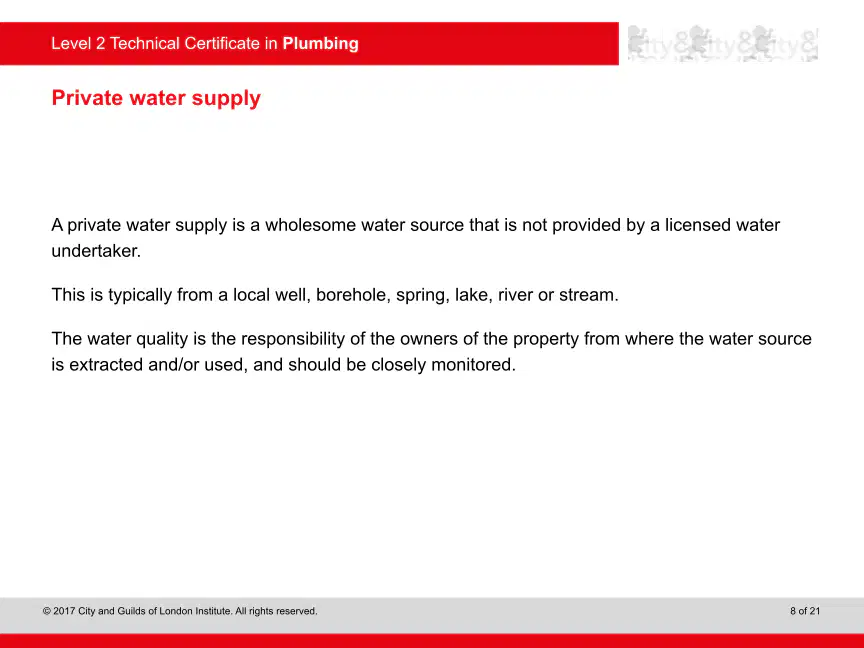

What is a private water supply?

• A water source provided by a licensed water undertaker

• A wholesome water source not provided by a licensed water undertaker

• A water source from a public utility

• A water source that does not require monitoring

Multiple Choice

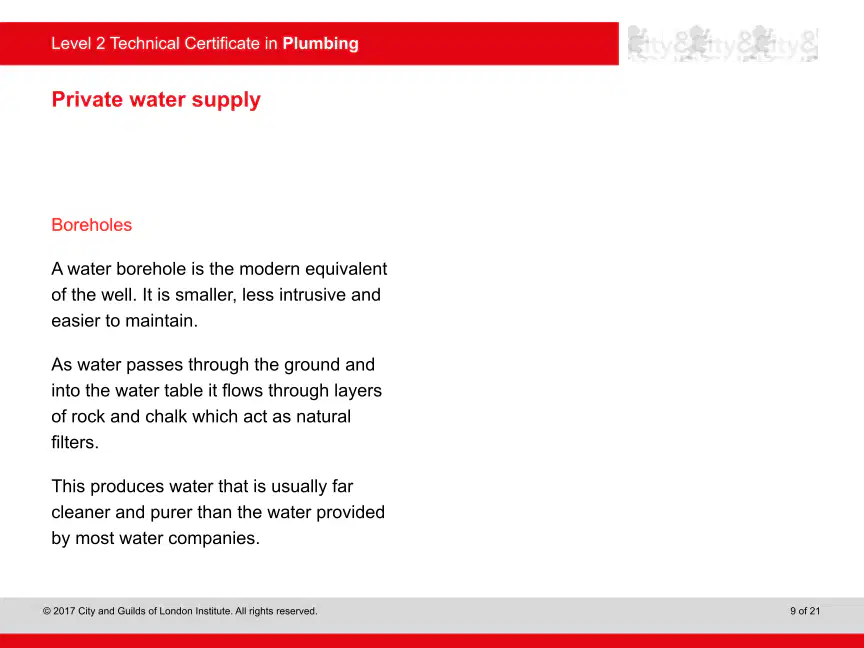

What is a water borehole and how does it compare to a traditional well?

• It is larger and more intrusive

• It is smaller and easier to maintain

• It produces less clean water

• It is more expensive to install

Multiple Choice

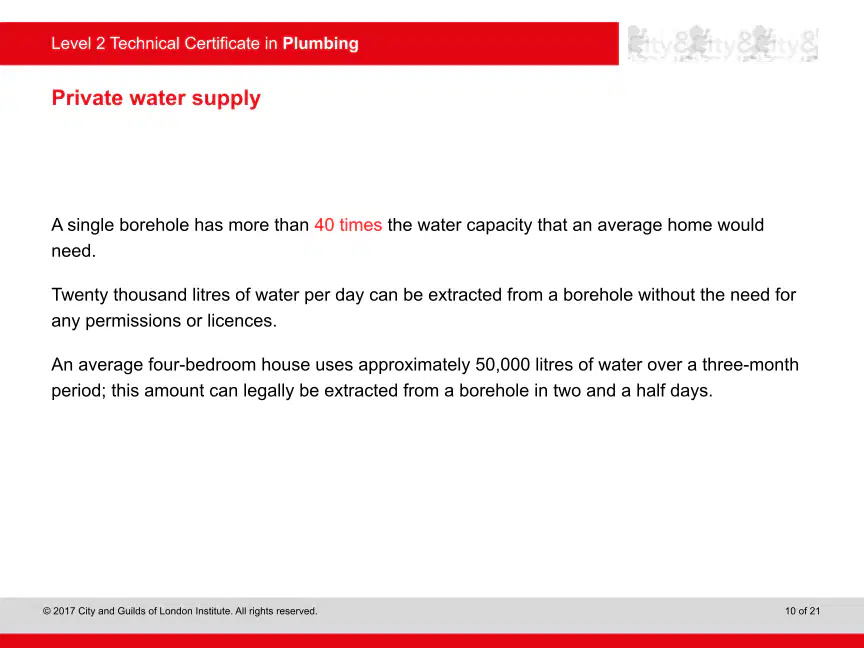

How much water can be extracted from a borehole per day without needing permissions?

• 10,000 litres

• 20,000 litres

• 30,000 litres

• 40,000 litres

Multiple Choice

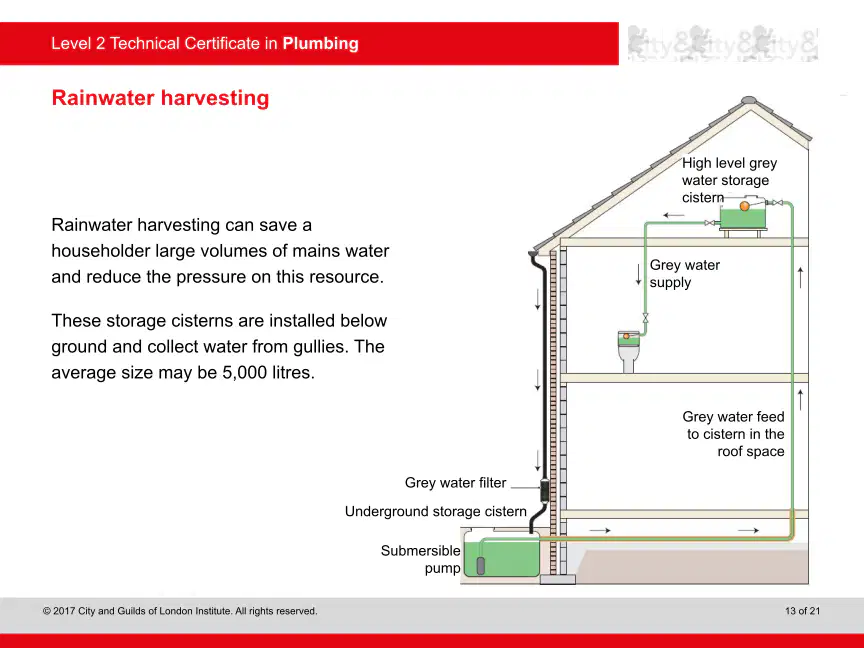

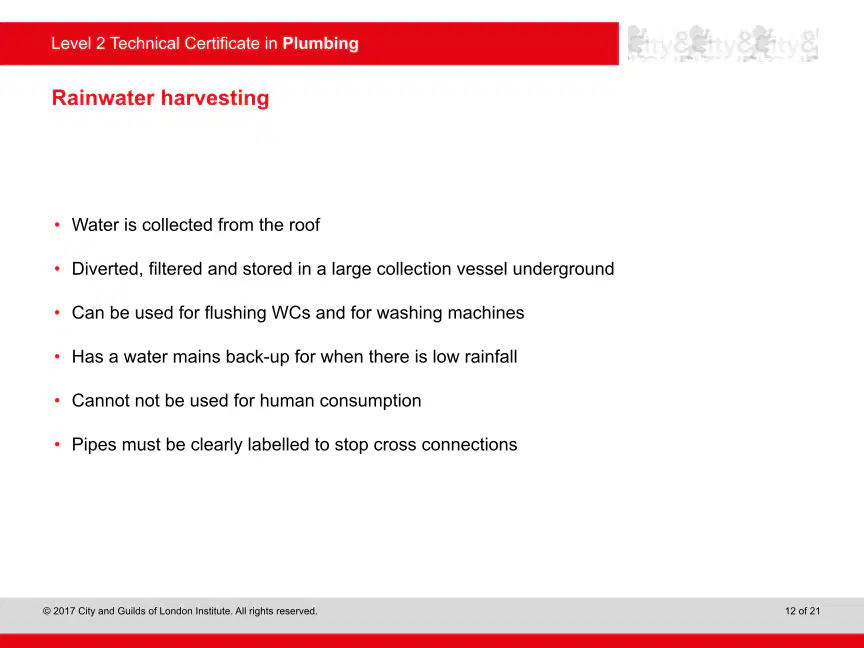

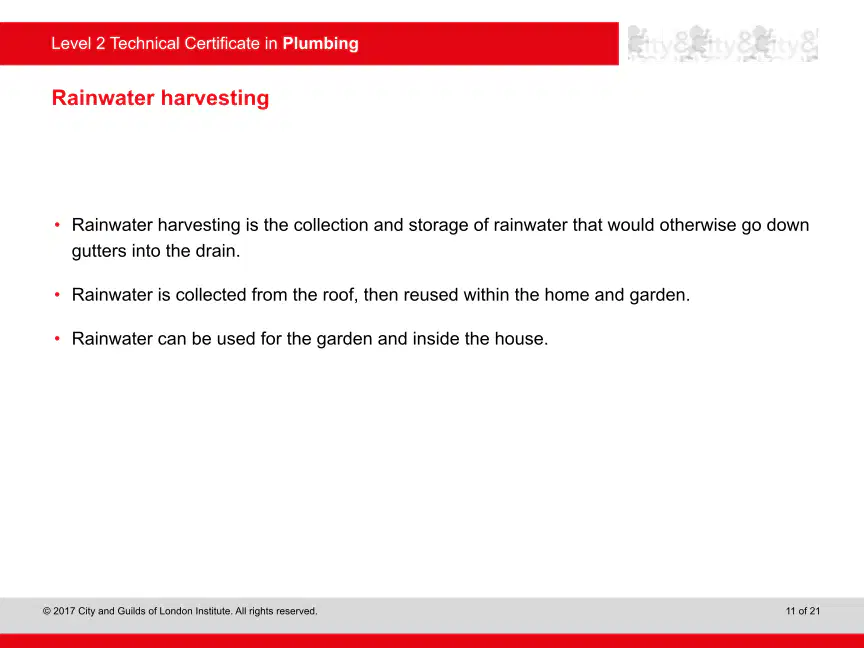

What is rainwater harvesting?

• The collection of rainwater for drinking

• The collection and storage of rainwater

• The process of purifying rainwater

• The method of diverting rainwater to the ocean

Multiple Choice

What are the main uses of harvested rainwater?

• Flushing toilets

• Drinking water

• Irrigation

• Washing cars

Multiple Choice

What is the average size of the underground storage cistern used in rainwater harvesting?

• 2,000 litres

• 3,000 litres

• 4,000 litres

• 5,000 litres

Multiple Choice

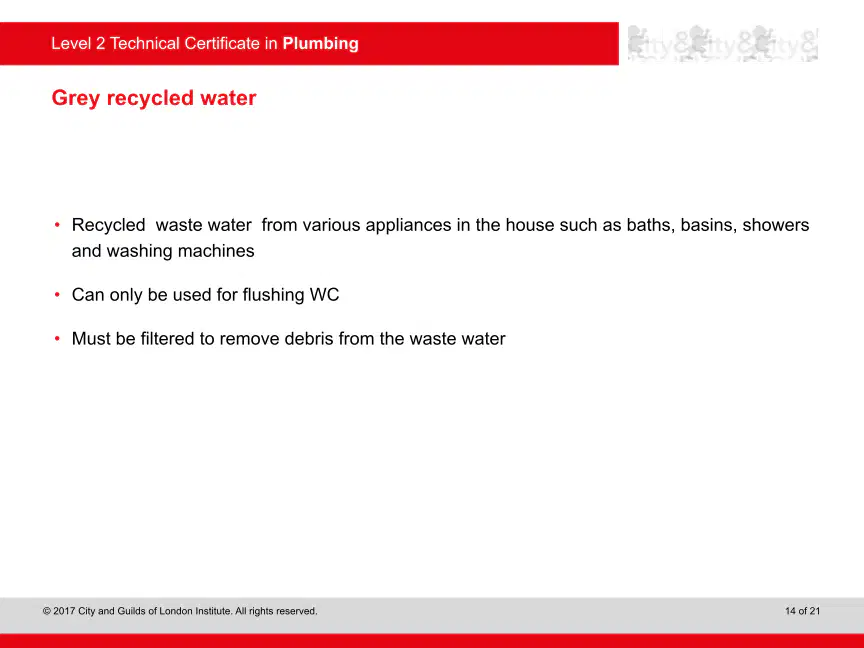

What is grey recycled water primarily used for?

• Flushing toilets

• Watering plants

• Cleaning floors

• Drinking

Multiple Choice

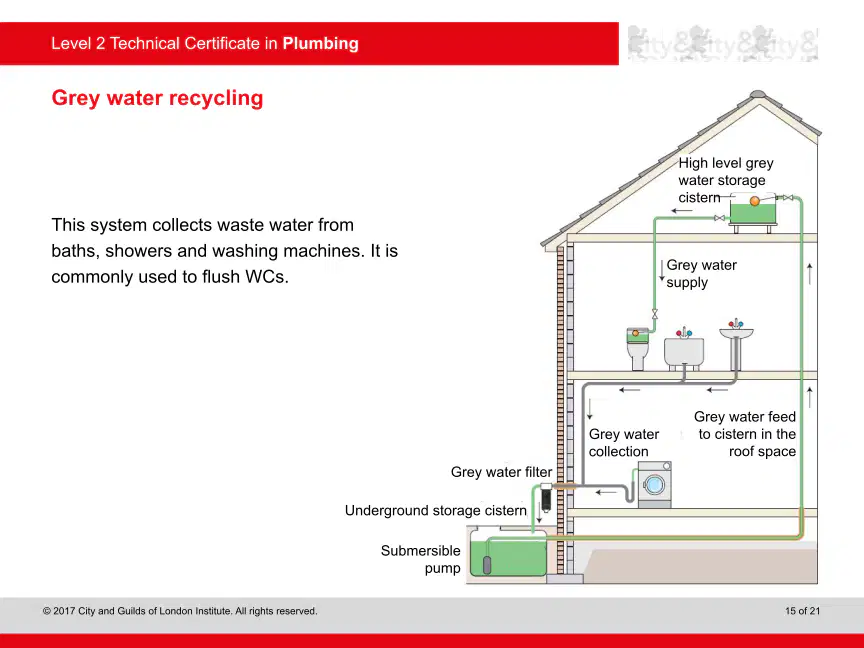

What is the purpose of the grey water recycling system as shown in the diagram?

• To collect rainwater

• To collect waste water from baths, showers, and washing machines

• To filter drinking water

• To supply hot water

Multiple Choice

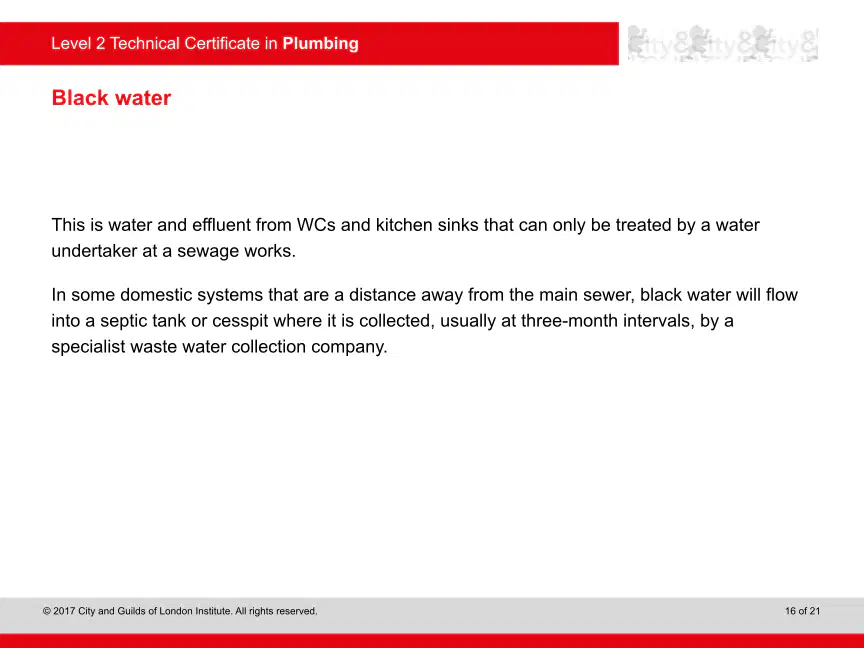

What is black water and how is it treated?

• Water from kitchen sinks only

• Effluent from toilets and sinks

• Water that can be treated by homeowners

• Water that does not require treatment

Multiple Choice

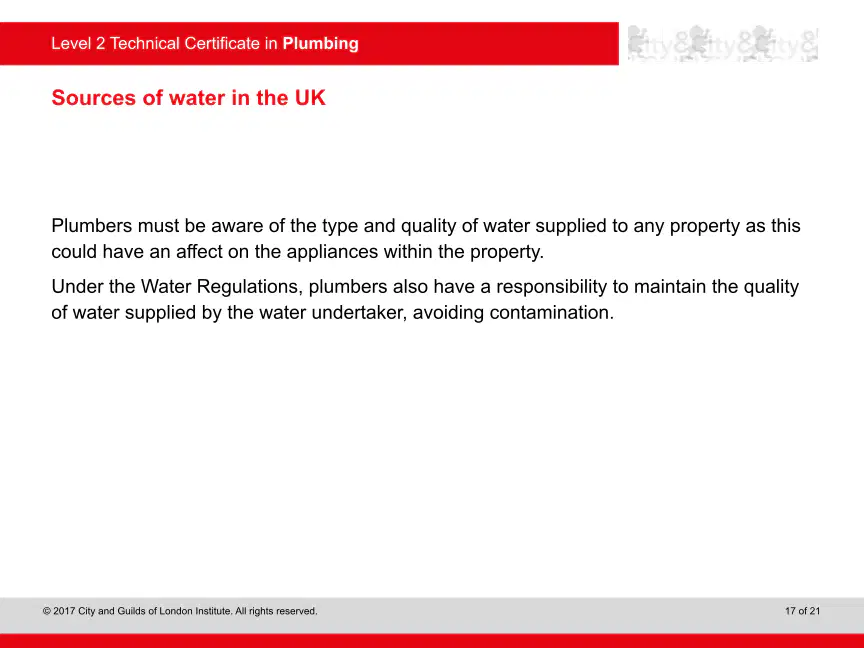

What must plumbers be aware of regarding the water supplied to properties?

• Type and quality of water

• Only the type of water

• Only the quality of water

• Water temperature

Multiple Choice

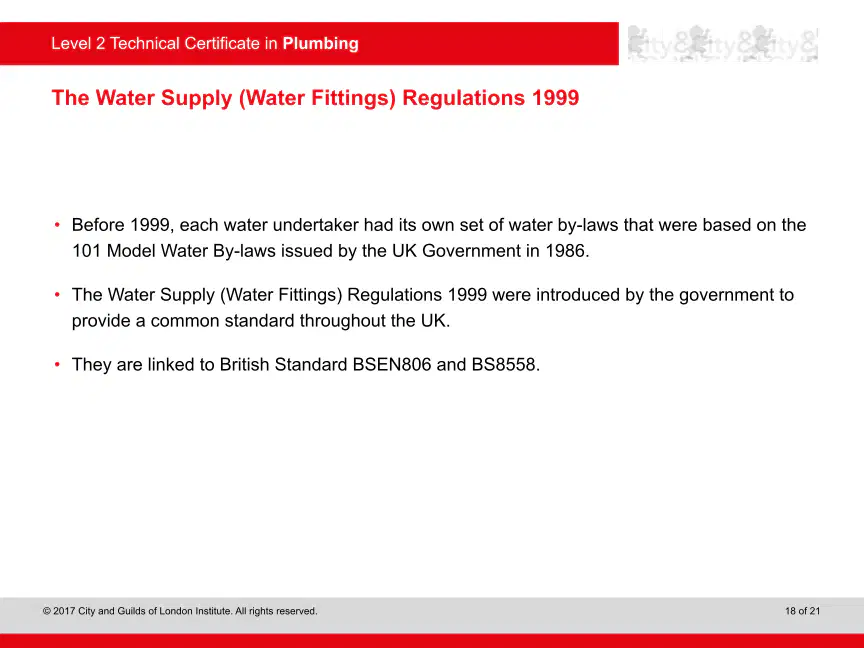

What were the Water Supply (Water Fittings) Regulations 1999 introduced to provide?

• A common standard throughout the UK

• Individual standards for each water undertaker

• A new set of by-laws for the UK

• Guidelines for water usage

Multiple Choice

What are the main objectives of the Water Supply (Water Fittings) Regulations 1999?

• To ensure water quality

• To reduce plumbing costs

• To increase water pressure

• To promote water conservation

Multiple Choice

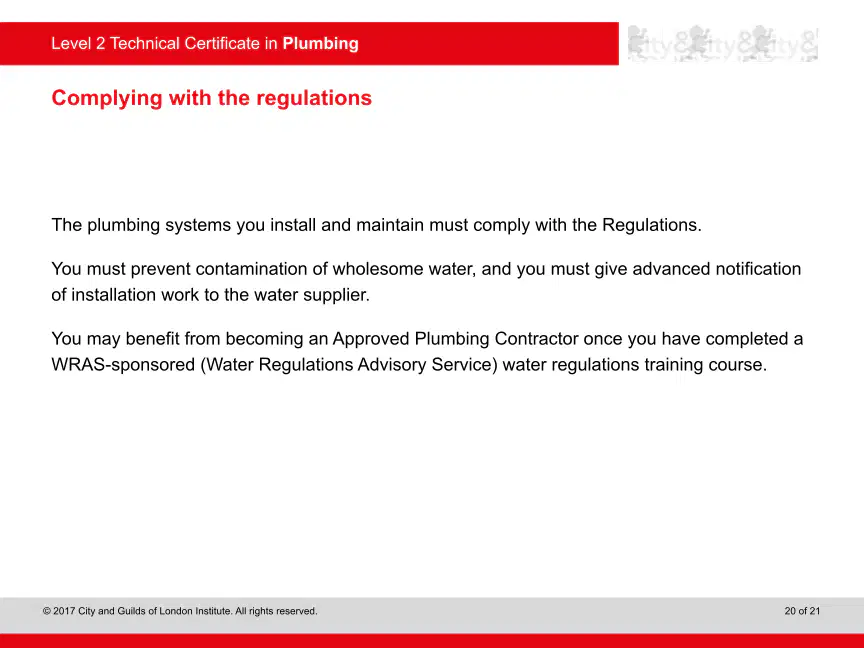

What must plumbing systems comply with according to the regulations?

• Local laws

• Safety standards

• Regulations

• Manufacturer guidelines

Multiple Choice

What questions do you have regarding the plumbing topics covered?

• Installation techniques

• Safety regulations

• Pipe materials

• Water pressure

Poll

How confident do you feel about this topic now?

• Very confident
• Somewhat confident
• Not confident
