2. Transducers - Chapter 8

Multiple Choice

What property of this wave is represented by the letter "A"

• amplitude

• crest

• trough

• wavelength

Multiple Choice

What kind of wave is pictured?

• Transverse
• Longitudinal
• surface
• none of the above

Open Ended

Can you think of any everyday devices that use the piezoelectric effect or reverse piezoelectric effect?

Multiple Choice

What is the significance of transducers in modern technology and healthcare?

• They are used only for entertainment purposes

• They help convert one form of energy to another, enabling various applications

• They are mainly used for decoration

• They are used only in computers

Multiple Choice

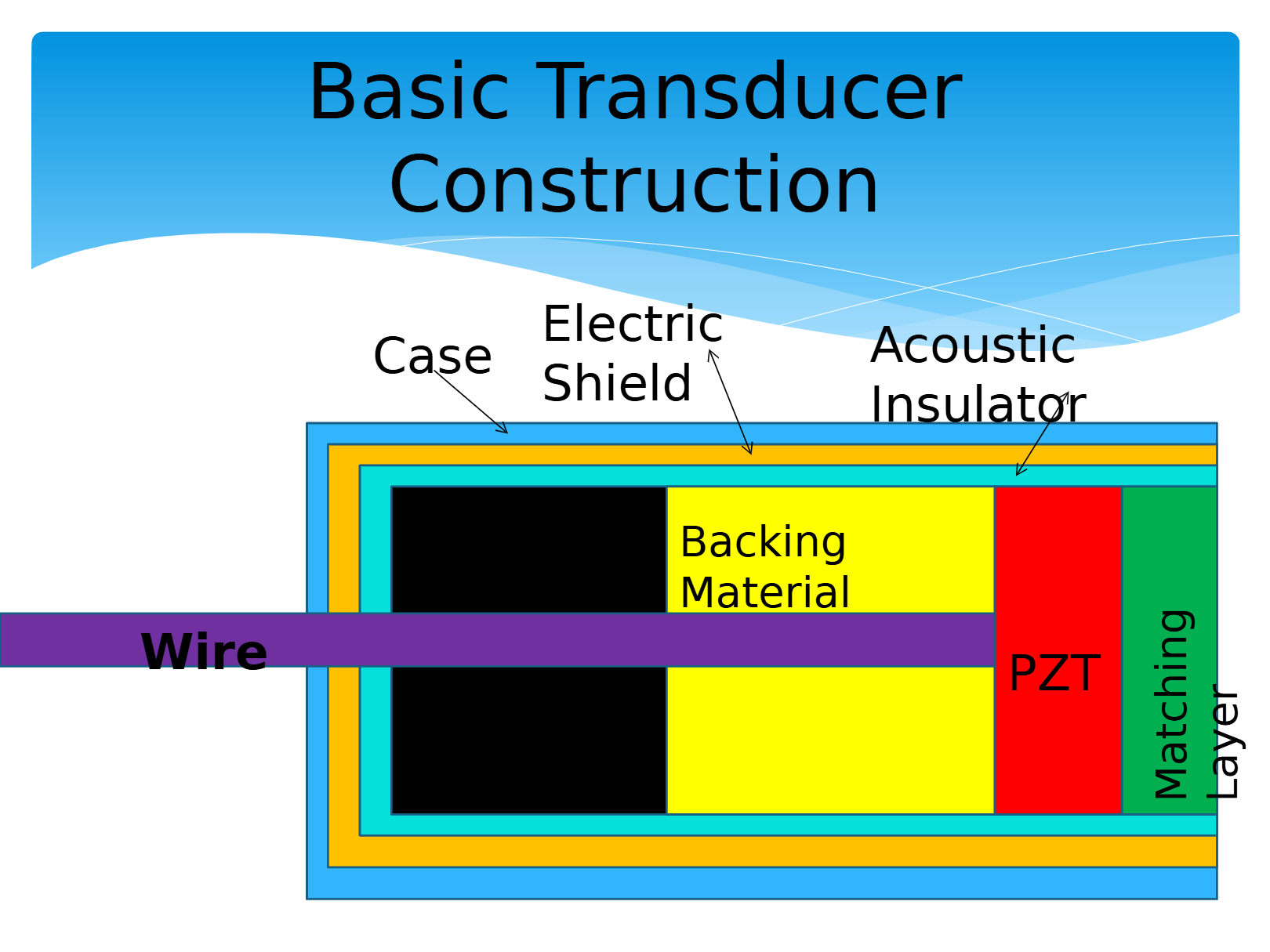

Which component in the basic transducer construction is responsible for converting electrical energy into sound waves?

• Backing Material

• PZT

• Matching Layer

• Acoustic Insulator

Open Ended

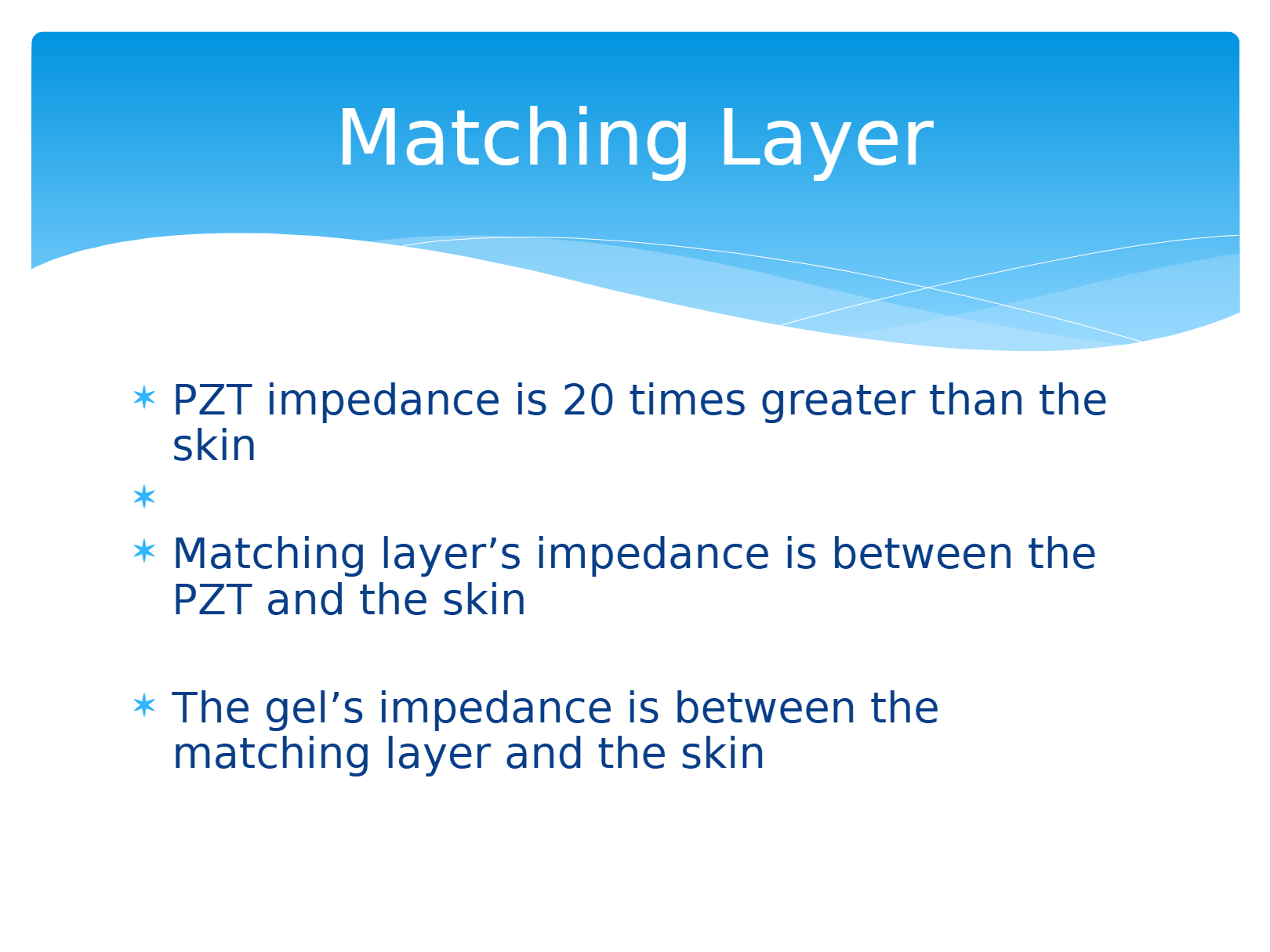

Explain the importance of the matching layer in a transducer and how its impedance relates to the PZT and the skin.

Open Ended

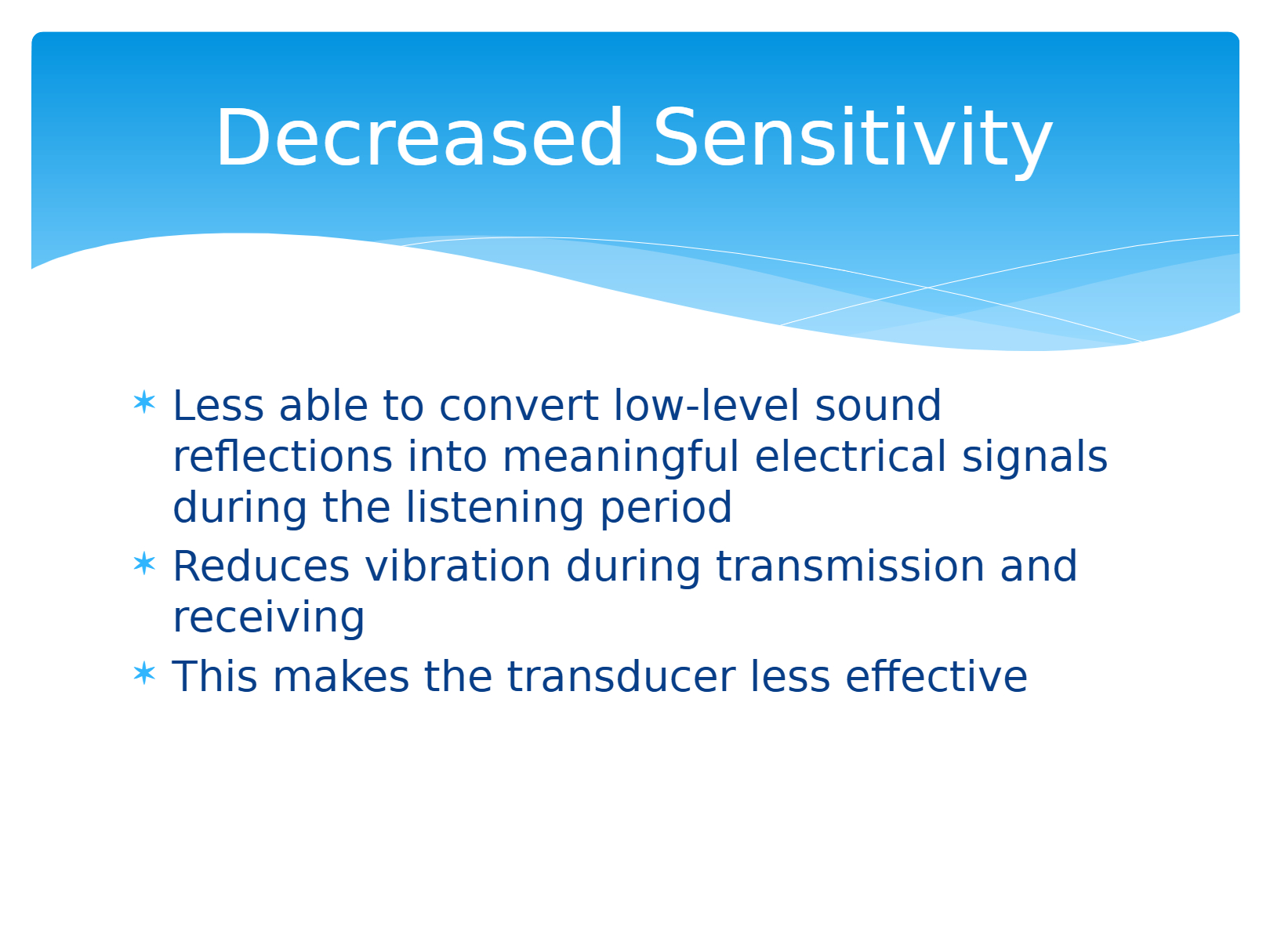

How does decreased sensitivity affect the performance of a transducer?

Multiple Choice

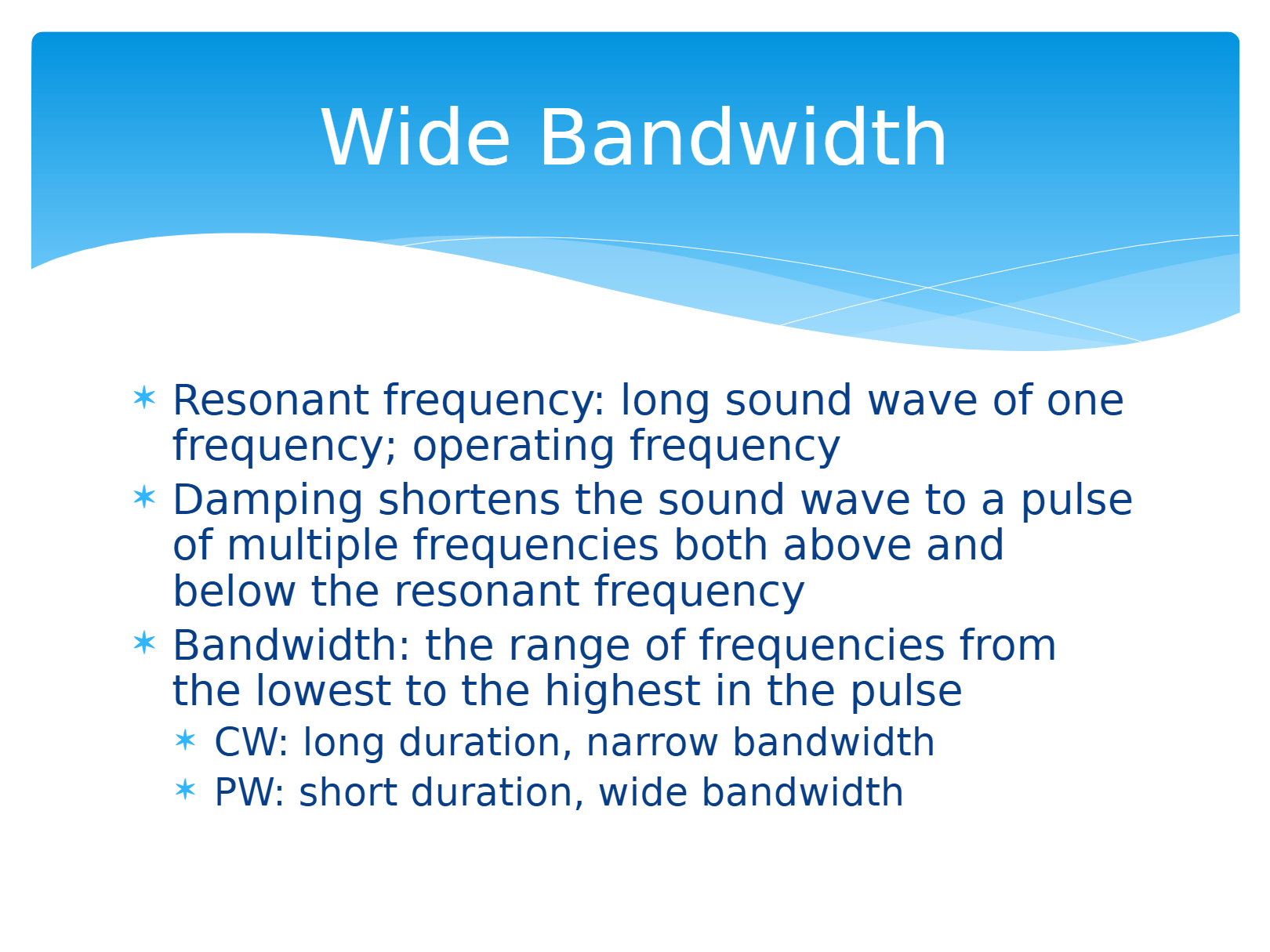

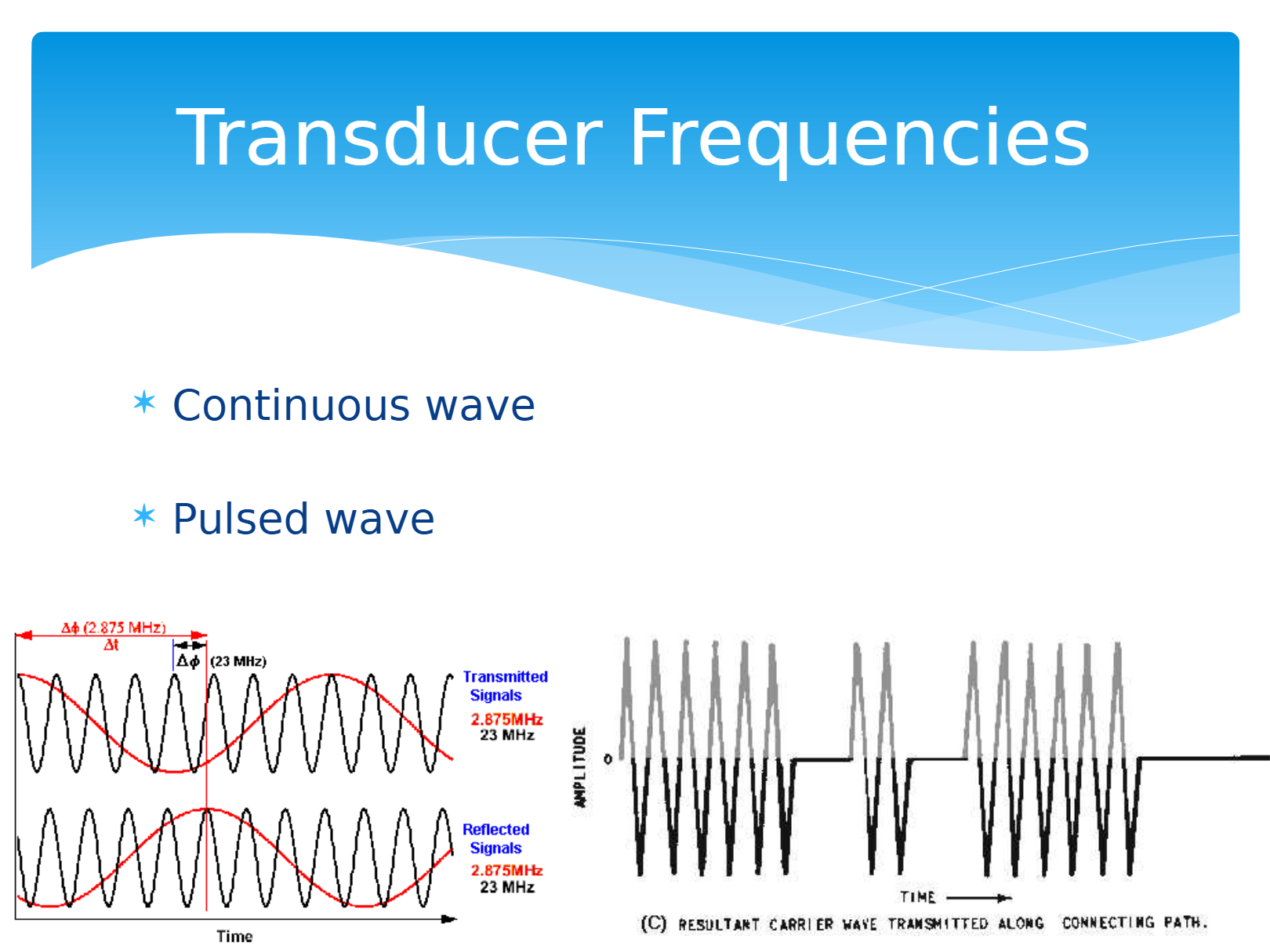

Which of the following statements about bandwidth in transducers is correct?

• CW has a wide bandwidth and short duration

• PW has a narrow bandwidth and long duration

• CW has a narrow bandwidth and long duration

• PW has a wide bandwidth and long duration

Multiple Select

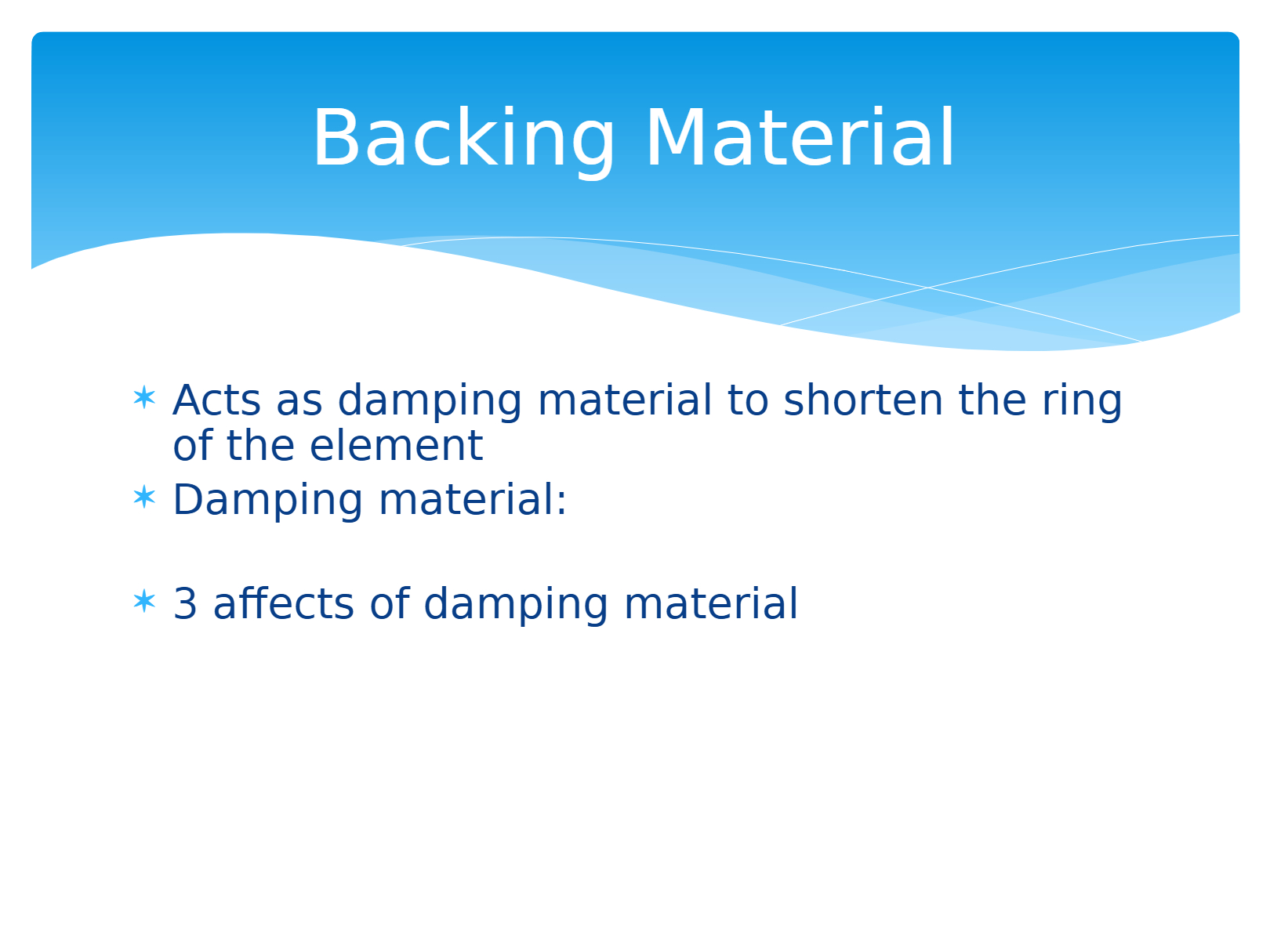

Which of the following are effects of damping material in a transducer?

• Shortens the ring of the element

• Increases sensitivity

• Reduces vibration during transmission and receiving

• Widens bandwidth

Multiple Choice

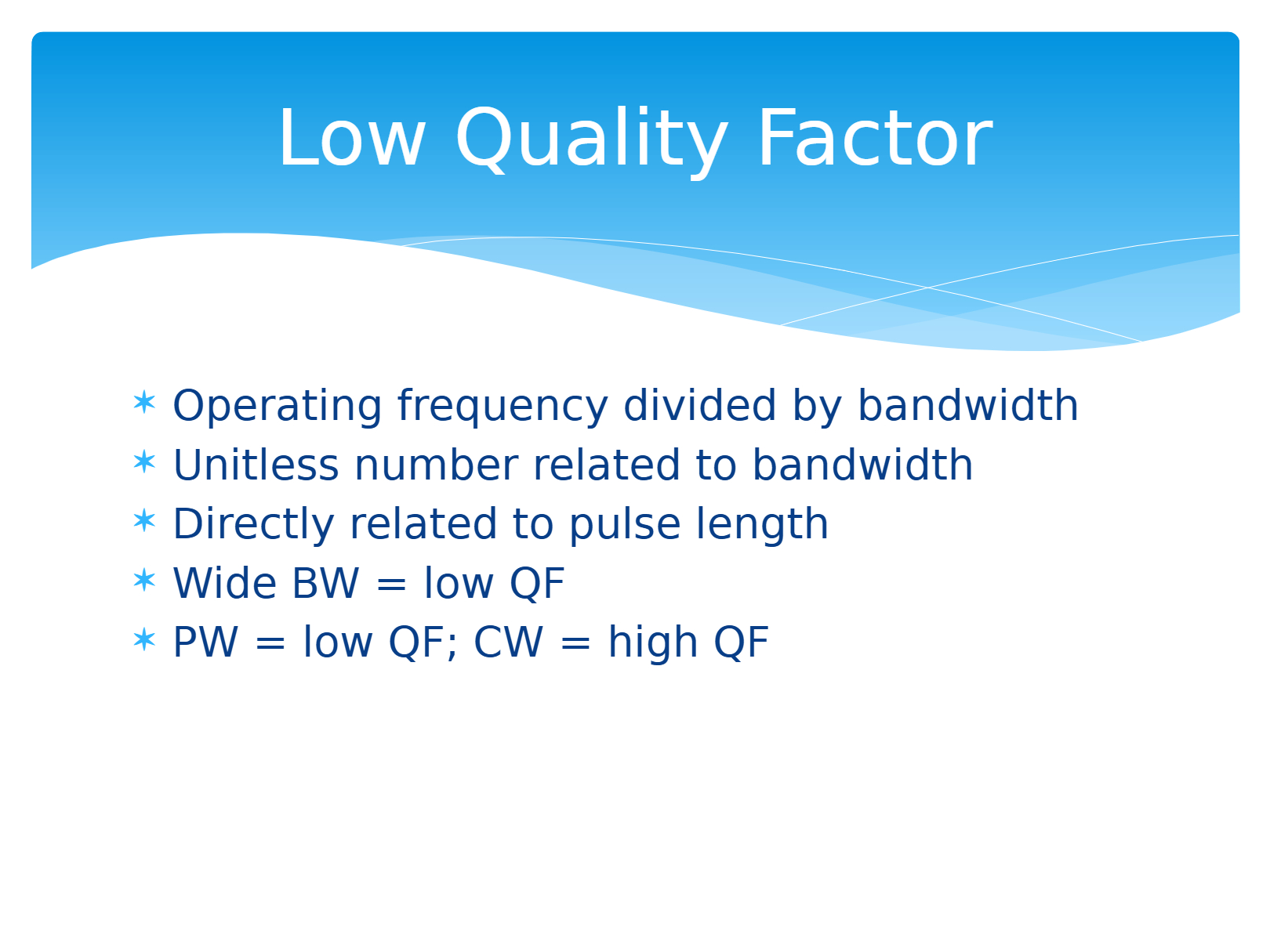

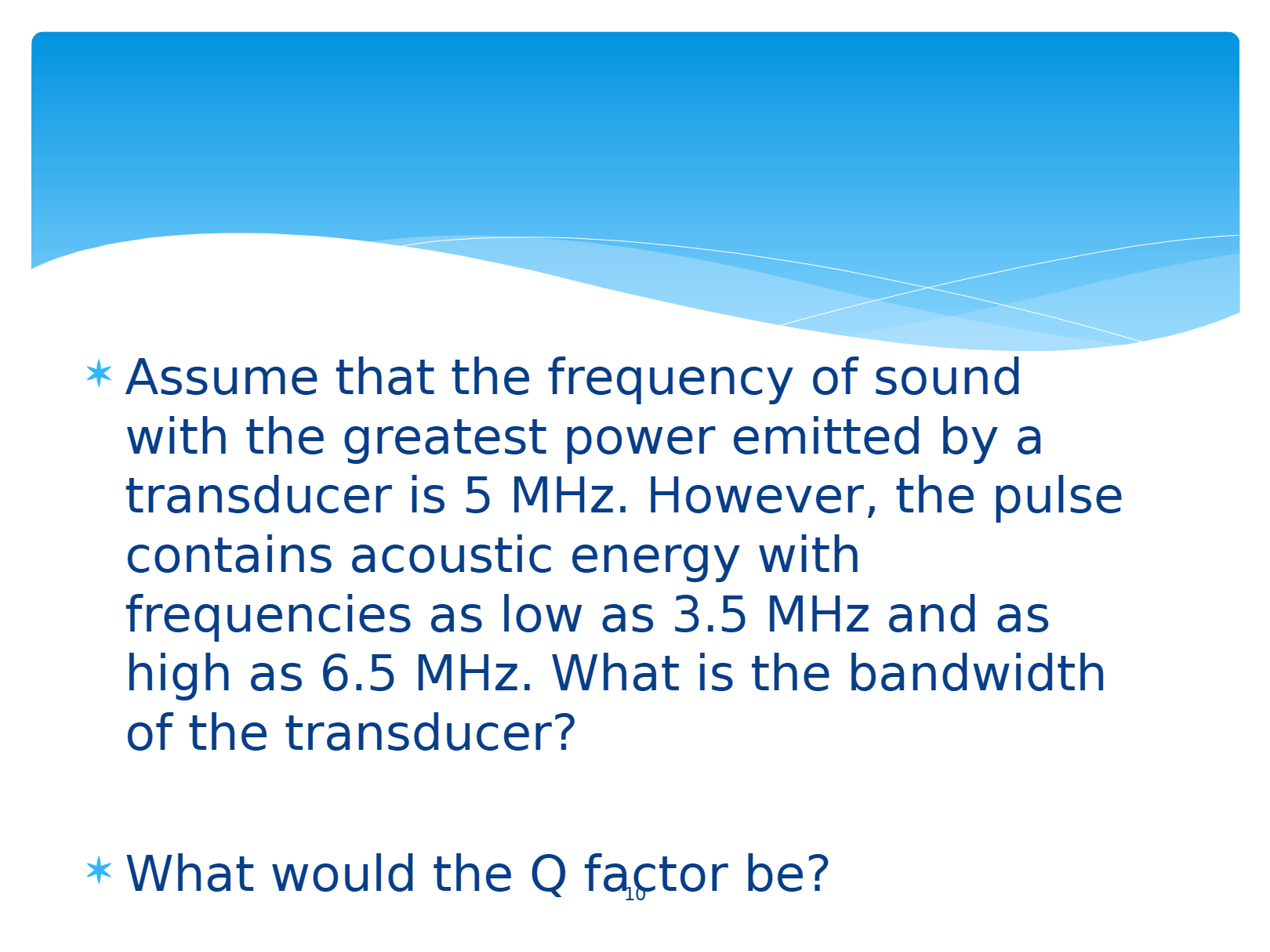

Which of the following statements about Quality Factor (QF) is correct?

• A wide bandwidth results in a high QF.

• QF is a unitless number related to bandwidth.

• Pulse wave (PW) has a high QF.

• Continuous wave (CW) has a low QF.

Open Ended

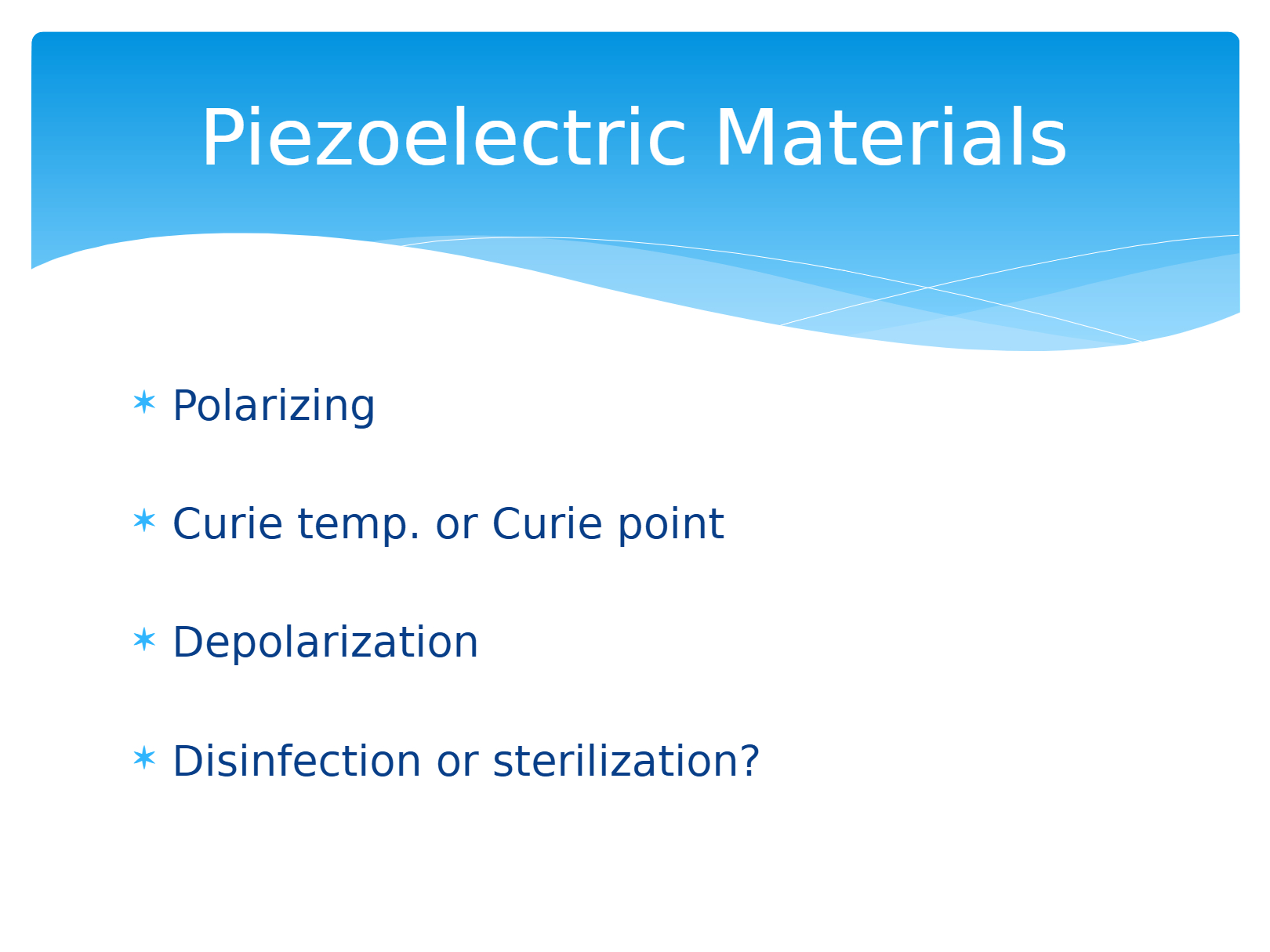

Explain how the Curie temperature affects the properties of piezoelectric materials used in transducers.

Multiple Select

Which of the following are characteristics of pulsed wave (PW) transducers?

• Low QF

• Wide bandwidth

• High QF

• Narrow bandwidth

Multiple Choice

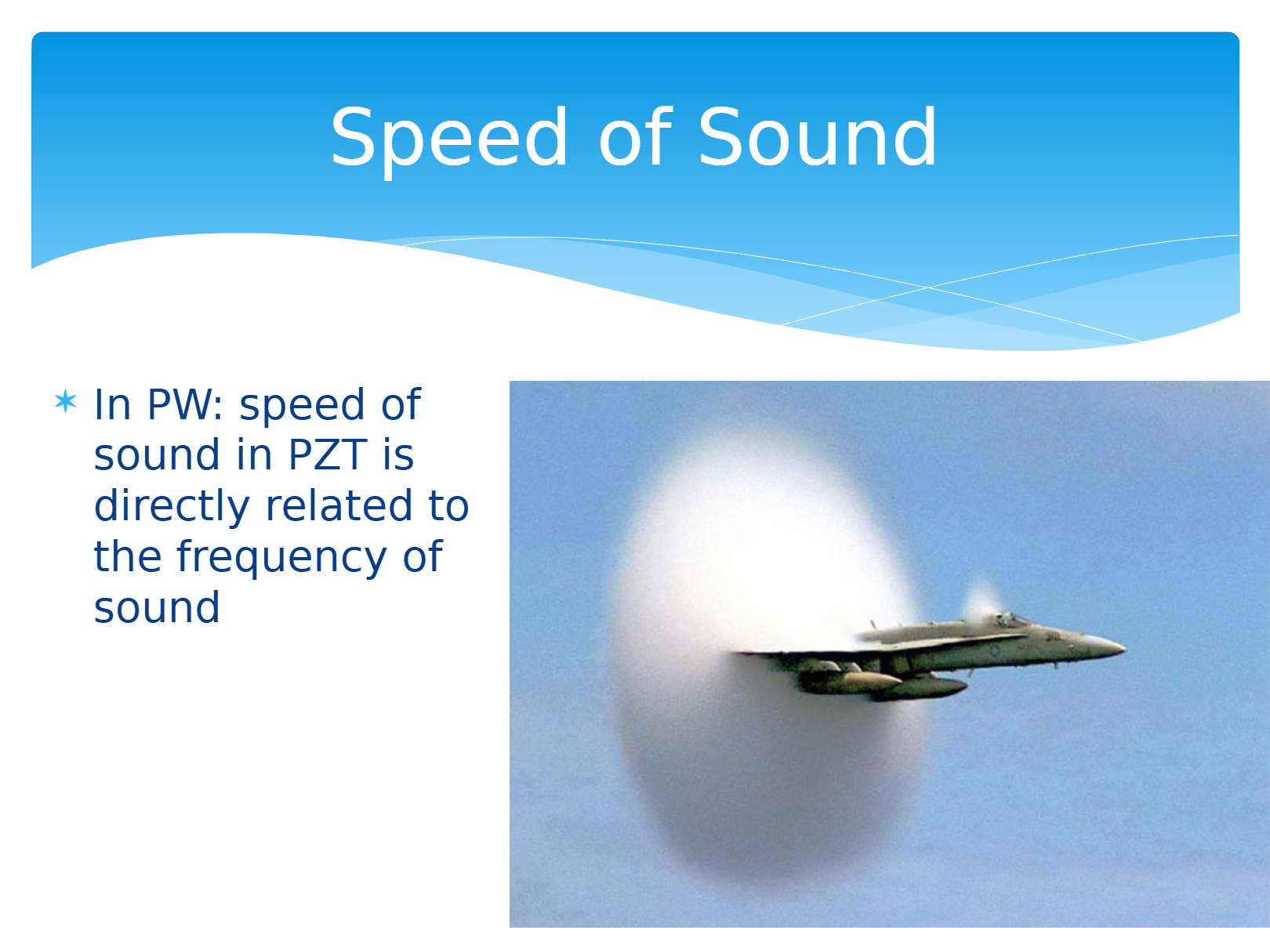

In pulsed wave (PW) transducers, the speed of sound in PZT is directly related to which of the following?

• Wavelength of sound

• Frequency of sound

• Bandwidth of transducer

• Thickness of PZT

Multiple Choice

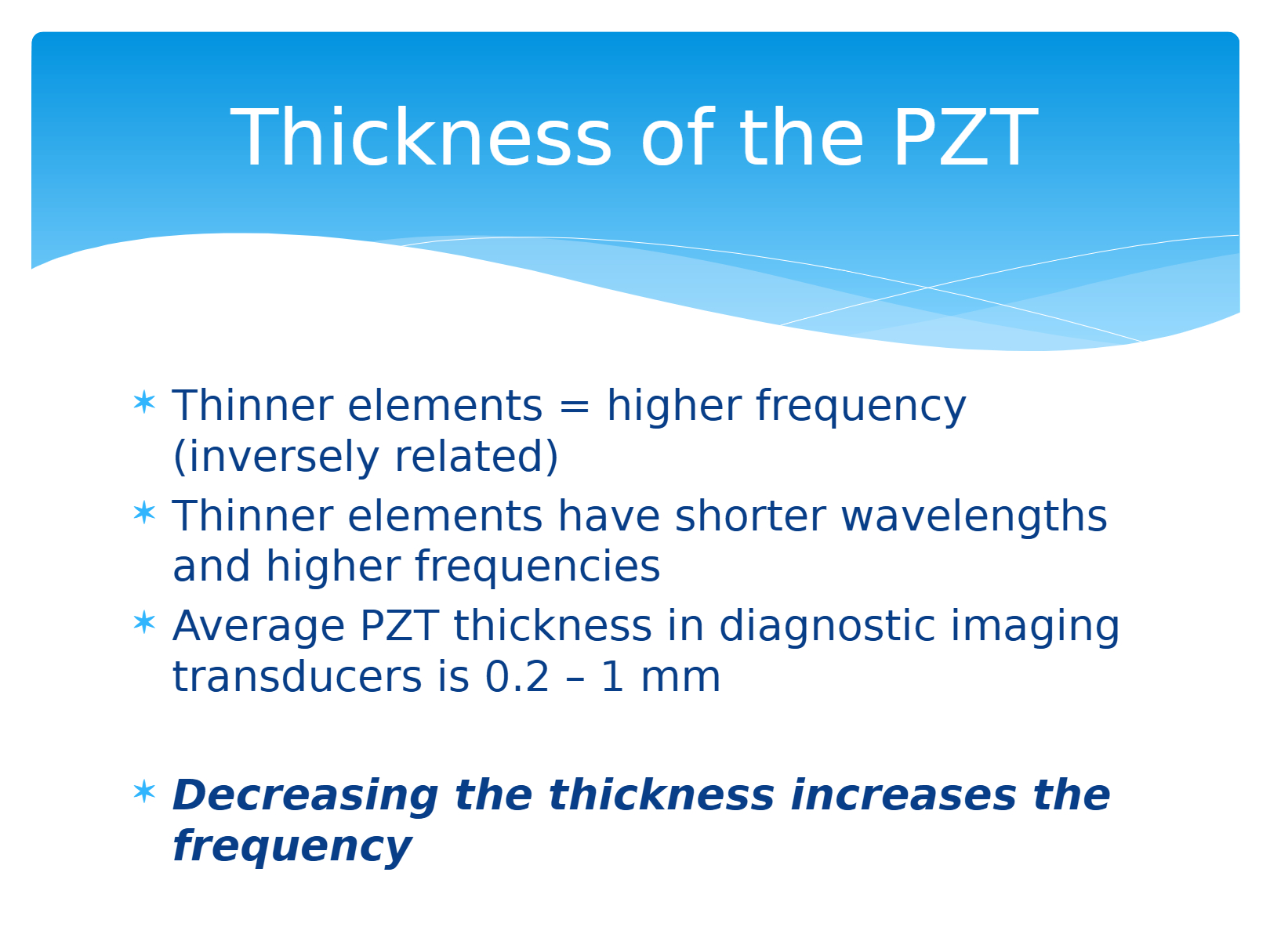

What happens to the frequency of a transducer if the thickness of the PZT element is decreased?

• The frequency decreases

• The frequency increases

• The frequency remains the same

• The frequency becomes zero

Open Ended

Do you have any questions or would you like to know more about transducers and their applications?

Open Ended

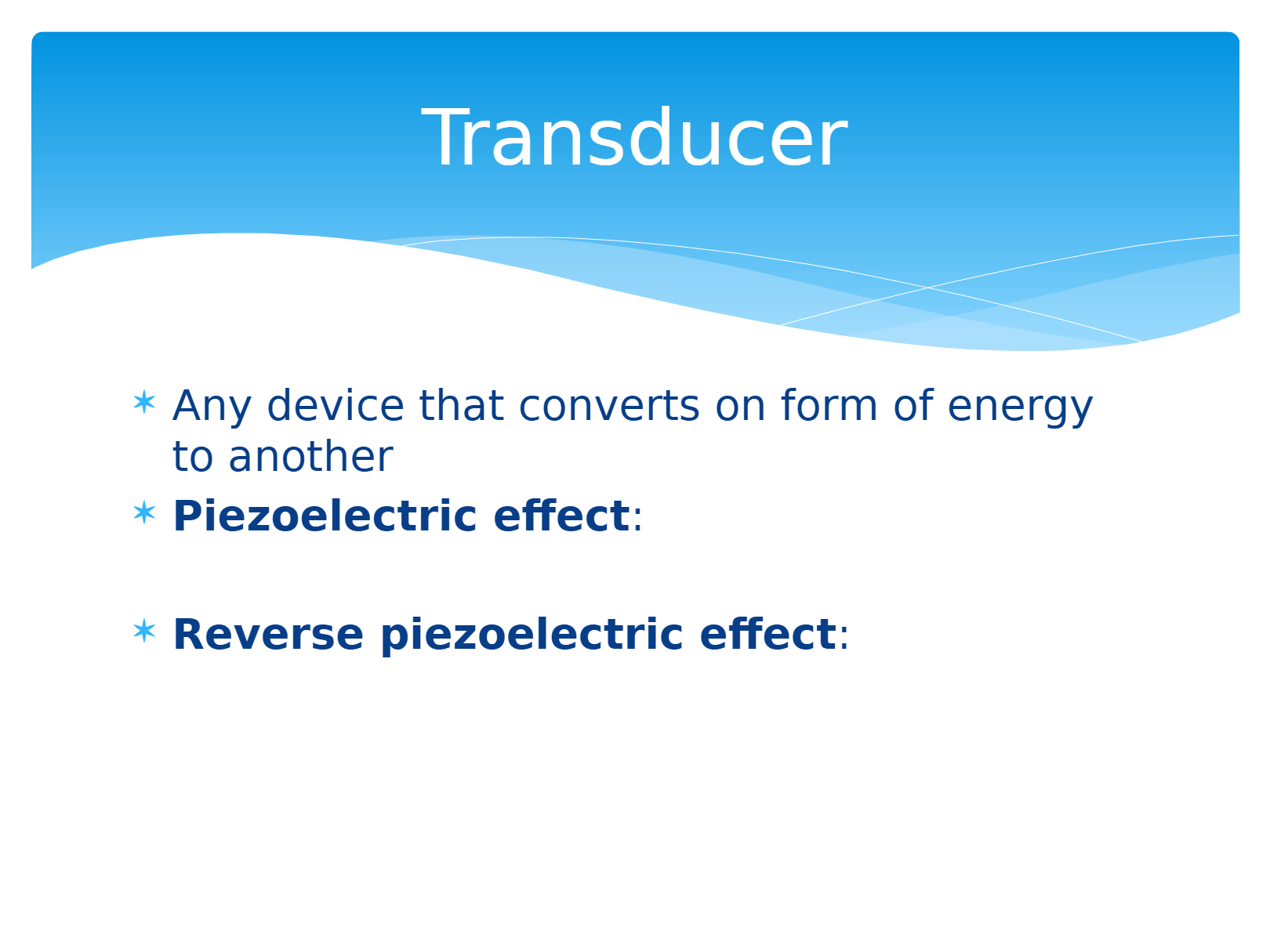

Explain the difference between the piezoelectric effect and the reverse piezoelectric effect in the context of transducers.

Multiple Choice

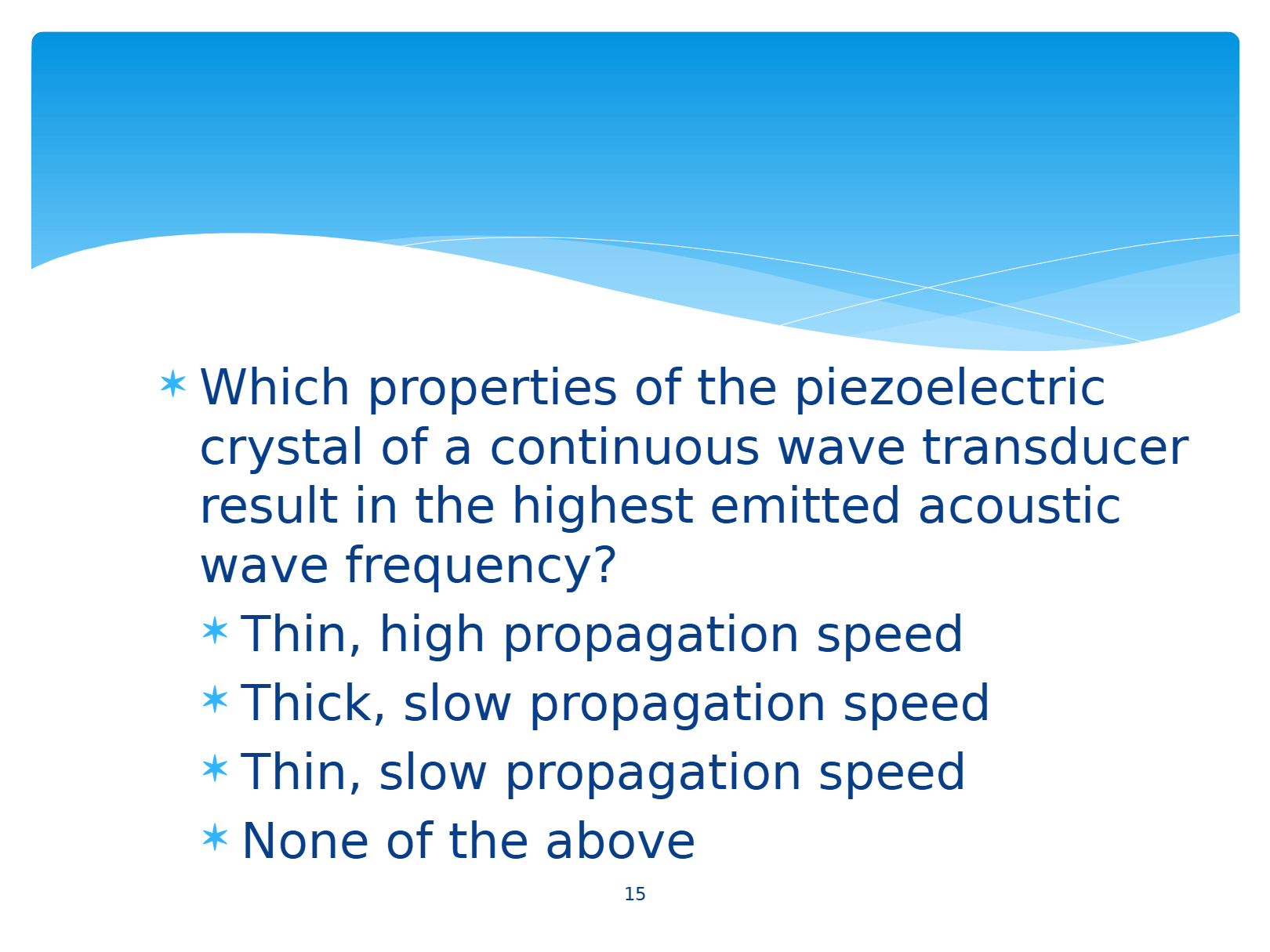

Which properties of the piezoelectric crystal of a continuous wave transducer result in the highest emitted acoustic wave frequency?

• Thin, high propagation speed

• Thick, slow propagation speed

• Thin, slow propagation speed

• None of the above
