Tectonic Plate Remediation

Open Ended

Fossils are important evidence for past plate motion. For example, Wegener noticed there were fossils of tropical plants in Antartica, which he used to support his idea of continental drift. How are these fossils evidence of plate motion?

Multiple Choice

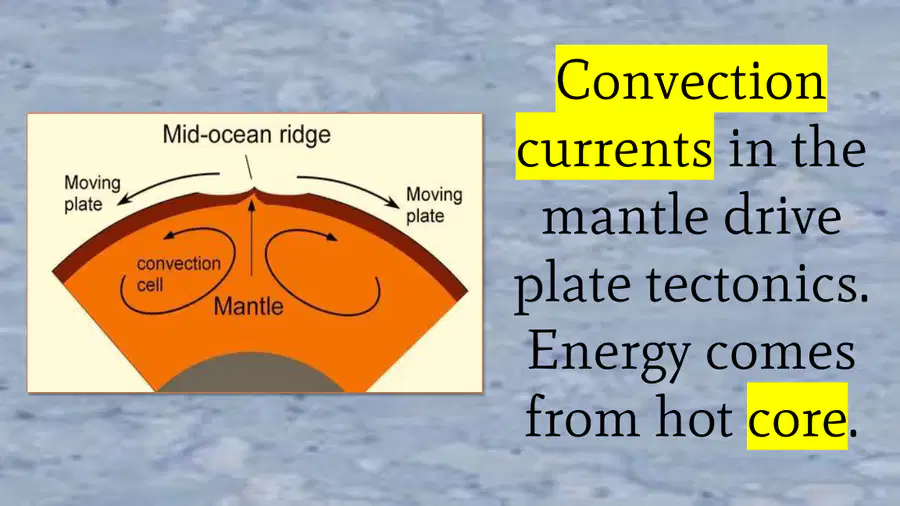

The diagram illustrates the movements of tectonic plates on Earth. Which statement best describes this diagram?

• It shows the convection currents in the mantle.

• It shows the convection currents in the outer core.

• It shows the radiation of heat through the mantle.

• It shows the conduction of heat in the mantle.

Multiple Choice

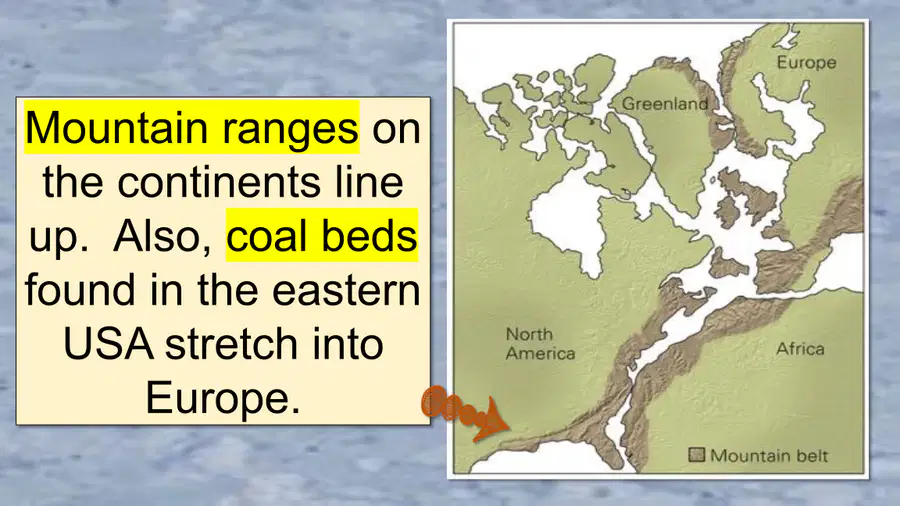

What geographical features are mentioned in the text that align across continents?

• Rivers

• Mountain ranges

• Deserts

• Lakes

Multiple Choice

What do regions of different continents that share similar fossils and rocks suggest about their past?

• They were once connected

• They have always been separate

• They are currently moving closer together

• They have no relation

Multiple Choice

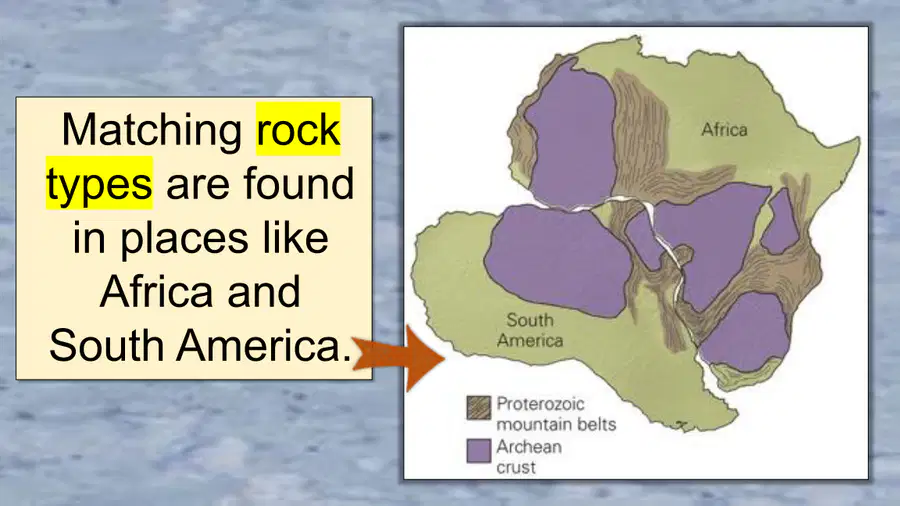

What types of rock are found in Africa and South America according to the image?

• Igneous

• Sedimentary

• Metamorphic

• All of the above

Multiple Choice

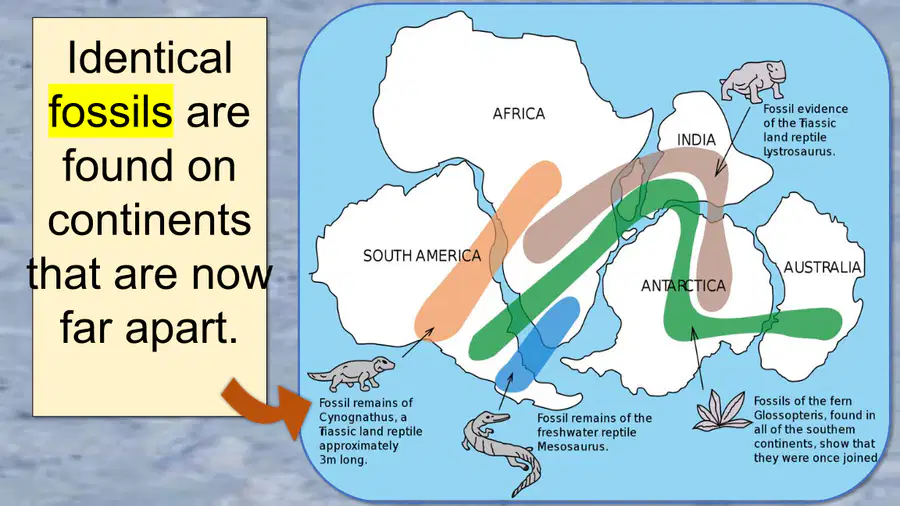

This picture is an example of which type of evidence?

• matching fossil

• matching land formation

• climate change

• memorial movement

Multiple Choice

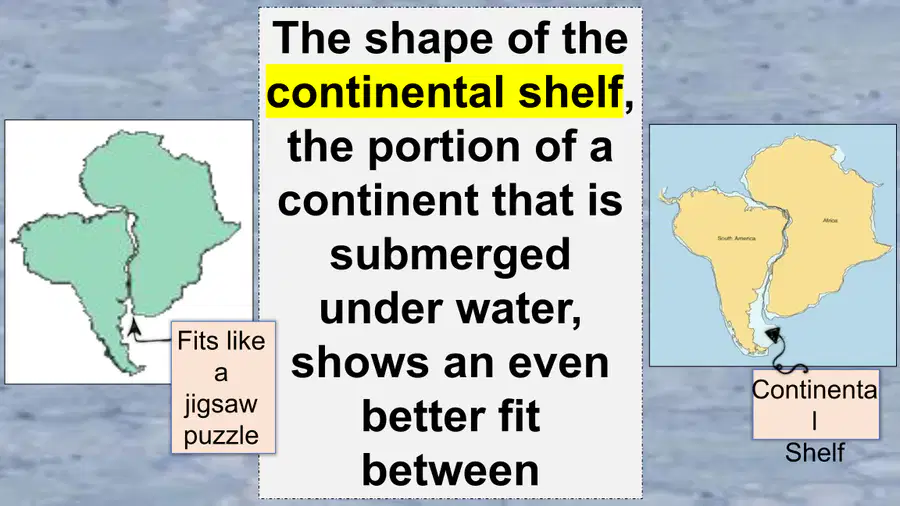

What is the definition of the continental shelf as described in the image?

• The part of a continent that is submerged under water

• The area of land above sea level

• The boundary between land and ocean

• The deepest part of the ocean

Multiple Choice

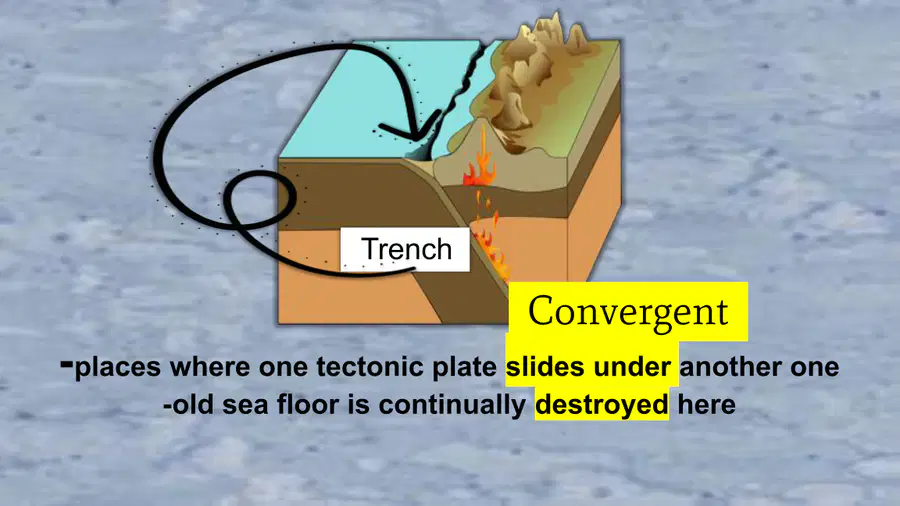

What structure is the arrow pointing to?

• Subduction zone

• Stratovolcano

• Mid-ocean ridge

• Pangea

Multiple Choice

Subduction zones occur on Earth where dense oceanic crust dives under more buoyant continental crust. These boundaries are characterized by a deep ocean trench next to a high continental mountain range, large numbers of earthquakes and volcanoes. All of this is further evidence for the

• big bang theory.
• theory of plate tectonics.
• origin of the species.
• theory of natural selection.


Multiple Choice

What would you be most likely to find at a convergent boundary between a continental and oceanic plate?

• Seafloor spreading

• Volcanoes
• Mid-Ocean Ridge
• Rift

Multiple Choice

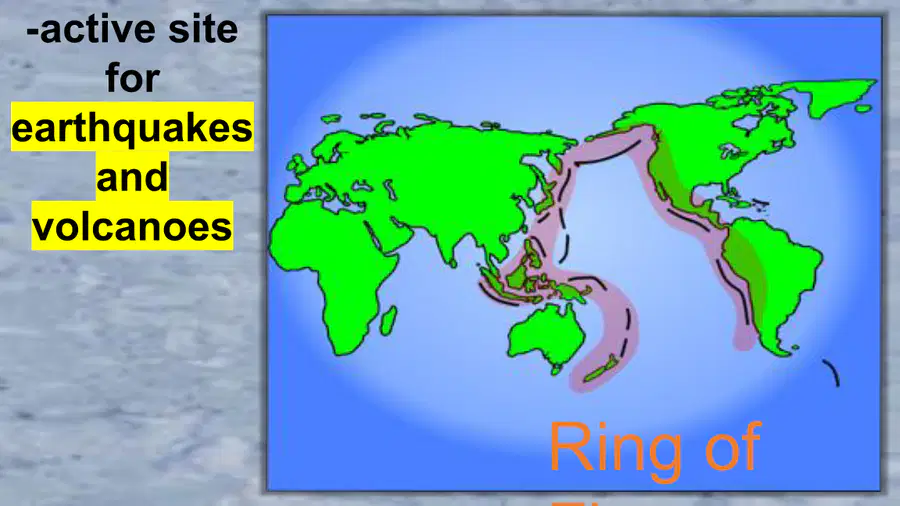

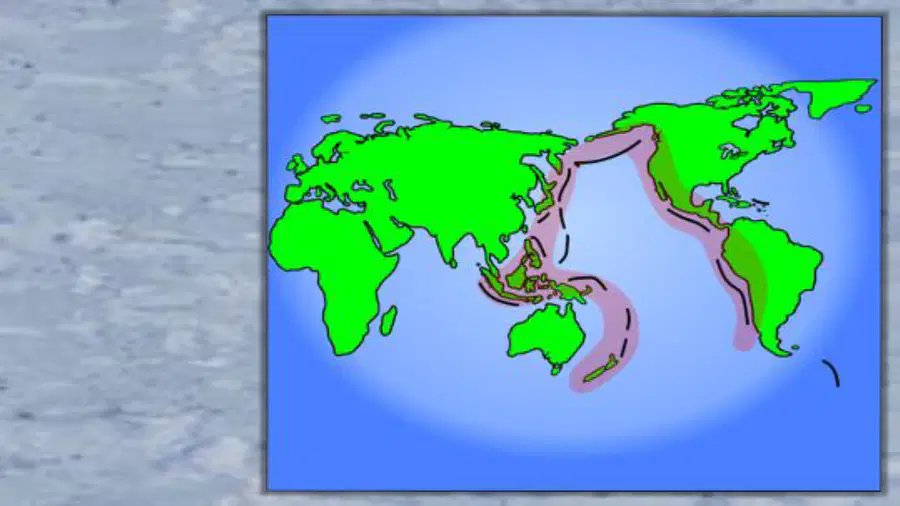

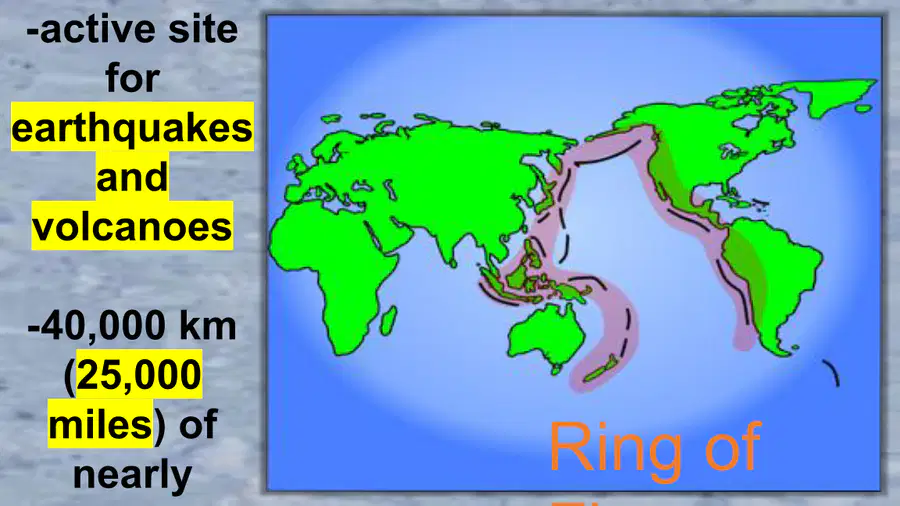

What is the significance of the "Ring of Fire" in relation to tectonic activity?

• It is a region with low seismic activity

• It is a region with high volcanic activity

• It is a region with no earthquakes

• It is a region with stable tectonic plates

Multiple Choice

Describe the role of tectonic plate boundaries in the formation of the Ring of Fire.

• They create stable regions with no volcanic activity.

• They are areas where plates move apart, causing earthquakes.

• They are zones where plates collide or slide past each other, leading to volcanic activity.

• They are regions where plates are stationary, preventing volcanic eruptions.

Multiple Choice

What is the location on the Earth's surface above where the earthquake began called?

• Quake point

• Hypocenter

• Epicenter

• Zero point

Poll

How confident do you feel about this topic now?

• Very confident
• Somewhat confident
• Not confident
