Unit 108: Above Ground Drainage, Rainwater Guttering & Systems 1

Multiple Choice

Why is it important for buildings to have a rainwater guttering system?

• To prevent water damage to the building structure

• To improve the appearance of the building

• To increase the value of the property

• To reduce noise from rain

Multiple Choice

Which part of the rainwater guttering system is responsible for carrying water down from the roof to the ground?

• Gutter

• Box End

• Down Pipe

• Sofit

Multiple Choice

Rainfall in the UK tends to be heaviest along which coast?

• East coast

• West coast

• South coast

• North coast

Multiple Select

Which of the following are requirements set by British Standards for gutter installation?

• Gutters should have a fall of 1-3mm per meter length

• Gutters should be perfectly level

• The gradient should prevent rainwater from missing the gutter

• Gutters should be installed upside down

Fill in the Blanks

According to British Standards, gutters should be installed to have a fall of

mm per meter length.

Multiple Choice

What is the standard gutter gradient ratio used to ensure efficient rainwater flow and keep the gutter relatively silt-free?

• 1:400

• 1:600

• 1:800

• 1:1000

Open Ended

Explain how temperature changes affect the care and maintenance of PVCu rainwater guttering.

Multiple Choice

Which of the following gutter shapes is best suited for high-intensity rainfall areas or steep-angled roofs?

• Half-round

• Deep flow

• Square line

• Ogee

Multiple Select

Select all gutter shapes that are commonly used for domestic properties.

• Half-round

• Deep flow

• Square line

• Ogee

Fill in the Blanks

Parts for plastic guttering include connectors, brackets, and

.

Multiple Choice

Which rainwater pipe fitting is used to change the direction of the downpipe in a standard 68mm system?

• Straight pipe

• Square connector

• Elbow fitting

• End cap

Multiple Choice

Which component is directly screwed to the fascia board and acts as both a support and a connector for gutter lengths?

• Union bracket

• Running outlet

• External stop-end

• Downpipe connector

Fill in the Blanks

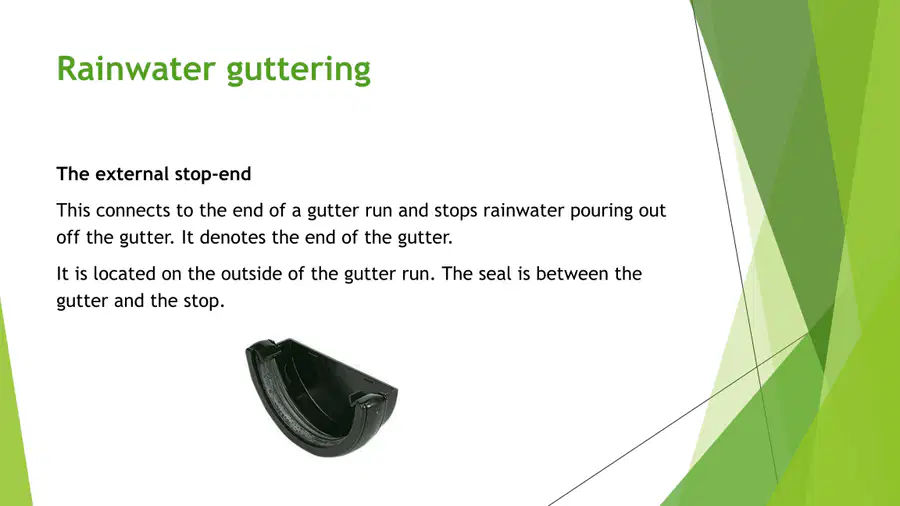

The seal for the external stop-end is located between the gutter and the

.

Multiple Select

Select all the components that denote the end of a gutter run.

• External stop-end

• Internal stop-end

• Union bracket

• Downpipe connector

Multiple Choice

Which component is used to change the direction of a downpipe or create a 'swan neck' in a rainwater guttering system?

• Offset bend

• Shoe

• Fascia clip

• Downpipe clip

Multiple Choice

Which of the following statements about downpipe clips is correct?

• They secure the downpipe to the wall and should be spaced about 1.8m apart vertically.

• They are used to create a 'swan neck' in the downpipe.

• They direct rainwater into a gulley.

• They support the gutter run to give the correct gradient.

Fill in the Blanks

The fascia clips should be positioned at a maximum of

meters apart to support the gutter.

Multiple Choice

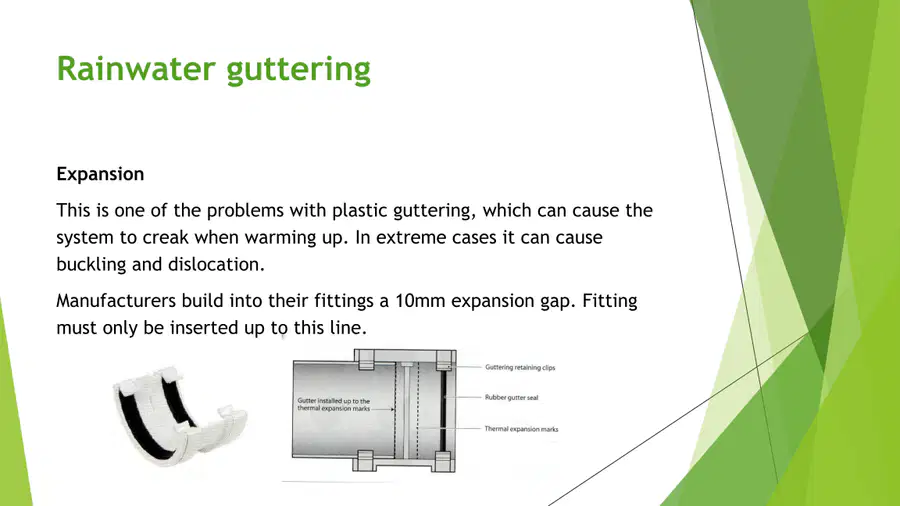

Why is it important to insert gutter fittings only up to the thermal expansion marks?

• To allow for expansion and prevent buckling or dislocation

• To make installation easier

• To improve water flow

• To reduce the number of clips needed

Multiple Choice

What is the primary function of a fascia board-mounted gutter in a rainwater guttering system?

• To collect rainwater and channel it to a downpipe

• To provide structural support to the roof

• To prevent birds from nesting under the roof

• To insulate the building from rain
