Worksheetsweek 3 electronics
Total questions: 16
Worksheet time: 8mins
The correct spelling
Arduino
Ardiuno
Ardunio
Ardinio
The labelling on a circuit board is know as
A label
Helpful
Silk-screen
Printing
A national safeguarding programme that supports people who are at risk of becoming involved with terrorism through radicalisation.
British values
Safeguarding
Prevent
Samaritans
This is a
Voice changer
Stabilised power supply
Oscilloscope
Signal generator

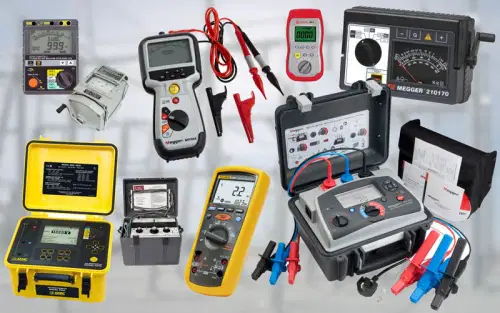

PAT stands for
Portable Appliance Testing
Portable Assembly Testing
Portable Assortment Trading
Portable Assessment Testing
The height of a wave is called the
Vibrato
Frequency
Density
Amplitude
Resistor are identified by
A long leg
A stripe along the body
Colour bands around the body
A value written on the side
The machine that places components on a surface mount board is
Pick and mix
Pick and place
Pick and flick
Fingers and thumbs
This type of solder is used on surface mount boards
Leaded solder
Cold solder

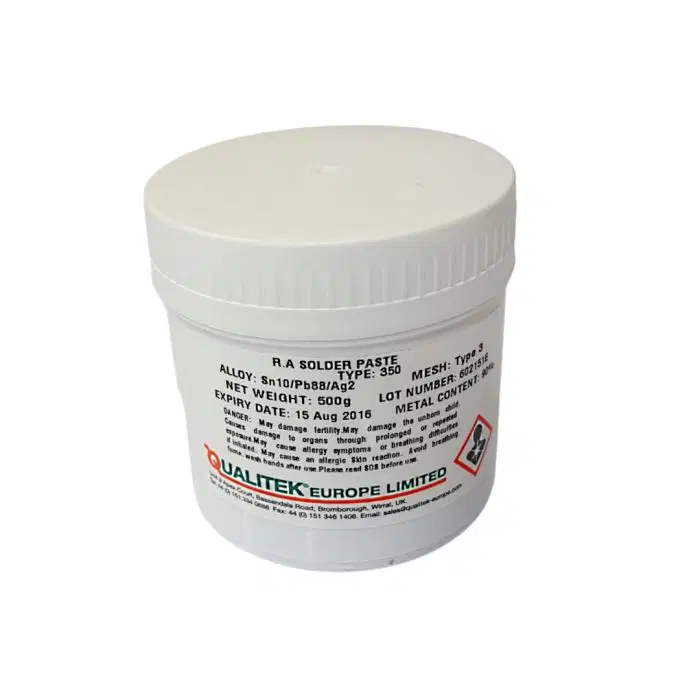

Solder paste
Older solder
On surface mount technology 'reflow' is:
Applying solder to the boards
Placing the components
Pasting the board

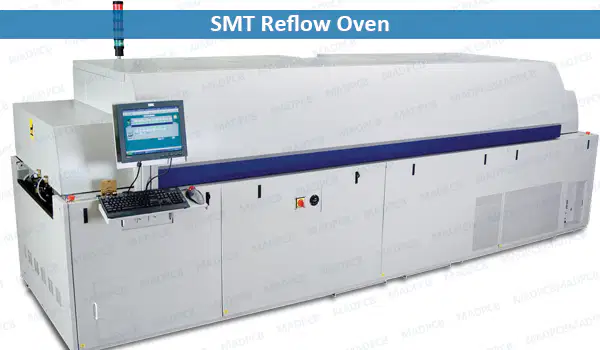

The oven which melts the solder
The process which checks the test equipment is providing the correct readings is:
Calibration
Portable Appliance Testing
Checking
Local Extraction Ventilation test
A piece of ESD protection
A special hat
A wrist strap connected to earth
A nice pair of shoes
A black tie
Splitting the circuit in half to fault find is:
Input/ Output
Unit substitution
Hoping for the best
Half Split

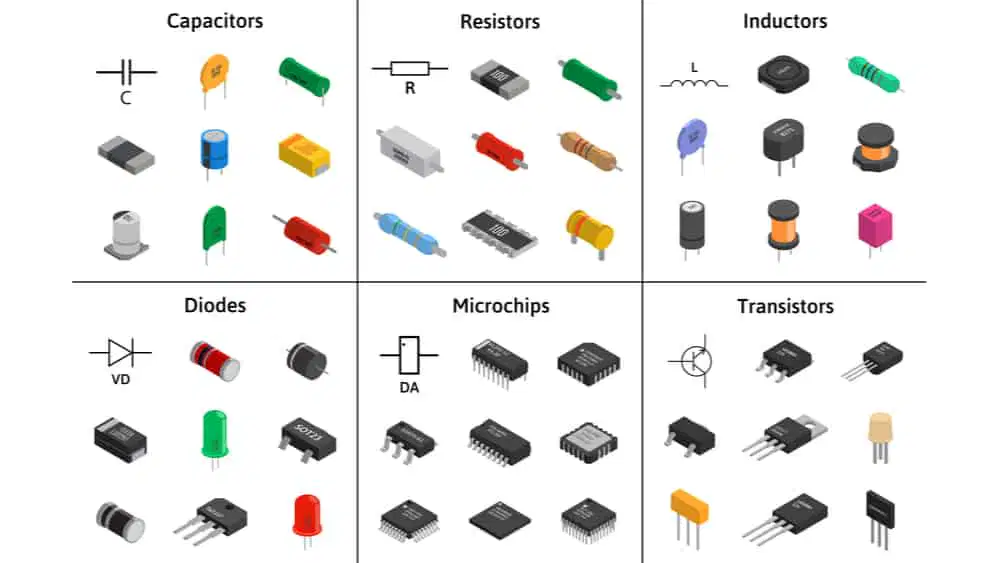

Match the following
Resistors
Diodes
Capacitors
Transistors

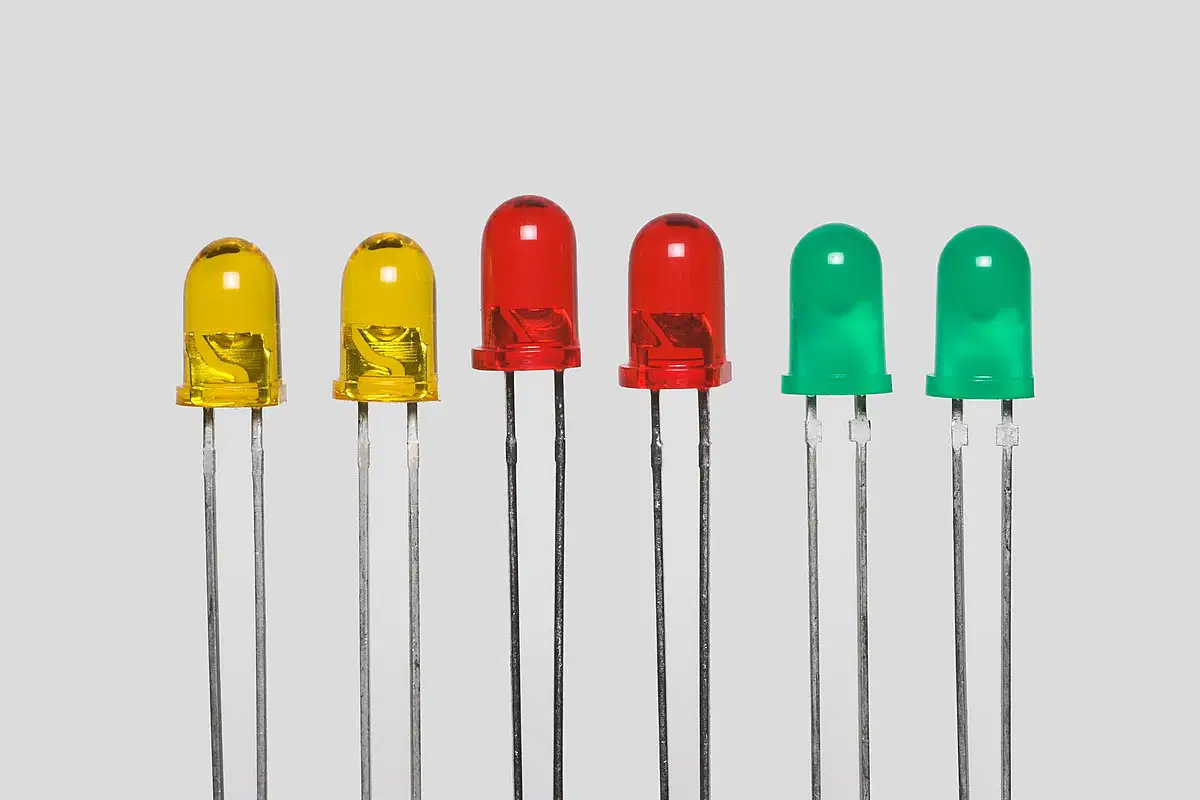

LED's
Label the parts
555 timer
Green LED
100uF cap
220 Ohm
(a) hold charge, Resistors (b) the flow of current, and (c) act as switches.
