WorksheetsMore Steering Components 2.0
Total questions: 15
Worksheet time: 10mins
In a power steering system, pressurized hydraulic fluid multiplies the output force of the ___ ____located inside a power piston
Worm Gear
Ball-Nut
Drag Link
Bearing-Nut
Torque Shaft
When no turning force is being applied by the driver, the hydraulic system only ______ and no assist is provided
Leaks out
Vents to the Atmosphere
Recirculates
Stalls
If the steered wheels receive a road shock, the shock forces are transmitted through the ____ ____ to the piston
Sector Shaft
Jounce Blocks
Air Bags
Drivers Seat
Tie Rod
The _____ ____ valve is designed to respond to the valve deflection
Power Piston
Pressure Relief
Torsion Flow
Rotary-Control
Hot Return
___ _____ steering systems have been used in automobiles for decades
Rack and pinion
Aluminum Frame
Tube Chassis
Worm Gear
King Pole
___ _____ can occur when a wheel hits a bump and the axle lifts or drops through an arc on the side
Trap Bump
Twerk Steer
Bump Steer
Jounce Flex
When talking about Rack and Pinion: Turning the steering wheel causes the pinion gear to move the ______ either to the left or right
Rod
Rack
Pitman Arm
Drag Link
Tech A says: Ackermann Angle does not apply to vehicles with rack and pinion steering. Tech b says: Ackermann Angle applies to any type of steering. Who is correct?
Tech A
Tech B
Both A and B
Neither A nor B
Tech A says: International Trans Star trucks have disk brakes on both front and rear wheels. Tech B says: International Trans Star trucks have disk brakes on the front. Who is correct?
Tech A
Tech B
Tech A and B
Neither A nor B
Scotty Kilmer's favorite drink:
Lemonade
Iced Tea
Diet Pepsi
Jim Beam and Coke
Grape Juice

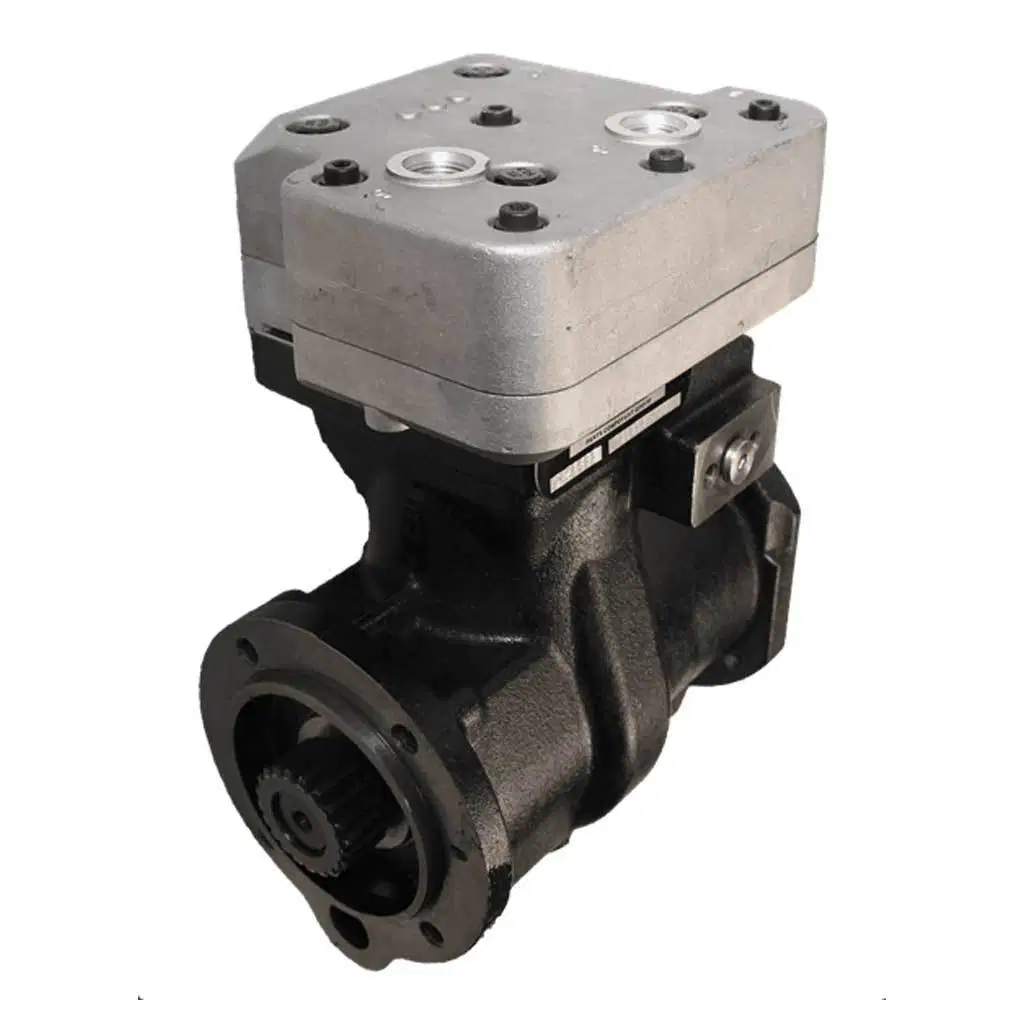

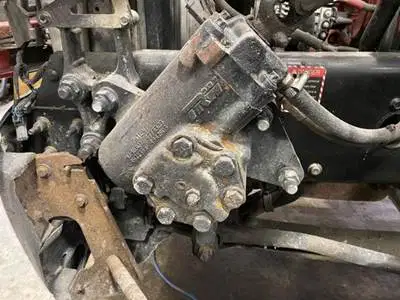

Steering Gear
Rack and Pinion
Power Steering Pump
Air Compressor
Air Governor
Which One is the Kingpin?
On a convoluted bellow air bag, the compression ring(s) in the middle of the bag is known as the:
(a)
Air Bags come in two configurations:
Girdle Hoop and Reverse Plug
Convoluted Bellows and Reversible Sleeve
Outward Flaring and Central Compressed
Bottom Bead Plate and Top Bead Plate
Double Bellow and Crinkle Valence
The ride air suspension height controller is known as the:
Leveling Valve
Backflow Valve
Flow Control Valve
Valence Valve
Plumb Bobber
