WorksheetsBusiness Process Design and Management - Quiz 2
Total questions: 20
Worksheet time: 10mins
Skenario alur kerja build and run time digambarkan mirip dengan pemograman?
Struktural
Prosedural
Tradisional
Object Oriented Programming (OOP)
Dari gambar tersebut, yang disebut run time adalah ...
A dan B
B
A
B dan A
Dalam Workflow Management Systems Architectures, pada proses Graphical user interface dilakukan oleh aktor?
Process Participant
Process Analyst
Process Engineering
Process Business

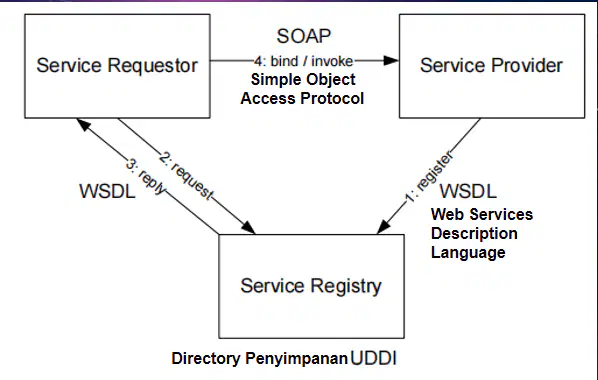

WSDL bahasa standar secara struktur menggunakan format?
XML
HTML
CSS
XHTML

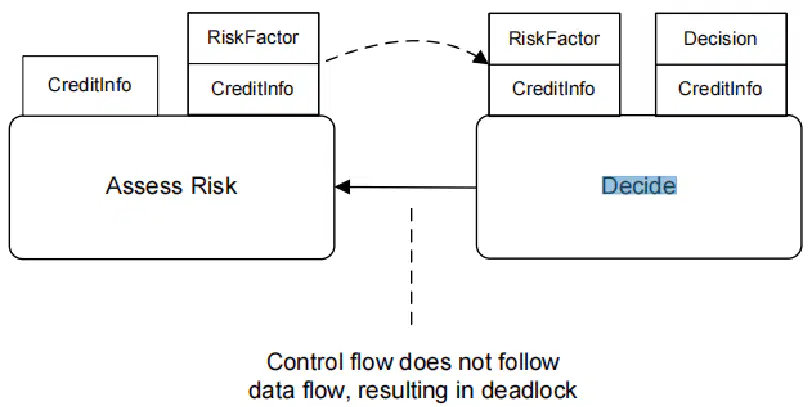

Salah pemodelan pada gambar tersebut karena?
Data Dependencies
Data Process
Credit info and risk factor
Data Flow

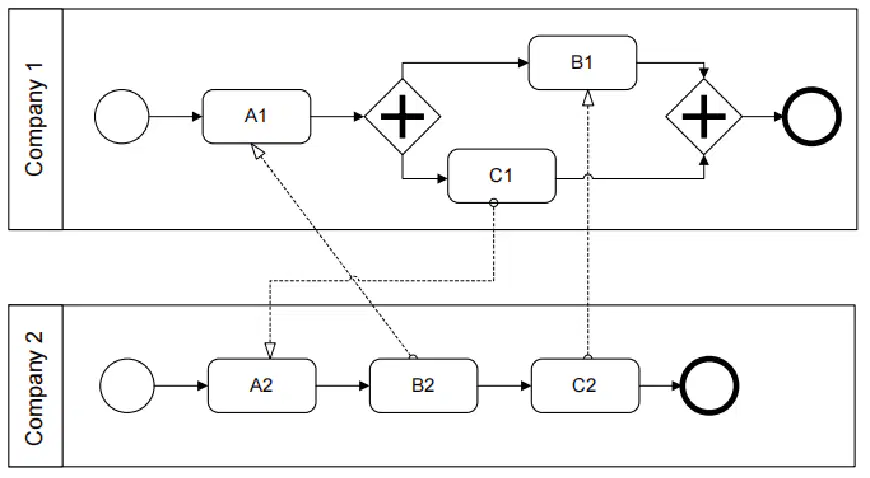

Kebuntuan orkestrasi proses interaksi, kebuntuan terjadi jika?
B2 dan A1
A1 dan A2
A1, B1, dan C1
A2, B2, dan C2

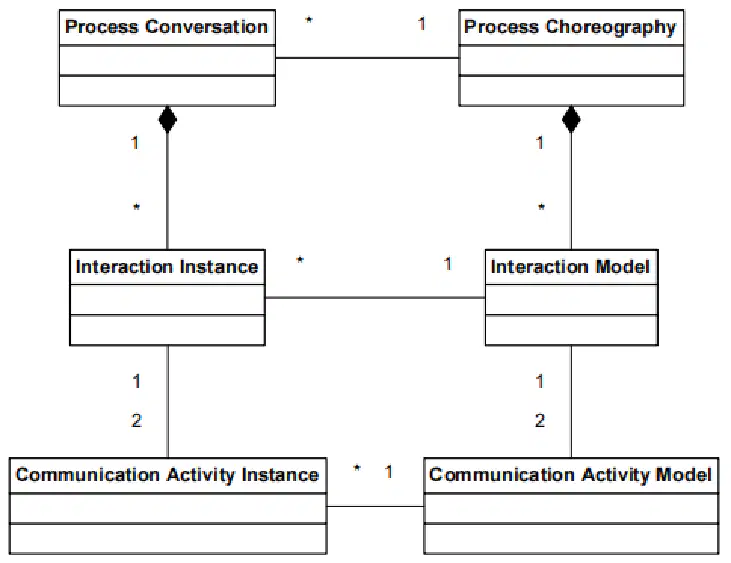

Disain gambar tersebut disebut?
Entity Relationship Diagram (ERD)
Unified Modelling Language (UML)
Conceptual Model
Physical Model
Perancangan koreografi proses melibatkan kegiatan berikut?
High-level Structure Design, Development Phases, Collaboration Scenarios, dan Behavioural Interfaces
High-level Structure Design, High-level Behavioural Design, Collaboration Scenarios, dan Behavioural Interfaces
Terminology Phases, High-level Behavioural Design, Collaboration Scenarios, dan Communication Activity Model
Communication Activity Model, High-level Behavioural Design, Collaboration Scenarios, dan Development Phases
Desain koreografi proses tingkat tinggi melibatkan desain struktur dan desain perilaku, dilakukan pada tahap?
Collaboration Scenarios
Behavioural Interfaces
High-level Behavioural Design
High-Level Design
Perancangan koreografi proses kegiatan pada gambar disebut?
Behavioural Interfaces
Collaboration Ccenario
High-Level Behavioural Design
High-Level Structure Design

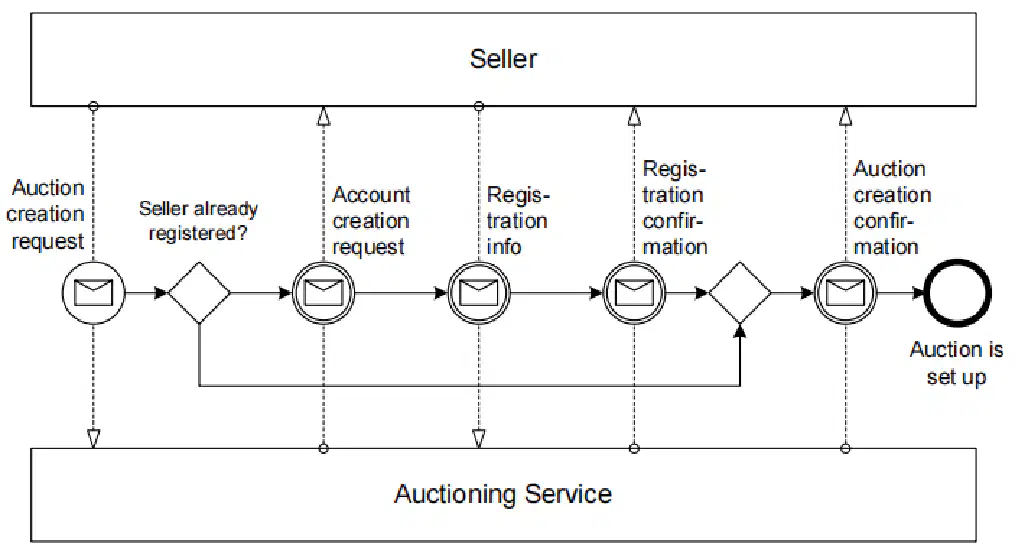

Gambar tersebut menjelaskan alur?
Message Pattern
Send and Receive Pattern
Send Pattern
Receive Pattern
Pada gambar aktivitas tersebut disebut?
One-to-many send/receive pattern
One-from-many receive pattern
Send and Receive Pattern
One-to-many send pattern
Gambar tersebut melakukan aktivitas?
Diskriminator
Event-driven Process Chains
Business Process Modeling Notation
Multi-merge pattern
Business Process Modeling Notation gambar tersebut disebut?
Sequence flow
message flow
Association
Annotation
Business Process Modeling Notation gambar tersebut disebut?
XOR
AND
OR
Complex
Business Process Modeling Notation gambar tersebut disebut?
and split and and join gateway
inclusive or gateway
event-based exclusive or gateway
Xor split pattern
Business Process Modeling Notation gambar tersebut disebut?
Xor split pattern
Xor join pattern
Or split pattern
Or join pattern
Simbol Business Process Diagrams activities adalah ...
Simbol Business Process Diagrams sequence flow adalah ...
Simbol Business Process Diagrams complex adalah ...
