WorksheetsEchocardiography In Depth Course Quiz
Total questions: 10
Worksheet time: 10mins
Measurement of RV systolic function can use the methods below, except
Tricuspid annular plane systolic excursion
S’ velocity
Fractional area change
RV wall thickness
Correct way to measure RVOT diameter
Measured-in-5 chamber view
Measured at end-systole phase
Measured at end-diastole phase
Measured in PSAX views, distal to pulmonary valve
From the data below, what’s the PH probability of the patient?
Low Probability of PH
Intermediate Probability of PH
High Probability of PH

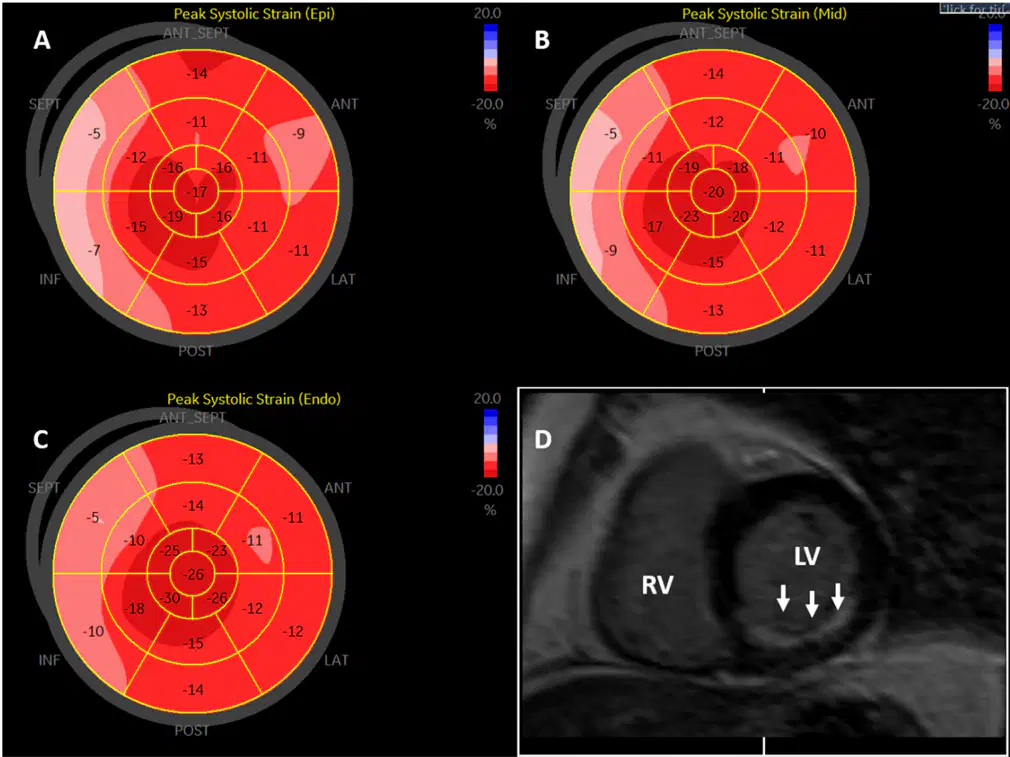

What is the most likely diagnosis?
Apical HCM
Hypertension heart diasease
Amyloid/infiltrative cardiomyopathy
Inferoposterior myocardial infarction

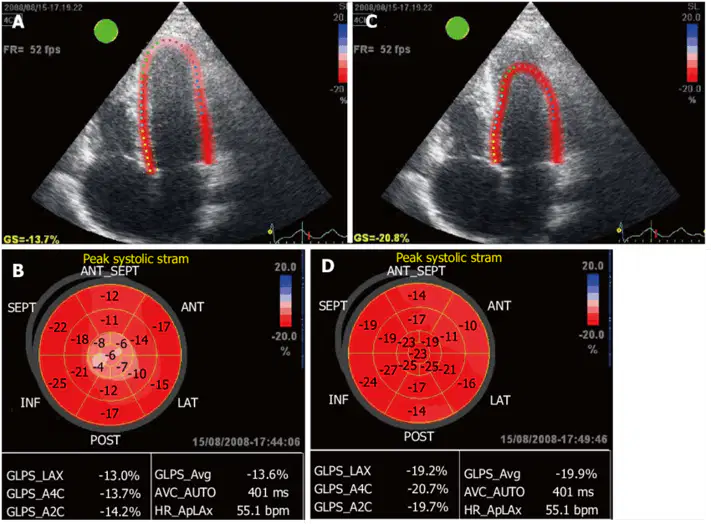

What is the most likely diagnosis?
Apical HCM
Hypertension heart diasease
Amyloid/infiltrative cardiomyopathy
Inferoposterior myocardial infarction
What is the most likely diagnosis?
Apical HCM
Hypertension heart diasease
Amyloid/infiltrative cardiomyopathy
Inferoposterior myocardial infarction
Parameters not used for HFA-PEFF score
Septal and lateral mitral annular peak early diastolic velocity
Left atrial volume index
Natriuretic peptide
LV systolic ejection fraction
Tricuspid regurgitation peak velocity or pulmonary arterial systolic pressure
A 72 y.o man and obese come with shortness of breath. Examination data revealed, normal electrocardiography & chest X-ray. Echo show LVH concentric, LAVI 40 ml/m2, average E/e’ 10, TR velocity 2.5 m/s, and NT pro BNP 125 pg/ml. Which statement below is correct?
HFA-PEFF score is 5, patient established with HFpEF
No more examination is needed for the patient, just start the treatment
HFA-PEFF score is 4, patient should do echo stress test
Invasive hemodynamic measurement could be done in this patient, and HfpEF established if resting PCWP is 10 mmHg
Which statement below is not correct about advanced HFpEF workup using stress test echo?
It can be done in patient with HFA-PEFF score is 2 - 4
An average E/e′ ratio during exercise e ≥15 adds 2 points to the HFA–PEFF score
An average E/e′ ratio ≥15 with a peak TR velocity >3.4 m/s adds 3 points to the previous score
Invasive hemodynamic monitoring is done if HFA-PEFF score > 5 after echo stress test
Invasive hemodynamic test could be done patient with HFA-PEFF score 2-4. Which statement below is correct?
Invasive hemodynamic only be measured at resting
HFpEF diagnosis is established when PCWP at rest >= 12 mmHg or LVEDP >= 14 mmHg
HFpEF diagnosis is established when PCWP at rest >= 15 mmHg or LVEDP >= 16 mmHg
Invasive stress test must be done when PCWP at rest >= 15 mmHg or LVEDP >= 16 mmHg
