WorksheetsSoftening Test
Total questions: 31
Worksheet time: 5hrs 11mins
What size valve does a RHS32 have?
1/2 inch
3/4 inch
1 inch
2 inch
What minerals cause hardness in water?
Magnesium
Manganese
Sodium
Calcium
How much resin is in an RHS32?
32 cu ft
0.88 cu ft
1 cu ft
14.6 cu ft
What is this part?
Meter
Turbine
Switch
Wire Harness
What is the Rheem Water Softener support number?
(a)
What is part number 7309811 found on an RHW42
Wire Harness
Switch
Valve
Bypass
What is the typical Lifespan of a softener?
3-4 years
5-8 years
8-10 years
over 10 years
What is the model code for an RHW42?
rH42
W42
J33
M04
What year was this softener made?
RHS3221-20123-3409
2009
2020
2023
2021
Recharge counter says 15
Days in service says 105
How often is this softener regenerating
5 days
15 days
10 days
7 days
Does a water softener decrease TDS (total dissolved solids)?
Yes
No
what 2 troubleshooting steps should be done when handing Resin in Plumbing?
Submit a warranty
Picture of media
Check for leaks
Test for Metering in Backwash
What is the part number for a ferrule nut?
(a)
What error code typically means the Control Board is not accepting signal from switch.
Error 1
Error 3
Error 5
Error 7
How often should the cleanser be used?
once a year
every month
every 4 months
every 2 years
What is the Water Supply Max. Clear Water Iron for an RHW42?
9 ppm
10 ppm
11 ppm
16ppm

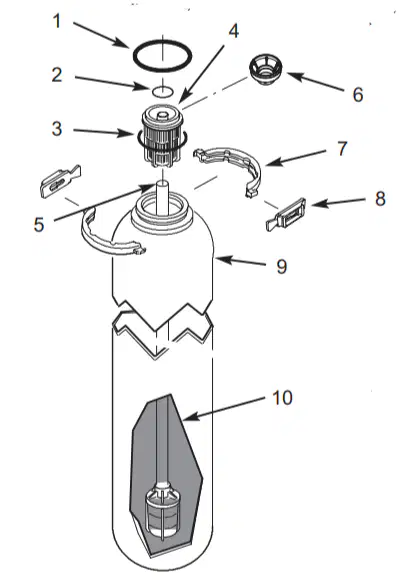

What is part #4 in this diagram?
Tank Neck Clamp
Resin Tank
Top Distributor
Filter Screen
An airgap is required on the drain line on an RHS32.
True
False
What is the part number for these clips on a RHS32?
(a)
Click on the control Board
Put the steps of regeneration in the correct order.
Fill
Brine
Back Wash
Rinse
Which softener cycle:
Lasts about 5-15 minutes.
The brine tank slowly fills with water.
Fill
Brine
Backwash
Rinse
Service
Which Rheem Model offers Wifi Technology?
RHS32
RHS42
RHW42
What part creates a suction during the BRINE stage of recharge?
If a customer said that their water tests at 513 mg/l hard and has 2 ppm of clear water Iron, what would they program the hardness to?
(a)
Hardness causes white Scale buildup.
True
False
A water softener makes water safer to drink.
True
False
What are some reasons people choose to treat their water?
To make it aesthetically pleasing
To save money
To make their water safe
Which mineral is a "soft" mineral?
Calcium
Sodium
Magnesium
Suring service (softening), (a) is removed from the water and replaced with (b) from the resin.
What material softens the water?
Brine
Water
Salt
Resin
