WorksheetsWCS 1108-2 - Knowledge Assessment
Total questions: 20
Worksheet time: 10mins
Which of the following below is not the function of torque converter?
Multiples engine torque
Act as clutch between engine and transmission
Allows slippage when the vehicle is on stationary
Change gear
Which of the following below is/are the components of torque converter?
Turbine
Input shaft
Impeller
Rotor
Stator
Torque converter can be dismantle or repaired. True or false?
True
False

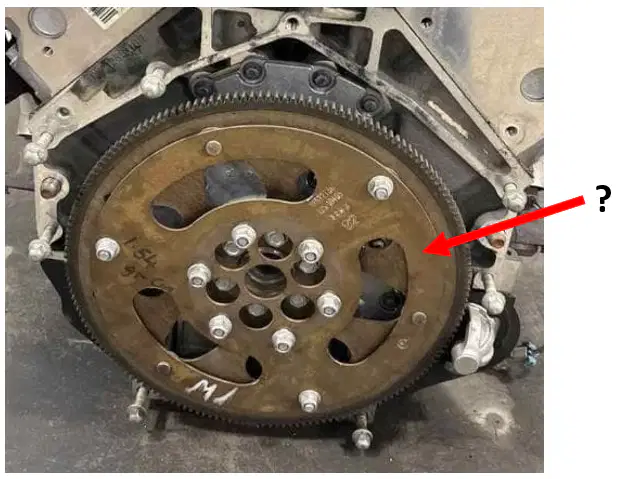

State the name of the component shown in the diagram.
(a)
What does "TCC" stand for?
(a)
Which of the following below is/are the purpose of torque converter lockup?
Eliminates slippage and improve fuel economy
Reduce slippage by using TCC
To stop the vehicle effectively
Engage the TCC and gets 1:1 drive ratio

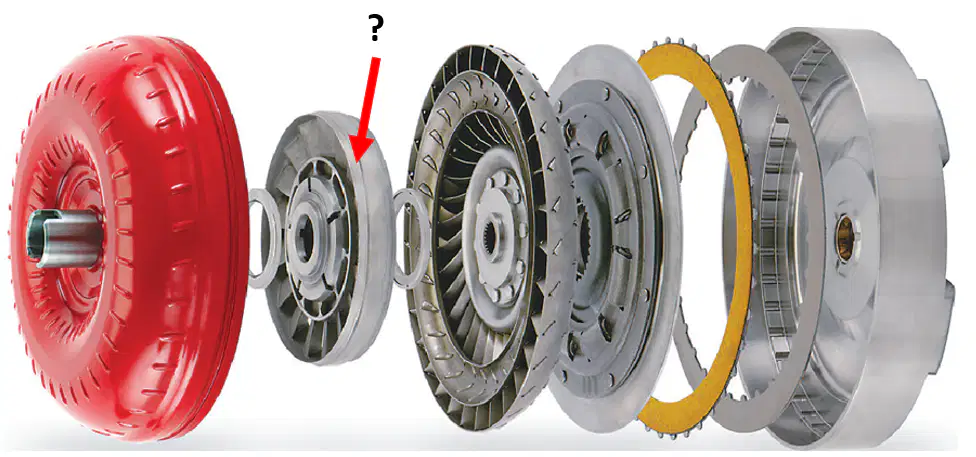

State the name of the part shown in the diagram.
(a)
Which of the following below is/are the main parts of the planetary gear set?
Moon gear
Sun gear
Planet gear
Planet carrier
Ring gear

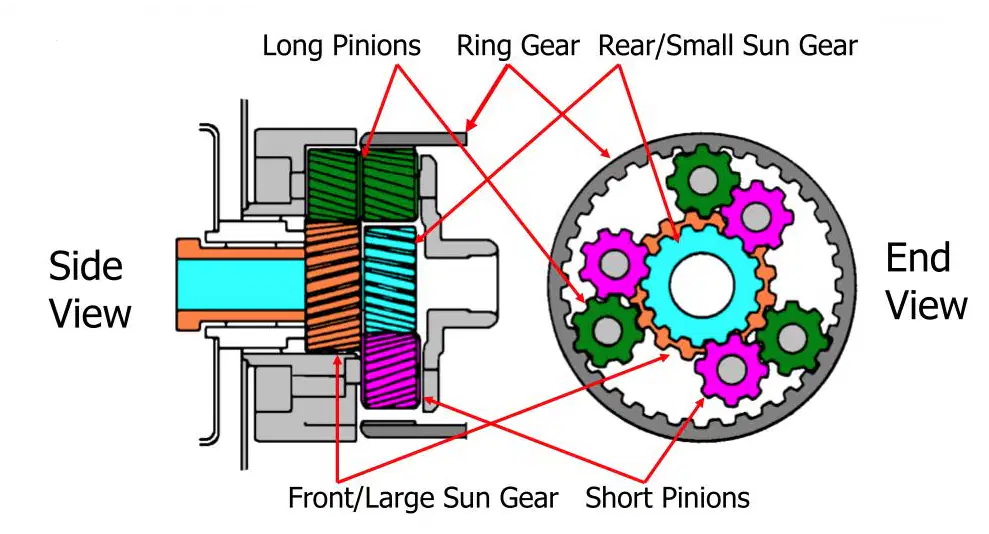

State the name of the type of planetary gear set shown in the diagram.
(a)
State the name of the type of planetary gear set shown in the diagram.
(a)
What does "CVT" stand for?
(a)
What does "DCT" stand for?
(a)
Which of the following statements below about the CVT is/are correct?
Improved fuel economy
CVT uses two variable pulleys
Uses synchronizer to engage the gear
No fixed gear ratio
Uses shift fork to control the two variable pulleys
Which of the following statements below about the DCT is/are correct?
Improved fuel economy
DCT uses two variable pulleys
Lower cost of assembly by using manual transmission components
No fixed gear ratio
Two clutches are mounted together concentrically
What is the other name for one-way clutches?
(a)
Which of the following is/are the types of one-way clutches?
Rotor type
Roller type
Gear type
Sprag type
Vane type
State the name of the component shown in the diagram.
(a)

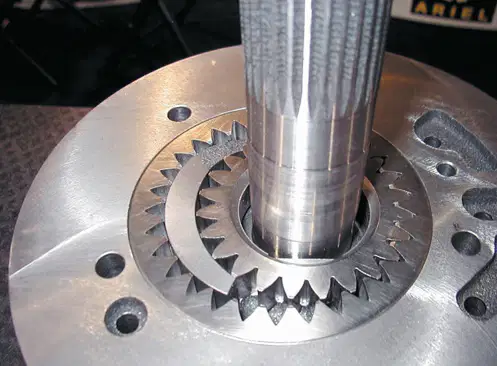

State the type of oil pump shown in the diagram. Key in the answer without the word "type".
(a)

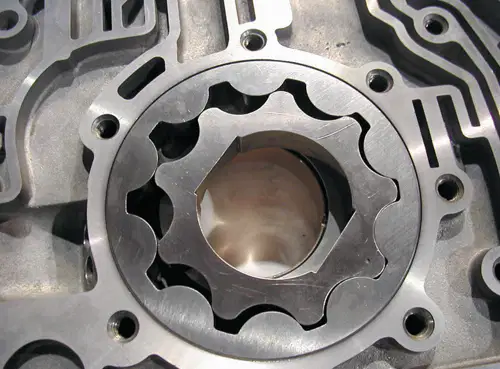

State the type of oil pump shown in the diagram. Key in the answer without the word "type".
(a)

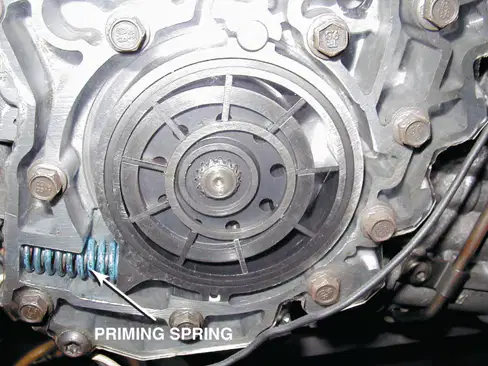

State the type of oil pump shown in the diagram. Key in the answer without the word "type".
(a)
