WorksheetsEngineering Revision Quiz
Total questions: 35
Worksheet time: 18mins
From the given options select a ferrous metal.
Copper
Mild Steel
Aluminium
Gold
From the given options select a non-ferrous metal.
Iron
High carbon steel
Aluminium
Stainless steel
Select the correct definition that explains what an alloy is?
An 'alloy' is a substance formed from the combination of two or more composites.
An 'alloy' is a substance formed from the combination of two or more plastics.
An 'alloy' is a substance formed from the combination of two or more materials.
An 'alloy' is a substance formed from the combination of two or more metals.
What are the main benefits of using an alloy?
Alloys are not corrosion resistant, weaker strength, higher cost and do not have good workability.
Alloys have better corrosion resistance, lower costs. higher strength and better workability.
Alloys have better corrosion resistance, lower costs. lower strength and do not have good workability.
Alloys are not corrosion resistant, higher strength, higher cost and better workability.
Tests are often carried out on products like this bicycle before it is manufactured. From the given options select suitable safety tests that would be carried out on the bicycle?
Brake, suspension and chain and sprocket tests
Tensile, hardness and strength tests
Seat, frame and pedal tests
Flexibility, hardness, and malleability tests.
Bicycle frames are often made from an alloys or carbon fibre. From the given options select the benefits of using carbon fibre?
Carbon fibre has a bad strength to weight ratio, its heavy and isn't mouldable.
Carbon fibre has a good strength to weight ratio, its heavy and isn't mouldable.
Carbon fibre has a good strength to weight ratio, its lightweight and mouldable.
Carbon fibre is weak, heavy and flexible.
Bicycle frames are often manufactured using a variety of permanent and semi-permanent joining methods. From the given options select a suitable permanent joining method to join the frame?
Welding
Soldering
Shrink fitting
Nuts and bolts
Bicycle frames are often manufactured using a variety of permanent and semi-permanent joining methods. From the given options select a suitable semi-permanent joining method to join the wheels?
Welding
Soldering
Shrink fitting
Nuts and bolts
From the given options select a composite material.
Shape memory alloy
Thermochromic Ink
Polymorph
Carbon fibre
From the options given select a suitable tool to cut sheet metal?
Scroll saw
Junior hacksaw
Tenon saw
Coping saw
From the options given select a suitable machine to cut sheet metal?
Centre Lathe
Sheer Press Break
Guillotine
Laser Cutter
Select a suitable tool that can measure internal, external diameters and the depth of a material?
Select a suitable tool that can measure straight lines using a 90 degree angle on sheet metal?
From the given images select the tailstock on the centre lathe.
Which of the following would not be a potential risk when operating the centre lathe?
Leaving the chuck key in the three jaw chuck.
Contact with metal swarf.
Carefully securing the material in the centre of the three jaw chuck.
Contact with moving parts.
Which of the following statements would be a control measure in place when operating the centre lathe?
Removing the chuck key from the three jaw chuck.
Leaving the safety guard up.
Not securing the material in the centre of the three jaw chuck.
Not receiving training before using the machine.

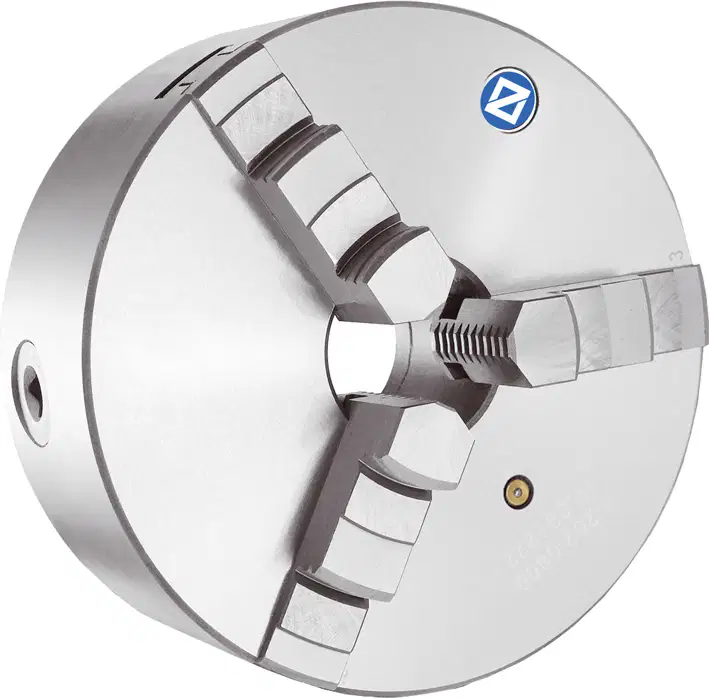

From the given images select the three jaw chuck on the centre lathe.
From the given images select the chuck key used on the centre lathe.
From the given images select the safety guard used on the centre lathe.
Select the correct turning tool used to carry out knurling on the centre lathe.
Select the correct turning tool used to carry out drilling on the centre lathe.
Select the correct turning tool used to carry out parting off on the centre lathe.
Select the correct symbol for an LED.
Select the correct symbol for a resistor.
Select the correct symbol for a SPST switch.
Select the correct function of a resistor in a circuit.
A component that accepts, stores, and releases electricity on demand.
A component that converts electrical energy into heat, and then into light.
A component that limits the flow of electrical current in an electronic circuit.
A component that converts electrical energy into mechanical energy.
Select the correct function of an LED in a circuit.
A component that accepts, stores, and releases electricity on demand.
A component that converts electrical energy into heat, and then into light.
A component that limits the flow of electrical current in an electronic circuit.
A component that converts electrical energy into mechanical energy.
Select the correct definition for Ohms Law.
Ohms Law is a formula used to calculate the relationship between electrons in an electrical circuit.
Ohms Law is a formula used to calculate the relationship between voltage, current and resistance in an electrical circuit.
Ohms Law is a formula used to calculate the relationship between speed, distance and time in an electrical circuit.
Ohms Law is a formula used to calculate the relationship between conductors in an electrical circuit.
What is the current produced by a voltage of 240 V through a resistance of 0.2 Ω?
1.2 Amps
12000Amps
12 Amps
1200 Amps
What voltage is necessary to produce a current of 200 amperes through a resistance of
100 Ω?
2000 Volts
20,000 Volts
200 Volts
20 Volts
What resistance would produce a current of 200 amps with a voltage of 2,000 V?
10 Ohms
100 Ohms
1000 Ohms
10,000 Ohms
What type of energy source is diesel?
Both renewable and non-renewable energy source.
Renewable energy source.
Non-renewable energy source.
Neither renewable or a non-renewable energy source.
What are the four main types of non-renewable energy sources?
Carbon dioxide, methane, nitrous oxide, hydrofluorocarbons.
Oil, natural gas, coal, and nuclear energy.
Solar, wind, geothermal and hydropower energy.
Oil. coal, wind and solar energy.
What are the four main types of renewable energy sources?
Carbon dioxide, methane, nitrous oxide, hydrofluorocarbons.
Oil, natural gas, coal, and nuclear energy.
Solar, wind, geothermal and hydropower energy.
Oil. coal, wind and solar energy.
What is the impact of using a non-renewable energy source?
They do not impact positively or negatively.
They release harmful greenhouse gases into the atmosphere, creating the greenhouse effect which causes global warming.
They don't release harmful greenhouse gases into the atmosphere and don't impact on the greenhouse effect which causes global warming.
They reduce global warming,
improve public health and are an
inexhaustible energy source.
