WorksheetsDevnet 71-106
Total questions: 28
Worksheet time: 15mins
A software development company specializes in being able to use whatever software development method their customer wants to use. One customer company wants to use the Waterfall method. What is a characteristic of this method?
A software development process that prioritizes responding to change over following a plan
A process that eliminates inefficient ways of working like expecting coders to multitask
A software development process that focuses on frequent delivery of working software as well as collaboration between developers and business employees
A software devilment process that can only go forward.
Which type of request is used to send a message to a Webex Teams space using Python and the Messages API?
PUT
POST
PATCH
GET
In which SDLC phase is the software product installed into the production environment to decide if it is ready for release?
implementation
deployment
design
testing
Which convention is used in Python to indicate that methods and variables in a class are private and not to be used outside of the class?
by using a single preceding underscore ( _ ) for a method or variable
by using the command class private classname() : to start the class definition
by using two preceding hyphens ( — ) for a method or variable
by declaring a private method or variable in the beginning of the class definition
A packet is received by a server. The packet has a destination port number of 80. What protocol or service is requested?
DHCP
Telnet over SSH
HTTP
RESTCONF
A network administrator is developing an application to control a Webex device through xAPI. Which three protocols can be used to access xAPI? (Choose three.)
FTP
JSON
Telnet
HTTP
XML
RS-232
JSON
A network administrator is assigned the 172.16.0.0/24 block of addresses to use in designing an IP addressing scheme. The administrator submits this design for approval:
172.16.0.0/26
172.16.0.64/27
172.16.0.96/26
172.16.0.128/27
What should be the response from the senior network engineer regarding this design?
This design is flawed because the 172.16.0.128/27 network number is invalid.
This design is flawed because the 172.16.0.96/26 network overlaps with other addresses.
This design will work for the branch office.
This design is flawed because the 172.16.0.96/26 network is not a valid block of addresses.
This design is flawed because no design could have two networks that use a /26 mask and are not consecutive blocks of addresses.
Which statement describes a stateful firewall?
It can filter packets based on information at Layers 3, 4, 5 and 7 of the OSI reference model.
It can determine if the connection is in the initiation, data transfer, or termination phase.
It can only filter packets based on limited Layer 3 and 4 information.
It can expand the number of IP addresses available and can hide network addressing design.
A software development company specializes in being able to use whatever software development method their customer wants to use. One customer company wants to use the Lean method. What is a characteristic of this method?
a process that eliminates inefficient ways of working like expecting coders to multitask
a software development process that focuses on frequent delivery of working software as well as collaboration between developers and business employees
a software development process that has the results of one phase feed into the next phase
a software development process that can only go forward
A student is learning REST API application. The student constructs an URI to query the MapQuest API for a route from New York, NY to Boston, MA. What is the valid URI format?
https://www.mapquestapi.com/directions/v2/route?key= key &from=New+York+NY&to=Boston+MA
https://www.mapquestapi.com/directions/v2/route?key: key &from:New+York%2C+NY&to:Boston%2C+MA
https://www.mapquestapi.com/directions/v2/route?key== ke y&from==New+York%2C+NY&to==Boston%2C+MA
https://www.mapquestapi.com/directions/v2/route?key= key &from=New+York%2C+NY&to=Boston%2C+MA
A packet is received by a server. The packet has a destination port number of 123. What protocol or service is requested?
DNS
SSH
NTP
RESTCONF
Which scenario exhibits the “social proof” principle of human influence?
A user receives a phone call from someone claiming to be from the IT department who needs to verify user credentials.
A user visits a web site offering a free gift if the user provides contact information.
A user opens an email advertising a free trial on a website that is only available for a few hours.
A user completes a survey requesting personal information after seeing co-workers completing the survey.
Which SQL injection defense method should be used only as a last resort?
escaping all user-supplied input
using a database firewall
implementing whitelist input validation
using parameterized queries
Which type of ISE node provides network access, posturing, guest access, client provisioning, and profiling services?
monitoring
administration
pxGrid
policy service
Which communication protocol does Ansible use to connect to remote devices?
Telnet over VPN
HTTPS
Secure FTP
SSH

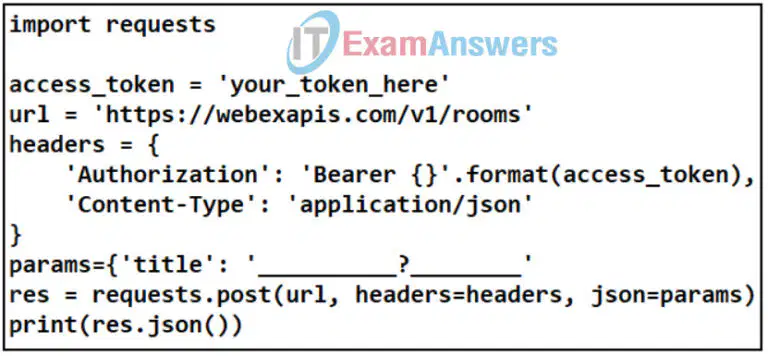

Refer to the exhibit. What is the function of the identified missing information in regards to the parameter and method contained in the request?
A Webex Teams space will be identified by using a specified title, and additional details will be retrieved.
It provides the name for a Webex teams space to be deleted.
A Webex Teams space will be identified and a message will be posted with the title specified.
It provides the name for a new Webex teams space.
What is an architectural constraint to which a true RESTful API web service must adhere?
It must support XML-RPC and JSON-RPC.
It allows resource caching.
It should be behind a firewall.
It operates as a cloud service.
A packet is received by a server. The packet has a destination port number of 53. What protocol or service is requested?
DNS
NetBIOS (NetBT)
POP3
IMAP
Which statement accurately describes dynamic NAT?
It always maps a private IP address to a public IP address.
It provides an automated mapping of inside local to inside global IP addresses.
It provides a mapping of internal host names to IP addresses.
It dynamically provides IP addressing to internal hosts.
A packet is received by a server. The packet has a destination port number of 830. What protocol or service is requested?
NTP
DHCP
NETCONF
HTTPS
Which programming language is supported by the Webex xAPI to develop macros for on-device customization?
Java
Python
JavaScript
C++
Which Cisco management system is designed as the solution for Software-Defined Networking and runs on Nexus 9000 hardware?
Application Centric Infrastructure platform (ACI)
IOS XE
Nexus Operating System (NX-OS)
DNA Center
A developer issues a Linux command python3 -m venv devenv . What is the developer trying to achieve?
to install the devnet tool sets in the Python 3 virtual environment named venv
to create a Python 3 virtual environment named devenv
to activate the Python 3 virtual environment named devenv
to enter the Python 3 virtual environment named venv using the devnet tool sets
Two network engineers are discussing the methods used to forward frames through a switch. What is an important concept related to the cut-through method of switching?
The fragment-free switching offers the lowest level of latency.
Fast-forward switching can be viewed as a compromise between store-and-forward switching and fragment-free switching.
Fragment-free switching is the typical cut-through method of switching.
Packets can be relayed with errors when fast-forward switching is used.
When thinking about the functional planes of a network, what is unique about the control plane?
It forwards data through a network device.
It manipulates data and outputs it in the XML format.
It includes the SNMP protocol.
It includes network traffic being processed by EIGRP or OSPF.

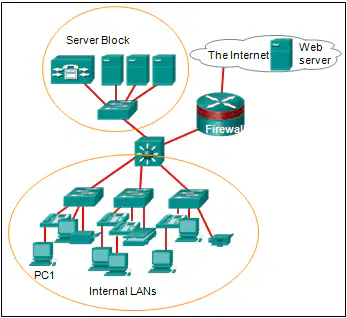

Refer to the exhibit. If PC1 is communicating with a web server on the Internet, which two TCP/IP layers are responsible for encapsulating the message that requests data from that particular server and assigning a source port number? (Choose two.)
session
network
transport
physical
application
A network security administrator is evaluating products that automate threat containment through APIs when a threat is detected. Which Cisco product with the desired capability provides a rule-based engine for enabling policy-based network access to users and devices?
Identity Services Engine
Umbrella
Threat Grid
Advanced Malware Protection
When thinking about the functional planes of a network, what is unique about the management plane?
It forwards data based on STP settings.
It is responsible for the switching of packets in hardware.
It includes protocols used to monitor network devices.
It includes applications and protocols used between network devices such as routers.
