WorksheetsRefrigeration Chapter 15 Quiz
Total questions: 83
Worksheet time: 42mins
What is the primary goal of learning Chapter 15 on refrigeration?
To understand the economic impacts of refrigeration
To explain the theory and terms associated with refrigeration
To explore the environmental issues related to refrigeration
To study the electrical components in refrigeration systems
Which of the following is a key objective when studying refrigeration as outlined in Chapter 15?
Explain the fundamentals of refrigeration
Discuss the history of refrigeration technology
Analyze the marketing strategies for refrigeration
Review the legal aspects of refrigeration
What does the practical cycle of operations in a vapor compression refrigeration system describe?
The chemical properties of refrigerants
The cycle of operations in a vapor compression system
The maintenance procedures for refrigeration systems
The installation process of refrigeration units
How is the capacity of a refrigeration system typically described?
By its energy consumption rate
By the type of refrigerant used
By how refrigeration tables are used to calculate system performance
By the physical size of the refrigeration unit
What is the primary function of a compressor in a refrigeration system?
To reduce the temperature of the refrigerant
To increase the pressure of a gas
To control the flow of liquid refrigerant into an evaporator
To store liquid refrigerant
Which compound is commonly used as a refrigerant due to its composition of nitrogen and hydrogen?
ASME B31.5
Lithium Bromide
Ammonia
Backpressure Regulator
What is the role of an evaporator in a refrigeration system?
To store liquid refrigerant
To change the state of the liquid refrigerant to produce a cooling effect
To increase the pressure of gases
To absorb heat from water
What does the saturation temperature in a refrigeration system indicate?
The temperature at which a mechanical device operates
The temperature at which pressure within the system is optimized
The temperature corresponding to a particular saturation pressure
The lowest temperature achievable by the refrigerant
What is the amount of energy, in kilojoules, required per kilogram for boiling water at 101.3 kPa to change from its liquid form to a gaseous state?
2257 kJ
2000 kJ
2500 kJ
1800 kJ
What happens when heat is transferred to water causing it to evaporate?
It undergoes a temperature drop or a change of state.
It freezes.
It solidifies.
It decomposes.
According to the text, what is another term used interchangeably with "state" in the context of phase changes?
Condition
Phase
Reaction
Transformation
What is the primary effect of evaporation on the temperature of a body of water?
It increases the temperature.
It decreases the temperature by removing sensible heat.
It does not affect the temperature.
It increases the pressure.
At what temperature does water boil at a pressure of 200 kPa absolute?
120.21 °C
100 °C
150 °C
90 °C
What is the saturation temperature of R-134a at 101.3 kPa absolute pressure?
-26.2°C
27.7°C
-33.3°C
41.9°C
According to the text, what happens to a pure liquid when it reaches heat saturation?
It changes to a gaseous state immediately.
Its temperature continues to increase without additional heat.
Its temperature remains constant even if more heat is added.
It freezes.
What is the principle stated regarding the relationship between saturation pressure and saturation temperature for pure liquids?
Saturation temperature decreases as saturation pressure increases.
Saturation temperature is independent of saturation pressure.
For every saturation pressure, there is one corresponding saturation temperature.
Saturation pressure has no effect on saturation temperature.
Which refrigerant is identified as R-717 and what is its boiling point at atmospheric pressure?
Ammonia, boils at -33.3°C
Carbon Dioxide, boils at -78.5°C
Propane, boils at -41.9°C
Freon 22, boils at -40.8°C
What is the boiling point of Propane (R-290) at atmospheric pressure?
-41.9°C
-26.2°C
27.7°C
-40.8°C
What is the ASHRAE designation for Ammonia as a refrigerant?
R-134a
R-717
R-22
R-290
At what temperature does Suva 123 boil at 101.3 kPa?
32.9°C
429.4°C
292.8°C
497.6°C
Which refrigerant has the chemical formula CHClF2?
Ammonia
Propane
Freon 22
Suva 134a
What is the saturation temperature of Propane at 101.3 kPa?
-26.2°C
-33.3°C
471°C
497.6°C
What is the role of latent heat in the process of mechanical refrigeration?
It is used to increase the temperature of the refrigerant.
It helps in changing the state of the substance by being absorbed.
It decreases the efficiency of the refrigeration system.
It stabilizes the temperature within the refrigeration system.
How does the pressure exerted on a boiling liquid affect its boiling point?
Higher pressure increases the boiling point.
Higher pressure decreases the boiling point.
Pressure has no effect on the boiling point.
Pressure only affects the color of the boiling liquid.
What corresponds to every saturation pressure in a refrigeration system?
A specific boiling point
A corresponding saturation temperature
A unique refrigerant type
An atmospheric pressure reading
What characteristic is common to every pure liquid in terms of refrigeration properties?
They all have the same boiling point.
They all have unique colors.
They have a set of characteristic saturation pressures and temperatures.
They are all non-toxic.
According to the text, what is the medium in which the refrigerant ammonia (R-717) operates in the described refrigeration system?
In a vacuum
In atmospheric air
In a hydraulic fluid
In a solid state
What principle of thermodynamics is demonstrated by the heat transfer from the refrigerated medium to the boiling ammonia in the refrigeration system?
First law of thermodynamics
Second law of thermodynamics
Third law of thermodynamics
Zeroth law of thermodynamics
What is the primary use of the refrigeration system described in the text?
Cooking food products
Freezing food products
Heating food products
Storing dry goods
Why is the refrigerated space temperature of -29°C not suitable for preserving fresh produce according to the text?
It is too cold and can freeze the produce
It is too warm and can spoil the produce
It is optimal for dry storage
It does not control humidity
What is the function of the backpressure regulator in the refrigeration system as described?
It controls the light inside the refrigerator
It adjusts the flow of refrigerant vapor
It measures the internal temperature
It filters the refrigerant
What environmental impact does venting refrigerant vapor directly to the atmosphere have?
It increases energy efficiency
It reduces operating costs
It contaminates the natural environment
It improves refrigeration performance
At what temperature can the refrigerated space be kept for fresh produce after adjusting the backpressure regulator?
-1°C
0°C
5°C
10°C
What happens to the evaporator pressure when the vent valve is closed and the saturation temperature equals the temperature of the refrigerated space?
The evaporator pressure decreases
The evaporator pressure remains unchanged
The evaporator pressure increases
The evaporator pressure fluctuates unpredictably
At what temperature does R-717 boil when the pressure is 413.6 kPa (abs)?
5°C
0°C
-1°C
-5°C
What is required for ammonia to boil at -40°C?
Higher atmospheric pressure
A vacuum pump at the evaporator outlet
Increased refrigerant volume
Decreased throttling valve activity
What is the purpose of a vacuum pump in a refrigeration system operating below atmospheric pressure?
To increase the boiling point of the refrigerant
To decrease the rate at which the refrigerant vaporizes
To withdraw refrigerant vapor faster than it boils
To add more refrigerant to the system

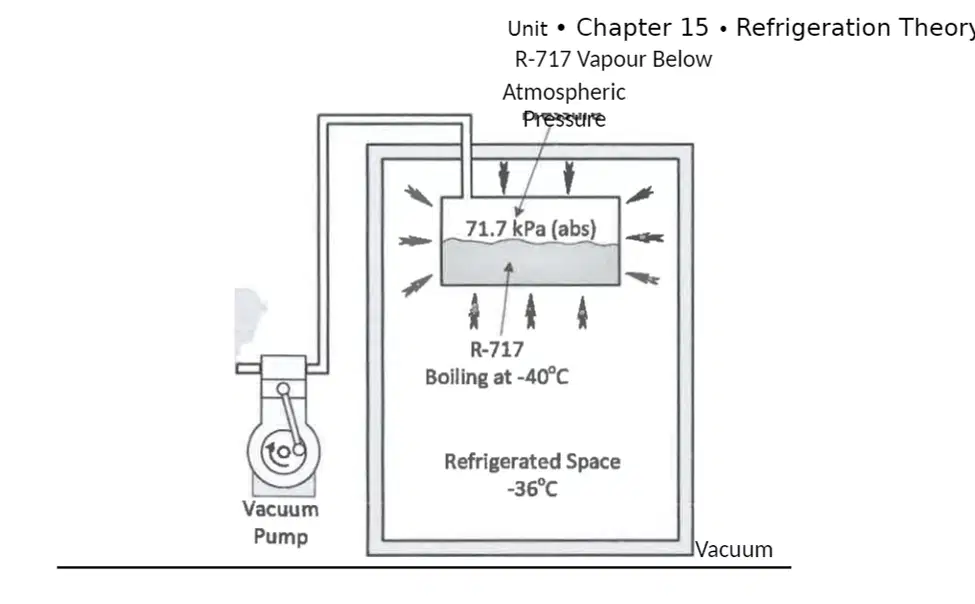

What is the boiling point of R-717 as mentioned in the diagram?
-40°C
-36°C
71.7 kPa
0°C
What is the temperature inside the refrigerated space according to the diagram?
-40°C
-36°C
71.7 kPa
0°C
According to the diagram, what is the atmospheric pressure in kPa (abs) where R-717 is used?
-40°C
-36°C
71.7 kPa
0 kPa
What is the primary function of the compressor in a refrigeration system?
To increase the temperature of the refrigerant vapor
To condense the refrigerant vapor into liquid
To ensure continuous flow of refrigerant
To reduce the pressure of the refrigerant vapor
What must the temperature of the refrigerant vapor exceed in a refrigeration system?
The temperature of the cooling medium
The boiling point of the refrigerant
The ambient temperature
The freezing point of the refrigerant
What happens if too much refrigerant enters the evaporator in a refrigeration system?
The compressor overheats
The un-boiled liquid will leave the evaporator
The system efficiency increases
The refrigerant automatically recycles
What is the role of a cooling medium in a refrigeration system?
To heat the refrigerant vapor
To compress the refrigerant vapor
To condense the refrigerant vapor
To expand the refrigerant vapor
What is the role of the compressor in a refrigeration system?
It cools the refrigerant.
It condenses the refrigerant vapor.
It increases the pressure and temperature of the refrigerant vapor.
It evaporates the refrigerant.
Which of the following is NOT a mandatory component of the refrigeration system shown in Figure 4?
Liquid receiver
Evaporator
Condenser
Refrigerant metering device
What is the primary function of the evaporator in the vapour compression refrigeration system?
To compress the refrigerant
To receive the refrigerant liquid
To absorb heat from the space being cooled
To condense the refrigerant vapor
Why is a refrigerant metering device essential in a refrigeration system?
It cools down the refrigerant.
It controls the flow of refrigerant into the evaporator.
It increases the refrigerant pressure.
It stores excess refrigerant.
What is the capacity of a refrigeration system primarily measured in within the SI system?
Cubic meters per second
Kilowatts or kilojoules per second
Liters per minute
Grams per hour
What does one tonne of refrigeration equate to in terms of heat absorption?
335,000 kJ in 24 hours
100,000 kJ in 12 hours
500,000 kJ in 48 hours
200,000 kJ in 36 hours
How many kilowatts are equivalent to one tonne of refrigeration?
3.88 kW
5.00 kW
2.50 kW
4.50 kW

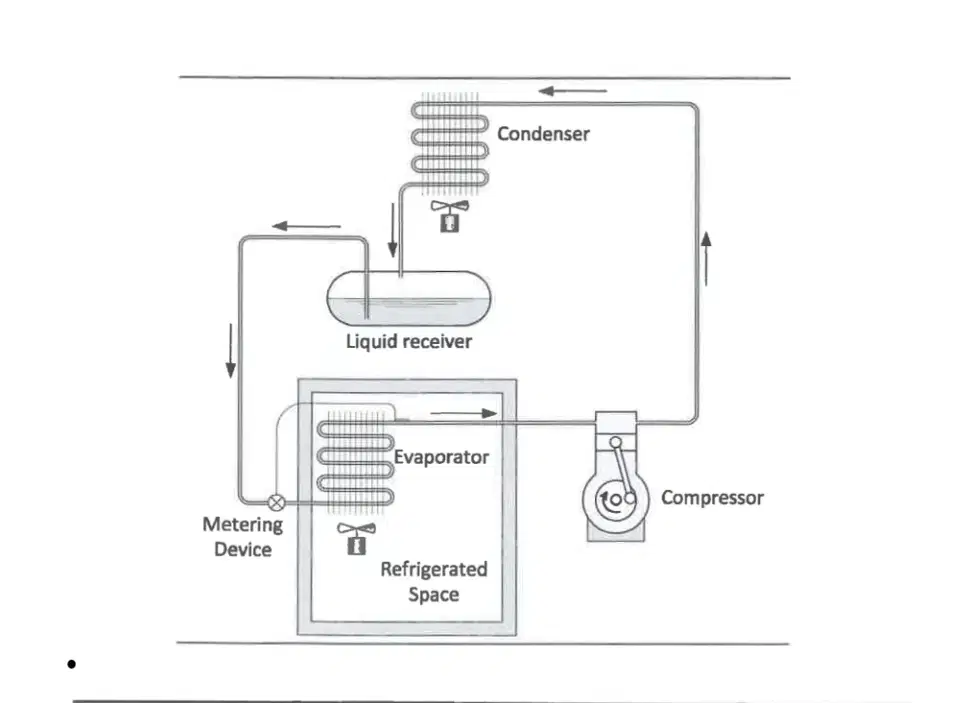

Refer to the diagram and identify the component that is directly connected to both the condenser and the evaporator.
Compressor
Metering Device
Liquid Receiver
Refrigerated Space
What is the Net Refrigerating Effect primarily measured in?
Tons of refrigeration
Watts
Joules
Degrees Celsius
What does the Coefficient of Performance (COP) compare in a refrigeration system?
The energy used to drive the compressor to the heat absorbed from the refrigerated medium
The heat output to the electrical energy input
The volume of refrigerant to the cooling output
The temperature drop to the energy consumed
How is the Compression Ratio in a refrigeration system defined?
The ratio of the clearance volume to the piston displacement
The ratio of the top dead centre volume to the bottom dead centre volume
The ratio of the piston displacement to the clearance volume
The ratio of the bottom dead centre volume to the top dead centre volume
Which of the following is NOT a thermodynamic property of refrigerants?
Boiling point
Condensing point
Color
Enthalpy
What is the primary goal upon completing Chapter 16 on Refrigerants?
To understand the environmental impact of refrigerants
To describe the different refrigerants used and explain the various properties of these refrigerants
To learn about the manufacturing process of refrigerants
To study the historical development of refrigerants
Which of the following is NOT a learning objective for Chapter 16 on Refrigerants?
Describe the identification and classification of refrigerants
Describe the characteristics and thermodynamic properties of refrigerants
Describe the physical properties of refrigerants
Analyze the economic aspects of using different refrigerants
What is a Halocarbon?
A compound where hydrogen of a hydrocarbon is replaced by halogens
A type of natural refrigerant
A measurement of ozone depletion
A property allowing substances to mix without separating
Which group do Halogens belong to in the periodic table?
Group VIIA
Group IVA
Group IIIB
Group VIB
What does the term "Miscibility" refer to?
The ability to replace hydrogen in hydrocarbons
The reactivity of nonmetallic elements
The property allowing substances to mix without separating
The natural occurrence of refrigerants
What is a Natural Refrigerant?
A synthetic substance used in cooling systems
A non-synthetic refrigerant found in nature
A compound contributing to ozone depletion
A reactive nonmetallic element
What does Ozone Depleting Potential (ODP) indicate?
The ability of a substance to contribute to the depletion of the Earth's ozone layer
The miscibility of a substance
The natural occurrence of a refrigerant
The group of halogens in the periodic table
What is the primary reason it is important to know the chemical and physical properties of refrigerants used in refrigerating and air conditioning systems?
To ensure they are environmentally friendly
To compare them and choose the appropriate refrigerant for specific applications
To reduce costs
To simplify installation processes
Refrigerants are classified according to which of the following criteria?
Color and size
Flammability and toxicity
Price and availability
Weight and volume
Which of the following is NOT listed as a classification category for refrigerants in the text?
Impact on the environment
Chemical origins
Operating temperature suitability
Economic efficiency
What does ASHRAE stand for in the context of refrigerants?
American Society of Heating, Refrigerating and Air-Conditioning Engineers
Association of Standard Heating and Refrigerant Engineers
American Standard for Heating and Refrigeration Efficiency
Automated System of Heating, Refrigeration, and Air Conditioning Engineers
What is the ASHRAE designation for 2,2-dichloro-1, 1, 1-trifluoroethane?
Suva 123
Suva 134a
Suva 134aR-134a1,1
CH2CFC3
Which refrigerant is used in large low-pressure evaporator chillers (HVAC)?
Suva 134aR-134a1,1, 1, 2-tetrafluoroethane
Suva 123
CH2CFC3
None of the above
What is the common use of a refrigerant with the chemical formula CH2CFC3?
Domestic, Automotive and special HVAC
Large scale high-pressure chillers
Small scale residential cooling
Industrial refrigeration
What is the chemical formula for Ammonia as used in refrigeration?
CO2
CHClF2
NH3
R-22
Which refrigerant is identified by the code R-744?
Ammonia
Carbon Dioxide
Chlorodifluoromethane
Freon 22
For which applications is Chlorodifluoromethane primarily used?
Industrial and commercial refrigeration
Domestic and automotive cooling
Ice-making and flash-freezing
Large scale chillers (HVAC)
What is the typical temperature range for the evaporator when using Carbon Dioxide (R-744) in refrigeration systems?
Above 0°C to -25°C
Below -25°C
Above 0°C to 25°C
Below 0°C
According to the CSA B52 Mechanical Refrigeration Code, into how many groups are refrigerants classified based on their toxicity and flammability?
Four groups
Six groups
Eight groups
Ten groups
What does the CSA B52 code combine with A2L to form a group designation?
B2
A1
R-600
R-134a
Which refrigerant is classified under the safety group A2L for lower flammability and lower toxicity?
R-290 (propane)
R-1140 (vinyl chloride)
R-406a
R-32 (Difluoromethane)
Which of the following refrigerants is categorized under Group B2 for higher toxicity?
R-717 (ammonia)
R-134a
R-744 (carbon dioxide)
R-717 (ammonia)
What characteristic do A2L refrigerants have compared to B2L refrigerants?
Higher burning velocity
Lower burning velocity
Higher toxicity
Nonflammable
What does ODP stand for in the context of refrigerants?
Oxygen Depletion Potential
Ozone Depletion Potential
Operational Depletion Potential
Organic Decomposition Product
Which refrigerant is considered to have zero Global Warming Potential (GWP)?
R-744
R-717
R-22
R-12
Which of the following is NOT a characteristic of CFCs?
They are chlorinated fluorocarbons.
They have high Ozone Depleting Potential.
They are environmentally friendly.
They include the refrigerants R-11 and R-12.
What is the primary environmental benefit of using natural refrigerants like R-717 (ammonia)?
They have high Global Warming Potential.
They are highly flammable.
They have zero ODP and zero GWP.
They are less effective than synthetic refrigerants.
