Tool & Die Maker (Dies & Moulds) Year1 - QP3

Total questions: 25

Worksheet time: 8mins

Name
Class
Date
1.

Name the part marked as 'X' in vernier caliper. | വെർനിയർ കാലിപ്പറിൽ 'x' എന്ന് അടയാളപ്പെടുത്തിയ ഭാഗത്തിന് പേര് നൽകുക.

a)

Beam | ബീം

b)

Fixed bar | ഫിക്സഡ് ബാർ

c)

Depth bar | ഡെപ്ത്ത് ബാർ

d)

Thumb lever | തമ്പ് ലിവർ

2.

What operation is called sharpening of grinding wheel? | ഗ്രൈൻഡിങ് വീലിന്റെ മൂർച്ച കൂട്ടുന്ന  ഓപ്പറേഷനെ എന്ത് വിളിക്കുന്നു?

a)

Turning | ടേണിങ്

b)

Aligning | അലൈനിങ്

c)

Dressing | ഡ്രസ്സിംഗ്

d)

Balancing | ബാലൻസിംഗ്

3.

Which type of machine, the workpiece and grinding wheel rotates opposite to each other? | ഏതുതരം മെഷീനിലാണ്, വർക്ക്പീസും ഗ്രൈൻഡിങ് വീലും പരസ്പരം വിപരീതമായി കറങ്ങുന്നത്?

a)

Surface grinding machine | സർഫസ് ഗ്രൈൻഡിങ് മെഷീൻ

b)

Cylindrical grinding machine | സിലിണ്ടറിക്കൽ ഗ്രൈൻഡിങ് മെഷീൻ

c)

Internal grinding machine | ഇന്റേണൽ ഗ്രൈൻഡിങ് മെഷീൻ

d)

Bench grinding machine | ബെഞ്ച് ഗ്രൈൻഡിങ് മെഷീൻ

4.

Which indexing method is used to cut teeth of rack? | റാക്കിന്റെ ടീത്തുകൾ കട്ട് ചെയ്യാൻ ഏത് ഇന്ഡക്സിങ് രീതി ആണ് ഉപയോഗിക്കുന്നത്?

a)

Simple indexing | സിമ്പിൾ ഇന്‌ഡക്സിങ്

b)

Block indexing | ബ്ലോക്ക് ഇന്‌ഡക്സിങ്

c)

Linear indexing | ലീനിയർ ഇൻഡെക്സിംഗ്

d)

Angular indexing | ആങ്കുലാർ ഇന്ഡക്സിങ്

5.

5) What is the percentage of carbon content in plain carbon steel is used to make high tensile tubes? | ഹൈ ടെൻസൈൽ ട്യൂബുകൾ നിർമ്മിക്കാൻ ഉപയോഗിക്കുന്ന പ്ലെയിൻ കാർബൺ സ്റ്റീലിലെ കാർബൺ കണ്ടെന്റ് എത്ര ശതമാനം?

a)

0.3 to 0.5%

b)

0.5 to 0.7%

c)

0.7 to 0.9%

d)

0.9 to 1.1%

6.

Which elements is used to classify the plain carbon steel? | പ്ലെയിൻ കാർബൺ സ്റ്റീലിനെ തരംതിരിക്കാൻ ഉപയോഗിക്കുന്ന മൂലകങ്ങൾ ഏതാണ്?

a)

Nickel | നിക്കൽ

b)

Carbon | കാർബൺ

c)

Cobalt | കൊബാൾട്ട്

d)

Manganese | മാംഗനീസ്

7.

How external features of a component including which is not a cylindrical is designated as per BIS? | എങ്ങനെയാണ് ഒരു സിലിണ്ടറിക്കലോ അല്ലാത്തതോ ഉൾപ്പെടെയുള്ളതോ ആയ കംപോണന്റീന്റെ എക്സ്റ്റെണൽ ഫീച്ചർ ബിഐഎസ് പ്രകാരം സൂചിപ്പിക്കുന്നത്?

a)

Fit | ഫിറ്റ്

b)

Hole | ഹോൾ

c)

Shaft | ഷാഫ്റ്റ്

d)

Deviation | ഡീവിയേഷന്‍

8.

Which metal is used to make machine table and machine beds? | മെഷീൻ ടേബിളും മെഷീൻ ബെഡുകളും നിർമ്മിക്കാൻ ഉപയോഗിക്കുന്ന ലോഹം ഏതാണ്?

a)

Pig iron | പിഗ് അയൺ

b)

Cast iron | കാസ്റ്റ് അയൺ

c)

Wrought iron | റോട്ട് അയൺ

d)

Plain carbon steel | പ്ലെയിൻ കാർബൺ സ്റ്റീൽ

9.

The thickness of material removed in one pass of the work under the milling cutter is known as... | മില്ലിംഗ് കട്ടറിന് അടിയിലൂടെ വർക്ക് ഒരുപ്രാവശ്യം കടന്നുപോകുമ്പോൾ നീക്കംചെയ്യപ്പെടുന്ന് മെറ്റീരിയലിന്റെ അളവിനെ എന്ത് വിളിക്കും...

a)

Depth of cut | ഡെപ്‌ത് ഓഫ് കട്ട്

b)

Feed | ഫീഡ്

c)

R.P.M

d)

Metre/minute | മീറ്റർ / മിനിറ്റ്

10.

Which of the following is artificial abrasive? | ഇനി പറയുന്നവയിൽ ഏതാണ് കൃത്രിമ അബ്രസീവ്?

a)

Corundum | കൊറണ്ടം

b)

Emery | എമെരി

c)

Diamond | ഡയമണ്ട്

d)

Regular aluminium oxide | സാധാരണ അലുമിനിയം ഓക്സൈഡ്

11.

Which material is used to provide strength to hold the abrasive grains in grinding wheel? | ഗ്രൈൻഡിങ് വീലിൽ അബ്രബ്രെസ്സീവ് ഗ്രൈൻസിനെ ഹോൾഡ് ചെയ്യുന്നതിനുള്ള ബലം നൽകുന്നതിനുള്ള മെറ്റീരിയൽ ഏത്?

a)

Bond | ബോണ്ട്

b)

Grain | ഗ്രൈൻ

c)

Fevicol | ഫെവികോൾ

d)

Grade | ഗ്രേഡ്

12.

To make a head of bolt using circular table attachment on milling machine, workpiece is clamped with following. | മില്ലിങ് മെഷീനിൽ സർക്കുലാർ ടേബിളിന്റെ സഹായത്തോടെ ബോൾട്ടിന്റെ ഹെഡ് നിർമ്മിക്കുമ്പോൾ, വർക്ക് പീ‌സിനെ എങ്ങനെ ഹോൾഡ് ചെയ്യും?

a)

Machine vice | മെഷീൻ വൈസ് ഉപയോഗിച്ച്

b)

V' block | വി 'ബ്ലോക്ക് ഉപയോഗിച്ച്

c)

Clamp | ക്ലാമ്പ് ഉപയോഗിച്ച്

d)

Three jaw chuck | ത്രീ ജാ ചക്ക് ഉപയോഗിച്ച്

13.

What is the referred as 'golden hours' period? | "ഗോൾഡൻ അവർ' കാലയളവ് എന്നറിയപ്പെടുന്നത് എന്താണ്?

a)

First 30 minutes after incident | സംഭവം കഴിഞ്ഞ് ആദ്യത്തെ 30 മിനിറ്റ്

b)

First 30 minutes | ആദ്യ 30 മിനിറ്റ്

c)

First 45 minutes of admission | അഡ്മിറ്റായശേഷം ആദ്യ 45 മിനിറ്റ്

d)

First 60 minutes after treatment | ചികിത്സ കഴിഞ്ഞ് ആദ്യത്തെ 60 മിനിറ്റ്

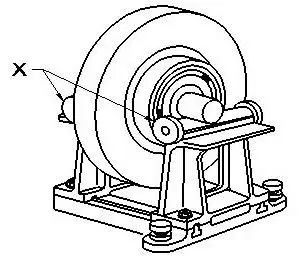

14.

What is the name of operation marked 'x'? | എന്തു പ്രക്രിയയാണ് ചിത്രത്തിൽ കാണിച്ചിരിക്കുന്നത്?

a)

Truing | ട്രൂയിങ്

b)

Dressing | ഡ്രസ്സിംഗ്

c)

Grinding | ഗ്രൈൻഡിങ്

d)

Balancing | ബാലൻസിംഗ്

15.

How many grinding wheel attached on the head of tool and cutter grinder? | ടൂൾ & കട്ടർ ഗ്രൈൻഡറിന്റെ ഹെഡിൽ എത്ര വീൽ ഹോൾഡ് ചെയ്യാം?

a)

Two | 2

b)

Three | 3

c)

Four | 4

d)

Five | 5

16.

What is the name of indexing head? | ചിത്രത്തിലെ ഇൻഡെക്സിംഗ് ഹെഡിന്റെ പേരെന്താണ്?

a)

Plain indexing head | പ്ലെയിൻ ഇൻഡെക്സിംഗ് ഹെഡ്

b)

Simple indexing head | സിംപിൾ ഇൻഡെക്സിംഗ് ഹെഡ്

c)

Direct indexing head | ഡയറക്റ്റ് ഇൻഡെക്സിംഗ് ഹെഡ്

d)

Universal indexing head | യൂണിവേഴ്സൽ ഇൻഡക്സിംഗ്

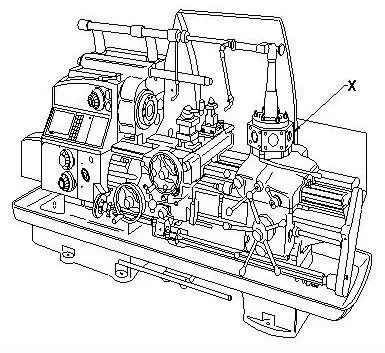

17.

Name the part marked as 'x'. | 'x' എന്ന് അടയാളപ്പെടുത്തിയ ഭാഗത്തിന് പേര് നൽകുക.

a)

Square turret | സ്കൂയർ ടരറ്റ്

b)

Rear tool post | റിയർ ടൂൾ പോസ്റ്റ്

c)

Bed | ബെഡ്

d)

Hexagonal turret | ഹെക്സഗണൽ ടരറ്റ്

18.

Number which can not be indexed by simple indexing, which indexing is used to index those numbers? | സിമ്പിൾ  ഇന്‌ഡക്സിങ്ങിൽ ചെയ്യാൻ പറ്റാത്ത നമ്പറുകൾ ഏത് ഇന്‌ഡക്സിങ് ഉപയോഗിച്ചാണ് ചെയ്യുന്നത്?

a)

Simple indexing | സിമ്പിൾ ഇന്‌ഡക്സിങ്

b)

Block indexing | ബ്ലോക്ക് ഇന്‌ഡക്സിങ്

c)

Differential indexing | ഡിഫറെൻഷ്യൽ ഇന്ഡക്സിങ്

d)

Angular indexing | ആങ്കുലാർ ഇന്ഡക്സിങ്

19.

Which milling cutter is used to parting off the job in two parts? | ജോബിനെ പാർട്ടിങ് ഓഫ് ചെയ്യാൻ ഏത് മില്ലിംഗ് കട്ടർ ഉപയോഗിക്കുന്നു?

a)

Form milling cutter | ഫോം മില്ലിംഗ് കട്ടർ

b)

Slitting saw milling cutter | സ്ലിട്ടിങ് സോ മില്ലിങ് കട്ടർ

c)

Thread milling cutter | ത്രെഡ് മില്ലിംഗ് കട്ടർ

d)

Face milling cutter | ഫെയ്ത് മില്ലിംഗ് കട്ടർ

20.

Which milling machine table can be set by swivel 45° right and 45° left? | ഏതു മില്ലിങ് മെഷീൻ ടേബിൾ 45° വലത്തും  45°   ഇടത്തും സ്വെവൽ ചെയ്ത് സജ്ജമാക്കാൻ കഴിയും?

a)

Plain milling | പ്ലെയിൻ മില്ലിംഗ്

b)

Planer type milling machine | പ്ലെയ്നർ ടൈപ്പ് മില്ലിങ് മെഷീൻ

c)

Hand type milling machine | ഹാൻഡ് ടൈപ്പ് മില്ലിങ് മെഷീൻ

d)

Universal milling machine | യൂണിവേഴ്സൽ മില്ലിങ് മെഷീൻ

21.

Which part of a milling cutter permitted to remove the chips? | ഒരു മില്ലിങ് കട്ടറിന്റെ ഏത് ഭാഗമാണ് ചിപ്പുകൾ നീക്കം ചെയ്യാൻ ഉപയോഗിക്കുന്നത്?

a)

Flute | ഫ്ലൂട്ട്

b)

Root dia | റൂട്ട് ഡയ

c)

Cutter edge | കട്ടർ എഡ്ജ്

d)

Land | ലാൻഡ്

22.

How the abrasives are specified? | അബ്രസീവസ് എങ്ങനെയാണ് സ്പേസിഫൈ ചെയ്യുന്നത്?

a)

Grade | ഗ്രേഡ്

b)

Grain size | ഗ്രൈൻ സൈസ്

c)

Structure | സ്ട്രക്ചർ

d)

Bond | ബോണ്ട്

23.

Which denotes the strength of bonding materials in grinding wheel? | ഗ്രൈൻഡിങ് വീലിലെ ബോണ്ടിംഗ് മെറ്റീരിയലുകളുടെ സ്ട്രെങ്‌തിനെ സൂചിപ്പിക്കുന്നത് എന്ത് ?

a)

Abrasive | അബ്രസീവ്

b)

Structure | സ്ട്രക്ചർ

c)

Grade | ഗ്രേഡ്

d)

Bond | ബോണ്ട്

24.

What is the part marked as 'X'? | ചിത്രത്തിലെ 'X' എന്ന് അടയാളപ്പെടുത്തിയിരിക്കുന്ന ഭാഗം എന്താണ്?

a)

Tail stock | ടെയിൽ സ്റ്റോക്ക്

b)

Table | ടേബിൾ

c)

Base | ബേസ്

d)

Wheel head | വീൽ ഹെഡ്

25.

Which one of the following is a rough grinding machine? | ഇനി പറയുന്നവയിൽ ഏതാണ് റഫ് ഗ്രൈൻഡിങ് മെഷീൻ?

a)

Pedestal grinding machine | പെഡസ്റ്റൽ ഗ്രൈൻഡിങ് മെഷീൻ

b)

Surface grinding machine | സർഫസ് ഗ്രൈൻഡിങ് മെഷീൻ

c)

Cylindrical grinding machine | സിലിണ്ടറിക്കൽ ഗ്രൈൻഡിങ് മെഷീൻ

d)

Universal grinding machine | യൂണിവേഴ്സൽ ഗ്രൈൻഡിങ് മെഷീൻ
