WorksheetsMOM Lab Quiz
Total questions: 15
Worksheet time: 8mins
Which of the following materials has the lowest elastic modulus?
Titanium
Brass
Plastic
Glass
Which of the following statements best describes elastic deformation?
Deformation that is permanent and irreversible.
Deformation that occurs only under tensile stress.
Deformation that is temporary and reversible upon load removal.
Deformation that occurs only at high temperatures.
Which of the following is primarily responsible for a beam's ability to withstand load?
Bending forces
Shear forces
Torsional forces
Compression forces
In buildings, why should floor beams not deflect excessively?
To increase flexibility
To avoid undesirable psychological effects on occupants
To induce vibrations
To maintain dimensional accuracy
Why are accurate values for beam deflections important in practical cases?
To prevent misalignment
To increase flexibility
To induce vibrations
To decrease rigidity
Which of the following statements best describes plastic deformation?
Deformation that occurs only under compressive stress.
Deformation that is temporary and reversible.
Deformation that occurs only in brittle materials.
Deformation that is permanent and irreversible after the load is removed.
Which material typically has the highest elastic modulus?
Aluminium
Steel
Concrete
Wood

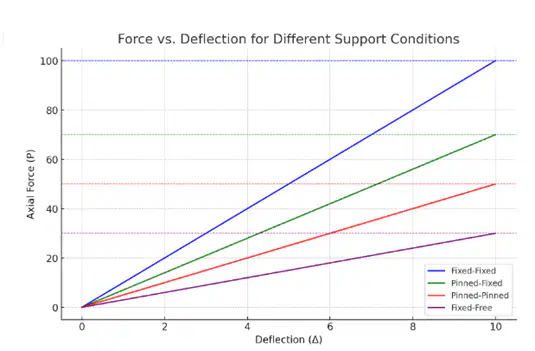

From the graph, which support condition has the highest critical buckling load according to the graph?
Fixed-Free
Pinned-Fixed
Pinned-Pinned
Fixed-Fixed
What instrument is used to observe the deflection of the beam at a particular section in the testing procedure?
Screwdriver.
Dial gauge.
Hammer.
Level.
According to the graph, which supports condition shows the most rapid increase in deflection after reaching the critical load?
Fixed-Fixed
Pinned-Fixed
Pinned-Pinned
Fixed-Free
Which of the following is the first step in conducting the deflection testing procedure for a beam?
Connect the supports on aluminium structure.
Ensure that beam and supports are firmly assembled.
Apply load on beam at a particular distance.
Place the structure on an equal, rigid, levelled surface.
What is the purpose of inserting bolts in holes provided on the beam and support in the deflection testing procedure?
To increase the load capacity of the beam.
To ensure proper connection between the beam and support.
To observe the deflection of the beam.
To maintain the position of the beam on the support.
In Euler's column theory, the end conditions of the column are:
Realistic and include imperfections.
Idealized and perfect.
Ignored completely.
Assumed to change during loading.
Which of the following is not an assumption of Euler's column theory?
The column is initially perfectly straight.
The column experiences plastic deformation under load.
The load applied is purely axial and acts through the centroid of the cross-section.
The material of the column follows Hooke's Law.
Which are the following keys to interpret the material deflection of the simply supported beam?
(I) Load-Deflection Relationship
(II) Linear Elastic Region
(III) Maximum Deflection
(IV) Shape of the Curve
I and II
III and IV
I, II, and III
All of the above
