WorksheetsCCNA-MID-TEST-Batch-10
Total questions: 40
Worksheet time: 40mins
What is a computer network?
A device used to display information on a computer screen
A collection of interconnected computers and devices that can communicate and share resources
A type of software used to create documents and presentations
The physical casing that protects a computer’s internal components
Which one of the following is not a function of network layer?
congestion control
framing
routing
inter-networking
link state Routing protocols are used algorithm ?
DUAL
bellman-ford
Dijkstra
None of the above
Which layer is responsible for process to process delivery in a general network model?
session layer
data link layer
transport layer
network layer
Which of the following is the network layer protocol for the internet?
hypertext transfer protocol
file transfer protocol
ethernet
internet protocol
Which network topology requires a central Device or Switch ?
Ring
Bus
Star
Mesh
Which of the following allows you to connect and login to a remote computer?
SMTP
HTTP
FTP
Telnet
Which of the following has stored the startup configuration of a router ?
Rom
Flash
Ram
Nvram
9 Your router has the following IP address on Ethernet0: 172.16.2.1/23. Which of the following can be valid host IDs on the LAN interface attached to the router?
(1)172.16.1.100
(2)172.16.1.198
(3)172.16.2.255
(4)172.16.3.0
1 only
2 and 3 only
3 and 4 only
None of the above
Which two statements describe the IP address 10.16.3.65/23?
(1)The subnet address is 10.16.3.0 255.255.254.0.
(2)The lowest host address in the subnet is 10.16.2.1 255.255.254.0.
(3)The last valid host address in the subnet is 10.16.2.254 255.255.254.0.
(4)The broadcast address of the subnet is 10.16.3.255 255.255.254.0.
1 and 3
2 and 4
1, 2 and 4
2, 3 and 4
You need to subnet a network that has 5 subnets, each with at least 16 hosts. Which classful subnet mask would you use?
255.255.255.192
255.255.255.224
255.255.255.240
255.255.255.248
Which command can an administrator used to check best route path information ?
show arp
show interfaces
show ip route
show protocols
Which command or key combination allows a user to return to the previous level in the command hierarchy?
end
exit
Ctrl-Z
Ctrl-C
Which type of access is secured on a Cisco router or switch with the enable secret command?
virtual terminal
privileged EXEC
AUX port
console line
Which statement regarding the service password-encryption command is true?
It is configured in privileged EXEC mode.
It encrypts only line mode passwords
As soon as the service password-encryption command is entered, all currently set passwords formerly displayed in plain text are encrypted.
To see the passwords encrypted by the service password-encryption command in plain text, issue the no service password-encryption command.
Which command can be used to test connectivity between two devices ?
netstat
ipconfig
ICMP
Ping
AD Value of Static route configured with Local Exit Interface is____________
0
1
255
120
which of the following command is used to show the Ios image files available in the flash memory ?
#show flash
#show Ios file
#show Image
#show ios image
Router# prompt indicates that you’re in ?
Global configuration mode.
Privileged mode.
User mode.
none of the above
What is the Administrative Distance of OSPF ?
90.
120
100.
110
Which of the following table not used by EIGRP ?
Route table
Routing Table.
Topology table.
Neighborship table
Which command shows the entire routing table ?
show route table
show route.
show ip route
None of the above
The default hope count for EIGRP are ?
100
120
160
255
EIGRP sends multicast traffic, what address is used ?
224.0.0.9.
224.0.0.5.
224.0.0.1.
224.0.0.10.
The commands used to turn RIP routing on in a router ?
up rip.
enable rip.
router rip
None of the above
Which one is example of routed protocol?
IP.
RIP
OSPF
None of the above
Which routing protocol doesn't consume bandwidth of the network ?
Default routing.
Dynamic routing.
Static routing
None of the above
By Default IOS is stored in ?
RAM.
ROM.
Flash memeory
Kernel
You can manually save the file from RAM to NVRAM by which command
copy tftp start.
copy startup-config running-config.
copy running-config startup-config.
None of the above
Subnet Mask 255.255.255.224 can be written as?
/28
/26.
/25.
/27.
Which routing protocol has a maximum hop count of 15?
RIP
Ospf
EIGRP
BGP
Which of the following is the valid host range for the subnet on which the IP address 192.168.168.188 255.255.255.192 resides?
192.168.168.129-190
192.168.168.128-190
192.168.168.129-191
192.168.168.128-192
Which of the following commands will allow you to set your Telnet password on a Cisco router?
line telnet 0 4
line vty 0 4
line aux 0 4
line con 0
Which information is displayed when using the show ip interface brief command?
IP addresses and the speed/duplex settings
MAC addresses and the speed/duplex settings
MAC addresses and the speed/duplex settings
IP addresses and the port interface status
What does the command routerA(config)#line cons 0 allow you to perform next?
Set the Telnet password
Set your console password
Shut down the router.
Disable console connections
The wildcard mask of 255.255.255.252 is
0.0.0.255
0.255.255.255
0.0.3.0
0.0.0.3
Which protocol does Ping use?
TCP
ICMP
ARP
BootP
A router is involved in ____________ layer of the TCP/IP protocol suite
second
fourth
third
fifth

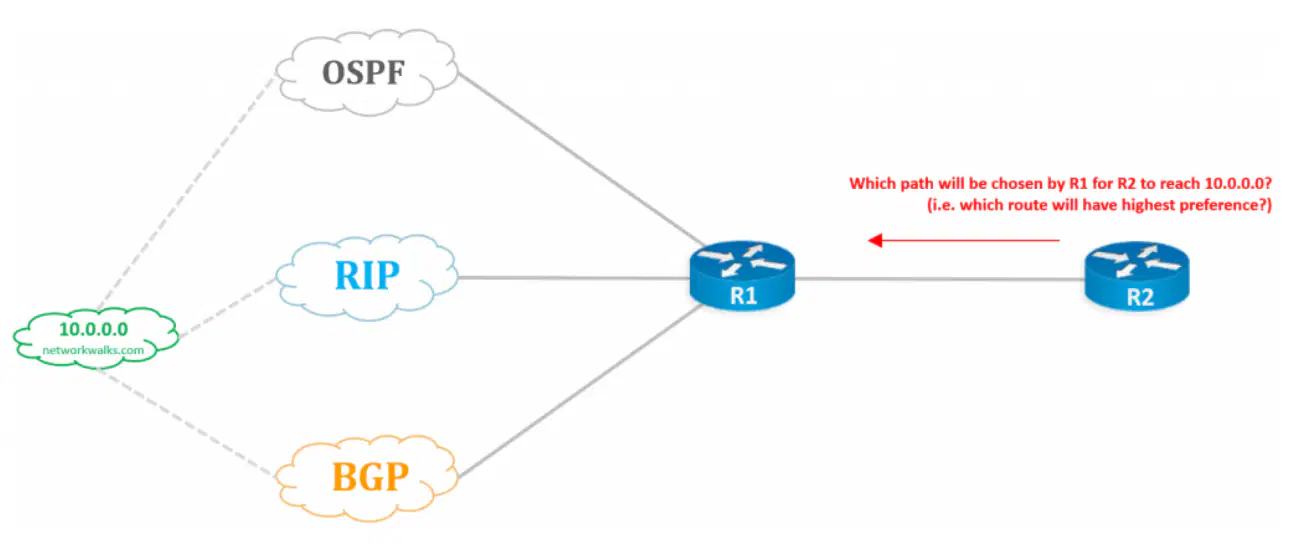

Which path will be chosen by R1 for traffic of R2?
RIP Route
None
BGP Route
Ospf Route
What is the Summary (aggregated) Route for these two routes?
192.168.0.0/24
192.168.0.0/25
192.168.1.0/24
192.168.0.128/29
