Where is effort applied in a mechanical machine gear system?
On the driven gear
On the drive gear
On the hypoid gear
On the herringbone gear
What is the main function of levers?
To decrease speed
To amplify force or distance
To reduce weight
To increase friction
In a Class 1 lever, where is the fulcrum located?
Between the load and effort
At the end of the lever
Between the effort and load
At the load side
Which class of lever is exemplified by a wheelbarrow?
Class 1
Class 2
Class 3
Class 4
In a Class 3 lever, what is positioned between the fulcrum and load?
Load
Fulcrum
Effort
Resistance
Which class of lever is best represented by using a dolly to lift a load?
First-class lever
Second-class lever
Third-class lever
Fourth-class lever
What is the definition of mechanical advantage in a machine?
Ratio of input force to output force
Ratio of output force to input force
Ratio of input distance to output distance
Ratio of output distance to input distance
How is mechanical advantage (MA) calculated?
MA = Input Force / Output Force
MA = Output Distance / Input Distance
MA = Output Force / Input Force
MA = Input Distance / Output Distance
Which of the following is an example of a simple machine?
Motor
Pulley
Battery
Circuit
What affects the efficiency of a pulley system?
Speed and velocity
Friction and energy losses
Temperature and pressure
Color and size

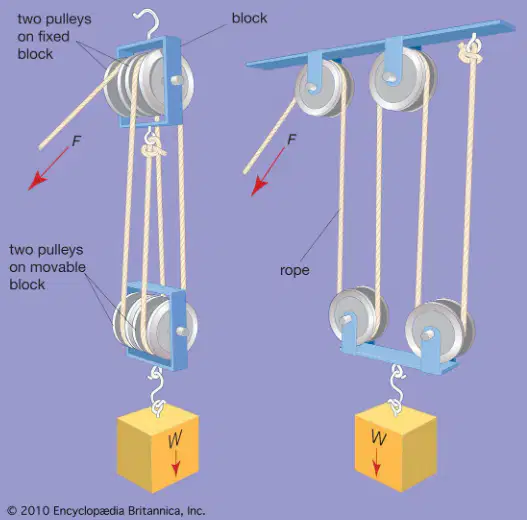

What is the primary purpose of block and tackle systems?
To increase speed
To create significant mechanical advantage
To reduce noise
To generate electricity
How is the mechanical advantage of a pulley system determined?
By the weight of the load
By the number of pulleys
By the number of rope segments supporting the load
By the length of the rope
If a pulley system has 4 supporting rope segments, what is its mechanical advantage?
2
3
4
5
What is the primary function of a wheel and axle system?
To increase speed
To reduce friction and allow efficient movement of heavy loads
To generate electricity
To create sound
What determines the mechanical advantage of a wheel and axle system?
The color of the wheel
The material of the axle
The ratio between the wheel's radius and the axle's radius
The speed of rotation
How does a larger wheel with a smaller axle affect the mechanical advantage?
It decreases the mechanical advantage
It has no effect on the mechanical advantage
It provides greater mechanical advantage
It makes the system slower
Where is the wheel and axle commonly used in real life?
In computers
In vehicles like cars and bicycles
In mobile phones
In kitchen appliances
What is the primary function of the wheel and axle in vehicles?
To increase speed
To reduce friction and allow smooth movement
To generate electricity
To provide power
What is the mechanical advantage of an inclined plane?
Height of slope / length of slope
Length of slope / height of slope
Width of slope / height of slope
Height of slope / width of slope
How do screws convert motion?
Linear motion into rotational motion
Rotational motion into linear motion
Circular motion into vertical motion
Vertical motion into circular motion
Which of the following is an application of screws?
Levers
Pulleys
Corkscrews
Wedges
In the context of an inclined plane, what is considered the "load" when using a ramp to load a heavy box into a truck?
The ramp itself
The box
The truck
The person pushing
What role does the inclined plane play when loading a heavy box into a truck?
It increases the force needed
It reduces the force needed
It makes the box heavier
It shortens the distance
In the example of using a ramp, what is the "effort"?
The weight of the box
The length of the ramp
The force exerted by a person
The height of the truck
What are compound machines?
Devices that integrate two or more simple machines to perform complex tasks more efficiently
Machines that consist of only one simple machine
Devices that do not use any simple machines
Machines that are used only for lifting heavy objects
Which elements can be combined in compound machines to achieve greater mechanical advantage?
Levers, pulleys, wheels, and inclined planes
Springs, magnets, and gears
Circuits, wires, and batteries
Lights, switches, and sensors
Which components are combined in a bicycle to transfer motion and make cycling easier?
Wheel and axle, gears, levers, and pulleys
Levers and inclined planes
Screws and wedges
Springs and gears
What combination of simple machines is used in scissors to cut materials with minimal effort?
Wheel and axle and screws
Levers and wedges
Pulleys and inclined planes
Gears and springs
Which of the following is NOT a primary form of energy involved in energy conversion?
Kinetic Energy
Potential Energy
Thermal Energy
Nuclear Energy
