WorksheetsElectrical Circuits
Total questions: 58
Worksheet time: 3hrs 34mins
Electricity
The presence and flow of an electric charge
Energy resulting from the flow of electric charge through a conductor
A pathway that allows an electric current to flow freely
To make something from materials
Electrical Energy
The presence and flow of an electric charge
Energy resulting from the flow of electric charge through a conductor
A pathway that allows an electric current to flow freely
To make something from materials

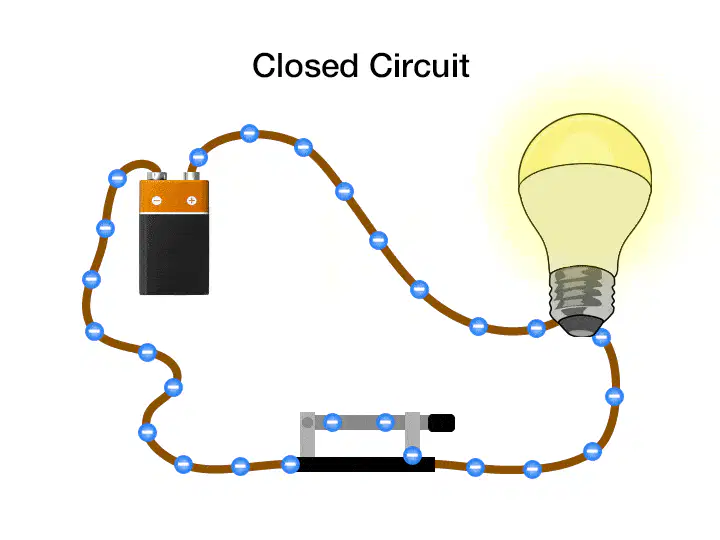

Closed circuit
The presence and flow of an electric charge
Energy resulting from the flow of electric charge through a conductor
A pathway that allows an electric current to flow freely
To make something from materials
Produce
The presence and flow of an electric charge
Energy resulting from the flow of electric charge through a conductor
A pathway that allows an electric current to flow freely
To make something from materials
Light Energy
The presence and flow of an electric charge
Energy resulting from the flow of electric charge through a conductor
Energy that causes a transfer of heat between materials
Energy that allows us to see
Thermal Energy
The presence and flow of an electric charge
Energy resulting from the flow of electric charge through a conductor
Energy that causes a transfer of heat between materials
Energy that allows us to see
Light Energy is energy we can see.
True
False
What is an example of Light Energy?
Friction
Candle
Guitar
A fire is an example of what kind of ENERGY?
Electric
Sound
Thermal
Mechanical
Another name for heat energy is (a)
Which form of energy is produced when
a lamp is TURNED ON?
sound energy
electrical energy
mechanical energy
light energy
Which is an example of light energy?
power lines are an example of this type of ENERGY
sound
mechanical
electrical
nuclear
What type of energy moves through a wire into a lamp?
thermal energy
radiant (light) energy
electrical energy
sound energy
What two energy sources is the lamp providing the plant? Select TWO choices
thermal energy
light energy
electrical energy
sound energy
Most circuits include a device that opens and closes the circuit. This device allows you to turn a light bulb on and off. This device is a
computer
wire
switch
flashlight
Electrical current will pass easily through metals such as copper, aluminum and gold. These metals are good
things
insulators
charged particles
conductors
Current cannot flow through a ______ circuit.
Battery
open
electric current
metal
__________ is a conductor of electricity.
battery
metal
rubber
open
To open or close a circuit you need a
switch
trigger
name
potato
Circuits must be ______ in order to work
open
fancy
closed
under water
A material that keeps electric charges from flowing through easily is called
Flash light
toaster
an insulator
series circuit
A device that converts chemical energy into electrical energy is call a
battery
conductor
parallel circuit
flashlight
Most circuits include a device that opens and closes the circuit. This device allows you to turn a light bulb on and off. This device is a
computer
wire
switch
flashlight
Electrical current will pass easily through metals such as copper, aluminum and gold. These metals are good
things
insulators
charged particles
conductors
Every working circuit has at least three parts: 1) a power source, 2) a conductor, usually wire and 3)
insulator
an object that uses electric current like a light bulb
series circuit
rock
If too much electric current passes through a circuit, the wires can
make batteries
cool down
conductor
overheat
What items make up this electric circuit?
Bulb and battery
Bulb, battery and switch
Bulb, battery and wire
Why is a battery important in an electrical circuit?
As a source of energy.
As a path for electricity to flow through.
As a connector to connect all parts of a circuit.
Why must parts of a circuit be properly connected before the bulb can light up?
To ensure that the bulb can light up.
To ensure that the battery can produce light in a closed circuit.
To ensure that electric current can flow through the closed circuit.
Look at the diagram. Why did the bulb not light up?
The bulb was fused.
The battery had not enough electric current to light up the bulb.
The switch was opened and prevented electric current from flowing through the circuit.
The diagram shows a complete circuit but the bulb did not light up. Why?
The plastic spoon is an insulator of electricity and prevented electric current from flowing through the circuit.
The plastic spoon is not connected properly and prevented electric current from flowing through the circuit.
The plastic spoon is a conductor of electricity and prevented electric current from flowing through the circuit.
Why electrical wiring usually are covered with a layer of plastic?
To make it look pretty
To help electricity flow along the wire
To make it safe
To add more energy
The complete path through which an electric current is flowing is called
Open circuit
Closed circuit
Both
Select three materials that are insulators.
Wood
Copper
Rubber
Plastic
Metal
The pathway through which an electric current flows
sound energy
electric circuit
thermal circuit
short circuit
A pathway that prevents an electric current from flowing freely or stops the flow
Free Flowing Circuit
Circuit Breaker
Cowboy Circuit
Open Circuit
The flow of electricity through a circuit
Buzzer
Thermal Current
Electric Current
Solar Current
Sometimes clothes from the dryer will cling to you. Why?
Magnetism
Static Electricity
Resistance
Which of the following creates static electricity?
Taking a bath
Plugging a power cord into the wall outlet
Rubbing your feet on the carpet
This is a _________circuit.
parallel
diamond
circle
series
