WorksheetsFinal Term Quiz No. 1: Physical Test on Cement
Total questions: 15
Worksheet time: 18mins
The test method is intended to be used to determine the amount of water to prepare hydraulic cement pastes for testing
Normal Consistency
Air Content
Autoclave Expansion
Time of Setting
The apparatus used for determining the Normal Consistency of Hydraulic Cement.
Vicat Apparatus
Vacit Apparatus
Gilmore Apparatus
All of the above
The time which elapses before the paste ceases to be fluid and plastic. Interval between the gauging and partial of plasticity.
Initial Set
Final Set
False Set
True Set
The time required for the paste to harden to a certain degree. The time required for the gauged cement to acquire sufficient firmness to resist a certain definite pressure.
Initial Set
Final Set
False Set
True Set
This method of test is for determining the soundness of Portland cement, soundness is a physical property tested by determining the ability of a hardened cement paste to retain its volume after setting.
Normal Consistency
Time of Setting
Autoclave Expansion
Air Content
Reference for the Standard Test Method for Amount of Water Required of Normal Consistency of Hydraulic Cement Paste
ASTM C187
ASTM C184
ASTM C185
ASTM C184
Requirement of Normal Consistency of Hydraulic Cement Paste
25% - 35%
20% -30%
30% - 40%
20% - 30%
Consistency Determination for Hydraulic Cement Paste
10 + 1 mm
9 + 1 mm
10 mm
11 mm
What is the Normal Consistency if the mass of water is 190ml and the mass of cement is 650g?
29.2%
29.3%
29.4%
29.5%
The penetration is measured or calculated to be _____ for the time of setting.
25 mm
20 mm
30 mm
35 mm
Specification requirement for Autoclave Expansion of Hydraulic Cement Paste.
0.8 (-shrink/+expand)
0.8 (-shrink)
0.8 (+expand)
All of the above
Given the following:
a. specimen before autoclaving - 1.023mm
b. specimen after autoclaving - 0.821 mm
c. Gauge Length - 250mm
What is the Autoclave expansion, %?
- 0.08%
0.08%
0.8%
- 0.8%

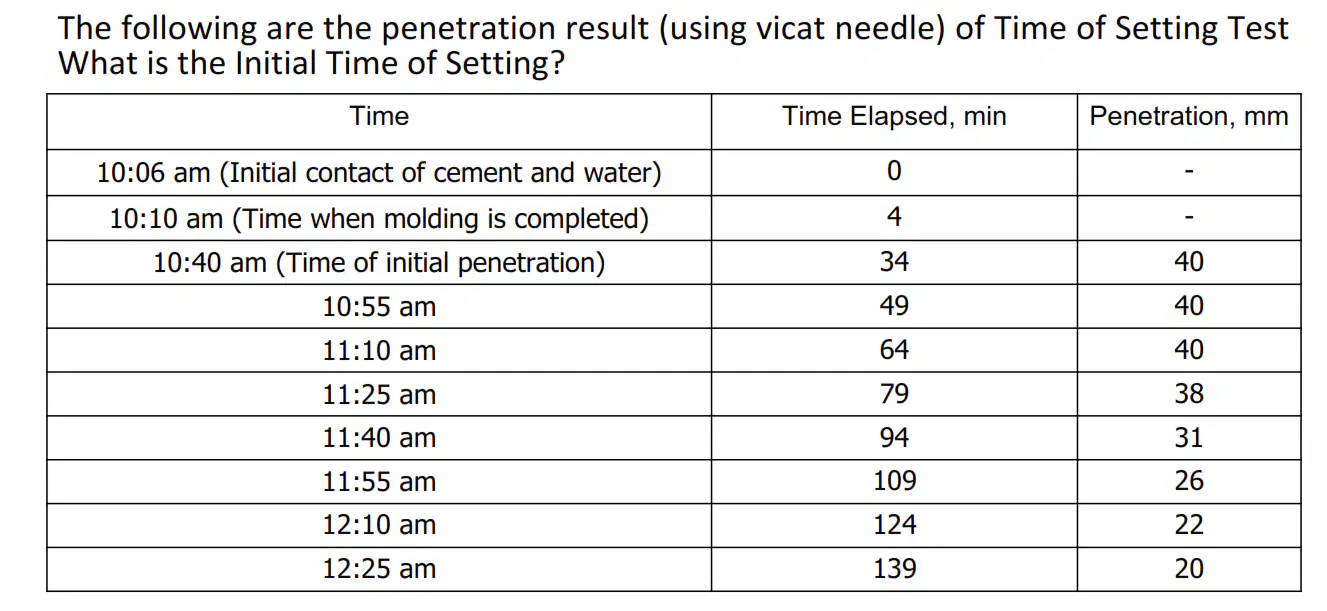

Below is the result of the laboratory for the Time of Setting of Cement: Determine the Initial Time of Setting.
112 mins
113 mins
114 mins
115 mins
Required Flow for the Air content of Hydraulic Cement Mortar:
7.2" - 7.8"
7.0" - 7.5"
10±1
-0.8%(expand/shrink)
Medium Speed of the Mechanical Mixer for the test of Air content of Hydraulic Cement Mortar
285±10rpm
140±5rpm
290±5rpm
150±5rpm
