A Cantilever beam carrying a point load, it has a length of 'l'. Which of the following is correct for the beam?
A is BMD & C is SFD
A is SFD & C is BMD
B is BMD & D is SFD
B is SFD and D is BMD
A simply supported beam is loaded as shown in figure. The BMD will be
A
B
C
D

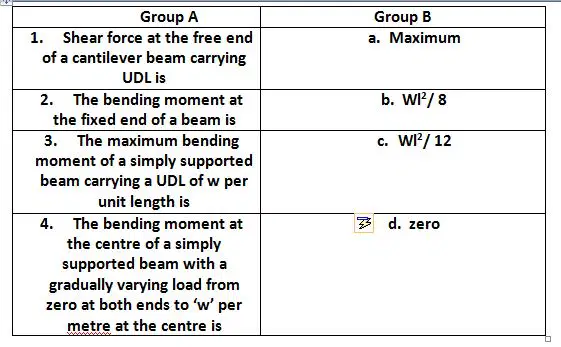

match the correct answer from group B for the given statements in group A
d,a,b,c
a,b,c,d
a,c,d,b
c,a,d,b
Group I shows different loads acting on a beam and Group 2 shows different bending moment distributions. Match the load with the corresponding bending moment diagram.
3,1,2,4
2,4,1,3
4,5,2,3
1,2,5,4
The bending moment (in KN-m units) at the mid-span location X in
the beam with overhangs shown below is equal
0
10
15
20

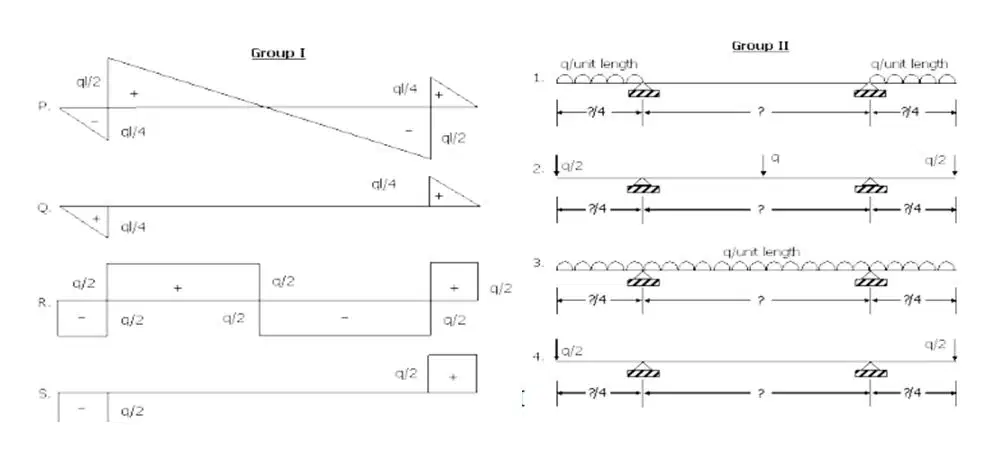

Group I gives the shear force diagrams and Group II gives the diagrams of beams with supports and loading. Match the Group I
3,1,2,4
1,3,2,4
4,1,2,3
3,4,2,1
Assertion (A): Bending moment in a beam is maximum at a
section where shear force is zero.
Reason (R): Shear force at a section is given by the rate of change of bending moment.
Both A and R are true but R is not a correct explanation
of A
Both A and R are true and R is the correct explanation of
A
A is true but R is false
A is false but R is true
The SFD and BMD for a beam have shown in the given figures I
and II. Corresponding loading diagram would be
statement A): The maximum bending moment occurs where the
shear force is either zero or changes sign.
Statement R): If the shear force diagram line between the two points in horizontal, the BM diagram line is inclined. But if the SF diagram is inclined, the BM diagram is a parabola of second degree.
Both A and R are false
Both A and R are true
A is true but R is false
A is false but R is true
Match List-I (Type of beam with loading) with List-II (Maximum
bending moment value) and select the correct answer given below
the lists:
1,4,3,2
3,2,1,4
2,3,1,4
3,1,4,2
Consider the shear force diagram shown in given figure
The loaded beam will be

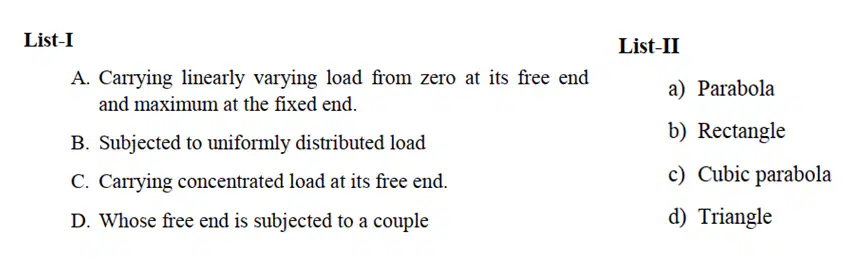

Match List-I (type and position of force on cantilever) with List-II Shape of bending moment diagram for a cantilever) and select the correct answer using the codes given below the lists:
1,2,3,4
1,3,2,4
3,1,4,2
2,1,3,4
Match list-I (Type of beam with type of loading) with list-II (Max. BM formula) and select the correct answer using the codes given below the lists:
3,1,4,2
2,1,3,4
4,3,1,2
2,3,1,4
Consider the following statements:
A simply-supported beam is subjected to a couple somewhere in the span. It would produce.
1. A rectangular SF diagram
2. Parabolic BM diagrams
3. Both +ve and –ve BMs which are maximum at the point
of application of the couple.
Which of these statements are correct?
1,2
1,2,3
3,4
1, 3
A beam’s SFD and BMD are shown in fig-I and fig-II
The corresponding loading diagram is
The bending moment diagram of the beam shown in the figure-I is
If the shear force diagram of a simply supported beam is parabolic, then the load on the beam is
Uniformly distributed load
Concentrated load at mid spa
Linearly varying distributed load.
External moment acting at mid span
The bending moment for which the beam shown below is to be designed is
200 kN.m
800 kN.m
650 KN.m
600 kN.m
A Cantilever beam AB carries loading as shown in the figure below. Which one of the following is the SFD for the beam?
A cantilever AB is loaded as shown in the figure given below. What is the shape of the bending moment diagram for portion AC?
Linearly varying with maximum value at A
Linearly with constant bending moment value from C to A
Linearly varying with maximum value of bending moment value from C
Parabolic
