Worksheets2526U ME600103 Module Exam Introduction to Hand Tools – Canvas
Total questions: 25
Worksheet time: 8mins
The hammer shown here is a ______.
ball peen hammer
drywall hammer
rip claw hammer
curved claw hammer
The center punch is best used to ______.
scribe lines on metal
drive out pins and rods
align mating parts
mark a point to start a drill
The type of screw head shown in the figure is a(n) ______.
Phillips head
Torx®
Allen®
Robertson®
How many sides does a hexagonal shape have?
Four
Five
Six
Seven
The wrench shown here is an example of a(n) _____.
combination wrench
box-end wrench
open-end wrench
ratcheting wrench
Which of the following statements about ratchets and sockets is correct?
Sockets to match metric hardware are extremely rare.
Each socket is designed for use with any drive size.
There are no metric drive sizes.
Hinged socket handles are much shorter than ratchets.
Which of the following tools is shown here?
Locking pliers
Tongue-and-groove pliers
Needle-nose pliers
Lineman's pliers
The concave shape of a tape measure blade is designed to _____.
keep the user from cuts
ensure the tape rolls up neatly
improve accuracy
strengthen the blade when extended
Special marks at 16", 19.2", and 24" on a folding rule are related to _____.
wall framing standards
calculating the area of a circle
pipefitting
electrical work
When an object is plumb, it means that it is _____.
perfectly vertical
parallel
side-by-side
perfectly horizontal
To check level conditions over a significant distance, such as a long drainage slope, the best level to use is a _____.
torpedo level
laser level
digital level
spirit level
Some chalk lines are also designed to serve as a _____.
plumb bob
measuring tape
level
speed square
Which of the following saws would likely have the fewest teeth per inch, resulting in the largest and most aggressive teeth?
A hacksaw
A coping saw
A ripsaw
A crosscut saw
The best saw for cutting miter joints is the ______.
keyhole saw
backsaw
coping saw
hacksaw

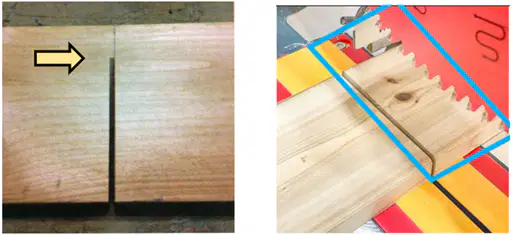

When sawing lumber, begin the cut so that the kerf will be ______.
on the measured side of the marked line
on the scrap side of the marked line
to the left of your dominant hand
to the right of your dominant hand
Because of the shape and size of its jaws, which clamp can spread clamping pressure over a wider area than the others?
A C-clamp
A bar clamp
A hand-screw clamp
A spring clamp
A pipe clamp has _____.
a) a length of pipe for a spine
b) exceptionally large jaws
c) two fixed jaws
d) rounded, toothed jaws for gripping pipe
The tool shown in the figure is a _____.
a) bastard file
b) wood shaver
c) rasp
d) fine rasp
The safest kind of utility knife is one with a _____.
a) plastic blade
b) replaceable blade
c) folding blade
d) self-retracting blade
When compared to round and square shovels, a traditional spade _____.
a) has heavily curved sides
b) has a steel handle
c) is flatter and without curved sides
d) is much wider and longer
The most common type of crosshead screwdriver is the _____.
a) Robertson® screwdriver
b) Torx® screwdriver
c) Slotted screwdriver
d) Phillips screwdriver
The tool shown in Figure RQ02 is a ______.
cat’s claw
wrecking bar
wood chisel
cape chisel
Pliers should not be used to ______.
tighten or loosen hardware
cut wire
bend wire
grip pipe
The wrench that is most likely to fit one size of hardware is the ______.
open-end wrench
box-end wrench
combination wrench
adjustable wrench

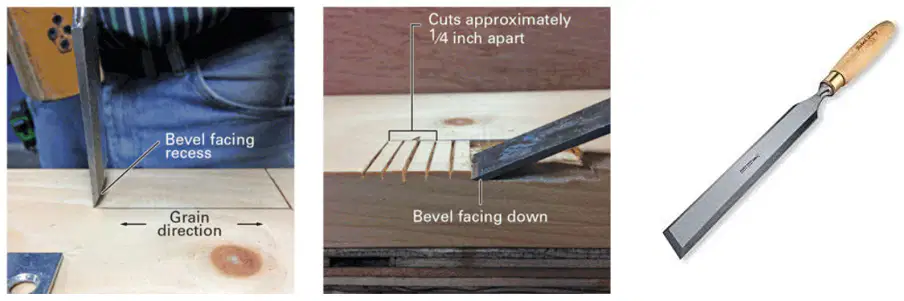

Which type of chisel is typically designed to be used without a hammer?
Cold chisel
Paring chisel
Cape chisel
Diamond-pointed chisel
