WorksheetsStructures
Total questions: 23
Worksheet time: 9mins

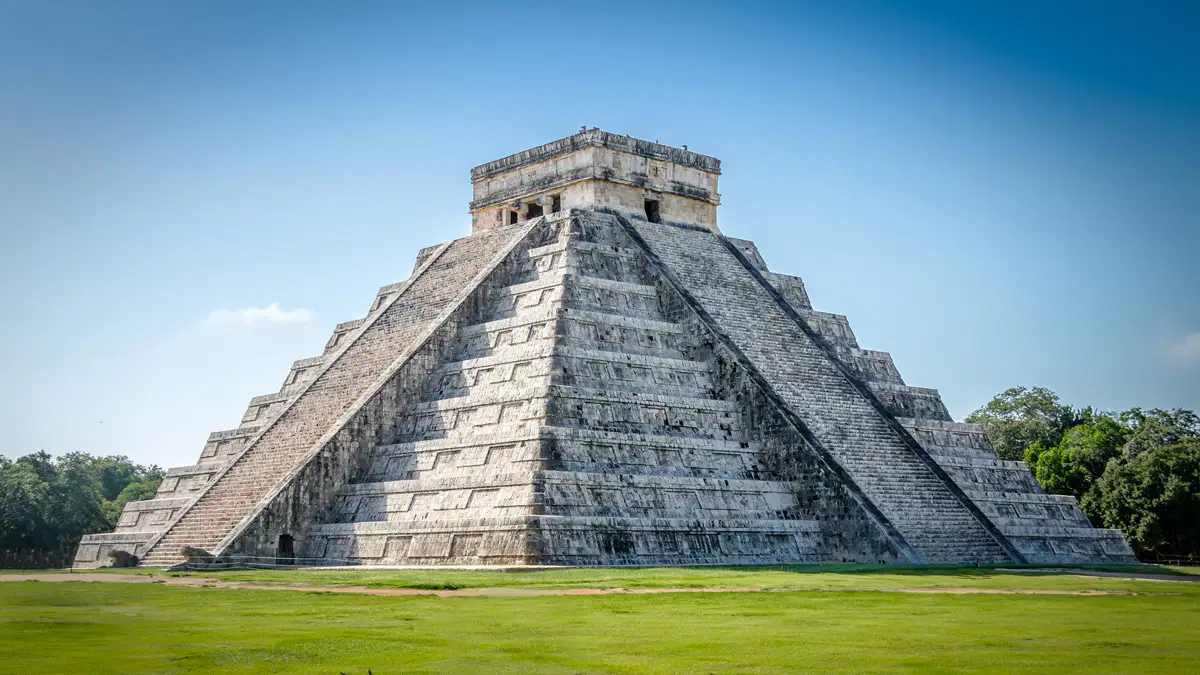

What type of structure is the one in the picture?
(a)

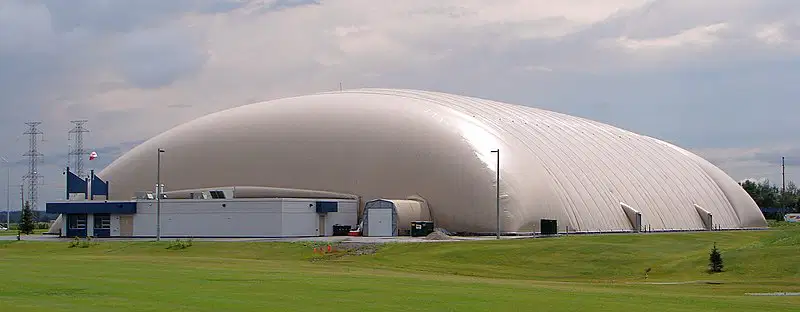

What type of structure is the one in the picture?
(a)

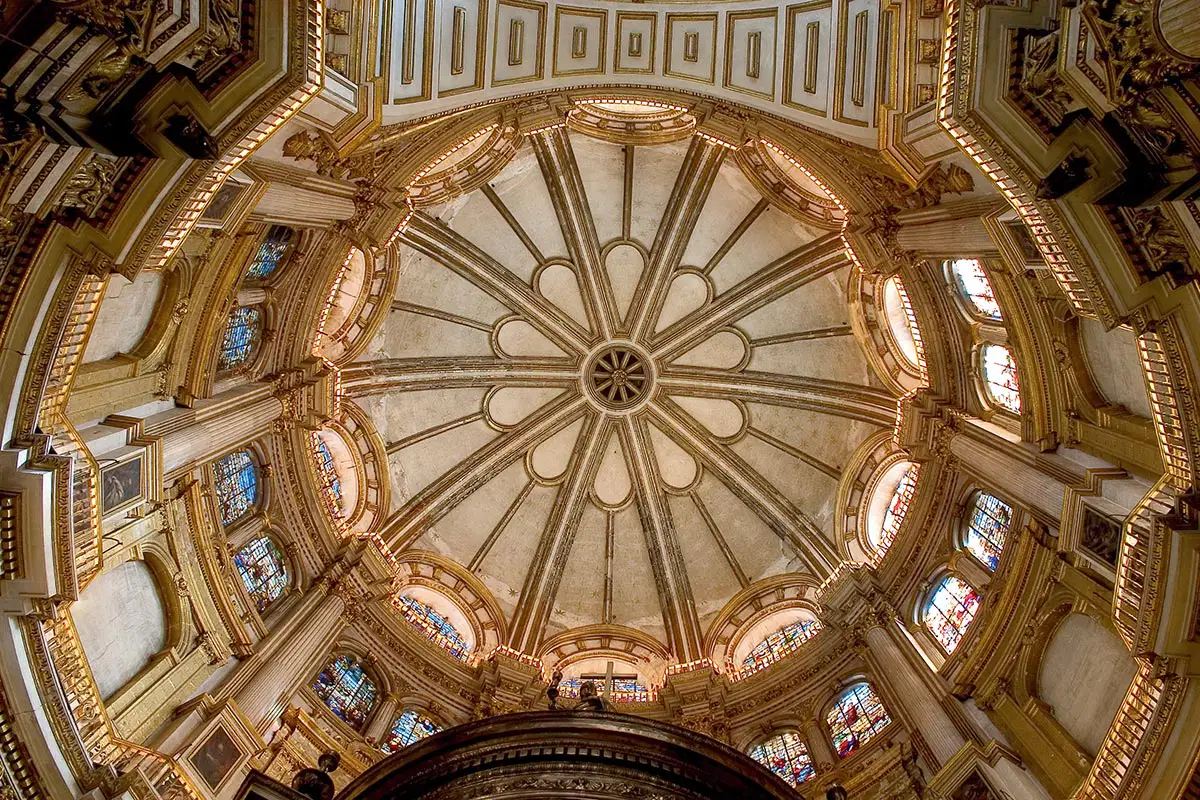

What type of structure is the one in the picture?
(a)

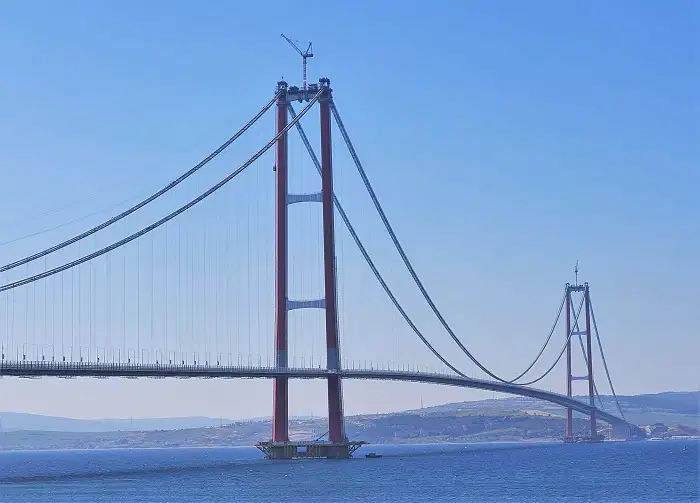

What type of structure is the one in the picture?
(a)

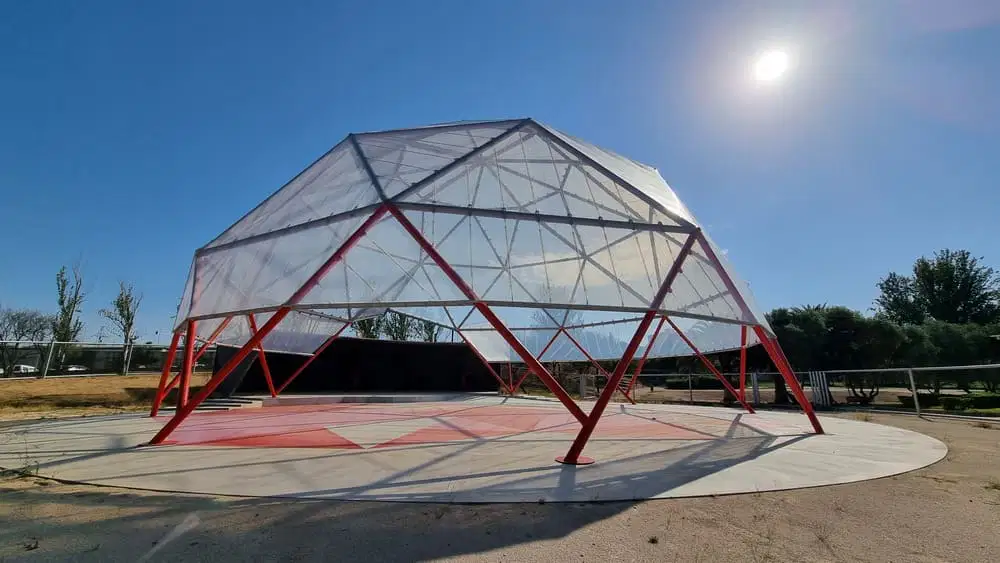

What type of structure is the one in the picture?
(a)
What type of structure is the one in the picture?
(a)
What type of structure is the one in the picture?
(a)
What type of structure is the one in the picture?
(a)
What kind of stress or strain does the following image represent?
Tensile/Traction
Compressive/Compression
Flexural/Bending
Torsion
Shear
What kind of stress or strain does the following image represent?
Tensile/Traction
Compressive/Compression
Flexural/Bending
Torsion
Shear
What kind of stress or strain does the following image represent?
Tensile/Traction
Compressive/Compression
Flexural/Bending
Torsion
Shear
What kind of stress or strain does the following image represent?
Tensile/Traction
Compressive/Compression
Flexural/Bending
Torsion
Shear
What kind of stress or strain does the following image represent?
Tensile/Traction
Compressive/Compression
Flexural/Bending
Torsion
Shear
A load is a/an____________force
great
internal
external
static
An effort or a stress is a/an____________force
great
internal
external
static
There are two kinds of loads
External and internal
Warm and cold
Rigid and elastic
Static and dynamic
The stability of a structure
is the condition why the structure does not overturn and remains in equilibrium
is the condition why the structure doesn't break
is the condition why the structure doesn't deform excessively
The mechanical resistance of a structure
is the condition why the structure does not overturn and remains in equilibrium
is the condition why the structure doesn't break
is the condition why the structure doesn't deform excessively
The rigidity of a structure
is the condition why the structure does not overturn and remains in equilibrium
is the condition why the structure doesn't break
is the condition why the structure doesn't deform excessively
The stability of a structure depends on
the shape of the structure and the types of joints
depends on its base and its center of gravity
the type of material, the quantity of material and the form of the material
The mechanical resistance of a structure depends on
the shape of the structure and the types of joints
its base and its center of gravity
the type of material, the quantity of material and the form of the material
The rigidity of a structure depends on
the shape of the structure and the types of joints
its base and its center of gravity
the type of material, the quantity of material and the form of the material
Which of the following describes the main functions of structures?
Generate energy, store materials, and conduct electricity
Support weights and external forces, maintain the form, and protect internal elements
Absorb impacts, regulate temperature, and produce movement
Filter air, transmit signals, and reduce friction
