What are the tools shown?
Wire cutters
Pliers
Scissors
Shears
which soldering tool is shown in the picture?
soldering iron
solder wire
de soldering pump
soldering iron stand
What is this?
soldering iron
solder
chip wick
flux
What tool is shown here?
Wire nut Pliers
Crimper
Wire Striper
Spring loaded wire comb
Tool used in twisting and bending copper wire
side cutting pliers
long nose pliers
tweezer
screw driver
Identify this electronic testing tool
GPS Tracker
Jump Wire
Multimeter
Breadboard
Select the picture that shows a prefect soldering.
What does AWG stand for?
A Woman's Guide
Average Wire Grade
American Wire Gauge
All World Gauge
The item shown is called?
Veroboard
Veraboard
Feroboard
Beroboard
Which joint is a good one?
The one on the left
The one on the right
Neither
Both
PCB stands for...
Portable Circuit Board
Printed Carbon Board
Printed Circuit Build
Printed Circuit Board
David is working on a science project and he uses a multimeter. He sees the symbol 'Ω' on the multimeter display. What does this symbol represent?
Voltage
Current
Resistance
Frequency
In this circuit, what components (s) will light up?
the battery
the blue wires
the LEDs
Damaged power cords can cause__________
A. fires
B. electrocution
None
Both A and
B are correct
Why is overloading an outlet not allowed?
It will make people stumble and hurt.
It creates the risk of wire overheating and starting a fire.
It makes the house messy.
It incurs huge electricity bills from too much energy.
Variable Resistor
LED
LDR
Diode
Resistor
Name this electrical component
Capacitor
Fixed Resistor
Potentiometer
Transistor
What is this symbol called?
A. Bulb
B. Resistor
C. Battery
D. Voltage
What are the names of the terminals X, Y and Z?
X = Base, Y = Collector, Z = Emitter
X = Emitter, Y = Base, Z = Collector
X = Collector, Y = Base, Z = Emitter
X = Collector, Y = Emitter, Z = Base
Which of the following is the correct transistor circuit symbol?
Identify the pin number of leg A, B and C. (Give a space after each of your answer e.g If A is 0, B is 10, C is 7, type 0 10 7)
(a)
What is the function of a diode?
Acts as a current amplifier
Acts as an automatic switch
Stores electric charge
Allows the current to pass in one direction only
Lily is working on a project that involves using a 4 band 47K ohm resistor. She needs to identify the colors on its first three bands. What colors should she look for?
Yellow, Violet, White
Yellow, Violet, Orange
Red, White, Blue
Orange, Yellow, Violet
While working on a project, David is trying to identify the value of a resistor. He looks at the 1st band and sees the color yellow. What digit does this color denote on the resistor color band?
3
2
4
7
Which of these colors is NOT used in the resistor value color code?
White
Black
Violet
Pink
What kind of logic gate is this?
OR
AND
NAND
NOR
What kind of logic gates is used in half adder?
NOT gate and AND gate
AND gate and OR gate
XOR gate and AND gate
XNOR and AND gate
Which of the following is truth table for NAND gate?
How many different combinations of 1 and 0 are possible with 2 bits?
1
2
3
4
How many different combinations of 1 and 0 are possible with 3 bits?
4
5
6
7
8
A=1
B=0
What is the value of Z?
1
0
A 6.0-ohm lamp requires 0.25 ampere of current to operate. In which circuit below would the lamp operate correctly when switch S is closed?
The diagram below represents an electric circuit consisting of four resistors and a 12-volt battery.
What is the equivalent resistance of the circuit shown?
72 ohms
3.0 ohms
0.33 ohms
18 ohms
The circuit diagram above represents four resistors connected to a 12-volt source. What is the total current in the circuit?
2.0 A
0.50 A
24 A
8.6 A

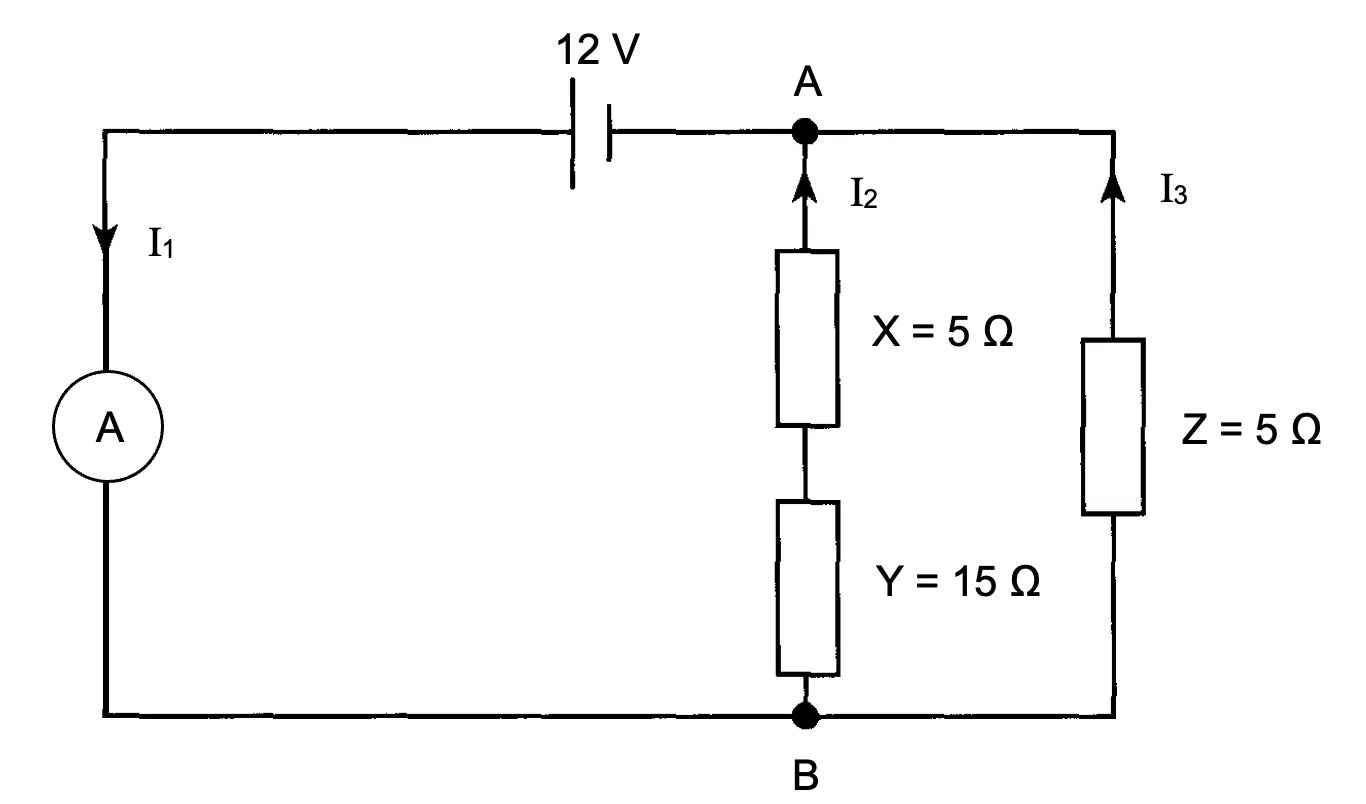

Determine the values of I1
(a)
What is the effective resistance of the four resistors in the circuit shown below?
0.25 Ω
4 Ω
6 Ω
18 Ω
Which of the formula represent effective resistcance in parellel?
1/Reff = 1/R1 + 1/R2 + ...
Reff = R1 + R2 + ...
1/Reff = 1/R1 = 1/R2 = ...
Reff = R1 = R2 = ...
What is the effective resistance of the three resistors in the circuit shown below?
0.3 Ω
1.1 Ω
3 Ω
12 Ω
