WorksheetsWrench Usage and Safety Quiz
Total questions: 25
Worksheet time: 13mins
What is the recommended practice when using a wrench on soft metal parts like copper or brass?
Use a hammer to increase torque
Use the proper size and type of wrench
Use a larger wrench than needed
Use a wrench with a longer handle
What should be avoided to prevent the sudden loosening of a nut or bolt?
Pushing on the wrench
Pulling on the wrench
Using a larger wrench
Using a smaller wrench
What is the wrench size needed for a 5/8" bolt according to the table?
1/2"
3/4"
7/8"
1"
Why should pounding on a wrench be avoided?
It increases torque
It can damage the wrench or fastener
It makes the wrench slip
It loosens the bolt
Which of the following is NOT a commonly needed wrench for a service technician?
Set of 3/8" drive sockets
Adjustable wrench (8")
Set of Allen wrenches
Set of 20" open-end wrenches
What material should wrenches be made of to ensure proper function?
Plastic
Aluminum
Good alloy steel
Copper
What is the primary function of the ratcheting square shaft in a socket wrench?
To increase the size of the socket
To hold the socket in place
To allow the handle to turn freely in one direction
To change the color of the wrench

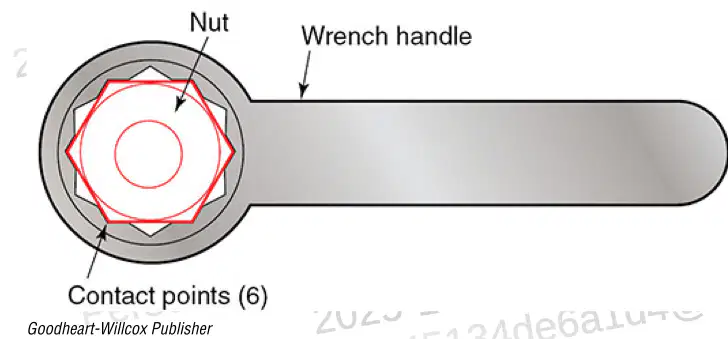

Which type of socket is best to use if a nut or bolt has enough room around it?
4-point socket
6-point socket
8-point socket
10-point socket
What feature of some sockets helps prevent a fastener from falling out during alignment?
Magnetic grip
Color coding
Loose fit
Holding the fastener securely inside the socket

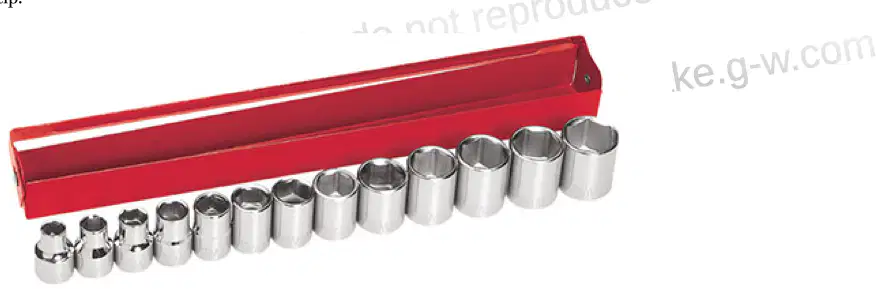

What is the primary use of metric-size sockets as shown in Figure 7-3?
To measure the distance across the flats
To correspond to the diameter of the cap screw or bolt
To fit fractional-inch wrenches
To adjust the length of the bolt
What is a nut driver as described in the text?
A type of adjustable wrench
A small direct-drive socket wrench
A tool for cutting nuts and bolts
A type of plier
Why are box end wrenches often used in tight spaces?
They are adjustable
They have an enclosed gripping head
They are longer than other wrenches
They are made of flexible material
What is the advantage of using a 12-point socket as mentioned in the text?
It is more durable
It is easier to use in small or restricted spaces
It provides a stronger grip
It is less expensive

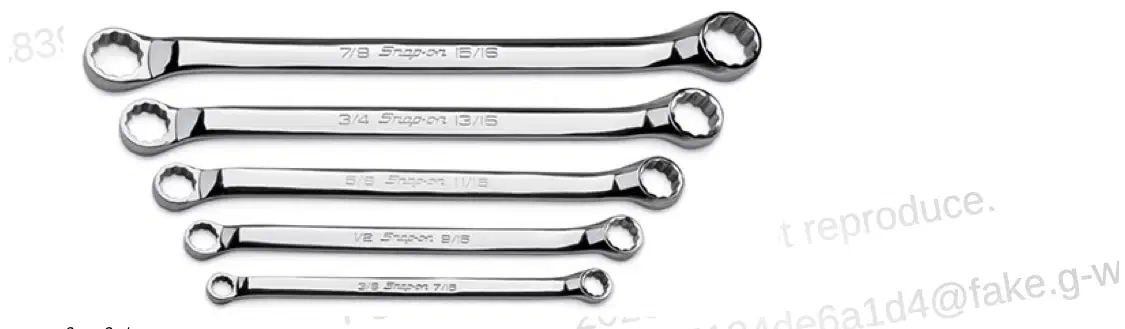

What is the primary feature of the alloy steel box end wrenches shown in Figure 7-5?
They have 6-point ends.
They are made of plastic.
They have 12-point ends.
They are single offset.
What is the difference between the upper and lower wrenches in Figure 7-6?
The upper wrench is a 12-point box end.
The lower wrench is a 6-point box end.
The upper wrench is a 6-point box end.
Both wrenches are 12-point box ends.
What type of wrench is recommended for use in refrigeration work?
Open end wrench with thin jaws
Open end wrench with thick jaws
Box end wrench with 6-point ends
Combination wrench with different sizes
What is a characteristic of a combination wrench?
It has a single offset.
Both ends are of different sizes.
Both ends are of the same size.
It is used only for refrigeration work.
What is the primary function of an adjustable wrench?
To cut through metal
To tighten or loosen nuts and bolts
To measure the diameter of pipes
To drill holes in wood
Why should adjustable wrenches be kept in good repair?
To prevent them from rusting
To ensure they fit tightly and avoid accidents
To make them look shiny
To increase their weight
What is a unique feature of a combination wrench?
It has a built-in screwdriver
It has an open end and a box end
It is made of plastic
It can change colors
How does the handle of an adjustable wrench affect its grip?
The longer the handle, the weaker the grip
The tighter the handle, the stronger the grip
The shorter the handle, the stronger the grip
The handle does not affect the grip
What type of surfaces are pipe wrenches designed to grip?
Flat surfaces
Cylindrical (round) surfaces
Square surfaces
Irregular surfaces

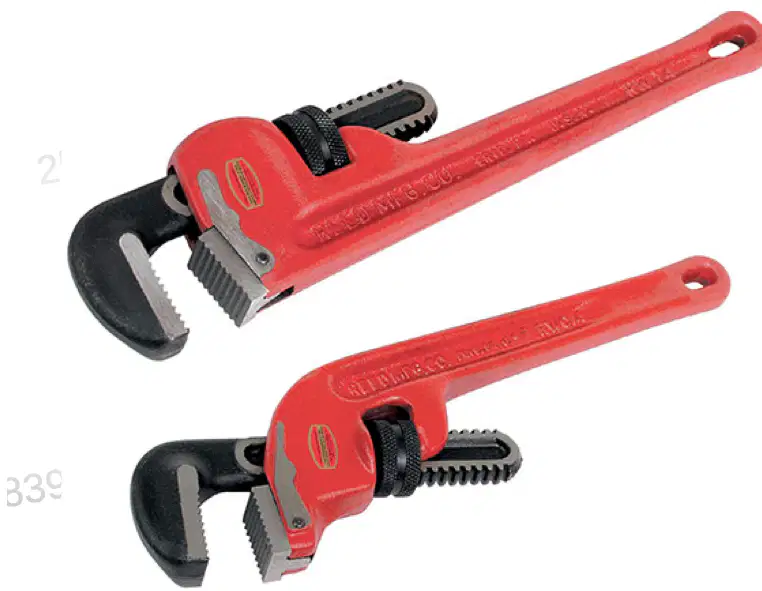

What feature is highlighted in the pipe wrenches shown in Figure 7-10?
Smooth surface
Ridges along the gripping surface
Color of the wrench
Length of the handle

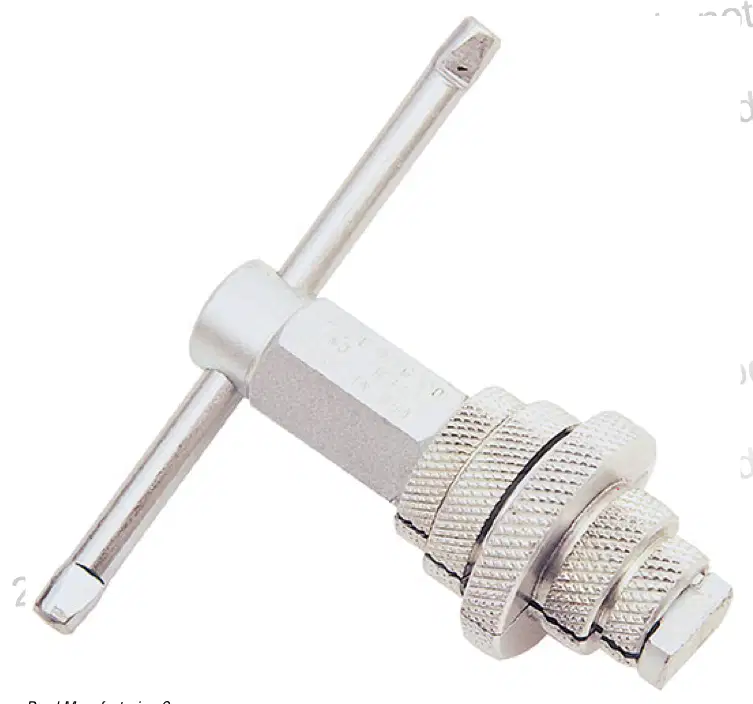

What is the function of the internal pipe wrench shown in Figure 7-11?
Grips the pipe from the outside
Cuts the pipe
Grips the pipe from the inside
Measures the pipe diameter
What are the two types of adjustable pipe wrenches shown in the image?
Chain Wrench and Strap Wrench
Monkey Wrench and Pipe Wrench
Adjustable Wrench and Socket Wrench
Torque Wrench and Allen Wrench
