WorksheetsIntroduction to Renewable Energy
Total questions: 49
Worksheet time: 25mins
According to the material, why is producing energy from renewable sources becoming increasingly important?
Rising global warming and depletion of fossil fuels
Lower upfront costs than any other energy source
Government bans on the National Grid
Abundance of fossil fuels worldwide
Which statement best describes the role of the National Grid in the context provided?
It is a storage battery for electric vehicles only
It is the network that renewable energy feeds into for distribution
It is a type of renewable energy source
It is a fossil fuel extraction system
A construction site planner must choose an energy strategy that aligns with the text. Which option best supports long-term energy supply goals mentioned?
Rely exclusively on coal generators
Incorporate renewable sources to supply power into the National Grid
Delay any energy planning until fossil fuel prices drop
Use diesel equipment to increase fossil fuel consumption
Which term best describes energy generated by wind farms?
Renewable energy
Non-renewable energy
Fossil fuel energy
Nuclear energy
Based on the image showing multiple turbines across open land, which type of wind farm is depicted?
Offshore wind farm
Urban rooftop wind farm
Onshore wind farm
Floating deep-sea wind farm
Which project is identified as an offshore wind farm in Wales?
Pen y Cymoedd
Gwynt y Môr
Trydan Gwyrdd Cymru
Bute Energy
Which statement best explains a reason for local opposition to some wind projects in Wales?
They reduce national electricity production.
They increase fossil fuel use in cities.
They impact rural landscapes and ecosystems.
They prevent development of offshore projects.
Which pairing correctly matches project type and example mentioned?
Onshore – Gwynt y Môr
Offshore – Pen y Cymoedd
Offshore – Awel y Môr (developing)
Onshore – Floating deep-sea sites
Which natural forces primarily cause the ebb and flow of tides that drive tidal movement energy?
Wind and atmospheric pressure
Gravitational pull of the sun and moon
Earth’s internal heat
Ocean salinity gradients
In tidal energy systems, what component directly converts the kinetic energy of moving water into mechanical rotation?
Solar panels
Batteries
Turbines
Transformers

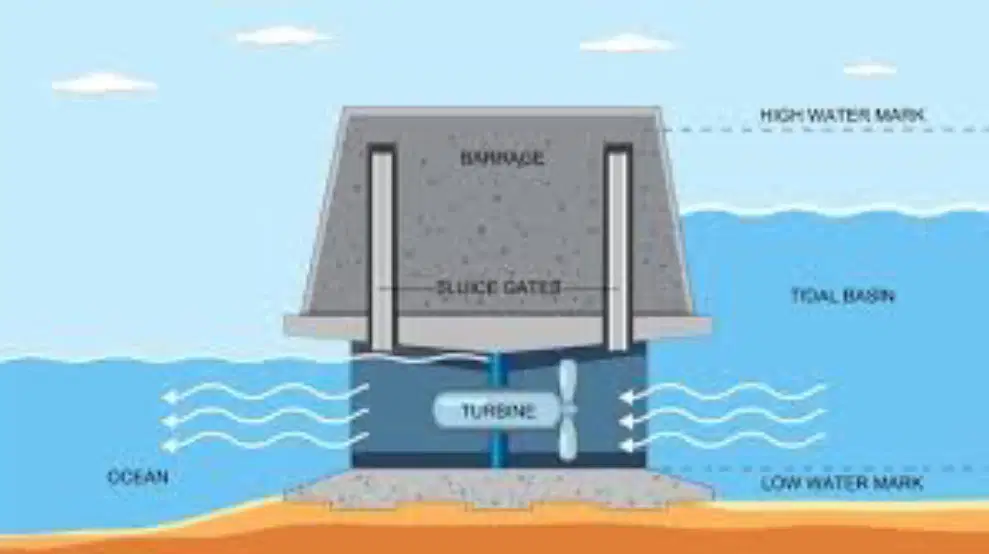

Which statement best describes a tidal barrage as shown in the diagram with a basin, sluice gates, and turbines?
A floating device that captures wave height differences
A dam-like structure across an estuary that uses water level differences to drive turbines
An underwater kite that glides through tidal streams
A pipeline that transports seawater to inland reservoirs
Which benefit of tidal movement energy is emphasized in the material?
It is unpredictable and intermittent
It is a clean and reliable energy source
It requires no infrastructure
It has no environmental considerations
Which challenge is currently associated with tidal movement energy development?
Lack of any global interest
Low energy density making it nonviable
High costs and environmental impacts on marine life
Inability to generate electricity
A coastal region is evaluating renewable options. Based on the material, which strategic reason best supports piloting a tidal stream project despite early-stage challenges?
Tidal energy has zero installation costs
The UK’s leadership indicates growing feasibility of tidal stream energy
Tidal systems do not affect marine environments
Tidal energy depends on wind, which is abundant near coasts
Which component in a solar farm directly converts sunlight into electricity?
Photovoltaic (PV) panels
Inverters
Battery storage
Electrical grid
What type of electrical current is generated first by PV panels in a solar farm?
Alternating current (AC)
Direct current (DC)
Three-phase AC
Pulsed current
In a typical solar farm setup, what is the main function of inverters?
Store excess energy for later use
Track the position of the sun
Convert DC electricity to AC electricity
Transmit power to the electrical grid
Why is AC electricity sent to the electrical grid instead of DC from the PV panels?
AC can be stored more easily in batteries
The grid and most loads operate on AC power
DC is unsafe for long-distance transmission
PV panels cannot produce DC
Some solar farms include batteries. What is the primary purpose of these batteries?
Convert AC back to DC
Increase the number of PV panels
Store excess energy for use during low-sun periods
Replace inverters during maintenance
Considering the sequence of energy conversion in a solar farm, which order is correct from sunlight to grid delivery?
Sunlight → Inverters → PV panels → AC → Grid
Sunlight → PV panels (DC) → Inverters (AC) → Cabling → Electrical grid
Sunlight → Batteries → PV panels → Inverters → Grid
Sunlight → PV panels (AC) → Inverters (DC) → Grid
Based on the title image showing large blue ducting and structures labelled Industrial Biomass Boilers, what is the primary industrial system being introduced?
Natural gas turbines
Industrial biomass boilers
Hydroelectric dams
Solar photovoltaic arrays
Diesel generators
In the process diagram, which component directly converts high-pressure steam into mechanical rotation?
Boiler
Combustion chamber
Turbine
Generator
Transmission tower
According to the illustrated process, what is the correct sequence of energy conversion from biomass to delivered electricity?
Combustion → Generator → Boiler → Turbine → Transmission
Boiler → Combustion → Turbine → Generator → Transmission
Combustion → Boiler (steam) → Turbine → Generator → Transmission & Distribution
Generator → Turbine → Boiler → Transmission → Combustion
Transmission → Generator → Turbine → Boiler → Combustion
Which fuel source is explicitly depicted feeding the combustion zone in the diagram?
Coal
Natural gas
Wood (biomass)
Diesel
Nuclear fuel rods
Looking at the industrial installation photo with red and silver housings and yellow walkways, which statement best reflects a safety-conscious observation for working around such biomass boiler equipment?
Handrails are unnecessary at elevated platforms.
Access ladders and guardrails are present to reduce fall risk.
Open flames are visible near walkways for quick inspection.
Personal protective equipment is not required in enclosed plants.
Structural color coding prevents the need for maintenance.
Which component in a biomass boiler is primarily responsible for burning wood pellets, logs, or chips to produce heat?
Heat exchanger
Combustion chamber
Radiator
Underfloor loops
What is the main function of the heat exchanger in an industrial biomass boiler?
Store fuel for later use
Transfer heat to water for a central heating system
Vent exhaust gases outdoors
Increase water pressure for radiators
A facility wants to reduce manual labor for fuel handling in its biomass boiler. Based on the description, which feature should they implement?
Oversized radiators
Automated fuel feeding system
Additional combustion chambers
Thicker underfloor insulation
After heat is transferred to water in a biomass boiler, how is warmth delivered throughout the property?
By circulating heated air through ducts
By circulating heated water to radiators or underfloor heating
By using electric resistance coils in rooms
By storing heat in thermal bricks
In the diagram of a domestic biomass boiler system, which component stores heat for later use before distributing it to hot water and radiators?
Fuel store
Buffer tank
Wood pellet delivery truck
Biomass boiler
According to the illustrated system, what fuel is delivered to the home to power the biomass boiler?
Heating oil
Natural gas
Wood pellets
Electricity
Based on the images, which option best describes the final two end uses of the heat produced by the biomass boiler?
Space cooling and lighting
Hot water and space heating through radiators
Cooking and ventilation
Electric power generation and battery charging
From the photo montage, which material is identified as the bio fuel used with domestic biomass boilers?
Coal briquettes
Stacked firewood logs and wood pellets
Diesel
Compressed natural gas cylinders
Which sequence correctly describes the flow of materials and energy in the depicted biomass heating system?
Biomass boiler → fuel store → wood pellet delivery → buffer tank → radiators
Fuel store → wood pellet delivery → buffer tank → biomass boiler → hot water
Wood pellet delivery → fuel store → biomass boiler → buffer tank → hot water and radiators
Radiators → buffer tank → biomass boiler → fuel store → wood pellet delivery
In the illustrated in-home system, what fuel is shown being delivered to and stored for the biomass boiler?
Heating oil
Natural gas
Wood pellets
Coal briquettes
Electricity
According to the diagram, which component directly stores heated water to smooth out demand before it goes to taps and radiators?
Pellet storage
Pellet boiler
Pellet feed auger
Buffer storage
Radiator
A homeowner complains that radiators are not heating, but hot water at the tap is available. Based on the system layout shown, which is the most likely FIRST check?
Whether the pellet delivery truck has arrived on time
Whether the radiator circuit/valves or pump from buffer storage to radiators is operating
Whether the bathtub drain is open
Whether the pellet feed auger is overfilled with pellets
Whether the cold water main is shut off
In the cutaway schematic, what is the correct flow order for energy from fuel to space heating?
Pellet storage → Radiator → Pellet boiler → Buffer storage
Pellet boiler → Pellet storage → Buffer storage → Radiator
Pellet storage → Pellet boiler → Buffer storage → Radiator
Radiator → Buffer storage → Pellet boiler → Pellet storage
Cold water → Radiator → Pellet boiler → Buffer storage
Which component directly absorbs sunlight to heat the system in solar water heating?
Solar thermal collector
Hot water taps
Cold water feed
Boiler
Solar water heating primarily produces hot water for which settings?
Residential only
Industrial only
Residential and some industrial applications
Agricultural irrigation only

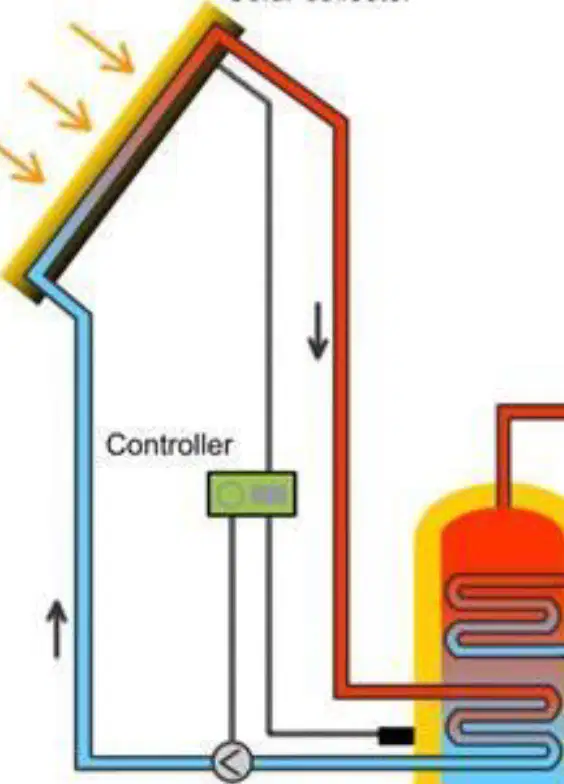

What is the role of the heat transfer fluid shown circulating between the roof and the tank in a solar water heating system?
It converts sunlight into electricity
It carries absorbed heat from the collector to the tank
It stores hot water for taps
It cools the boiler
Based on the diagram, which device moves the heat transfer fluid through the collector loop?
Boiler
Controller
Pump
Taps
A contractor is choosing a solar water heating system for a cold, high-latitude region. According to the description, what should guide the selection?
There is only one standard configuration
Choose from various configurations suited to different climates and latitudes
Select the cheapest option regardless of climate
Avoid using solar collectors in cold regions
In the illustrated system, where does the hot water go after being heated in the tank?
Back to the cold water feed
Directly to the boiler
To taps for use
Back to the solar collector
Which component in an air source heat pump increases the pressure and temperature of the refrigerant fluid?
Evaporator
Compressor
Expansion valve
Radiator
What is the primary role of the refrigerant fluid in an air source heat pump?
Generate electricity for the unit
Transfer heat by absorbing and releasing energy
Store hot water for long periods
Provide ventilation to the building
In a typical home system using an air source heat pump, where is the heat ultimately delivered for space heating?
Underfloor insulation
Radiators
Solar panels
Gas boiler
An air source heat pump extracts heat energy from which source to warm water for home use?
Ground soil
External air
Sunlight through windows
Combustion gases
Which component would most directly store the heated water produced by an air source heat pump for later use?
Hot water cylinder
Outdoor fan guard
Thermostat housing
Filter drier
