WorksheetsHands-On Agriculture: Making a Water Level
Total questions: 79
Worksheet time: 40mins
What law is the water level based on?
Pascal's law
Newton's law
Ohm's law
Boyle's law
Which material is used to connect the two plastic syringe barrels in making a water level?
Rubber bands
Aquarium air tubing
String
Metal wire
What is the purpose of using a permanent marker in the process of making a water level?
To make a prominent ring around the middle of each syringe as a 'level' indicator mark.
To seal the ends of the tube to prevent leakage.
To measure the volume of water in the tube.
To color the water for better visibility.
Why might you add a few drops of food coloring to the water when making a water level?
To make it easier to see air bubbles in the water.
To increase the density of the water.
To prevent the water from evaporating quickly.
To make the water taste better.
According to the passage 'Care and Storage of Measuring Tools', why should measuring tools be treated as precision instruments?
Because they require a different level of care than other hand tools.
Because they are made of plastic and can break easily.
Because they are used only for decorative purposes.
Because they are less expensive than other tools.
Based on the passage 'Care and Storage of Measuring Tools', what should you avoid when storing precision tools?
Storing them in a typical toolbox
Using protective storage cases
Lined drawers
Hanging them on racks
According to the passage 'Care and Storage of Measuring Tools', many precision tools come with protective storage cases to reduce the risk of damage during storage and transport.
True
False
Why is it important to store such measuring tools properly, as described in the passage 'Care and Storage of Measuring Tools'?
Proper storage reduces the risk of damage and ensures accurate measurements.
It makes the tools look more attractive on the shelf.
It allows for faster measurement, regardless of tool condition.
It helps to increase the weight of the measuring tools.
According to the passage, what should you regularly do with measuring tools during use and prior to storage?
Wipe them with a clean rag.
Sharpen their edges.
Soak them in water.
Paint them with oil.
In humid climates, what is advisable to leave on the steel surfaces of measuring tools to prevent rusting?
Water
Light oil or wax
Paint
Grease
Which marking tool uses liquid paint to mark objects with easy-to-see and relatively permanent identifying marks?
Silver pencils
Paint pens
Felt-tipped markers
Scribes
Silver pencils, also known as ______ pencils, use a heat-resistant substance for marking many metals for welding.
argent
carbon
graphite
chalk
Which marking tool is useful for marking on stainless steel, aluminum, and other smooth materials, and is commonly available in black or blue?
Paint pens
Felt-tipped markers
Scribes
Punches
Scribes and scratch awls leave a permanent mark that is unaffected by heat.
True
False
What is the primary use of a center punch?
Marking the location for drilling holes
Marking cut lines
Marking metals with ink
Marking with paint
The tip of a prick punch is sharpened at a ______ to ______ degree angle and is smaller in diameter than the tip of a center punch.
30° to 40°
45° to 60°
60° to 75°
80° to 90°
What is soapstone and what is it used for in metal or stone work?
Soapstone is a naturally occurring soft stone that can be formed into different shapes to be used as a marking tool for metal or stone.
Soapstone is a type of adhesive used to bond metal pieces together during welding.
Soapstone is a synthetic chemical used to clean metal surfaces before painting.
Soapstone is a hard metal alloy used to reinforce stone structures.
Which type of pencil is typically used for marking rough-textured wood surfaces?
Carpenter's pencil
Mechanical pencil
Colored pencil
Graphite stick
Carpenter's pencils can be sharpened in a conventional sharpener.
True
False
Soapstone is available in which of the following forms?
Rectangular bars
Round rods
Both A and B
None of the above
What is the main reason soapstone is popular with masons and other stoneworkers?
The nature of the white marks is the reason soapstone is popular with masons and other stoneworkers.
Soapstone is the hardest natural stone available.
Soapstone is known for its vibrant colors.
Soapstone is extremely lightweight compared to other stones.
Which marking tool is not suitable for marking aluminum and stainless steels?
Soapstone
Scriber
Steel rule
Permanent marker
What is the process of making a surface with a high surface called?
Scraping
Polishing
Etching
Grinding
What tool is improved for marking scraping according to the passage? (Fill in the blank)
Pencil
Eraser
Ruler
Sharpener

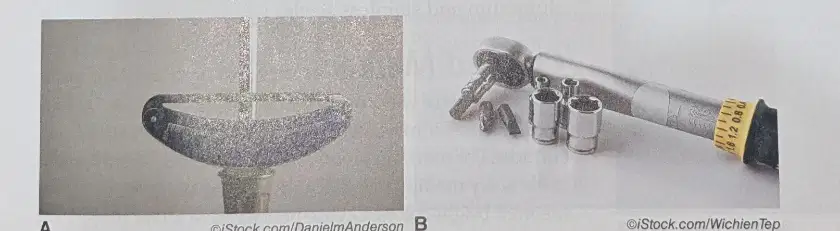

In agricultural mechanics, which two types of torque wrenches are commonly used?
Beam-type and click-type
Socket-type and adjustable-type
Diamond-tipped and micrometer-type
Scribe-type and pencil-type
Which type of torque wrench is inexpensive and requires no adjustment?
Click-type
Beam-type
Socket-type
Diamond-tipped
Fill in the blank: Click-type torque wrenches are more _______ and expensive than beam-type torque wrenches.
complex
fragile
lightweight
common
Marking tools are used to place marks that guide the cutting, bending, or connection of materials.
True
False
What is the composition of common pencil leads?
Graphite and clay mixture
Lead and graphite
Diamond and clay
Scribe and graphite
According to the passage, the width of the mark made by the marking tool should match the _______ of the measuring tool.
precision
length
color
material
What tool is locked to a torque setting using the twisting scales on the handle?
Torque wrench
Screwdriver
Allen key
Pipe wrench
Torque wrenches are used with which type of wrench attachments?
Allen wrench
Standard socket wrench
Pipe wrench
Adjustable wrench
In addition to hearing the noise, what does the user feel when the correct torque setting is reached on a fastener?
The user feels the handle stop.
The user feels a vibration in the air.
The user feels the fastener loosen.
The user feels a sudden increase in temperature.
Which type of ruler takes accurate measurements according to the uses of a combination square?
US Customary or metric ruler
Spirit level
Protractor head
Scribe
The ruler functions as a ________ for drawing lines or checking surfaces for adequate flatness.
straightedge
protractor
compass
level
What does the tool function as when using the standard head of a combination square?
Try square
Speed square
Depth gauge
Scribe
The spirit level checks structures for ________ and/or plumb. (Fill in the blank)
level
height
weight
color
The protractor head adjusts to measure or mark specific ________. (Fill in the blank)
angles
lengths
volumes
weights
A sliding T-bevel is used for:
measuring and transferring angles
cutting wood to length
driving screws
sanding surfaces
Torque is a twisting force that, when applied to an object, causes the object to ________.
rotate
expand
melt
vibrate
Torque is expressed in which units?
Foot-pounds
Inch-pounds
Newton's meters
All of the above
What is the primary use of a framing square?
To measure temperature
To position parts or mark materials
To cut wood
To paint surfaces
A try square consists of a steel blade and a stock attached at a right angle to the blade.
True
False
Who invented the Speed Square?
Thomas Edison
Albert Swanson
Isaac Newton
John Carpenter
The hypotenuse of the Speed Square is marked in ______ for measuring and marking angles.
degrees
inches
centimeters
radians
Try squares are used in woodworking and metalworking for ______ parts for square and for marking lines perpendicular to an edge.
trying, or checking
cutting, or welding
painting, or polishing
gluing, or sanding
Figure 6-23 shows the handle of a try square resting against the edge of a board to position the blade of the tool squarely across, or perpendicular to, the edge of the board. What is one use of a try square?
To cut wood
To check or 'try' the cut end of a board for square
To paint a board
To glue pieces together

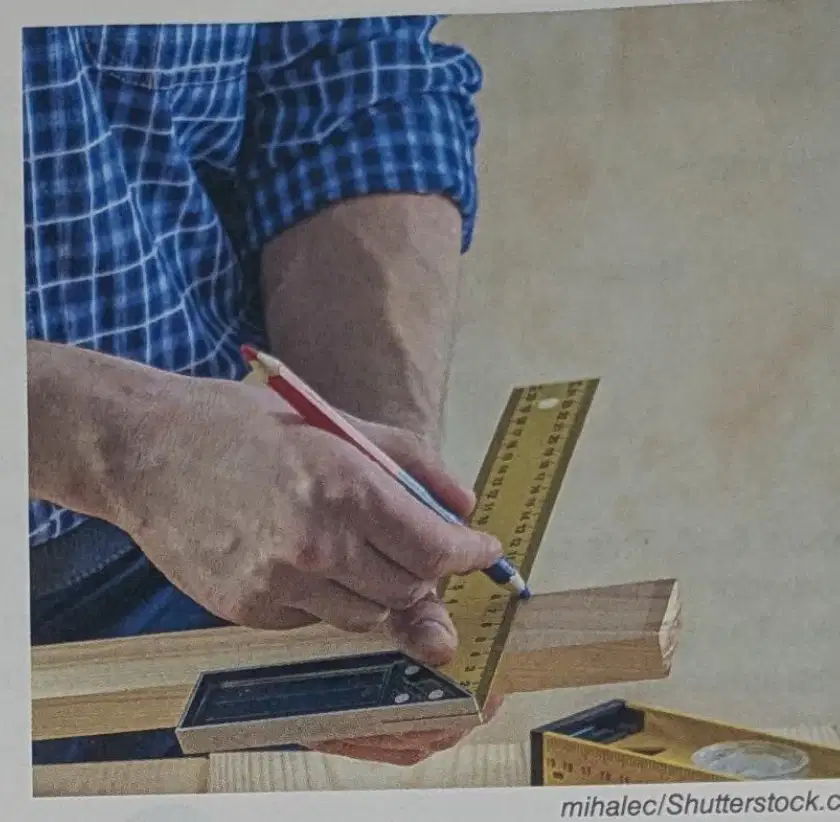

A try square may be used as a guide for marking a board prior to ________.
cutting
painting
gluing
sanding
What are the two angles included in the standard head of a combination square?
90° and 45°
60° and 30°
120° and 60°
75° and 15°
What is a dumpy level commonly used for in agriculture and construction?
Measuring temperature
Planning new construction sites, laying out fence lines, and determining drainage slopes
Mixing concrete
Painting walls
Both dumpy levels and theodolites rely on the principle that the human line of sight is always a _________
straight line
curved path
zigzag line
circular arc
A dumpy level can sight at both horizontal and vertical angles.
True
False
What is the main advantage of using a laser level over traditional optical instruments?
Increased speed, improved accuracy, and reduced light requirements
Lower cost
Heavier equipment
Manual operation
Red-colored glasses are often used when working with laser measuring tools to enhance the contrast of the laser beam.
True
False
What is the most commonly used angle in building squares?
45°
60°
90°
120°
Standard framing squares are made of ________ or ________.
steel or aluminum
plastic or wood
copper or brass
iron or tin
What is a plumb bob?
A tool used to measure angles
A pointed weight tied to the end of a string used to create a vertical line
A type of paving stone
A tool for cutting wood
According to the passage, what does gravity do when a string with a plumb bob is hung from the opposite end?
Gravity stretches the string in a vertical, plumb line.
Gravity causes the string to swing in circles.
Gravity shortens the string and makes it curl up.
Gravity makes the string float horizontally.

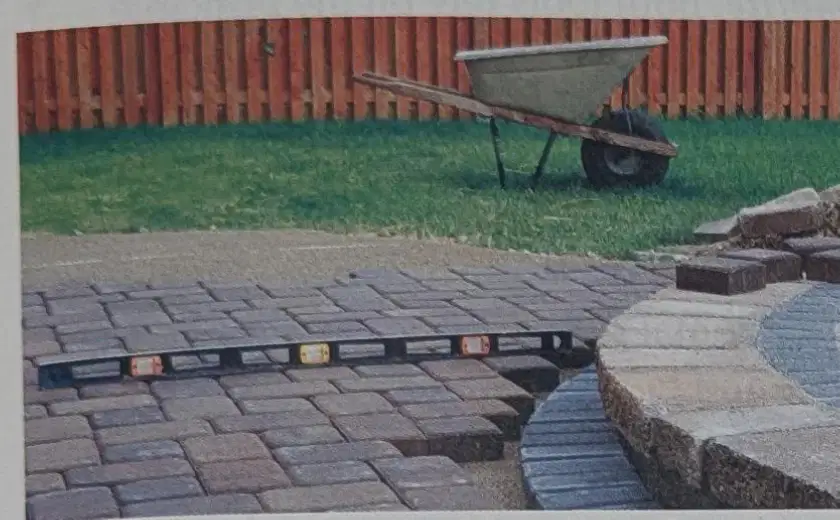

Why is it important to use a level when laying stones for a patio?
To ensure the stones are laid evenly and to provide adequate water drainage away from a foundation, steps, or other areas.
To make the stones look more colorful.
To make the stones heavier.
To make the stones easier to remove later.

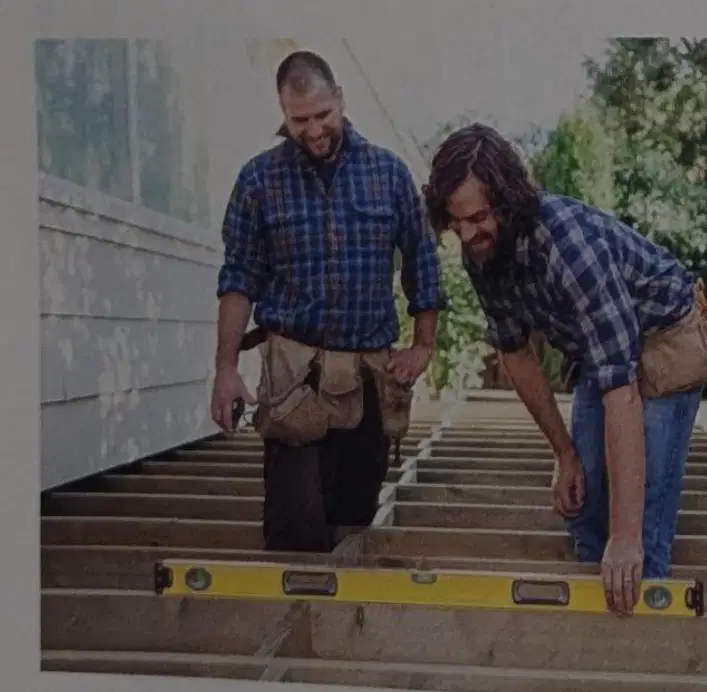

What is a carpenter's level commonly used for?
Painting walls
Checking levelness
Cutting wood
Measuring temperature
What is a mason's level used for?
Leveling and plumbing longer surfaces
Cutting bricks to size
Mixing mortar
Measuring temperature
To check a level for accuracy, what should you do after holding it in place to get a level reading on a stationary object and noting the position of the bubble?
Reverse the direction of the tool, take a second reading in the same location, and check the position of the bubble again.
Tap the level gently and see if the bubble moves to the center.
Clean the level with a damp cloth and repeat the process.
Rotate the level 90 degrees and take a new reading on a different surface.
What is the main purpose of string levels, also known as line levels?
String levels are used for jobs such as building fences or laying bricks that require points to be level even when set long distances apart.
String levels are primarily used to measure temperature changes in construction materials.
String levels are designed to cut through tough building materials with precision.
String levels are used to mix concrete evenly across large surfaces.
When using a laser level, what should you avoid doing?
You should avoid looking directly on the laser beam or directing the beam toward anyone's foot.
You should avoid turning off the laser level after use.
You should avoid using the laser level on a flat surface.
You should avoid checking the battery before use.
When using a string level, you must keep the string very taut; allowing a sag will corrupt the reading on the level.
True
False
What are gauges used to determine?
Precise part clearances and dimensions, material thickness, or enclosed system pressures.
Electrical conductivity of materials.
Chemical composition of alloys.
Color matching in manufacturing processes.
Feeler gauges are designed to fit into spaces to determine the clearance between two surfaces.
True
False
What is the most common method of checking an object for levelness?
Using a spirit level that includes a liquid-filled glass or plastic vial.
Tapping the object and listening for a hollow sound.
Measuring the object's height with a ruler.
Estimating by eye from a distance.
Manufacturers use alcohol in spirit levels because:
Alcohol is more expensive than water
Alcohol has low surface tension and viscosity
Alcohol freezes easily
Alcohol is heavier than water
A carpenter's level consists of a rectangular frame of stabilized wood, aluminum, or plastic with one or more vials embedded along its length.
True
False
Micrometers are used to take very precise measurements. They may be ______ or metric and can measure differences as small as one thousandth of an inch (0.001 ").
US Customary
Imperial
Celsius
Decimal
What is the smallest difference that a micrometer can measure?
One thousandth of an inch (0.001")
One hundredth of an inch (0.01")
One tenth of an inch (0.1")
One millionth of an inch (0.000001")
Outside micrometers are used to measure the output dimensions of small parts, inside micrometers measure the distance between surfaces, and depth micrometers measure the depth of holes.
True
False
Before using a micrometer, what should you do to ensure accurate measurements?
Clean the anvil and spindle faces and follow the manufacturer's instructions to determine if the tool is correctly calibrated.
Use the micrometer immediately without any preparation.
Only check the battery if it is a digital micrometer.
Adjust the thimble to zero without cleaning the tool.
What is a caliper used to measure?
A caliper is used to measure inside and outside dimensions of small parts.
A caliper is used to measure temperature of liquids.
A caliper is used to measure electrical resistance.
A caliper is used to measure air pressure in tires.
Which type of caliper provides a digital readout to make taking and reading precise measurements easier?
Vernier caliper
Dial caliper
Digital caliper
Depth gauge
What is the smallest difference that can be measured using the main and sliding graduated scales of a Vernier caliper?
One thousandth of an inch (0.001")
One hundredth of an inch (0.01")
One tenth of an inch (0.1")
One inch (1.0")
The Vernier top scale has divisions which are exactly 0.025 inches apart.
True
False
How does a Vernier caliper indicate the precise width between the open jaws?
A Vernier caliper uses a graduated main scale and graduated sliding bar, known as a Vernier scale, to indicate the precise width between the open jaws.
A Vernier caliper uses a digital display to show the width directly without any scales.
A Vernier caliper uses a spring mechanism to measure the width between the jaws.
A Vernier caliper uses a laser sensor to determine the width between the jaws.
