WorksheetsWorkshop Tools and Their Uses
Total questions: 30
Worksheet time: 15mins

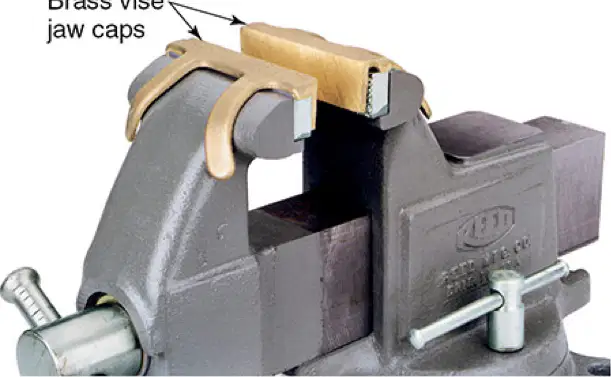

What is the purpose of brass vise jaw caps as shown in the image?
To protect the vise from rust
To provide a better grip on delicate materials
To increase the weight of the vise
To enhance the appearance of the vise
What is a straight-shank twist drill bit used for, as depicted in the image?
Drilling into wood
Drilling into metal
Drilling into plastic
Drilling into concrete
What is the typical clearance angle for a 1/16" diameter twist drill?
8°
12°
20°
45°
How does the diameter of a drill bit affect the drilling speed?
Larger diameter increases speed
Smaller diameter increases speed
Diameter has no effect
Speed is constant regardless of diameter
What is the range of fractional sizes for drill bits?
1/32" to 1/4"
1/16" to 1/2"
1/8" to 3/4"
1/4" to 1"
Why is it important to drill the hole to the correct size before tapping?
To save time
To ensure full-size threads
To reduce noise
To prevent overheating
What is a cold chisel primarily used for?
Drilling holes
Cutting through various materials
Measuring dimensions
Sanding surfaces
Which size of flat cold chisel is commonly used by HVACR technicians?
1/2"
3/4"
1/4"
3/8"

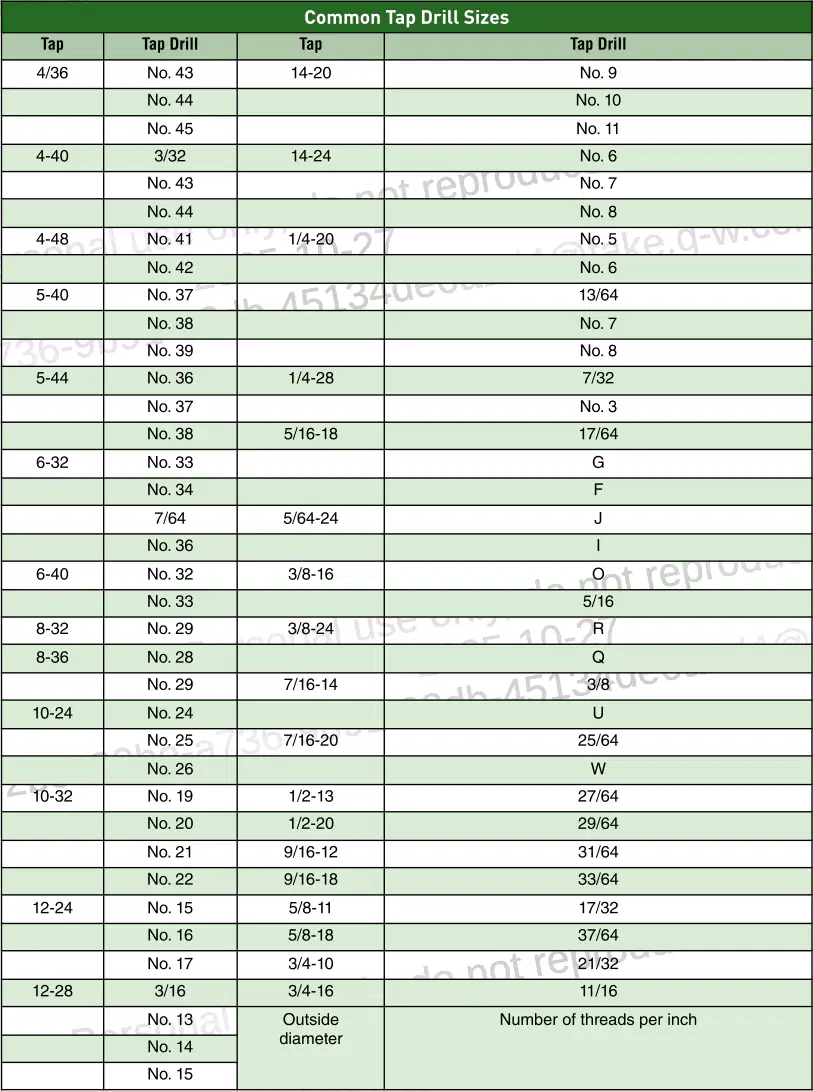

What does the table of common tap drill sizes help with?
Selecting the correct drill bit for tapping operations
Measuring the length of screws
Determining the weight of materials
Calculating the cost of tools
What is the consequence of using a tap drill that is too large when tapping threads in metal?
Correct thread depth
Threads not full depth
Tap likely to break
Increased thread strength
What happens if the tap drill is too small when tapping threads in metal?
Correct thread depth
Threads not full depth
Tap likely to break
Increased thread strength
Which tap drill size results in the correct thread depth when tapping threads in metal?
Correct size
Too large
Too small
Oversized
What is the function of a center punch?
To drill holes in metal
To mark the location of a hole to be drilled
To cut metal sheets
To polish metal surfaces
What is a unique feature of an automatic center punch?
It requires a hammer to function
It has an internal spring-loaded mechanism
It is used for cutting metal
It is used for painting surfaces
What is the primary use of a drift punch?
To drive retaining pins in or out
To line up holes in mating surfaces
For layout work
To clean and shape metal surfaces
What is a characteristic of a single-cut file?
Teeth cut in two directions
Used for fast metal removal
Teeth cut in one direction
Has no teeth
What is the purpose of a prick punch?
To drive retaining pins
To line up holes
For layout work
To clean metal surfaces
What is the purpose of using a handle on a file?
To increase the cutting efficiency
To avoid hand injuries
To make the file heavier
To improve the file's appearance
How many teeth per inch are recommended for cutting thin metal with a hacksaw?
14 teeth per inch
18 teeth per inch
24 teeth per inch
32 teeth per inch
What is the primary material used for most hacksaw blades?
Aluminum
High carbon steel
Plastic
Copper
Why should a hacksaw blade not be stroked faster than 60 strokes per minute?
It will cut more efficiently.
It will cause the teeth to overheat and lose hardness.
It will make the blade sharper.
It will prevent rust.
What characteristic makes some hacksaw blades both shock and heat resistant?
They are made of plastic.
They have a hardened edge and a soft, flexible back.
They are coated with rubber.
They have a serrated edge.
What is the primary purpose of a level in HVACR work?
To cut materials
To set a line at level, plumb, or a perfect 45° angle
To measure temperature
To drill holes
What is a spirit level filled with?
Water
Sand
A liquid containing a bubble
Air
What is the function of a compact hacksaw?
To measure angles
To cut materials
To drill holes
To level surfaces
What is the purpose of using a level in installations?
To ensure installations are plumb and level, showing professionalism.
To measure the length of installations.
To increase the speed of installations.
To reduce the cost of installations.
What is a close cousin of the electric drill?
Hammer.
Impact driver.
Circular saw.
Jigsaw.
Why is it important to wear safety glasses when using a drill press or portable drill?
To improve vision
To protect eyes from flying chips
To enhance focus
To reduce noise
What is the primary use of reciprocating saws as mentioned in the text?
Cutting wood for furniture
Installing ductwork and air registers
Trimming trees
Carving sculptures
What should be done if the accuracy of an instrument is in doubt?
Discard the instrument
Use it with caution
Send it to a repair company for testing and calibration
Clean it thoroughly
