WorksheetsOperating Point Using Analog Faceplate
Total questions: 15
Worksheet time: 8mins
On an analog faceplate, which pairing correctly identifies the current status and the command being sent?
PV shows status, OP is command
OP shows status, PV is command
PV is command, OP shows mode
OP is command, PV shows mode

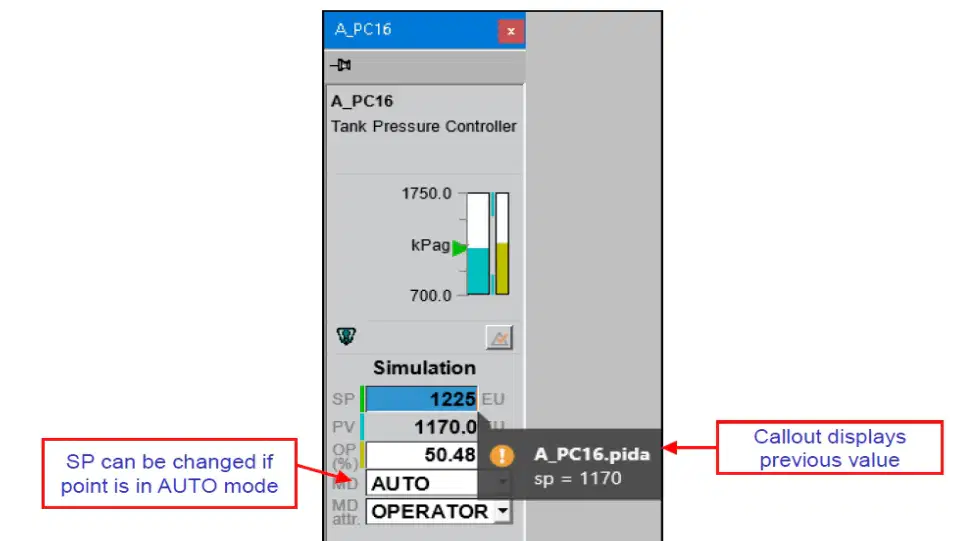

You need to raise the setpoint using the analog faceplate. What prerequisite must be met before editing SP?
Controller in AUTO mode
Output forced to zero
Controller in MANUAL mode
PV above operating range

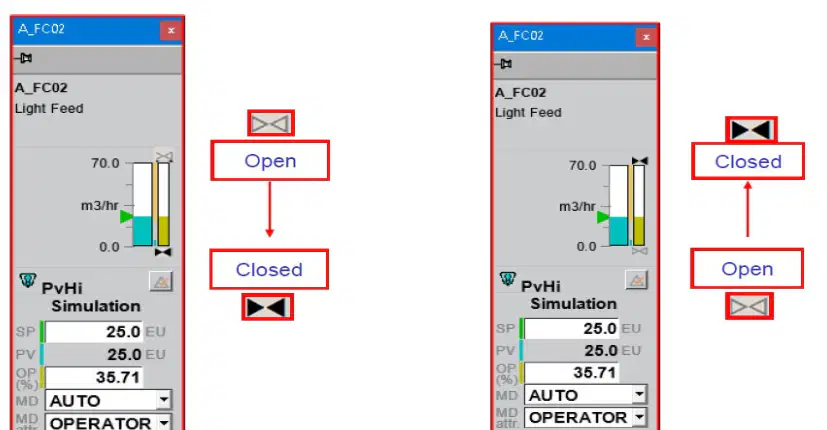

On a faceplate, which symbol most reliably indicates a fully closed control valve?
Filled valve triangle symbol pointing left
Hollow valve triangle symbol pointing right
Filled valve triangle symbol pointing right
Hollow valve triangle symbol pointing left

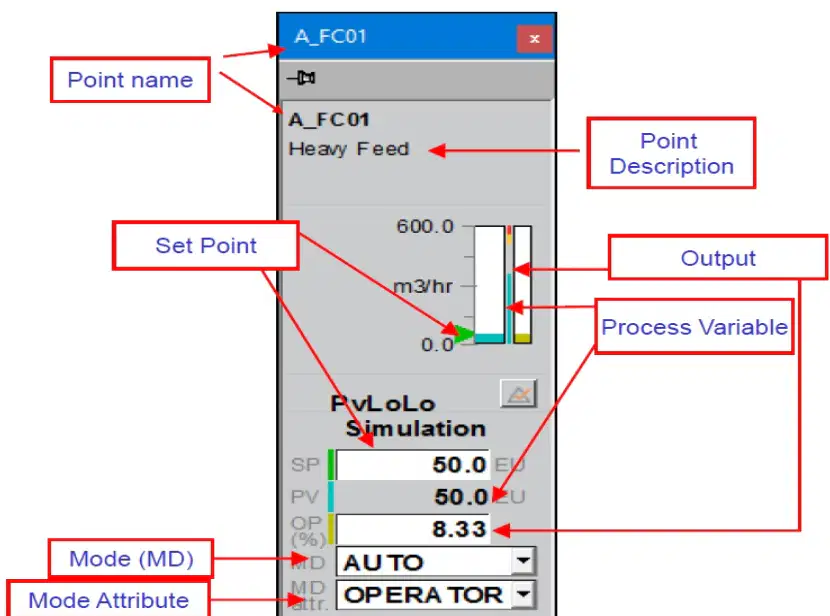

Which element on a PID point faceplate shows the measured process variable value in real time?
Mode attribute dropdown
Set point numeric field
Process variable bar indicator
Output percentage readout

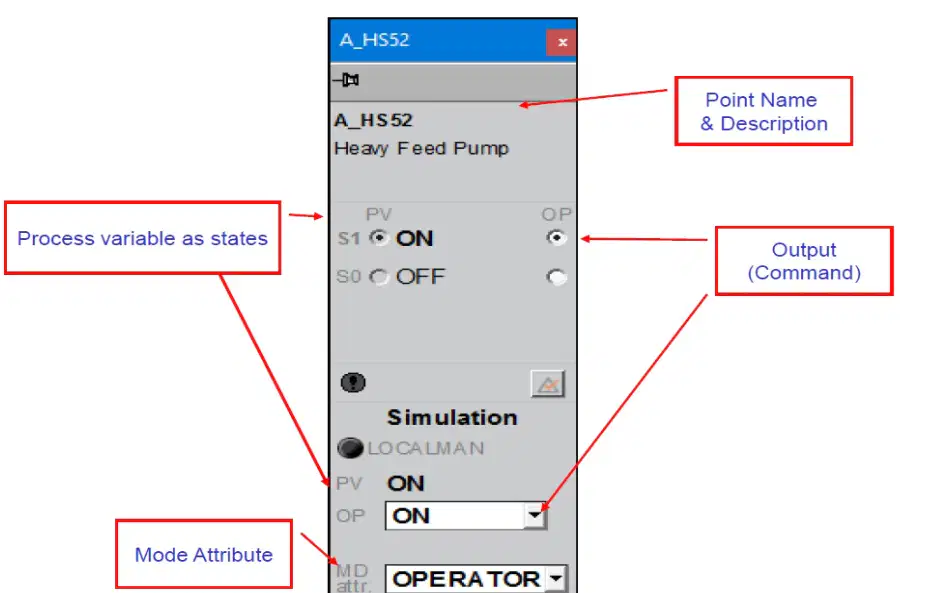

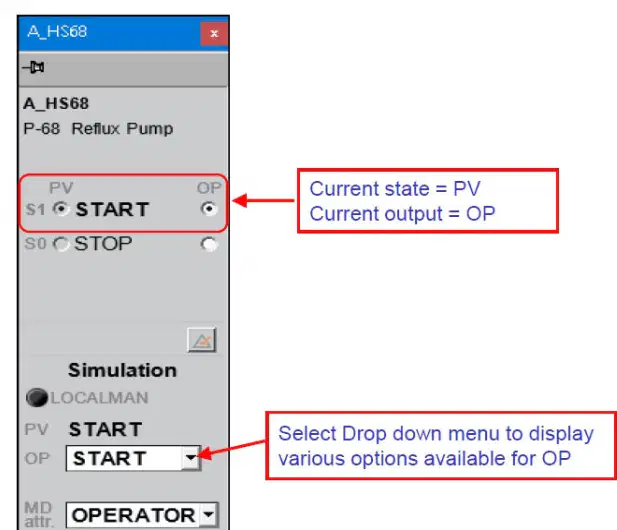

When examining a device control point for a pump, what does the OP field represent on the faceplate?
Alarm limit threshold
Point identification tag
Operator command output
Current process variable state
In a PID faceplate, which element represents the measured process value used for feedback control?
Mode selection between AUTO and MANUAL
Process Variable indicated on the vertical bar
Output percentage driving the final element
Set Point shown in blue numeric field
An operator needs to adjust controller tuning. Which tab in the PID point detail display is the appropriate place to modify P, I, and D parameters?
Main tab for overall status and mode
Loop Tune tab for controller parameters
Alarms tab for alarm configuration
PV & OP tab for signal monitoring
On a device control point faceplate, which parameter represents the measured process condition used to compare against the setpoint?
Preferred setpoint for normal operation
Process variable indicating current state
Output command to the actuator
Control mode attribute for authority
Which parameter represents the measured value from the process in a control loop?
Control Mode (MD) operating state
Setpoint (SP) target value
Process Variable (PV) actual measurement
Output Value (OP) controller command
On the PID controller faceplate, which visual indicator denotes the preferred setpoint (SP) rather than the current SP?
Hollow green arrow next to the SP bar
Solid green arrow beside the SP scale
Yellow square icon above the OP field
Blue triangle marker at the PV bar
Which term refers to the measured current value of the system that cannot be directly changed by the operator?
Process Variable measured current system value
Output signal sent to final control element
Control Mode determining algorithm behavior
Setpoint set by controller or operator
Which statement best distinguishes a point’s control mode from its Mode Attribute in a distributed control system?
Control mode selects Manual, Auto, or Cascade behavior; Mode Attribute indicates who is allowed to change the mode
Control mode indicates alarm priority levels; Mode Attribute sets the process variable units
Control mode defines computer networking; Mode Attribute describes controller tuning constants
Control mode sets operator flags visibility; Mode Attribute determines preferred setpoint calculation
In a standard control loop, which parameter represents the current measured process condition that the controller compares to the target value?
Output Value drives the final control element
Setpoint defines the desired operating target
Mode selects automatic or manual operation
Process Variable is the measured process condition
On a controller faceplate, what is the most reliable visual cue that a preferred setpoint has been set and is currently referenced?
The OP output shows a bold border
The PV value flashes at regular intervals
The mode label changes from AUTO to MAN
A distinct icon highlights the SP field
Which statement best describes a Process Variable (PV) for an analog point in a control system?
A binary alarm that triggers on any deviation
A measured value with defined high and low range
A fixed setpoint adjusted only by operators
A device mode indicating TRAVEL or STOP states
