WorksheetsLoad Line 1966 – MARLAW Week 5
Total questions: 18
Worksheet time: 9mins

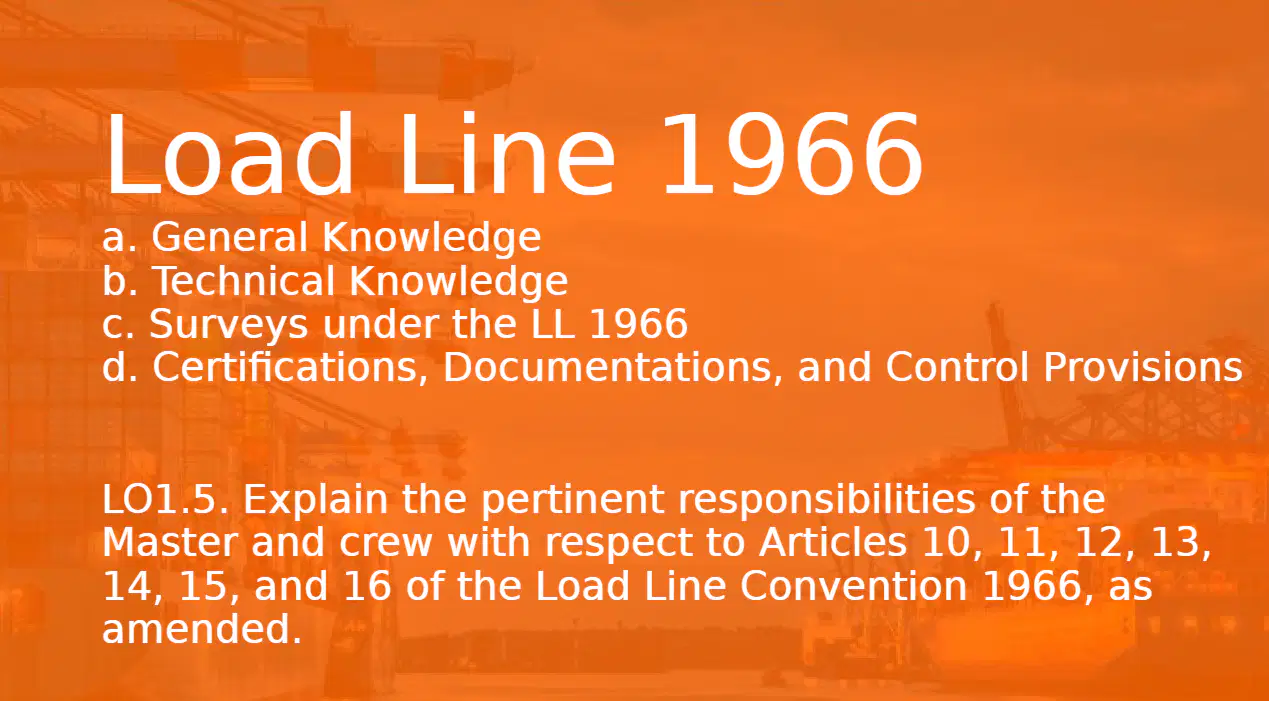

According to the slide titled Load Line 1966, LO1.5 specifies the Articles of the Load Line Convention 1966, as amended, that the Master and crew responsibilities relate to. Which range of Articles is specified?
Articles 1–9
Articles 10–16
Articles 17–25
Articles 5–12
Which topic is explicitly listed under Load Line 1966 on the slide?
Technical Knowledge
Maritime Finance
Ship Catering Management
Environmental Audit Procedures
LO1.5 on the slide focuses on explaining the pertinent responsibilities of which shipboard personnel with respect to specified Articles of the Load Line Convention 1966, as amended?
The Master and crew
The shipowner and charterer
The port pilot and harbor master
The classification surveyor and flag auditor
According to the regulations for lines used with the load line mark, the horizontal lines indicating the assigned load line shall be what dimensions in length and breadth?
230 millimetres long and 25 millimetres in breadth
230 millimetres long and 50 millimetres in breadth
300 millimetres long and 25 millimetres in breadth
450 millimetres long and 25 millimetres in breadth
Under the regulations for the load line mark, at what distance forward of the centre of the ring is the vertical line marked?
540 millimetres forward
450 millimetres forward
300 millimetres forward
230 millimetres forward
For the lines used with the load line mark, what is the breadth of the vertical line that the horizontal lines meet at right angles?
25 millimetres
20 millimetres
50 millimetres
15 millimetres
In the standard load line mark illustration, what is the thickness specified for all lines?
25 millimetres
15 millimetres
50 millimetres
30 millimetres
On load line marks, what does the letter S denote?
The Summer Load
The Spring Load Line
The Southern Ocean Load Line
The Summer Fresh Water Allowance
On load line marks, what does the letter W denote?
The Winter Load Line
The Windward Load Line
The Winter North Atlantic Load Line
The Wet Dock Load Line
On load line marks, what does the marking WNA denote?
The Winter North Atlantic Load Line
The Winter Nationwide Allowance
The Western North Atlantic Load Line
The Winter Neutral Adjustment
On load line marks, what does the letter T denote?
The Tropical Load Line
The Transitional Load Line
The Transport Load Line
The Tidewater Load Line
On load line marks, what does the letter F denote?
The Fresh Water Load Line in summer
The Forward Load Line
The Freeboard Mark
The Fresh Water Load Line in winter
On load line marks, what does the marking TF denote?
The Tropical Fresh Water Load Line
The Transitional Fresh Water Load
The Temperate Fresh Water Line
The Tropical Freeboard Line
According to the definitions, where is the Fresh Water Load Line in summer marked relative to the vertical line on the load line mark?
Abaft the vertical line
Forward of the vertical line
Above the deck line
Below the summer line
What does the difference between the Fresh Water Load Line in summer and the Summer Load Line represent?
The allowance to be made for loading in fresh water at the other load lines
The reduction required in freeboard for winter conditions
The change in density between seawater and brackish water only
The tolerance allowed for paint thickness on the marks
What is the maximum number of initials that may be used to identify the assigning Authority’s name on the load line mark?
Four initials
Three initials
Five initials
Two initials
What are the approximate dimensions of each initial used to identify the assigning Authority on the load line mark?
115 millimetres in height and 75 millimetres in width
75 millimetres in height and 115 millimetres in width
100 millimetres in height and 50 millimetres in width
150 millimetres in height and 75 millimetres in width
Where may the mark of the Authority assigning the load lines be located relative to the horizontal line that passes through the centre of the ring?
Alongside the ring above that horizontal line, or split above and below it
Only directly on the horizontal line through the centre
Only below the horizontal line through the centre
Only forward of the vertical line through the ring
