Untitled Lesson

Open Ended

How do you think the study of seismic waves can provide evidence for the structure of the Earth?

Multiple Choice

Which of the following best describes the significance of studying ultrasound and seismic waves in physics?

• They help us understand the structure of the Earth and have practical applications in medicine.

• They are only important for understanding sound in air.

• They are used only for entertainment purposes.

• They have no real-world applications.

Multiple Choice

What is the main principle behind the use of ultrasound waves for medical imaging?

• Ultrasound waves are completely absorbed by tissues

• Ultrasound waves are partially reflected at boundaries between different media

• Ultrasound waves are only used for heating tissues

• Ultrasound waves are visible to the human eye

Open Ended

Explain why ultrasound waves are suitable for non-destructive testing in both medical and industrial applications.

Multiple Select

Which of the following are uses of ultrasound as shown in the images?

• Detecting flaws in industrial castings

• Medical imaging

• Heating food

• Communicating underwater

Multiple Choice

Ultrasound is classified as which type of wave?

• Transverse wave

• Longitudinal wave

• Surface wave

• Electromagnetic wave

Multiple Choice

Ultrasound has a frequency above:

• 20 Hz

• 2,000 Hz

• 20,000 Hz

• 200,000 Hz

Multiple Choice

These reflections occur when the ultrasound changes ...

• Non-destructive

• frequency

• Destructive

• Medium

• reflections

Open Ended

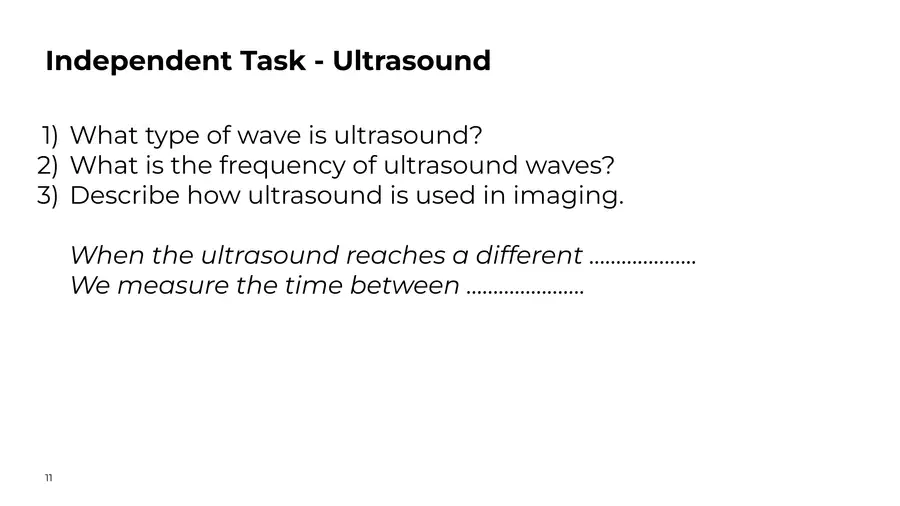

Describe how ultrasound is used in imaging.

Open Ended

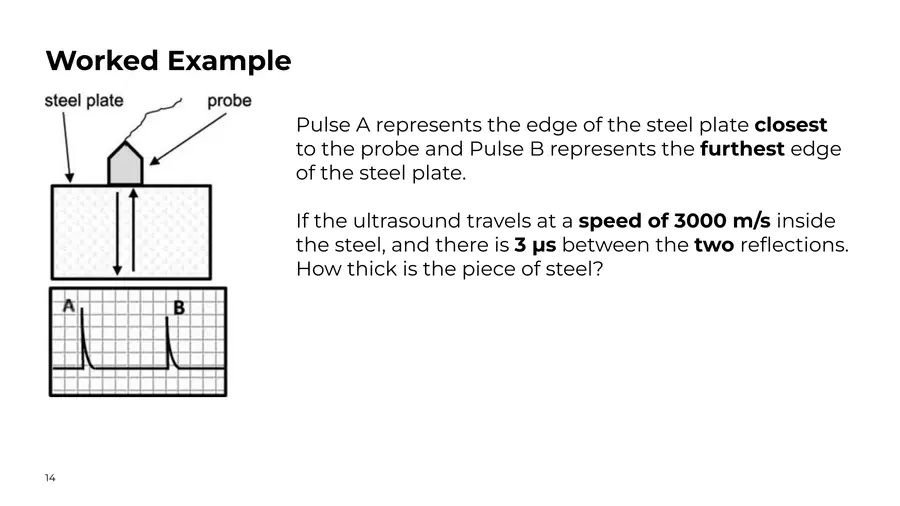

If the speed of ultrasound in steel is 3000 m/s and the time between two reflections is 3 μs, what is the thickness of the steel plate?

Multiple Choice

Which of the following statements best describes how the distance between reflections is calculated using ultrasound imaging?

• By measuring the time between the emitted pulse and the first reflection only.

• By measuring the time between two consecutive reflections and using the speed of sound in the material.

• By measuring the frequency of the ultrasound wave.

• By measuring the amplitude of the reflected waves.

Open Ended

Explain how the reflections of ultrasound waves from tissue layers inside the body are used to produce an image of the tissues.

Open Ended

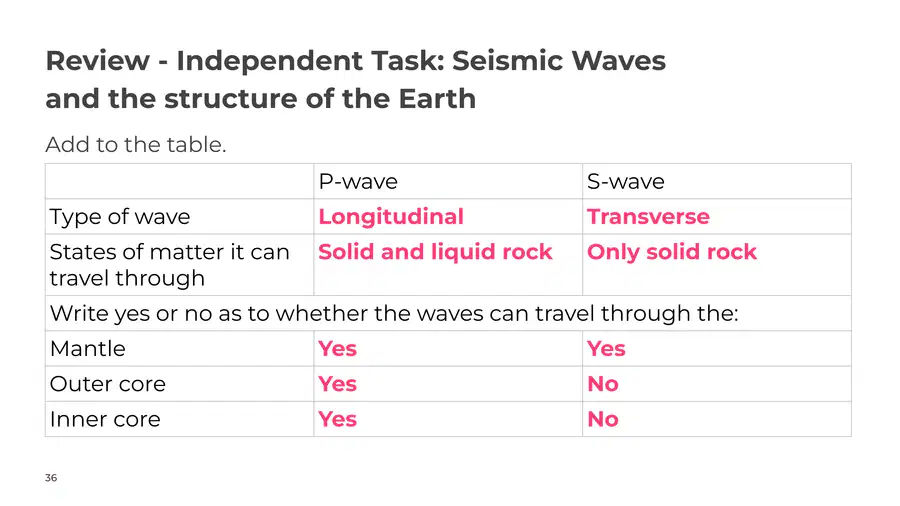

Describe how the study of seismic waves has contributed to our understanding of the Earth's interior.

Multiple Select

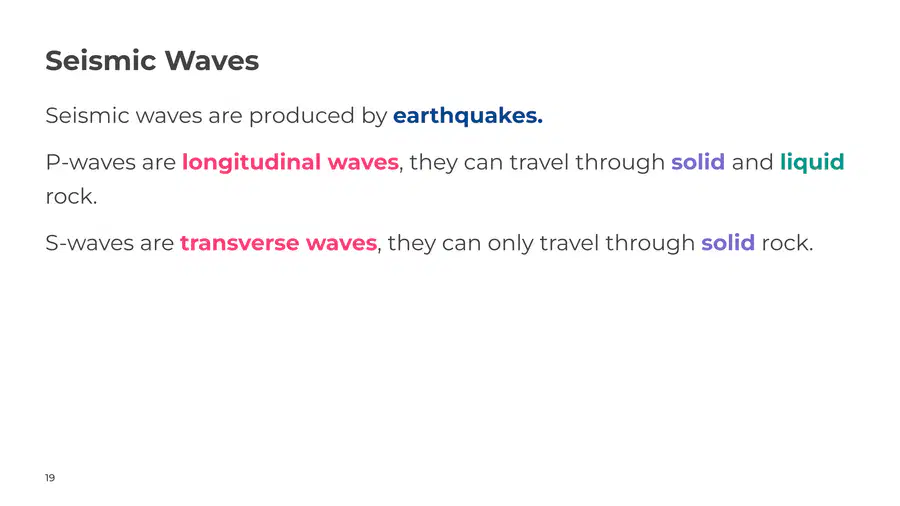

Select all the correct statements about seismic waves.

• P-waves are longitudinal waves.

• S-waves can only travel through solid rock.

• P-waves can travel through both solid and liquid rock.

• S-waves can travel through liquids.

Multiple Choice

Which of the following statements about P-waves and S-waves is correct?

• P-waves are longitudinal and can travel through solids and liquids, S-waves are transverse and cannot travel through liquids.

• P-waves are transverse and can only travel through solids, S-waves are longitudinal and can travel through solids and liquids.

• Both P-waves and S-waves can travel through liquids.

• S-waves travel faster than P-waves.

Multiple Choice

Which wave is longitudinal?

• P-wave

• S-wave

• Both P-wave and S-wave

• Neither P-wave nor S-wave

Multiple Choice

Which type of seismic wave is transverse?

• P-wave

• S-wave

• Both P-wave and S-wave

• Neither P-wave nor S-wave

Multiple Choice

Which seismic wave can travel through both solid and liquid rock?

• P-wave

• S-wave

• Both P-wave and S-wave

• Neither P-wave nor S-wave

Multiple Choice

Which wave has a faster speed?

• P-wave

• S-wave

• Both have the same speed

• It depends on the medium

Open Ended

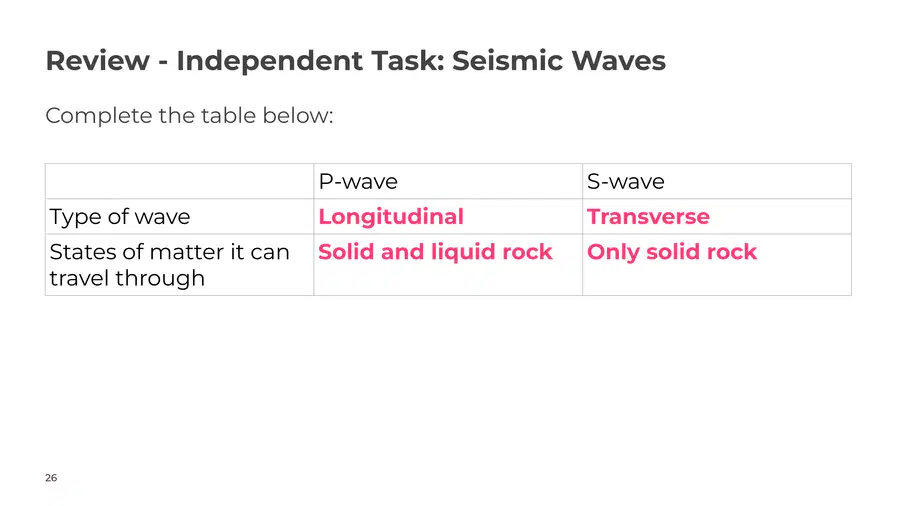

Explain the main differences between P-waves and S-waves in terms of the type of wave and the states of matter they can travel through.

Multiple Choice

Which of the following topics connects the study of seismic waves to our understanding of Earth's internal structure?

• Ultrasound and its Uses

• Seismic Waves

• Seismic Waves and Evidence for the Structure of the Earth

• Sound Waves in Air

Open Ended

After learning about ultrasound and seismic waves, what is one question you still have or something you would like to know more about?
