hydraulic Presentation

Open Ended

What are the reasons why standards are important in hydraulic systems?

Multiple Choice

What is the symbol for a Fixed Displacement hydraulic pump?

• Continuous line

• Dashed line

• Envelope

• Fixed Displacement hydraulic pump

Multiple Choice

What does the pressure relief valve do?

• Limits line pressure to a set value

• Allows flow in both directions

• Blocks flow completely

• Increases the pressure in the system

Multiple Choice

What is the purpose of a check valve?

• To allow flow in both directions

• To block flow in one direction

• To control the pressure of the system

• To regulate the speed of flow

Multiple Choice

What does the symbol for a directional control valve with 4 ports and 2 positions represent?

• A valve that can only block flow

• A valve that can direct flow in two ways

• A valve that can control pressure

• A valve that can only allow flow in one direction

Multiple Choice

What is the function of a normally open directional control valve with 3 ports and 2 finite positions?

• To block flow in all directions

• To allow flow in one direction only

• To allow flow in both directions

• To control the speed of flow

Open Ended

What type of accumulator is gas loaded with a separator?

Multiple Choice

What is the purpose of a hydraulic tank?

• To filter fluid

• To store fluid

• To cool fluid

• To separate gas

Multiple Choice

What type of flow control valve allows adjustable output flow?

• Throttle valve

• Fixed orifice

• Variable output valve

• Relief valve

Multiple Choice

What is the function of a pressure reducing valve?

• To increase pressure downstream

• To limit pressure downstream

• To completely stop flow

• To allow unrestricted flow

Open Ended

Explain the neutral position of a directional control valve.

Multiple Choice

What are the different methods of operation for directional control valves?

• Mechanical

• Pilot

• Electrical

• All of the above

Multiple Choice

What are the characteristics of the 4/3-Way NC - Push-Pull Button with Spring Return as shown in the image?

• 4 ports and 3 positions

• 2 ports and 2 positions

• 3 ports and 4 positions

• 5 ports and 2 positions

Multiple Choice

What is the function of springs in directional valves as described in the text?

• To hold the flow-directing element in a neutral position

• To increase the pressure in the system

• To control the speed of the flow

• To prevent backflow

Multiple Choice

What are the advantages of using directional spool valves over directional poppet valves?

• Relative simple design

• High switching power compared with rotary spool

• Very good pressure balanced and lower operating force

• Low loss

Multiple Choice

What does a double-acting cylinder do?

• Only extends

• Only retracts

• Extends and retracts

• Stores energy

Open Ended

Explain the function of the 4/3-Way NC valve in the hydraulic circuit.

Open Ended

Explain the working principle of a single-acting cylinder in hydraulic systems.

Multiple Choice

What are the two types of hydraulic actuators mentioned in the introduction?

• Linear actuators and rotary actuators

• Single acting and double acting actuators

• Hydraulic and pneumatic actuators

• Piston and diaphragm actuators

Multiple Choice

What is the formula for calculating the force exerted by a hydraulic actuator?

• F = P × A

• F = A × Q

• F = P + A

• F = P - A

Open Ended

Explain the difference between a single-acting and double-acting telescopic cylinder.

Multiple Choice

What type of cylinder is described as having flow that may deliver to either end and exhausted from the other?

• Single-rod double acting cylinder

• Double-rod double acting cylinder

• Plunger cylinder

• Telescoping cylinder

Multiple Choice

What is the formula for the force exerted by a double-acting cylinder?

• F = P × Ap

• F = P × (Ap - Ar)

• F = P × (Ar - Ap)

• F = P × A

Open Ended

Explain the difference between limited rotation and continuous rotation in rotary actuators.

Multiple Select

What is the difference between the linear actuators and rotary actuators with respect to construction and the kind of input and output force acting on them?

• Construction

• Kind of input and output force acting to it

• Both

• None

Multiple Choice

What is the function of the Pressure Relief Valve in the hydraulic motor system?

• To control the flow of fluid

• To relieve excess pressure

• To filter the fluid

• To change the direction of the motor

Multiple Choice

What is the function of the Pressure Relief Valve in the hydraulic circuit?

• To control the flow rate

• To prevent overpressure

• To filter the fluid

• To provide thermal regulation

Multiple Choice

What is the function of the Pressure Relief Valve in the hydraulic system?

• To increase pressure

• To decrease pressure

• To maintain constant pressure

• To filter the fluid

Open Ended

Explain the purpose of a throttling valve in a flow control system.

Multiple Choice

What are the two sub-groups of flow control valves mentioned in the introduction?

• Throttling valves and Flow regulating valves

• Pressure valves and Flow regulating valves

• Throttling valves and Pressure valves

• Flow control valves and Pressure valves

Multiple Choice

What is the equation used to calculate the flow at the throttle position?

• Q = αA √(2ΔP/ρ)

• Q = αA (ΔP/ρ)

• Q = αA (2ΔP/ρ)

• Q = αA (ΔP/ρ^2)

Multiple Choice

What is the role of a deceleration valve?

• To accelerate hydraulic movement

• To decelerate hydraulic movement

• To maintain constant flow

• To block flow completely

Multiple Choice

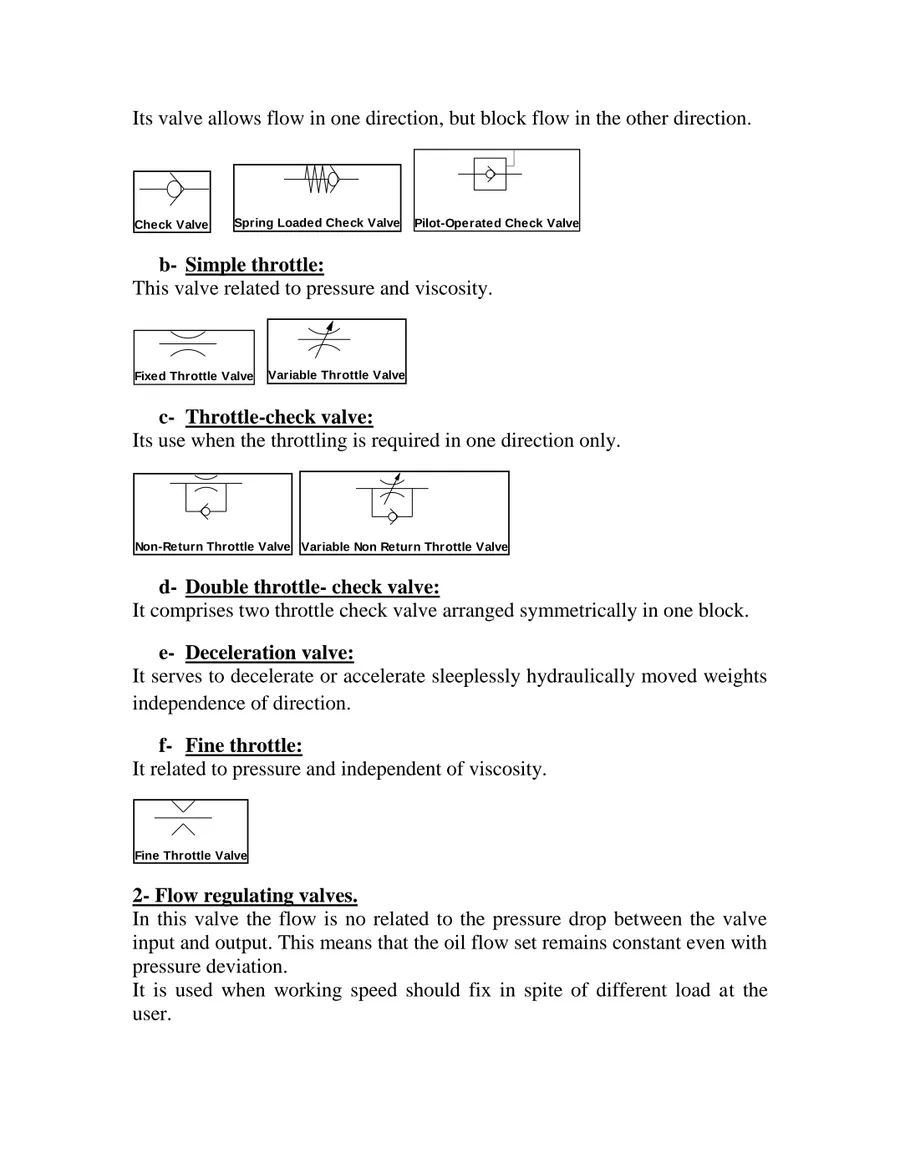

What is the purpose of a throttle-check valve?

• To allow flow in both directions

• To throttle flow in one direction only

• To block flow completely

• To regulate pressure

Multiple Choice

What is the function of a check valve?

• Allows flow in both directions

• Blocks flow in both directions

• Allows flow in one direction and blocks in the other

• None of the above

Multiple Choice

What is the purpose of a meter-out circuit in hydraulic systems?

• To control the flow from the pump to the cylinder

• To control the flow from the cylinder to the tank

• To measure the pressure in the system

• To filter the hydraulic fluid

Multiple Choice

What is the purpose of a meter-in circuit in hydraulic systems?

• To control the flow from the pump to the cylinder

• To control the flow from the cylinder to the tank

• To measure the pressure in the system

• To filter the hydraulic fluid

Multiple Choice

Which of the following is known as the heart of hydraulic system?

• Direction control valve
• compressor
• hydraulic actuator
• power pack

Open Ended

Explain the advantage of using the accumulator in hydraulic systems.

Multiple Select

Identify the components labeled (1) to (10) in the circuit diagram.

• Directional control valve

• Check valve

• Electrical motor

• Variable displacement pump

Multiple Choice

What is the function of the non-return throttle valve in the circuit?

• To control the flow rate

• To prevent backflow

• To regulate pressure

• To filter the fluid

Multiple Choice

What is the function of the Non-Return Throttle Valve in the hydraulic system?

• To control the flow of fluid

• To prevent backflow

• To measure pressure

• To store energy

Multiple Choice

What is the function of the Non-Return Throttle Valve in the hydraulic circuit?

• To prevent backflow

• To regulate pressure

• To control flow rate

• To measure pressure

Poll

How confident do you feel about this topic now?

• Very confident
• Somewhat confident
• Not confident
