WorksheetsBUILDING TECHNOLOGY 1 PRELIM
Total questions: 38
Worksheet time: 34mins
Referring to the timeline of the Architectural materials, where did the first settlement appeared?
Middle-East
North America
Asia
Europe
Ancient Egyptians were one of first civilizations to use these materials as their chief material?
Lumber
Timber
Limestone
Bricks
In 2010, archaeologist dated the remains of unearthed wooden hut in England at around what era?
9000 bce
8500 bce
1000 bce
3000 bce
What material did the Romans pioneered/invented?
Granite
Concrete
Bricks
Marble
As early as to what era did the use of clay bricks started?
9000 bce
8500 bce
1000 bce
3000 bce
These were used as the major materials by the Greeks to their Temples/Religious Buildings?
Granite
Concrete
Bricks
Marble
The following are the Greek Monumental Buildings/Temples except one, that is;
The Parthenon
The Pantheon
Temple of Zeus
The Erecthieon
According to the reference provided for the Materials Timeline, what structures that were first known to use iron as primary structural material in China?
Pagodas
Torii
Buddha Temple
Imperial Palace
These were the type of material primarily used during the Industrial Revolution development; it refers to?
Timber
Iron
Glass
Plastic
The use of this material was first introduced in the Church of St. Luke in Formby, England which resembles modern-day type of material?
Steel
Asbestos
Engineered Timber
Wrought Iron
Who was the first recorded Architect in history?
Rameses
Imhotep
Ptolemy I
Hatshepsut
This refers to the material that replaced the use of Iron in construction industry at around 1890?
Cast Iron
Wrought Iron
Asbestos
Steel
_______________ was the man behind the invention of reinforced concrete in 1849;
Le Corbusier
Joseph Monier
Alexander Gustave Eiffel
Louis Kahn
The following list refers to the modern Architects that used reinforced concrete as their preference/choice of material on their projects except?
Oscar Niemeyer
Kenzo Tange
Loius Kahn
Zaha Hadid
These materials contributed to the development of Gothic cathedrals at that era and where also considered as a Roman-invention;
Concrete
Glass
Iron
Engineered Timber
The following are the physical properties of wood that attracts us except;
Natural Warmth
Workability
Infinite Variety
Hardwood
A softwood tree;
Refers to a type of wood that has been cut from a coniferous or evergreen tree like pines or spruce.
Refers to a deciduous tree which lose their leaves annually.
Refers to a wood engineered with both plastic content and wood fiber that has been extruded and heated.
These woods have broad leaves.
A physical property of wood that refers to its natural, many varieties of finishes and stains;
Natural warmth
Workability
Color
Fire Protection
A hardwood tree;
Refers to a type of wood that has been cut from a coniferous or evergreen tree like pines or spruce
Refers to a deciduous tree which lose their leaves annually.
Refers to a wood engineered with both plastic content and wood fiber that has been extruded and heated.
Comes from trees and is produced through natural growth processes.
The following refers to “Group 1” as softwoods, except _________?
Dao
Ipil-ipil
Yakal
Tanguile
An Engineered wood is _______________________;
Refers to a type of wood that has been cut from a coniferous or evergreen tree like pines or spruce.
Refers to a deciduous tree which lose their leaves annually.
Refers to a wood engineered with both plastic content and wood fiber that has been extruded and heated.
These woods have broad leaves.
The following are “types of plywood” by-products, except?
Form Plywood
Marine Plywood
Gypsum Plywood
Fancy Plywood
It serves as the standard dimension/size of plywood in the market?
4’ x 8”
4” x 8”
4’ x 6’
1.22m x 2.44m
A type of lumber piece that consists of less than 2” thick and at least 8” wide?
Strip
Dimension Lumber
Board Lumber
Timber
A type of lumber piece that consist of no less than 5” in its smallest dimension?
Strip
Dimension Lumber
Board Lumber
Timber
These materials are naturally occurring compact, solid and massive material that make the crust of the earth?
Stone
Igneous
Sedimentary
Metamorphic
The following are the factors of deciding the use of stone in a construction, except;
The type of building and the situation where stone is to be used.
The precise location in the building where the stone shall give a preferential benefit
The quality of the stone to be applied on.
The cost of construction with stones.
“Dressed stones” are building stones that are _____________;
Squared stones that have been quarried and cut into rectangular form.
Stones worked to desired shape and smooth on the face
Stone is often referred to as Large Slabs
Loose, unfinished stone found on the surface or in the soil, obtained from riverbeds and rock-strewn fields.
_____________ are rocks that was deposited by the action of water and wind.
Igneous rocks
Sedimentary rocks
Metamorphic rocks
Silicious rocks
_____________ are type rocks that have been formed by the natural process of cooling and crystallization from originally hot and molten magma.
Igneous rocks
Sedimentary rocks
Metamorphic rocks
Silicious rocks
Give 1 method of applying wood preservatives (2 pts)
(a)
Give at least 1 defects that a lumber may contain
(a)

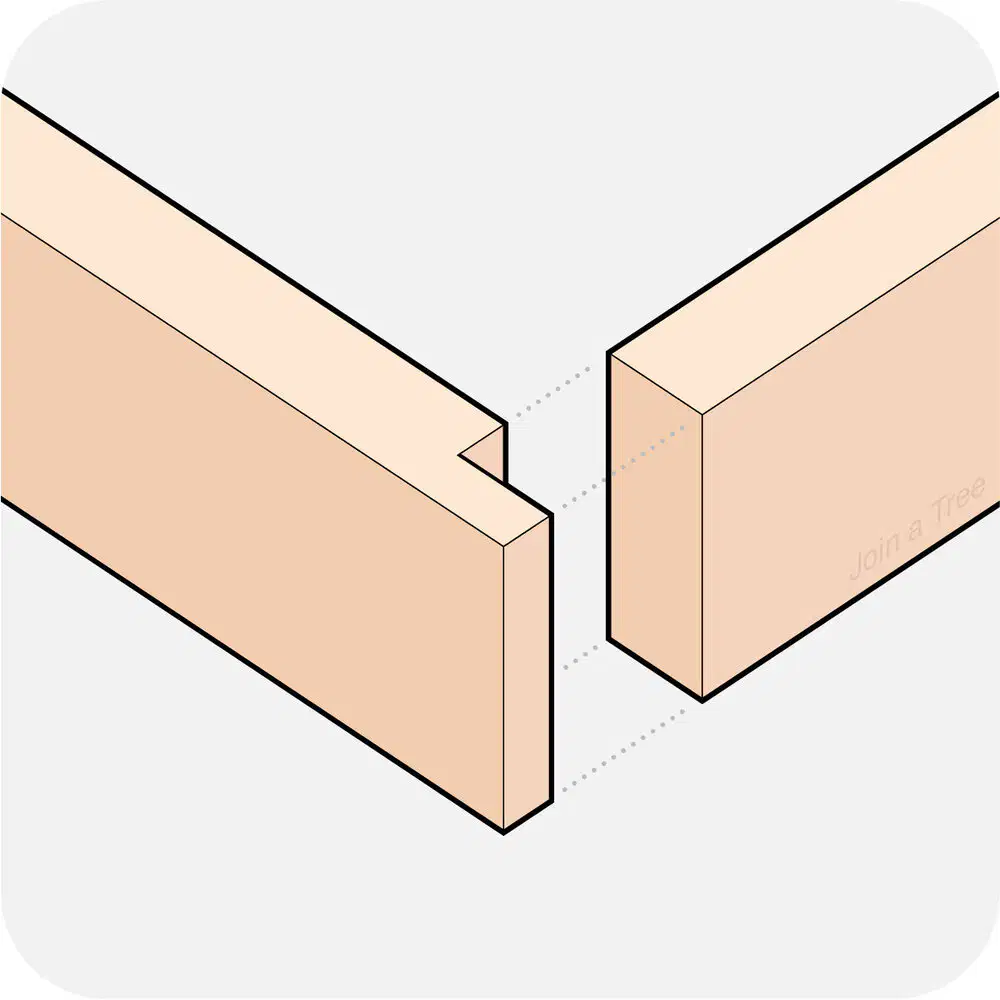

Identify this type of wooden joint
(a)

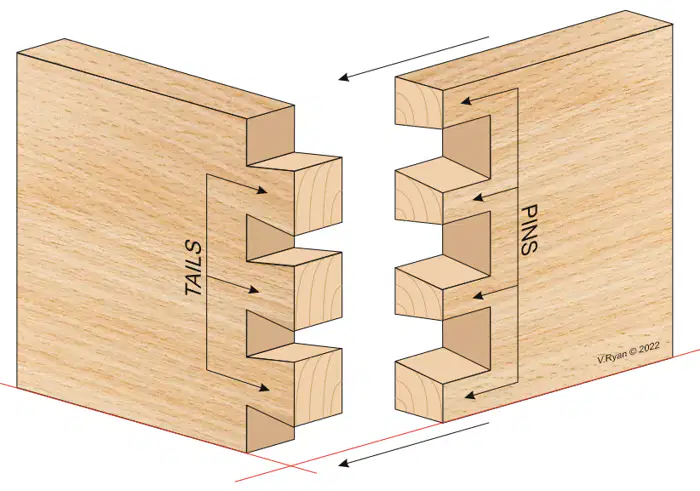

Identify this type of wooden joint
(a)
Identify this type of wooden joint
(a)
Identify this type of wooden join
(a)
Identify this type of wooden joint
(a)
Write your thoughts/ideas on how materials, specifically wood and stone, can be incorporated in a design of structure that tends to be harmonious in its overall design.
