WorksheetsDT GCSE: Manufacturing of graphic products
Total questions: 22
Worksheet time: 1hrs 10mins
What is this?Used to help protect printed items.
Printer
Laminating machine
Ink jet printer
Laser cutter.
PICT PD is an acronym used to remember the 6 purposes of packaging- what are they?
Protect, Display, Preserve, Inform, Carry, Transport.
Protect, Deliver, Preserve, Inform, Contain, Transport.
Protect, Display, Preserve, Inform, Contain, Transport.
What is this process called
Injection Moulding
Vacuum Forming
Rotational Moulding

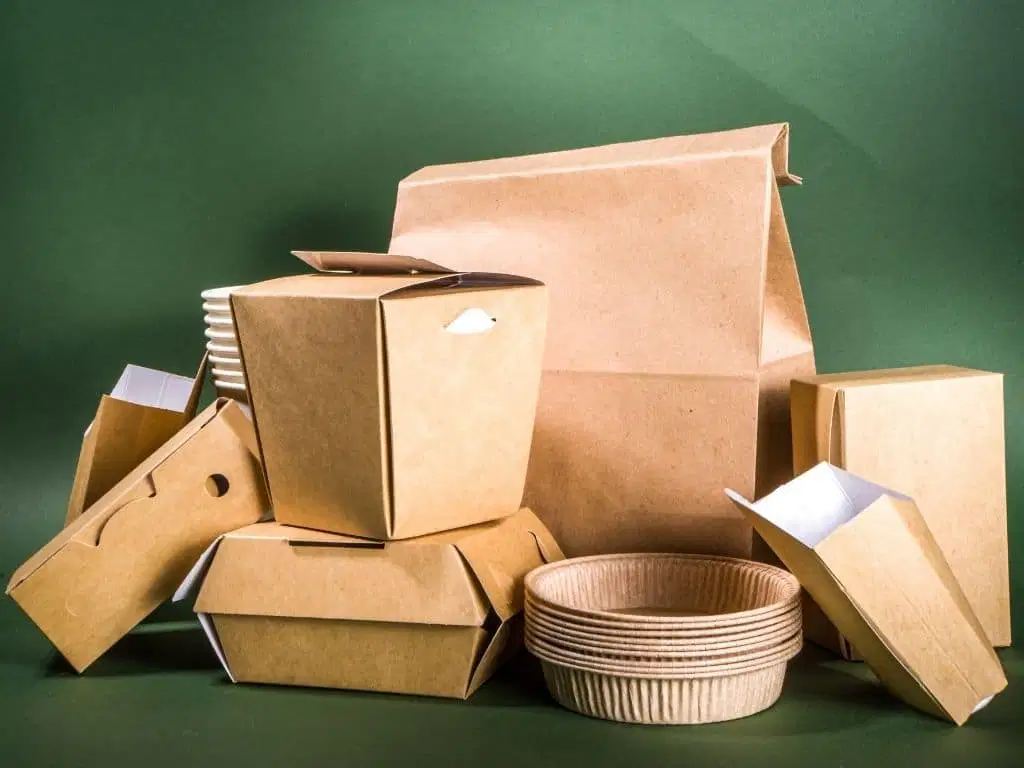

Corrugated card -used for ?
Packaging
Drawing
Presentation work
Food containers.
These products have been made by...
Injection moulding
Vacuum forming
Extrusion
Blow moulding
What process is this?
Injection Moulding
Vacuum Forming
Blow Moulding
Rotational Moulding
What process would be used to make the main part of this product?
Injection Moulding
Vacuum Forming
Blow Moulding
Rotational Moulding

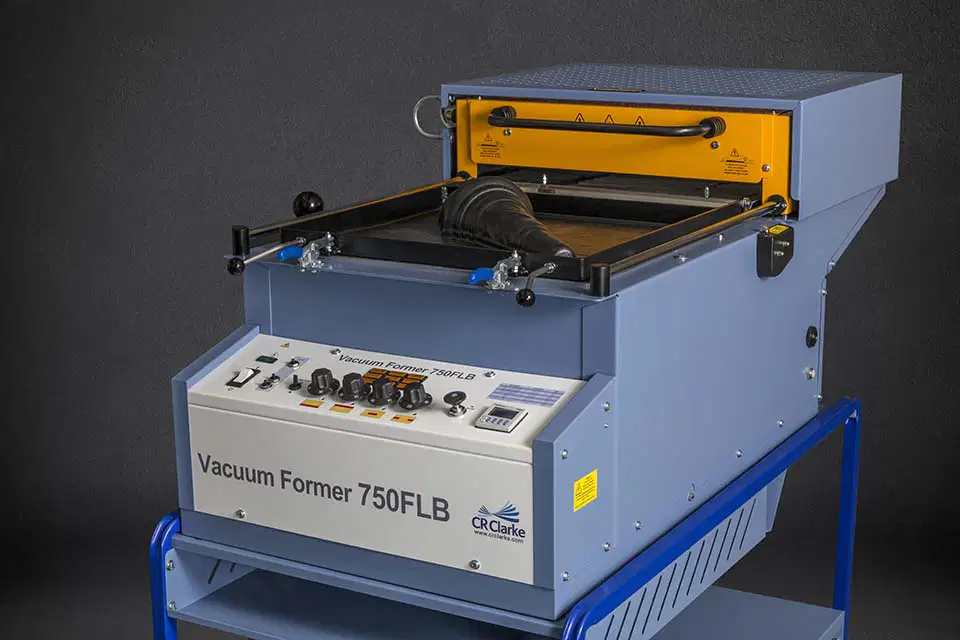

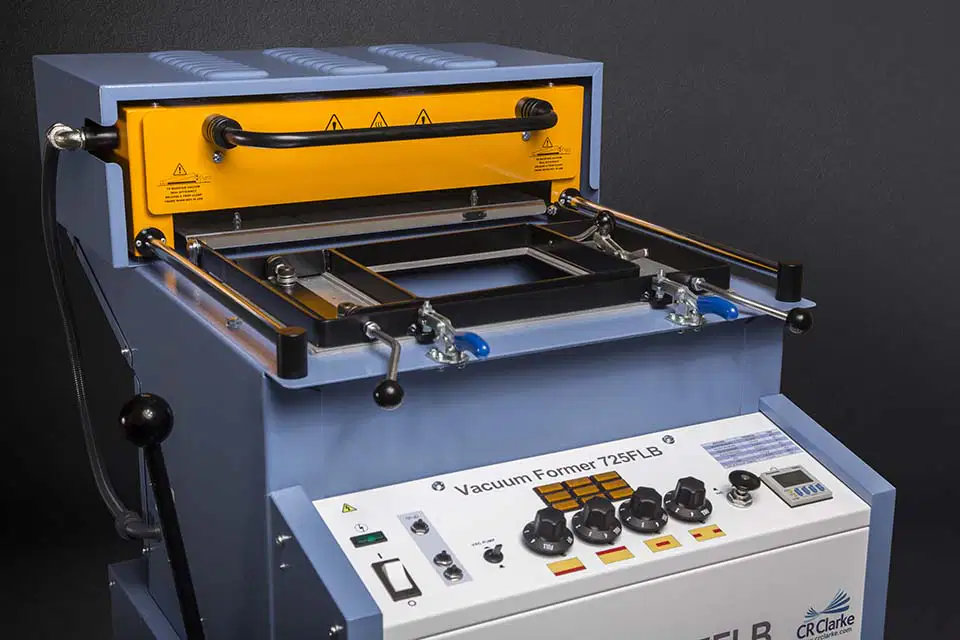

What is vacuum former used for?
To bend plastic into 90 degrees
To form thin plastic sheets into various shapes
To melt plastic sheets
Which is an example of a product made using vacuum former.
Blow moulding is used for...
Making a complex 3D shape
Making moulds that need a draft angle, air holes and rounded corners
Making hollow components with large thick walls
Making hollow thin walled components

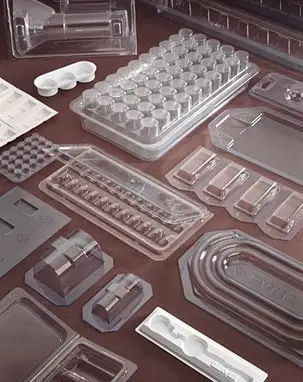

Which process is most suited for the products shown in the image (Food Packaging)
Injection Moulding
Vacuum forming
Blow moulding
Plastic Extrusion
Which process is most suited fro the products shown in the image?
Injection Moulding
laser cutting
Blow moulding
3D printing
Allows you to trim card and paper accurately, safely and quickly
knive
scissors
paper trimmer
safety ruler
Ways to score or crease an edge on paper and card
ruler
Creasing tool
scissors
by hand
Machine with a shaped steel blade used to cut and shape graphic products in commercial quantities
vacuum former
laser cutter
paper trimmer
die cutter
type of packaging with a moulded plastic cavity or pocket
bottle
card box
blister packaging
net
