WorksheetsBT/BU/STRUC PART 3
Total questions: 30
Worksheet time: 23mins
Identify which is the Concealed Pendant Sprinkler
Figure 3
Figure 1
Figure 4
Figure 2
Identify which is the Vertical Sidewall Sprinkler
Figure 2
Figure 5
Figure 1
Figure 4
Identify which is the Horizontal Sidewall Sprinkler
Figure 1
Figure 2
Figure 3
None of the Above
What is a pumped used to move water vertically from the underground cistern to an overhead tank?
Booster Pump
Jockey Pump
Transfer Pump
Sump Pump
Among the following which is the cheapest bathtub option in the market?
Fiberglass
Acryclic
Enamel Steel
Cast Iron
Curing days to attain early strength concrete
7
14
21
28
Identify "B"
Structural Bolt
Blind Rivet
Anchor Bolt
Expansion Bolt
Which is not present in the hardware shown above
Expansion Bolt
90d bolt
Blind Rivet
Structural Nail
Which is the Blind Rivet
C
A
D
B
What is the cutting length of beam extra top bars
L/3
L/4
>L/4
<L/3
Identify Item "B", which is used for Parapet Walls
Parapet Floor Drain
Corner Drain
Angled Floor Drain
Scupper Drain
Identify which item is the "Trench Cover"
Wala naman diyan eh, linoloko mo kami
Item D
Item E
Item A
Identify the Item
Mechanical Fan Pump
Turbine Pump
Split case pump
Submersible Pump
Minimum diameter of a swimming pool drain
4"
5"
2"
3"
Where would a deluge sprinkler system be best for?
Commercial Buildings
Industrial Buildings
Institutional Buildings
all of the above
Which system is used where large quantities of water is needed quickly?
Deluge Sprinkler System
Water Mist
Jet Spray
Pre - Action System
What is used to either control the fire or suppress the fire in a wide area?
Shower Head
Sprinkler System
Fire Smoke Detection System
Fire Damper
Identify the type of Gutter
Apex Gutter
Valley Gutter
Ridge Gutter
End Gutter

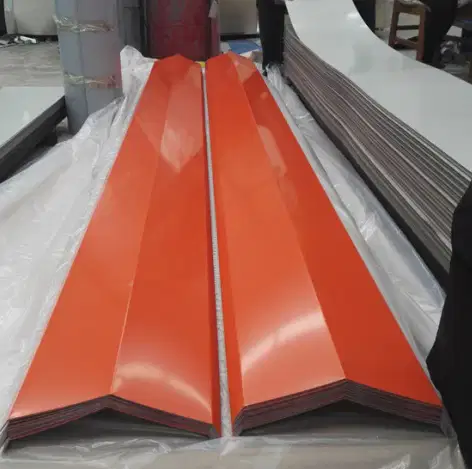

Identify the gutter type
Ridge Gutter
Box Gutter
Wala naman eh, loko mo a q
Valley Gutter
What is the minimum concrete cover for cast-in-place concrete against the permanently exposed to earth? in mm
25
75
50
20
What is the pump used under the elevator pit?
Sump Pump
Pit Pump
Mechanical Lift Pump
Storey Pump
Which among the choices is the most expensive water closet option?
Cantilevered Water Closet
Full Pedestal
Integrated Pedestal
Over Counter
Which of the following is known for its high range of adjustability?
fig 1
fig 3
fig 2
fig 4
Which of the following is used to light stairs or steps?
fig 1
fig 2
fig 3
fig 4
which of the following is used in weather exposed conditions?
fig 1
fig 4
fig 3
none of the above
What does FACP mean?
Fire Alarm Control Prevention
Fire Alarming Contemporary Panel
Fire Alarm Control Panel
Finally Architect na aCo sa Pebrero
which of the following lights have a lifespan of 12000 - 14000 hours?
LED
CFL
Fluorescent Light
Halogen Light
Which part of the ACU is located in the outside?
Thermostat
Dust Trap
Condenser
Wala na ako maisip
In a 23 sqm room, what is the recommended HP to be used?
1.5
1
2
2.5
which is not a bran of toilet fixtures?
American Standard
Toto
Kooler
HCG
