WorksheetsWCS 1101-4 - Knowledge Assessment
Total questions: 20
Worksheet time: 10mins
Which of the following below is/are the types of disc brake?
Fixed caliper
Fly caliper
Floating caliper
Fast caliper
Which of the following below is/are the types of drum brake?
Duo Servo
Dual servo
Primary-Secondary
Leading-Trailing
Which of the following below is/are the component of disc brake?
Brake shoe
Brake pads
Wheel cylinder
Brake caliper
Return spring
Which of the following below is/are the component of drum brake?
Brake shoe
Brake pads
Wheel cylinder
Anchor
Return spring

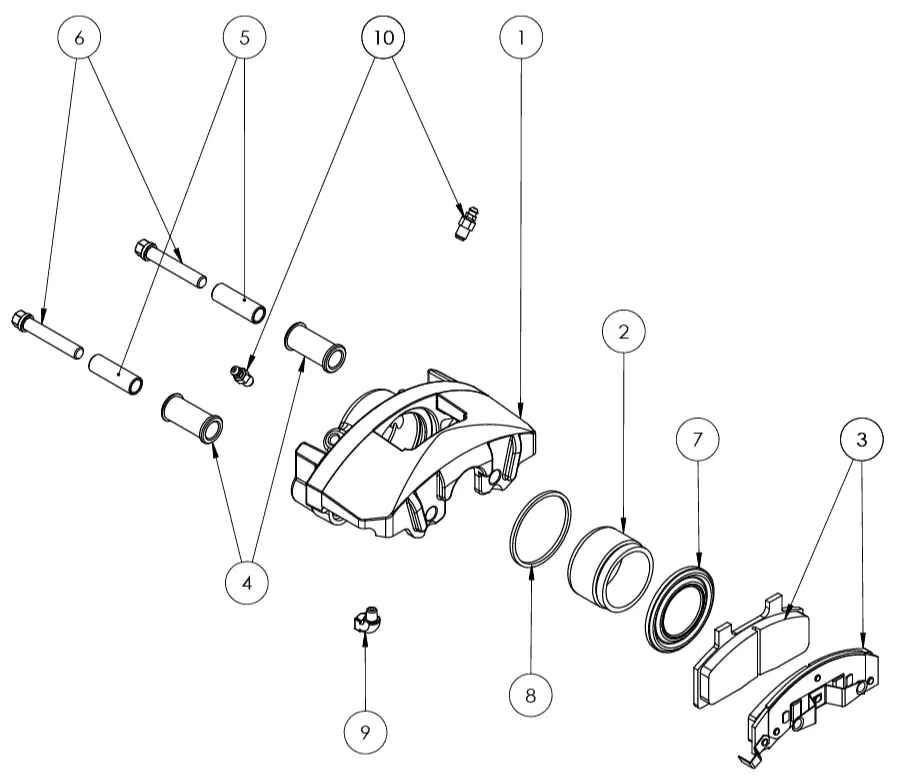

State the name of the component that shown in the diagram.
(a)

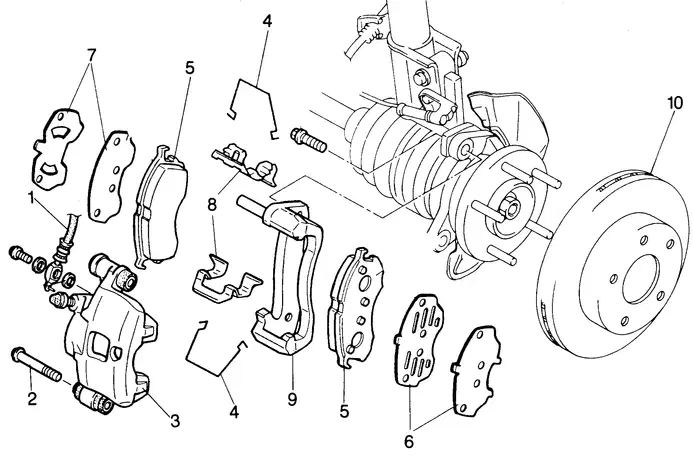

State the name of the part "C" that shown in the diagram
(a)
State the name of the part "6" that shown in the diagram.
(a)
Which of the following below is/are the types of brake pad assembly?
Screwed
Bonded
Riveted
Glued
locked
State the name of the part "10" that shown in the diagram.
(a)
How many piston that fixed caliper has?
1
2
3
4
5
What is the correct procedure to carry out brake bleeding?
Starts from the wheel furthest from the master cylinder
Starts from the wheel furthest from the driver
Starts from the wheel closest to the master cylinder
Starts from the wheel closest to the driver
Where is the brake booster vacuum comes from?
Carburetor
Intake manifold
Exhaust manifold
Cylinder head
Engine
What does "DOT" stand for?
(a)
What is the most harmful material that used on the older generation brake pad?
(a)
What is the other name for parking brake?
(a)
What is the name of the substance that absorbs moisture from atmosphere?
(a)
Which of the following below is/are the types of braking circuit?
Diagonal split
Side to side split
Front and rear split
End to end split

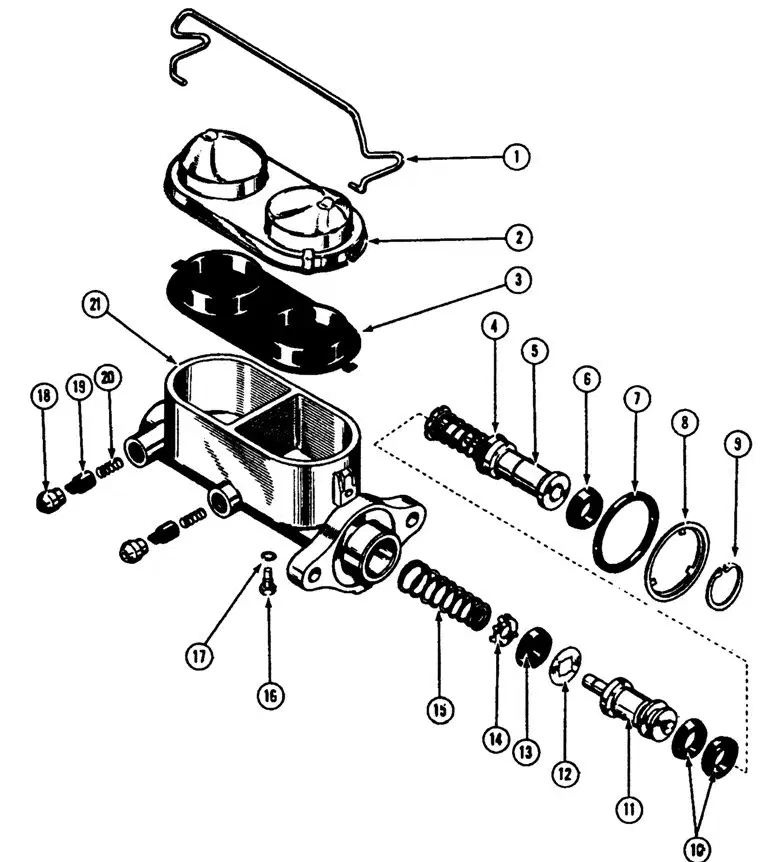

State the name of the part "11" that shown in the diagram.
(a)
Which of the following below is not part of the brake combination valve?
Metering valve
Proportioning valve
Pressure relief valve
Pressure differential switch
State the name of the item that used to reduce the brake fluid pressure to the rear brakes?
(a)
