WorksheetsThermostat Components and Operation Quiz
Total questions: 100
Worksheet time: 50mins
What do temperature-reactive components in thermostats respond to?
Electrical current
Humidity levels
Temperature changes
Air pressure
Which type of thermostat is specifically mentioned as having an operation that students should be able to explain?
Digital thermostats
Programmable thermostats
Low-voltage thermostats
Smart thermostats
What should students understand about heating, cooling, combination, and multistage thermostats?
Installation procedures
Differences among them
Energy efficiency ratings
Warranty terms
What is the focus of the operation that students need to identify and explain regarding line-voltage thermostats?
Their compatibility with home automation systems
The operation of line-voltage thermostats
The color coding of wiring
The cost-effectiveness compared to other thermostats
What is the purpose of millivolt thermostats in standing-pilot heating systems?
To regulate water flow
To control the temperature
To ignite the pilot light
To measure humidity levels

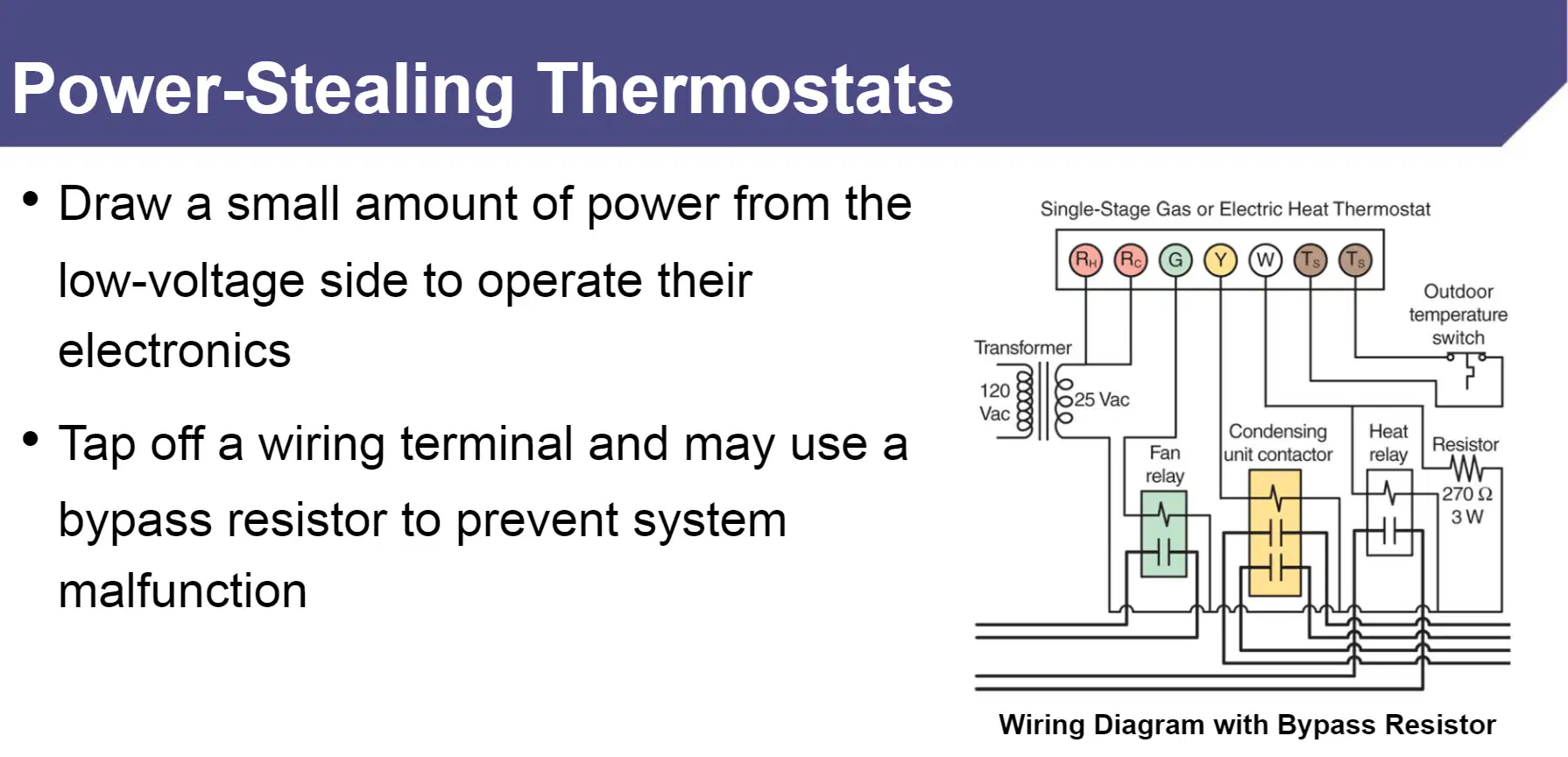

What do wireless and power-stealing thermostats operate?
Solar panels
HVAC systems
Security systems
Lighting systems
What is a key aspect of installing thermostats?
Ensuring proper electrical connections
Painting the thermostat to match the wall
Connecting to the internet
Installing in the coldest part of the building
How can you diagnose an HVAC system that is not operating properly?
By checking the electrical panel
By using its thermostat
By replacing the air filters
By inspecting the ductwork
What is the purpose of the various components used in a forced-air zoned system?
To provide insulation
To clean the air
To control different temperature zones
To humidify the air
What is the primary function of a thermostat?
To measure humidity levels
To control HVACR systems based on temperature changes
To monitor air quality
To provide lighting in a room
What does a thermostat do when it senses a temperature change?
It records the temperature in a log
It sends an alert to the homeowner
It starts, stops, or modulates the operation of HVACR systems
It changes the temperature on the display only
How does a thermostat manage the operation of HVACR systems?
Based on user input only
Based on a random timer
Based on preset temperatures
Based on external weather conditions
What happens to the resistance in a thermistor when the temperature increases?
The resistance increases.
The resistance decreases.
The resistance does not change.
The resistance becomes zero.
Which component uses a high-expansion metal and a low-expansion metal to react to temperature changes?
Thermistor
Bimetal Helix
Bimetal Strip
Fluid-Filled Diaphragm
What type of sensing element is commonly used in boilers?
Bimetal Strip
Thermistor
Gas-Filled Bellows
Fluid-Filled Bellows
What is the purpose of coiling a bimetal strip?
To decrease its length and reduce movement
To increase its strength and durability
To increase its length and produce more movement in response to temperature changes
To make it easier to handle and install
Which of the following is NOT a component that works with a bimetal strip?
Mercury switch
Reed switch
Sets of contacts
Solenoid valve
What are the two bimetal strip characteristics mentioned in the image?
Two bonded metals with the same expansion rates and coiled for flexibility
Two bonded metals with different expansion rates and coiled for increased length
Two separate metals with different melting points and coiled for increased strength
Two bonded metals with different expansion rates and coiled for increased length and more movement in response to temperature change
What was mercury used for in older thermostats?
As a cooling element
As a switching element
As a power source
As a display component
Why is the disposal of mercury thermostats regulated by law?
Because mercury is a valuable resource
Because mercury is a renewable substance
Because mercury is a hazardous waste
Because mercury is an abundant material
What organization offers recycling services for mercury thermostats to HVACR contractors?
The Environmental Protection Agency
The Thermostat Recycling Corporation
The HVACR Management Association
The National Recycling Coalition
Where can additional information about proper mercury handling and disposal procedures be found?
At the local town hall
On the Thermostat Recycling Corporation website
On the Environmental Protection Agency website
At the local library
What happens to the mercury switch when it is heated to start the cooling cycle?
The mercury puddle moves away from the power terminal.
The mercury puddle makes contact with the cooling terminal.
The mercury puddle remains stationary.
The mercury puddle makes contact with the heating terminal.
What is the state of the mercury switch when it is cooled to start the heating cycle?
The mercury puddle makes contact with the cooling terminal.
The mercury puddle moves away from the power terminal.
The mercury puddle makes contact with the heating terminal.
The mercury puddle remains stationary.
What is the first action to take in the event of a mercury spill?
Clean the spill with soap and water.
Evacuate the area immediately.
Vacuum up the mercury.
Touch the mercury to assess the situation.
For how long should you stay out of the exposed area after a mercury spill?
At least 5 minutes.
At least 15 minutes.
At least 30 minutes.
At least 60 minutes.
Which of the following should you NOT do after a mercury spill?
Ventilate the area.
Shut off HVAC equipment.
Vacuum up the mercury.
Open windows.
What should you do if you get mercury on your clothing or skin?
Immediately wash with hot water.
Leave it to air dry.
Seek medical attention without cleaning.
Remove contaminated clothing and wash skin with soap and cold water.
Who should you contact for cleanup and disposal instructions after a mercury spill?
The nearest hospital.
A local hazardous material disposal agency.
The manufacturer of the spilled mercury.
The local fire department.
Which component in a heating thermostat is responsible for ensuring that the plenum does not exceed safe temperatures?
Thermistor
Bimetal coil
Sensing bulb and diaphragm/bellows
Limit switch
What is the function of the bimetal coil in a heating thermostat?
To ensure safety control
To sense temperature changes
To adjust the dial
To activate the magnet
What does the sensing bulb and diaphragm/bellows do in a heating thermostat?
Control the limit switch
Ensure the plenum remains at safe temperatures
Sense temperature changes and activate the switch
Adjust the magnet position
What happens to the temperature in a conditioned space after the furnace shutdown due to system overshoot?
The temperature decreases below the set point
The temperature remains constant
The temperature raises above the set point
The temperature fluctuates randomly
What is the term used to describe the phenomenon when ductwork carries built up heat into conditioned space after furnace shutdown?
System stability
System lag
System overshoot
System balance
What is indicated by the red area in the diagram?
System lag
Temperature set point
System overshoot
Temperature differential
What does the blue area in the diagram represent?
System balance
System lag
System overshoot
Temperature differential
What is the purpose of heat anticipators in thermostats?
To cool down the thermostat
To increase the temperature of the conditioned space by 1°F
To warm the thermostat about 1°F over the conditioned space
To measure the humidity in the conditioned space
What is one of the benefits of using a heat anticipator in a thermostat system?
Increases energy consumption
Helps reduce system overshoot
Extends the time the system is on
Decreases the thermostat's sensitivity
Can heat anticipators be adjusted?
Yes, they are always adjustable
No, they are never adjustable
They can be either fixed or adjustable
They are only adjustable in digital thermostats
What component in the diagram is responsible for turning off the system early?
Magnet
Bimetal strip
Anticipator
C (common)
What happens to the switch in a cooling thermostat when there is a rise in temperature?
The switch opens
The switch closes
The switch remains unchanged
The switch is removed
Which type of thermostats are most common according to the learning material?
Mechanical thermostats
Electronic thermostats
Mercury thermostats
Programmable thermostats
What is the purpose of cooling anticipators in thermostats?
To cool down the thermostat during the Off cycle
To warm the thermostat during the On cycle
To warm the thermostat during the Off cycle
To prevent the thermostat from turning on
Why do cooling anticipators turn on early?
To increase energy consumption
To prevent system lag
To signal a malfunction
To cool the system further

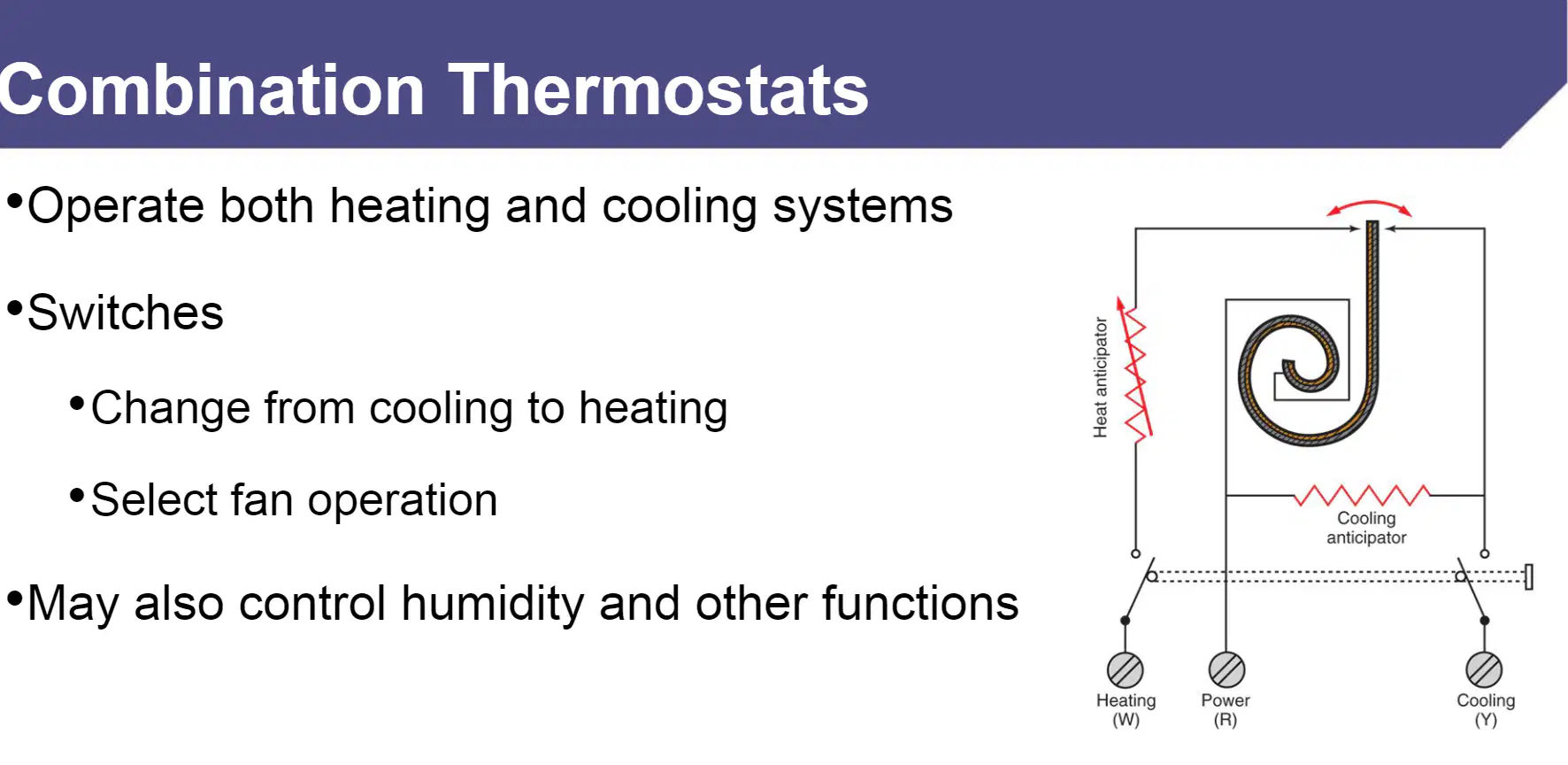

What do combination thermostats operate?
Only heating systems
Only cooling systems
Both heating and cooling systems
Only humidity control systems
What can switches on a combination thermostat be used to change?
Change from heating to cooling
Change from cooling to heating
Change from on to off
Change from automatic to manual
What is another function that combination thermostats may control besides temperature?
Light intensity
Water flow
Humidity
Sound levels
Refer to the diagram to answer: What component is labeled as 'Cooling anticipator'?
The spiral component on the top
The component labeled 'Heat anticipator'
The zigzag line on the bottom right
The switch labeled 'Cooling (Y)'
How can multistage thermostats vary a system's heating and cooling capacity?
By changing the color of the thermostat display
By varying the amount of gas burned and heat produced
By altering the insulation of the building
By switching the system on and off repeatedly
What is one way multistage thermostats can adjust the heating in a system?
By modulating the number of windows open in a room
By varying the speed of blower based on temperature
By changing the direction of airflow
By painting the walls with thermal paint
What is a method used by multistage thermostats to manage compressor capacity?
By modulating compressor capacity
By adjusting the thermostat's battery size
By changing the type of refrigerant used
By installing additional thermostats in each room
In larger systems, how do multistage thermostats help in managing electric heating elements?
By energizing more or fewer electric heating elements
By increasing the voltage supply to the system
By using solar panels to power the heating elements
By manually lighting a fire under the elements
What is a technique used by multistage thermostats in larger systems to control unit operation?
By sequencing condensing unit operation
By installing additional insulation around the units
By using a single-stage thermostat instead
By programming the thermostat to play music
What voltage do line-voltage thermostats operate using?
120 Vac or 240 Vac
110 Vac or 220 Vac
100 Vac or 200 Vac
130 Vac or 260 Vac
Line-voltage thermostats may control current up to what amperage?
20 A
22 A
25 A
15 A
What is one of the risks associated with line-voltage thermostats compared to low-voltage thermostats?
Lower risk of shock
Higher risk of shock
No risk of fire
Reduced energy efficiency
Do line-voltage thermostats require step-down transformers?
Yes, they always require step-down transformers
No, they do not require step-down transformers
Yes, but only for certain models
No, they require step-up transformers instead
What are line-voltage thermostats primarily used for?
Lighting systems
Electric heaters
Refrigeration units
Air conditioning systems
What voltage do low-voltage thermostats operate on?
12 Vac
24 Vac
120 Vac
240 Vac
What is the purpose of relays in low-voltage thermostats?
To regulate the temperature
To display the temperature
To switch line-voltage circuits on and off
To convert AC to DC
What must be used with a low-voltage thermostat to operate it safely?
A high-voltage transformer
A step-up transformer
A step-down transformer
A voltage regulator
What must the secondary side VA rating of a step-down transformer exceed in relation to a low-voltage thermostat?
The primary side VA rating
The combined VA rating of all its electrical loads
The VA rating of the thermostat alone
The VA rating of the highest single electrical load
Which of the following is NOT listed as an advantage of a Low-Voltage Thermostat?
Environmentally friendly
Programmable
High energy consumption
User friendly
What is a feature of a Low-Voltage Thermostat that allows for control when not physically present?
Durable
Expandable
Remote access possible
Easily serviced
Which characteristic of a Low-Voltage Thermostat suggests that it can be integrated with other systems or devices?
Environmentally friendly
Durable
Expandable
User friendly
What do low-voltage thermostats control in Class 2 circuits as per the National Electrical Code (NEC)?
The power to high-voltage controls
The power to low-voltage controls
The signal to wireless devices
The power to lighting systems
What is the characteristic of Class 2 circuits?
They are high-power circuits with a high chance of electric shock or fire initiation.
They are used exclusively for lighting purposes.
They are power-limited circuits with less chance of electric shock or fire initiation.
They require no special wiring or safety precautions.
For what purposes are Class 2 circuits generally used?
For high-voltage power transmission
For remote control or signaling circuits
For main electrical supply in residential areas
For industrial heavy machinery
According to the image, where can you find more information on Class 2 circuits?
Article 725 of the National Electrical Code
The local municipal code book
The Class 2 Circuits manufacturer's manual
The National Fire Protection Association guidelines
What powers the solenoid valve in a millivolt thermostat?
Battery
Thermocouple
Solar power
Alternating current
Can millivolt thermostats be used for cooling systems?
Yes, they are designed for cooling systems
No, they cannot be used for cooling systems
Yes, but only in commercial cooling systems
No, unless modified for cooling systems
What is a requirement for the system using a millivolt thermostat?
It must have a digital interface
It must have a standing pilot light
It must be connected to the main power supply
It must use a rechargeable battery
What is the current trend regarding millivolt thermostats with standing pilot systems?
They are becoming more popular
They are being upgraded for efficiency
They are generally phased out of use
They are mandatory in new installations
What does a wireless thermostat activate on a furnace or air conditioner?
A) A cooling mechanism
B) A responder
C) A power switch
D) A lighting system
Which of the following is NOT a type of sensor that may be included with a wireless thermostat?
A) Outside temperature sensors
B) Air filter sensors
C) Humidity sensors
D) Motion sensors
Can a wireless thermostat interface with mobile devices?
A) Yes, it can interface with mobile devices.
B) No, it cannot interface with mobile devices.
C) Yes, but only with special adapters.
D) No, it can only interface with computers.
What is the purpose of a power-stealing thermostat drawing a small amount of power from the low-voltage side?
To charge its batteries
To operate their electronics
To increase energy efficiency
To power the high-voltage side
What is the function of a bypass resistor in a power-stealing thermostat?
To increase the power to the thermostat
To regulate the temperature
To prevent system malfunction
To store excess power
What is depicted in the provided diagram?
A circuit for a solar-powered thermostat
A wiring diagram for a multi-stage heating system
A wiring diagram for a single-stage gas or electric heat thermostat
A schematic for a programmable thermostat
What does the microprocessor in a programmable thermostat allow users to do?
Control the temperature manually
Select different climate conditions for different blocks of time
Change the color of the display
Play music at different times of the day
Which of the following is NOT a level of programming in programmable thermostats?
Time of day
Day of week
Type of appliance
Heating or cooling
Which of the following is a feature of programmable thermostats?
Multistage controls
Override control
Maintenance alerting
All of the above
At what time is the set-point temperature for the Daily Heating Program scheduled to increase in the morning?
7:00 am
8:00 am
9:00 am
11:00 pm
What is the set-point temperature for the Daily Cooling Program at noon?
65°F
68°F
70°F
73°F
During what time period is the set-point temperature for the Daily Heating Program at its lowest?
Midnight to 7:00 am
8:00 am to 4:00 pm
4:00 pm to 11:00 pm
11:00 pm to Midnight
At what time does the set-point temperature for the Daily Cooling Program decrease in the evening?
4:00 pm
8:00 pm
9:00 am
11:00 pm
What is the main benefit of properly programming a thermostat according to the text?
It increases the utility bill.
It allows for constant temperature adjustments.
It significantly reduces the utility bill without sacrificing comfort.
It requires the occupants to adjust the temperature manually.
When should a thermostat be programmed to adjust temperature to save energy?
When the system is turned off.
When the occupants are typically asleep or away.
During peak hours of electricity usage.
Continuously throughout the day.
What must the system do to ensure energy savings are not offset by the energy used to restore normal temperature?
Maintain the energy-saving temperature for a short period.
Increase the temperature for several hours.
Maintain the energy-saving temperature for an extended period (several hours).
Frequently adjust the temperature settings.
What does the "R" terminal represent in thermostat wiring?
Heat relay (stage 1)
24 V common connection
Power
Fan relay (cooling only)
What is the "Y" terminal connected to in thermostat wiring?
Heat relay (stage 2)
Condensing unit (compressor) contactor
Compressor contactor (stage 2)
24 V common connection
Which terminal is used for the heat relay at stage 2 in thermostat wiring?
W
Y2
W2
G
What does the "C" terminal stand for in thermostat wiring?
Compressor contactor
Condensing unit (compressor) contactor
24 V common connection
Fan relay (cooling only)
Which terminal is designated for the fan relay in cooling only systems?
Y
W
G
C
What is the primary function of a Free Cooling or Air-Side Economizer system?
To heat indoor air
To draw in cool air and exhaust indoor air
To increase outdoor humidity
To cool outdoor air
Under which conditions is Free Cooling or Air-Side Economizer typically used?
High outdoor humidity
Cool indoor air
Cool outdoor air and low outdoor humidity
Hot outdoor air
What is one of the benefits of using a Free Cooling or Air-Side Economizer system?
It requires high energy consumption
It runs the compressor continuously
It saves energy
It increases indoor humidity
What does the Free Cooling or Air-Side Economizer system do to save energy?
Increases the use of the compressor
Runs blower and operates dampers without running the compressor
Closes all dampers
Uses only the indoor air for cooling
Where should wireless thermostats and sensors ideally be installed?
Behind doors and furniture
In an average location, 5 feet above the floor and out of reach of children
In corners and near chimneys
In unheated areas (outside wall)
Which of the following locations should be avoided when installing thermostats and sensors?
5 feet above the floor
Out of reach of children
Dead air spots and drafts
In an average location
