Where is the Richards Mfg. factory located?
New York
New Hampshire
New Jersey
Mexico
What is this elbow?
CSH
CS8
R800
Traditional
What is this elbow?
CS8
CSH
Traditional
R800
What is this elbow?
CSH
CS8
R800
Traditional
What is this elbow?
CSH
CS8
R800
Traditional
What are the elbows called that have a range taking bottom and no need for a cable adapter?
Heat Shrinking Elbows
Traditional T Body
R800
Cold Shrink Hammerhead
What are the elbows called where they have a 200amp tap premolded, but need to use a cable adapter?
R800
R600
CS8
CSH
What is this called?
Bobber
Plastic Divider
Core
Tube
You need an added (separate) jacket seal for a CSH elbow
True
False
A torque wrench is included in the box with every CS8 elbow body
True
False
What material would NOT be included in a CSH kit?
Junction
Bushing
Lug
Stud
Insulating Plug
What is the default fastener type for a CS8 elbow?
G
M
H
P
The core removal tools (tuning forks) are included in every cold shrink kit
True
False
What is the shelf life on Cold Shrink rubbergoods?
4 years
3 years
2 years
1 year 6 months
What KV rating do our 600A elbows come in?
15/25kv
35kv
46kv
72kv
Are the CSH AND CS8 range taking elbows?
Yes
No
When building a traditional elbow what specific parts are dictated by cable size?
Housing
Cable Adapter
Connector
(Lug)
Cable Jacket Seal
A cold shrink elbow needs a cable adapter
True
False
Richards only offers compression lugs
True
False
Our shear bolt lugs are range taking
True
False
What company makes the shear bolt lugs (connectors) for Richards?
Elastimold
Pfisterer
Cooper
Richards, made in house
What is the product called where you want to connect two different pieces of cable together?
Junction
Splice
Conjunction
Splits

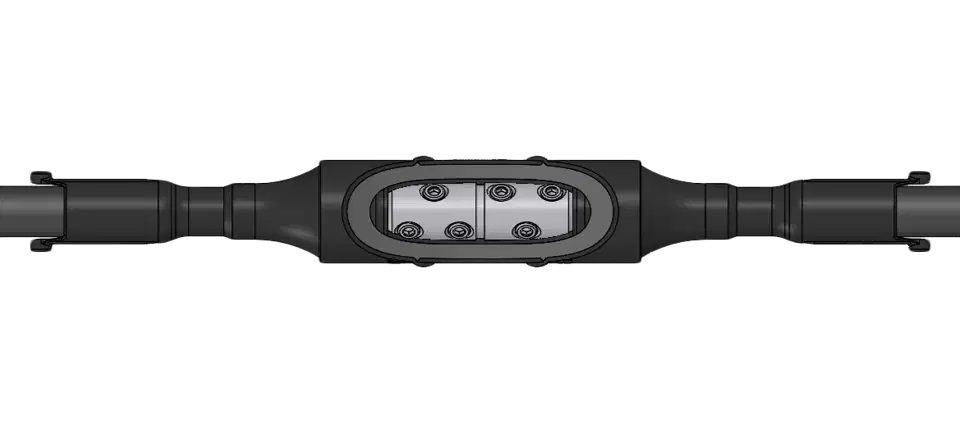

What is this called?
Split
Splice
Junction
Core
What two components make our Splices stand out?
Connectors
Rubber Compound
Centering Groove
Cold Shrink Core
Are our splices direct bury?
Yes
No
Doesn't apply to our splices
What is the feature of this lug in the splice?
Cores Removable
Centering Groove
Removable
See Through
What is this additional item above the splice called?
Chaotic Hopper
Neutral Jumper
Casual Sprinter
Lawful Punisher
What is shown in the photo?
Jumper
Junction
Conjunction
Bushing Extender
Richards only makes 200amp junctions
True
False
Richards offers 2pt, 3pt, and 4pt junctions
True
False
What is this item?
618BEF
Bushing Extender
P615ETP
200amp Tap Plug
P625HIP
Insulating Plug & Cap
21LBICG
Loadbreak Cap
You can make a 600amp junction into a 200 amp junction by adding what?
Bushing Extender 618BEF
Insulating Plug 625HIP
Compression Lug P6AL12
None of the above
What are these called?
Double Barrel Shotgun Lugs
Triple Hole Lugs
Single Hole Lugs
Two Hole Lugs
What are 2 Hole Lugs used for?
To Pair with 4 Hole Lugs
Terminating Cable
Connection between Elbow and Stud
None of the above
What are these called?
Stirrup
Tank Ground Connector
Hot Line Clamp
Chap
What are these called?
Hot Line Clamps
Tank Ground Connectors
Lugs
Stirrups
What do you install first, a hotline clamp or a stirrup?
Hotline Clamp
Stirrup
Neither, they are not used in conjunction of one another
Install together at same time
What are Tank Ground Connectors used for?
Grounding from line to line
Easy way to connect ground wire to equipment
Used in Overhead Equipment
None of the above
What is this called?
Aluminum Bolted Wedge Connector (ABWC)
Polymer Deadend Insulator
Strain Plate
Automatic Splice
What does our Aluminum Bolted Wedge Connector (ABWC) replace?
Suspension Clamp
Fire Ons (Ampacts)
Guy Clamp
Polymer Cutouts
What is this called?
ACC
ABC
APC
PCA
APCs connect what?
Cutouts
Conductor to Ground Rod
Conductor to Conductor
Splices
What are options that can be added to the APC?
EHD
Shear Bolt
Grommet
Cover
Tin plated
What does EHD (extra heavy duty) mean, in regards to heat rating?
AAA Rated
B Rated
AA Rated
None of the above
What sizes does Richards use for their range taking rubbergoods material?
O, P, Q
SM, MD, LG
A, B, C
1, 2, 3
For 15kv 220 mil cable, what size does the O elbow fit?
1/0-350mcm
350-500mcm
1000-1100mcm
#2-500mcm
For 15kv 220mil, what size does the P body elbow fit?
#4-350mcm
350-750mcm
#1-4/0
4/0-500
For 15kv, 220mil, what size does the Q body elbow fit?
4/0 to 750mcm
500-1000mcm
4/0-1000mcm
600-1500mcm
Let's practice building a part number:
15kv, 220mil, 600amp, CSH, No test point, cap/plug, compression lug, 500 mcm
(a)
Let's practice building a part number:
15kv, 220mil, 600amp, CS8, Test Point, Shear Bolt Lug, Loadbreak cap, 750 MCM
(a)
