Larihan ipa

Total questions: 118

Worksheet time: 3hrs 44mins

Name
Class
Date
1.

Fenomena PEMBIASAN ditunjukkan oleh gambar nomor...

a)

(I) dan (II)

b)

(I) dan (III)

c)

(II) dan (III)

d)

(II) dan (IV)

2.

Perhatikan gambar proses pergerakan partikel zat berikut! Peristiwa apakah yang sedang terjadi?

a)

Menguap

b)

Mencair

c)

Melebur

d)

Mengembun

3.

Budi memanaskan air hingga mendidih pada suhu 100 °C100\ \degree C . Selama mendidih, Budi mengamati suhu air selama 2 menit. Suhu yang terbaca pada termometer selama air mendidih adalah..

a)

mengalami kenaikan

b)

tetap sama

c)

mengalami kenaikan kemudian tetap

d)

mengalami kenaikan kemudian turun kembali

4.

Perhatikan gambar berikut! Panjang dan tinggi bidang miring yang menghasilkan keuntungan mekanik terbesar adalah..

a)

S = 200 cm

dan

h = 50 cm

b)

S = 180 cm

dan

h = 60 cm

c)

S = 150 cm

dan

h = 50 cm

d)

S = 120 cm

dan

h = 60 cm

5.

Perhatikan gambar rangkaian berikut! Manakah pernyataan berikut yang salah..

a)

Lampu A dan Lampu B dipasang secara seri

b)

Lampu A dan Lampu C dipasang secara paralel

c)

Lampu D dan Lampu E dipasang secara paralel

d)

Lampu D dan Lampu E dipasang secara seri

6.

Jarum menit pada jam analog dapat melakukan satu putaran dalam waktu 60 menit. Sedangkan jarum detik membutuhkan 1 menit untuk melakukan satu putaran. Jika jarum detik berputar sebanyak 120 putaran, maka banyaknya putaran yang dilakukan jarum menit dan jam berturut-turut adalah..

a)

2 dan 1/4

b)

2 dan 1/6

c)

3 dan 1/4

d)

3 dan 1/6

7.

Perhatikan gambar berikut!

(I) Massa jenis larutan P lebih kecil dari massa jenis larut O

(II) Massa jenis benda X lebih kecil dari massa jenis larutan P

(III) Massa jenis benda X lebih besar dari massa jenis larutan O.

Pernyataan yang benar adalah..

a)

(I)

b)

(I) dan (II)

c)

(II) dan (III)

d)

(I), (II) dan (III)

8.

Perhatikan gambar berikut! Saklar yang harus ditutup agar lampu menyala adalah..

a)

S1, S5 dan S7

b)

S1, S2 dan S5

c)

S3, S5 dan S6

d)

S2, S5 dan S7

9.

Urea merupakan senyawa yang banyak digunakan sebagai ...

a)

Bahan sabun

b)

Pupuk sawah

c)

Bahan makanan

d)

Racun serangga

10.

Massa jenis sebuah kubus yang memiliki massa 250 g dan panjang rusuk 5 cm adalah..

a)

2 g/cm3

b)

3 g/cm3

c)

4 g/cm3

d)

5 g/cm3

11.

Permukaan zat cair dalam suatu gelas ukur sebelum dimasukkan benda yang memiliki massa jenis 1,5 g/mL adalah 300 mL. setelah dimasukkan benda, volumenya menjadi 500 mL. Massa benda tersebut adalah....

a)

150 g

b)

300 g

c)

200 g

d)

400 g

12.

sebuah kereta yang panjangnya 200 meter bergerak dengan kecepatan konstan 72 km/jam. Kereta tersebut melewati sebuah jembatan yang panjangnya 600 meter. Waktu yang diperlukan untuk melewati jembatan adalah

a)

20 detik

b)

40 detik

c)

60 detik

d)

80 detik

e)

100 detik

13.

Sebuah mobil mula mula kecepatannya adalah 20 m/s setelah bergerak selama 4 detik kecepatannya menjadi 10 m/s. Berapa waktu yang dibutuhkan benda untuk benar benar berhenti

a)

4 detik

b)

5 detik

c)

8 detik

d)

10 detik

e)

20 detik

14.

perhatikam gambar! Manakah garis yang menunjukan perpindahan semut?

a)

AB

b)

BC

c)

AC

d)

BA

15.

Panas sebesar 12 kj diberikan pada pada sepotong logam bermassa 2500 gram yang memiliki suhu 30oC. Jika kalor jenis logam adalah 0,2 kalori/groC, tentukan suhu akhir logam!

a)

37,510C

b)

51,370C

c)

35,710C

d)

350C

16.

Jika keempat bejana pada percobaan di atas diisi zat cair yang sama, maka kalor yang paling banyak dibutuhkan untuk mendidihkan zat cair tersebut adalah pada gambar nomor….

a)

1

b)

2

c)

3

d)

4

17.

Satu sendok mentega akan mencair jika dipanaskan, peristiwa ini membuktikan bahwa….

a)

kalor dapat mengubah jenis zat

b)

kalor dapat mengubah wujud zat

c)

kalor dapat diciptakan dan dimusnahkan

d)

kalor dapat menghasilkan zat baru

18.

Yang merupakan contoh perpindahan kalor secara radiasi adalah….

a)

Memasak air sampai mendidih

b)

melengkungnya rel keeta apai terrkena panas

c)

Panasnya api unggun terasa di badan

d)

Panasnya wajan ketika menggoreng

19.

Salah satu faktor yang dapat mempercepat proses penguapan adalah….

a)

memperbesar tekanan

b)

menambah zat pelarut

c)

mempersempit permukaan zat cair

d)

memperluas permukaan zat cair

20.

Angin laut dan angin darat adalah peristiwa yang terjadi akibat perpindahan kalor secara…

a)

Konduksi

b)

Konveksi

c)

Radiasi

d)

Evaporasi

21.

gambar disamping terdapat contoh perpidahan kalor jika kita merasakan panasnya uap air maka perpindahannya secara ...

a)

induksi

b)

konduksi

c)

konveksi

d)

radiasi

e)

pancaran

22.

Perubahan energi yang terjadi pada saat mobil remote control dapat berjalan adalah ....

a)

kimia menjadi gerak menjadi listrik

b)

kimia menjadi listrik

c)

kimia menjadi listrik menjadi gerak

d)

gerak menjadi listrik

23.

Di pagi hari terdapat titik-titik air pada permukaan daun. Peristiwa tersebut terjadi karena proses ....

a)

mencair

b)

menyublim

c)

mengembun

d)

menguap

24.

Contoh perpindahan panas secara konduksi dalam kehidupan sehari-hari adalah ....

a)

dinding luar gelas terasa panas ketika diisi air panas

b)

tangan terasa panas ketika berada di atas api lilin

c)

udara terasa panas saat siang hari yang terik

d)

uap air mengepul saat air mendidih

25.

Kabel listrik pada siang hari terlihat kendur, sedangkan pada malam hari terlihat kencang. Hal tersebut disebabkan oleh ...

a)

pada siang hari terjadi pengerutan

b)

pada malam hari terjadi pemuaian

c)

pada siang hari terjadi pemuaian

d)

pada malam hari terjadi peregangan

26.

Lokomotif pada gambar menggunakan bahan bakar batu bara dan bergerak dengan menggunakan ....

a)

energi listrik

b)

energi kimia

c)

energi panas

d)

energi nuklir

27.

Ibu akan membuka tutup botol seperti tampak pada gambar. Jenis pesawat sederhana yang paling tepat digunakan oleh ibu adalah ....

a)

bidang miring

b)

katrol

c)

pengungkit

d)

roda berporos

28.

Sebuah lilin menyala diletakkan sejajar dengan tiga buah kaca. Cahaya lilin sampai ke mata seperti pada gambar. Hal ini menunjukkan salah satu sifat cahaya, yaitu ...

a)

menembus benda bening

b)

cahaya dapat dipantulkan

c)

merambat dengan arah lurus

d)

cahaya dapat melewati ruang hampa

29.

Planet yang ditunjukkan oleh nomor 5 adalah ...

a)

Saturnus

b)

Uranus

c)

Jupiter

d)

Neptunus

30.

Berikut ini beberapa akibat dari rotasi bumi, kecuali ....

a)

terjadinya gerak semu harian matahari

b)

terjadinya perbedaan waktu

c)

terjadinya siang dan malam

d)

terjadinya pergantian musim

31.

Perhatikan rangkaian percobaan berikut!

Air kapur yang bening berubah menjadi keruh setelah ditiupkan udara pernafasan. Kesimpulan yang diperoleh berdasarkan kegiatan tersebut adalah . .

a)

Mulut mengeluarkan udara bertekanan tinggi

b)

Udara sisa pernafasan mengandung gas oksigen

c)

Udara sisa pernafasan mengandung gas karbondioksida

d)

Pernafasan pada manusia membutuhkan oksigen

32.

Perhatikan gambar berikut!

Sifat cahaya yang dibuktikan dalam percobaan tersebut membuktikan bahwa cahaya dapat . . .

a)

menembus benda bening

b)

dapat dibiaskan

c)

diuraikan

d)

merambat lurus

33.

Gambar berikut yang menunjukkan rangkaian listrik yang disusun seri adalah . . . .

a)
b)
c)
d)

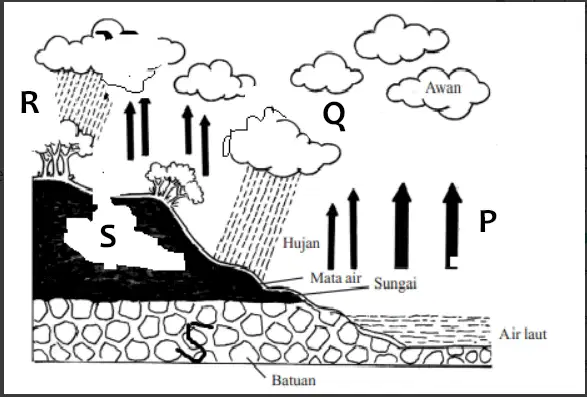

34.

Berdasarkan skema tersebut tahapan daur ulang yang ditunjukkan oleh huruf P adalah . . . .

a)

evaporasi

b)

sublimasi

c)

kondensasi

d)

presipitasi

35.

Perbedaan antara planet dan satelit adalah . . .

a)

Planet mengelilingi matahari, satelit mengelilingi planet

b)

Planet mengelilingi bintang, satelit mengelilingi matahari

c)

Planet mengeluarkan cahaya, satelit tidak memiliki cahaya

d)

Planet mengalami rotasi, satelit mengalami revolusi

36.
a benefit obtained by using a lever (or other simple machine)
a)
lever
b)
advantage
c)
simple machine
d)
effort
37.

Each type of simple machine has some _________ advantage.

a)

speed

b)

mechanical

c)

compound

38.
Mechanical advantage is a measure of how much a machine multiplies the input
a)
efficiency.
b)
force.
c)
power.
d)
work.
39.

The mechanical advantage is based on the _______ of times a machine multiplies an effort force.

a)

performance

b)

duration

c)

number

40.

What is mechanical advantage?

a)

ratio of the power/ work output of the machine to the power input

b)

A measure of how much a simple machine reduces work

c)

A measure of when is the best time to use a simple machine

d)

the ratio of the force produced by a machine to the force applied to it

41.
Mechanical Advantage:  To change the direction of a force.
a)
Wedge
b)
Pulley
c)
Screw
d)
Wheel and Axle
42.
Mechanical Advantage:  To drive objects apart.
a)
Pulley
b)
Inclined Plane
c)
Wedge
d)
Wheel and Axle
43.
Mechanical Advantage:  To reduce the friction of moving something.
a)
Lever
b)
Inclined Plane
c)
Screw
d)
Wheel and Axle
44.
Mechanical Advantage:  To hold things together or to lift an object.
a)
Screw
b)
Pulley
c)
Wedge
d)
Wheel and Axle
45.

gambar dibawah ini yang memiliki KM = 4 adalah ....

a)
b)
c)
d)
46.

besar beban pada gambar adalah ...

a)

1 m

b)

2 m

c)

160 N

d)

30 N

47.

panjang lengan bebannya adalah ...

a)

1 m

b)

2 m

c)

160 N

d)

30 N

48.

panjang lengan kuasanya adalah

a)

1 m

b)

2 m

c)

160 N

d)

30 N

49.

keuntungan mekanik dari tuas di atas adalah ...

a)

1/2

b)

2

c)

160

d)

80

50.

Perhatikan gambar diatas!
Besarnya gaya F2 adalah ....

a)

2.500 N

b)

2.000 N

c)

1.500 N

d)

500 N

51.

Perhatikan gambar diatas !

Besar gaya F yang diperlukan untuk menarik beban adalah ....

a)

4.000 N

b)

2.000 N

c)

400 N

d)

200 N

52.

Perhatikan gambar diatas berikut !

Keuntungan mekanik dengan menggunakan bidang miring tersebut sebesar ....

a)

2

b)

1,5

c)

1,3

d)

0,5

53.

Katrol yang memiliki keuntungan mekanis sama dengan 1 adalah . . . .

a)

katrol rangkap

b)

katrol bebas

c)

katrol tetap

d)

katrol bergerak

54.

berapakah gaya yang di gunakan untuk mengangkat beban 400 N

a)

100 N

b)

200 N

c)

400 N

d)

800

55.

perhatikan gambar. pernyataan yang benar adalah

a)

KM 2 katrol > KM 4 katrol

b)

KM 2 katrol < KM 4 katrol

c)

jika w = 100 N pada 2 katrol, maka F = 200 N

d)

jika w = 100 N pada 4 katrol, maka F = 400 N

56.

gambar dibawah ini yang memiliki KM = 4 adalah ....

a)
b)
c)
d)
57.

Pernyataan yang benar tentang sistem kerja pengungkit sesuai dengan gambar di samping adalah...

a)

(B) titik kuasa dan (AB) lengan kuasa

b)

(A) titik kuasa dan (BC) lengan kuasa

c)

(D) lengan beban dan (BC) lengan kuasa

d)

(C) titik kuasa dan (AB) lengan beban

58.

In a simple machine, what is the load?

a)

point where the lever arm pivots

b)

the force needed to move the load

c)

the mass lifted by a system

d)

the distance the load travels

59.

In a simple machine, what is the effort?

a)

the force needed to move the load

b)

the distance the load travels

c)

the mass lifted by a system

d)

the object being moved

60.

What is the point where the lever arm pivots?

a)

load

b)

fulcrum

c)

mass

d)

effort

61.

What kind of advantage does a moveable pulley provide to lift a 100-lb hay bale?

a)

It will reduce the effort needed to lift the hay bale

b)

It will increase the mass of the hay bale

c)

It will provide no advantage

d)

It will decrease the distance the hay bale will travel

62.

How is a 2-pulley system more beneficial than a 1-pulley system?

a)

It provides less mechanical advantage

b)

It provides greater directional advantage

c)

It provides less directional advantage

d)

It provides greater mechanical advantage

63.
The diagram shows a movable pulley system. When moving a load, this pulley system changes the —
a)
direction of the force.
b)
amount of force needed.
c)
pull of gravity on the load.
d)
overall mass of the rope.
64.
When you carry a heavy box up a ramp, instead of lifting it directly onto a platform:
a)
The amount of work you have to do increases slightly
b)
The amount of work you have to do decreases slightly
c)
The amount of work you have to do decreases significantly
d)
The amount of work you have to do stays the same
65.

How can you reduce the amount of force required to lift an object using an inclined plane (ramp)?

a)

increase the length of the ramp

b)

increase the height of the ramp

c)

decrease the length of the ramp

66.

Sebuah benda dengan massa 40 kg mula-mula dalam keadaan diam. Padanya bekerja sebuah gaya konstan 200 N selama 6 detik. Usaha yang dilakukan oleh gaya tersebut adalah...

a)

12.000 J

b)

15.000 J

c)

18.000 J

d)

24.000 J

67.

Sebuah benda massanya 2 kg mula-mula dalam keadaan diam pada sebuah bidang datar yang licin, kemudian pada benda tersebut bekerja sebuah gaya. Usaha yang dilakukan pada benda sehingga kecepatannya menjadi 8 m/s adalah...

a)

44 J

b)

54 J

c)

64 J

d)

72 J

68.

Seorang yang massa 60 kg menaiki tangga yang tingginya 20 m dalam selang waktu 2 menit. Bila percepatan gravitasi 10 m/s2, berapa daya yang dikeluarkan oleh orang tersebut?

a)

80 watt

b)

100 watt

c)

240 watt

d)

450 watt

69.

Sebuah benda bermassa 4 kg mula-mula diam, kemudian bergerak lurus dengan percepatan 3 m/s2. Usaha yang diubah menjadi energi kinetik setelah 2 sekon adalah...

a)

12 J

b)

24 J

c)

48 J

d)

72 J

70.

Sebuah bola besi massanya 0,2 kg dilempar vertikal ke atas. Energi potensial benda pada ketinggian maksimum adalah 40 Joule. Bila g = 10 m/s2, maka ketinggian maksium yang dicapai benda tersebut adalah...

a)

2 m

b)

4 m

c)

8 m

d)

20 m

71.

Dua buah benda A dan B yang bermassa masing-masing jatuh bebas dari ketinggian h meter dan 2h meter. Jika A menyentuh tanah dengan kecepatan v m/s, maka benda B akan menyentuh tanah dengan energi kinetik sebesar...

a)

1/4 mv2

b)

1/2 mv2

c)

3/4 mv2

d)

mv2

e)

3/2 mv2

72.

Sebuah tongkat yang panjangnya 32 cm dan tegak di atas permukaan tanah dijatuhi martil 8 kg dari ketinggian 50 cm di atas ujungnya. Jika gaya tahan rata-rata tanah 1500 N, banyaknya tumbukan martil yang perlu dilakukan terhadap tongkat agar menjadi rata dengan permukaan tanah adalah...

a)

6 kali

b)

8 kali

c)

10 kali

d)

12 kali

e)

15 kali

73.

Bola baja bermassa m bergerak horizontal dengan kelajuan awal v melalui material pasir. Bila bola itu berhasil masuk menembus pasir sejauh d sebelum akhir berhenti, maka besar gaya gesek rata-rata yang dialami bola tadi adalah...

a)

mv2/d

b)

mv/d

c)

mg

d)

mv2/(2d)

e)

2mv2/d

74.
Which diagram shows a wave with the highest frequency?
a)
A
b)
B
c)
C
d)
D
75.
The flower’s stem appears larger under water because the water —
a)
absorbs light
b)
produces light
c)
repels light
d)
refracts light
76.
This diagram best represents
a)
reflection
b)
refraction
c)
absorption
d)
diffusion
77.
Which color has the highest frequency?
a)
Orange
b)
Red
c)
Blue
d)
Violet
78.
The pictures shows what a student observed when he looked through a hand lens at a penny.
What happens to light passing through a hand lens that makes the image of the penny appear larger? The light is-
a)
absorbed
b)
reflected
c)
refracted
d)
stopped
79.

The arrows in the diagram represent light rays. Which of the following is shown by the diagram?

a)

Light is being absorbed.

b)

Light is being refracted through a lens.

c)

Light is reflecting off a mirror.

80.

The picture shows an area of Yosemite National Park. Which statement about light is supported by this picture?

a)

Light travels in straight lines until it enters a different material like water in a lake.

b)

Light can refract in air and in clear water.

c)

The water in the lake is blue because light forms an image.

d)

Light is reflected off the smooth surface of the lake.

81.

When light rays pass through an object they are being-

a)

reflected

b)

absorbed

c)

transmitted

82.
Students place a pencil in a glass of water as shown. The pencil in the water looks broken because —
a)
water can dissolve pencils
b)
water is colder than air
c)
light bends when it enters the water
d)
light is absorbed when it hits the glass
83.
Two flashlights are turned on. The light rays they create are shown in the diagram. These light rays best illustrate that —
a)
both rays are reflected
b)
both rays are refracted
c)
Ray 1 is reflected and Ray 2 is refracted
d)
Ray 1 is refracted and Ray 2 is reflected
84.
A shiny aluminum screen can be placed on the windshield of a parked car. This screen helps to keep the car cool because it —
a)
reflects the sunlight
b)
absorbs heat
c)
causes evaporation
d)
conducts electricity
85.
Which images are opaque?
a)
A & C
b)
A,C,E, & F
c)
D, E, & F
d)
A & E
86.
Blurs light as it passes through
a)
Transparent
b)
Translucent
c)
Opaque
d)
Refraction
87.
Is the wall transparent, translucent, or opaque?
a)
Transparent
b)
Translucent
c)
Opaque
d)
None of the Above
88.
_____?______ materials do not allow light waves to pass through.
a)
Opaque
b)
Transparent
c)
Translucent
89.
_____?_____ materials allow some light to partially pass through, but not in a straight path.
a)
Opaque
b)
Transparent
c)
Translucent
90.
_____?_____ materials allow light waves to pass through easily.
a)
Opaque
b)
Transparent
c)
Translucent
91.
Which part of an automobile is transparent?
a)
Door Handle
b)
Side Mirror
c)
Hubcap
d)
Windshield
92.

The following diagram shows a driver who could see the image of a vehicle behind him without turning his back.

Why?

a)

Light travels in a straight line

b)

Light is refracted

c)

Light is reflected

d)

Light travels in two different mediums

93.

Diagram shows a phenomenon occurs when the spotlight is directed onto a mirror surface. What is the principle of light shown in the situation?

a)

Light travels in a straight line

b)

Refraction of light

c)

Reflection of light

d)

Light travels in parallel

94.

What causes the formation of a rainbow?

a)

Light travels in a straight line

b)

Reflection of light

c)

Refraction of light

d)

Light in bounced in two different mediums

95.
A student placed a pencil in a cup of water.  The pencil appears broken because light-
a)
always travels in a straight line
b)
bends when it passes through water
c)
makes the water in the glass evaporate
d)
reflects the pencil on the water's surface
96.
The term for any wave that hits a surface and bounces off
a)
Transparent
b)
Translucent
c)
Refraction
d)
Reflection
97.

A _________ forms when the path of light is blocked?

a)

sun

b)

circle

c)

line

d)

shadow

98.

What can you use to see all the different colors in white light?

a)

A flashlight

b)

A shadow

c)

A camera

d)

A prism

99.
Light is a form of ______________________
a)
energy
b)
inertia
c)
currency
d)
sound
100.

Which are properties of light?

a)

Light travels in straight lines and in all directions

b)

Light travels in curved lines and in all directions

c)

Light doesn't travel

d)

light is faster in the water

101.

This is _______________________

a)

a piece of paper

b)

an opaque object

c)

a transparent object

d)

a translucent object

102.

This is _______________________

a)

a piece of paper

b)

an opaque object

c)

a transparent object

d)

a translucent object

103.
The illustration shows a light ray striking an object.
In the illustration, the light ray striking the object is-
a)
absorbed
b)
stopped
c)
reflected
d)
refracted
104.
Why does the lower part of the child appear so much different in size from the upper part?
a)
The light rays that travel through water and then into air are refracted.
b)
The light rays that travel through water and then into air are enlarged.
c)
The light rays that travel through air and then into water are reflected.
d)
The light rays that travel through air and then into water are reduced.
105.
a)
Reflection
b)
Refraction
106.

What happens when light hits a shiny or smooth surface?

a)

It disappears.

b)

It is refracted.

c)

It is absorbed.

d)

It is reflected.

107.

Why doesn’t the surface of a wooden boat reflect light as the surface of water does?

a)

Because the boat's surface is rough and absorbs more light.

b)

Because the surface of the boat is red, not blue.

c)

Because the boat is not a natural object like the water is.

d)

Because the boat is on top of the water's surface.

108.

What color is an object that absorbs all the colors in the light spectrum?

a)

A rainbow

b)

White

c)

Black

d)

Invisible

109.

What is the angle of reflection equal to?

a)

The angle of refraction

b)

The angle of incidence

c)

The angle of absorption

d)

The angle of light

110.

A light ray is incident from water to air. Which of the refracted rays is correct?

a)

A

b)

B

c)

C

d)

D

111.

The line 90 degress through the refracting or reflecting surface is called?

a)

Medium

b)

Normal

c)

Incidence

d)

Reflection

112.
The point where the rays meet is known as....
a)
Fire
b)
the focal point
c)
refraction
d)
Plane of the lens
113.
Which of these are examples of NATURAL sources of light?
a)
Sun
b)
Stars
c)
Lightning
d)
ALL of them
114.
Which of these are examples of ARTIFICIAL sources of light?
a)
Lightbulbs
b)
Neon signs
c)
Televisions
d)
ALL of them
115.

Picture that shows reflection on mirror is ____

a)
b)
c)
d)
116.

This insect is a natural source of light. Can you tell what insect it is?

a)

Mosquito

b)

Dragon fly

c)

Fire fly

d)

Beetle

117.

A leaf is green. What does this tell you about the light that is being absorbed?

a)

The light is a UV ray.

b)

The light is not a part of the light spectrum.

c)

All colors are reflected except green.

d)

All colors are absorbed except green

118.

The following diagram shows the ray diagram when a torch light is torched towards a mirror. Which of the following is the correct reflected ray?

a)
b)
c)
d)
