Physics Data Test Revision Year 10

Total questions: 47

Worksheet time: 2hrs 16mins

Name
Class
Date
1.

If you walk in a square with an edge of 5m, what distance has been travelled? What is your displacement?

4 lines
2.

List the following as scalar or vector quantities - distance, velocity, speed, displacement

4 lines
3.

Draw a vector addition diagram showing the following situation:
A plane flying north at 56.5m/s has a flight attendant moving in the same direction at 1.3m/s. What is the total velocity of the flight attendant?

4.

Draw a vector addition diagram showing the following situation:

A train is moving at 33m/s in an easterly direction, a passenger on the train walks in a westerly direction at 2m/s. What is their net velocity?

5.

Calculate the velocity of the following (express your answer using correct significant figures):

A car travels 55km east in 23min. Calculate the velocity of the car in km/h and m/s.

4 lines
6.

Calculate the velocity of the following (express your answer using correct significant figures):

A bird flies 250m south in 2.7min. Calculate the velocity of the bird in km/h and m/s.

4 lines
7.

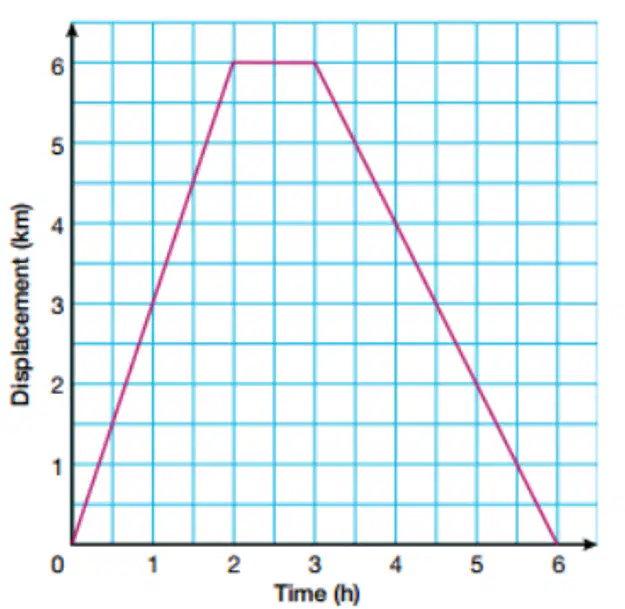

The figure shows the displacement of Steve as he rides his bike. Use this information to find the total distance travelled.

4 lines
8.

The figure shows the displacement of Steve as he rides his bike. Use this information to find his displacement.

4 lines
9.

The figure shows the displacement of Steve as he rides his bike. Use this information to find his speed in the first 2 hours.

4 lines
10.

The figure shows the displacement of Steve as he rides his bike. Use this information to find at which time he was stationary

11.

The figure shows the displacement of Steve as he rides his bike. Use this information to find his average speed in the last 3 hours of his journey.

4 lines
12.

Explain the individual steps in the motion illustrated in this figure.

4 lines
13.

Consider the forces acting on each object shown in Figure 9.3.9. Identify whether the forces acting are balanced or unbalanced.

Categorize the following

Bike

Ship

Person

Leaf

Balanced
Unbalanced
14.

Consider the forces acting on each object shown in Figure 9.3.9. If the forces are unbalanced, predict the direction each object will accelerate.

4 lines
15.

The mass of a Nissan GT-R is 1740kg.

Calculate the net force required for the car to travel with an acceleration of 3m/s2.

Just use numerical values for your response.

16.

Calculate the net force and acceleration of a (box)

a)

30 N with an acceleration of 1.5m/s

b)

20 N with an acceleration of 1.0m/s

c)

40 N with an acceleration of 2m/s

d)

50 N with an acceleration of 2.5m/s

17.

Calculate the net force and acceleration of 'b' (Balloon).

a)

150N with an acceleration of 2m/s

b)

150N with an acceleration of 4m/s

c)

100N with an acceleration of 1.5m/s

d)

100N with an acceleration of 2m/s

18.

Calculate the net force and acceleration of 'c' (car)

4 lines
19.

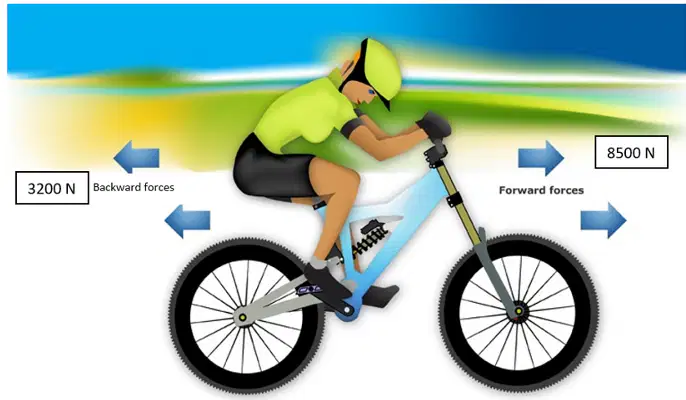

Identifying the opposing forces in the diagram.

4 lines
20.

Calculate the net force and indicate the direction the rider would be travelling.

4 lines
21.

If a bike rider and the bike has a mass of 76kg and a net force of 5300 N, calculate the acceleration.

4 lines
22.

Calculate the kinetic energy of a 80 kg jogger running at 4 m/s

4 lines
23.

Calculate the kinetic energy of a 10000 kg bus travelling at 54km/h

4 lines
24.

Calculate the kinetic energy of a 100g tennis ball hit at 30 m/s.

4 lines
25.

Calculate the gravitational potential energy of a 0.5 kg bird flying 20m above the ground.

4 lines
26.

Calculate the gravitational potential energy of a 20000 kg helicopter hovering 300 m above the ground

4 lines
27.

Calculate the gravitational potential energy of a 2kg money box sitting on a bookshelf at a height of 2m

4 lines
28.

1kg ball is dropped onto concrete from a height of 2m. Calculate its gravitational potential energy before it is dropped.

4 lines
29.

A 1kg ball is dropped onto concrete from a height of 2m. Calculate its kinetic energy as it hits the ground

4 lines
30.

A 1kg ball is dropped onto concrete from a height of 2m. Calculate the speed at which it hits the ground (round to one decimal place)

4 lines
31.

How much work is done when a force of 42.0 N moves an object a distance of 4.0 m in the direction in which the force is applied?

4 lines
32.

In moving an object a distance of 25 m, 200 J of work was done. What was the force that was applied?

4 lines
33.

A girl lifts a box of mass 2.5 kg from the floor to a shelf 3.0 m above the floor. How much work does she do?

4 lines
34.

Calculate the work done when a force of 40.0 N moves an object a distance of 12.0 m in the direction of the force

4 lines
35.

Calculate the work done when a force of 40.0 N moves an object a distance of 200 m in the direction of the force

4 lines
36.

What is the work done when a builder lifts a piece of timber of weight 120 N a vertical height of 6.4 m?

4 lines
37.

What is the work done when 2000 kg of water is pumped through a vertical height of 50.0 m?

4 lines
38.

What is the work done when a worker pushes a heavy box along a rough floor, at a constant speed, against a frictional force of 35 N for a distance of 24 m?

4 lines
39.

Suppose that, in throwing a cricket ball, you do 100 J of work on the ball while you move it 2.0 m. What is the average force that you exert on the ball?

4 lines
40.

How much work is done by a girl who lifts a 6.5 kg bowling ball from the floor to a shelf 2.2 m above the floor?

4 lines
41.

What distance must a 250 kg pile driver fall if it does 1.5 x 104 J of work?

4 lines
42.

A bricklayer loads 1200 bricks, each having a mass of 4.5 kg, from ground level on to the tray of a truck 1.0 m above ground level. How much work is done on each brick?

4 lines
43.

 A bricklayer loads 1200 bricks, each having a mass of 4.5 kg, from ground level on to the tray of a truck 1.0 m above ground level. What is the total amount of work done?

4 lines
44.

A bricklayer loads 1200 bricks, each having a mass of 4.5 kg, from ground level on to the tray of a truck 1.0 m above ground level.

If it takes 75 minutes to do this work, what was the average power that the bricklayer was developing?

4 lines
45.

A runner of mass 60 kg runs up the stairs of a 25 story building at a steady rate in 10 minutes. Each level is 3.2 m above the previous one. Calculate the power developed by the runner.

4 lines
46.

A gardener applies a force of 120 N to push a wheelbarrow 50 m with a constant speed for 20 s. How much work is done?

4 lines
47.

A gardener applies a force of 120 N to push a wheelbarrow 50 m with a constant speed for 20 s. What is the power developed?

4 lines
