Free Printable Woodworking Tools Quiz

1.

At what angle are most plane irons angled?

a)

30°

b)

45°

c)

60°

d)

90°

2.

What is the name of the tool shown in the image?

a)

Block Plane

b)

Jack Plane

c)

Smoothing Plane

d)

Rabbet Plane

3.

What is the length range of a Jack Plane?

a)

250 - 280mm

b)

300 - 330mm

c)

350 - 380mm

d)

400 - 430mm

4.

What is the primary use of a Jack Plane?

a)

Cutting wood

b)

Planing sawn timber with better accuracy than a smoother

c)

Drilling holes

d)

Sanding surfaces

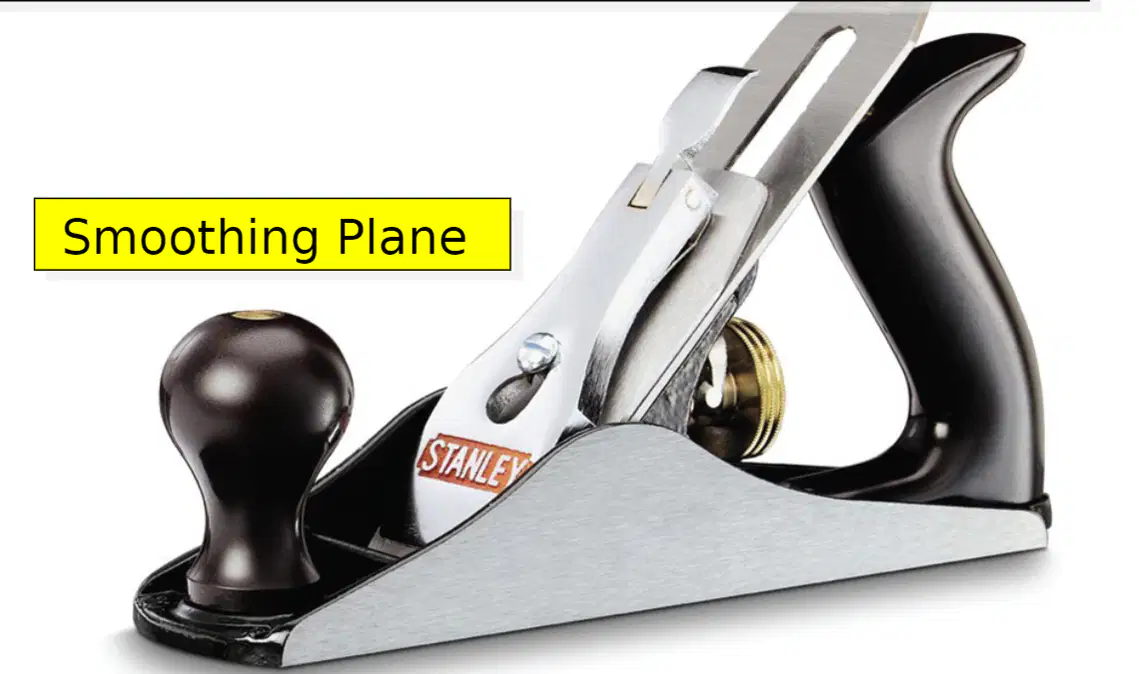

5.

What is the length range of the "sole" of a smoothing plane?

a)

200mm - 220mm

b)

240mm - 260mm

c)

260mm - 280mm

d)

220mm - 240mm

6.

What is the primary use of a smoothing plane?

a)

Cutting metal

b)

Drilling holes

c)

Finishing timber products

d)

Measuring angles

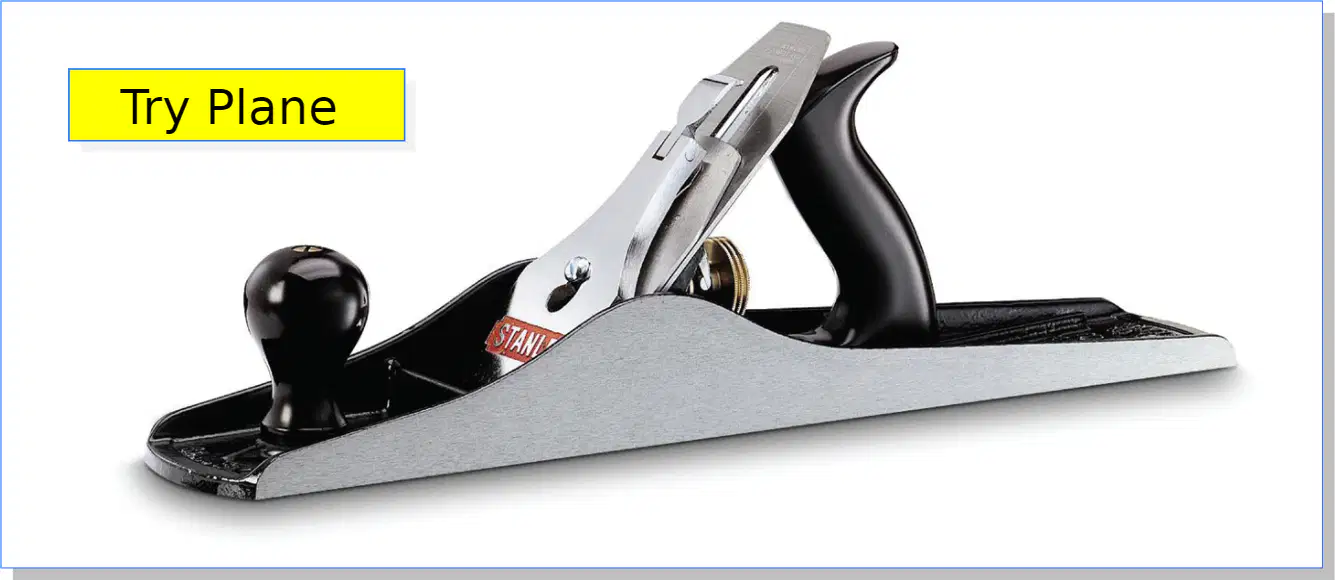

7.

What is the primary use of a Try plane?

a)

Planing long straight edges and jointing timber

b)

Cutting metal sheets

c)

Drilling holes in wood

d)

Sanding surfaces

8.

Why is the Try plane the plane of choice for "shooting" door edges?

a)

Because of its lightweight design

b)

Because of its long sole of 455 - 610 mm

c)

Because of its adjustable handle

d)

Because of its corrugated sole

9.

What feature is available for the Try plane's sole?

a)

A corrugated sole

b)

A rubberized sole

c)

A magnetic sole

d)

A detachable sole

10.

What is the primary use of a block plane?

a)

To cut metal sheets

b)

To give a planed finish to end grain

c)

To drill holes in wood

d)

To sand rough surfaces

11.

What is the approximate cutting angle of a block plane?

a)

15 degrees

b)

25 degrees

c)

35 degrees

d)

45 degrees

12.

What is the function of the Lateral Adjustment Lever in a hand plane?

a)

To adjust the depth of the cut

b)

To adjust the angle of the blade

c)

To secure the blade in place

d)

To adjust the width of the cut

13.

Which part of the hand plane is responsible for adjusting the depth of the cut?

a)

Lateral Adjustment Lever

b)

Cutting Iron

c)

'Y' Adjustment Lever

d)

Adjustment Nut

14.

What is another name for the 'Y' Adjustment Lever in a hand plane?

a)

Thumb wheel

b)

Wishbone

c)

Blade holder

d)

Depth adjuster

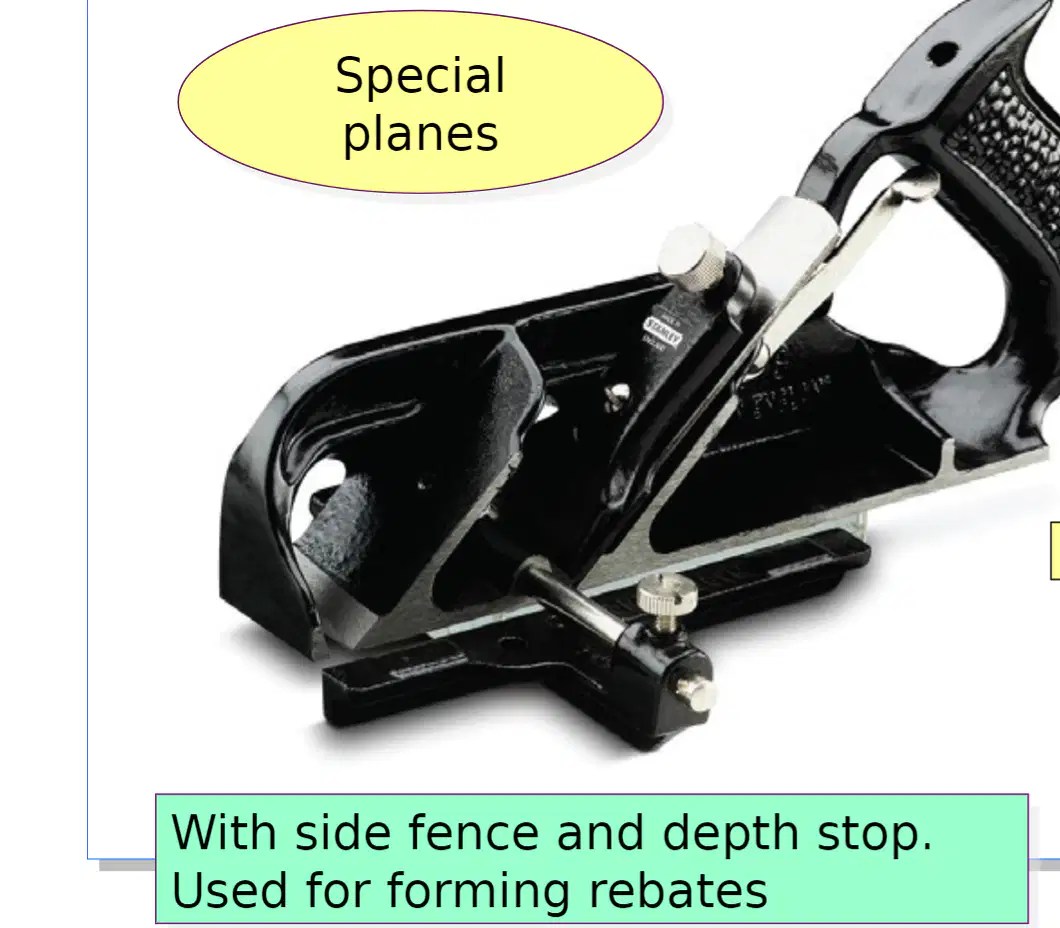

15.

What type of plane is shown in the image?

a)

Jack Plane

b)

Smoothing Plane

c)

Rebate Plane

d)

Block Plane

16.

What is the primary use of the plane shown in the image?

a)

Smoothing surfaces

b)

Forming rebates

c)

Cutting joints

d)

Trimming edges

17.

Which feature is mentioned as part of the rebate plane in the image?

a)

Adjustable blade

b)

Side fence and depth stop

c)

Ergonomic handle

d)

Interchangeable blades

18.

What is the primary use of a shoulder plane?

a)

Cutting large pieces of wood

b)

Fine finishing inside rebates and shoulders

c)

Drilling holes

d)

Sanding surfaces

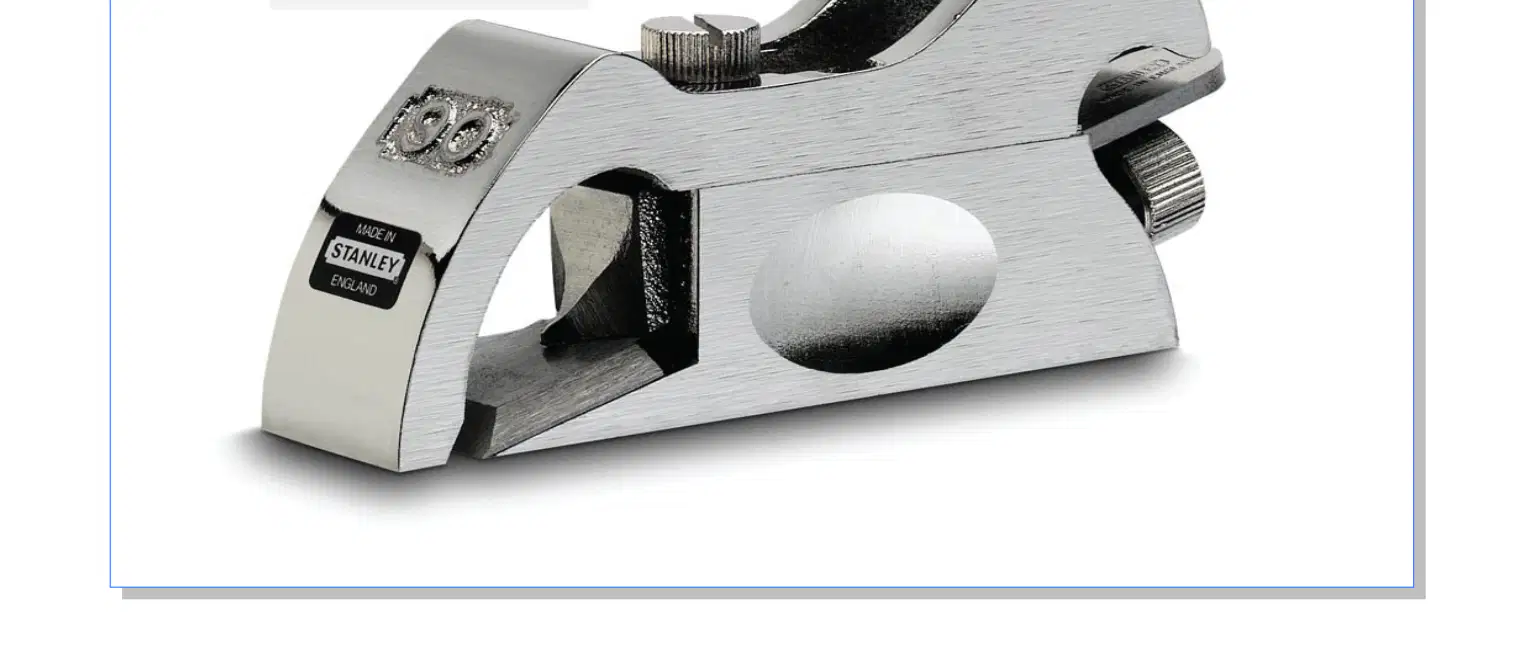

19.

What is the name of the tool that is used as a Shoulder Plane but for confined areas, with the cutting iron close to the "toe end"?

a)

Block Plane

b)

Bullnose Plane

c)

Jack Plane

d)

Smoothing Plane

20.

What is the tool shown in the image commonly called?

a)

$\frac{Open Throat Router}{Hand Router}$

b)

$\frac{Closed Throat Router}{Hand Router}$

c)

$\frac{Electric Router}{Hand Router}$

d)

$\frac{Hand Saw}{Hand Router}$

21.

What is the primary use of the granny’s tooth?

a)

$Cutting\ wood$

b)

for “bottoming out” grooves and trenches

c)

$Sanding\ Surfaces$

d)

$Drilling\ holes$

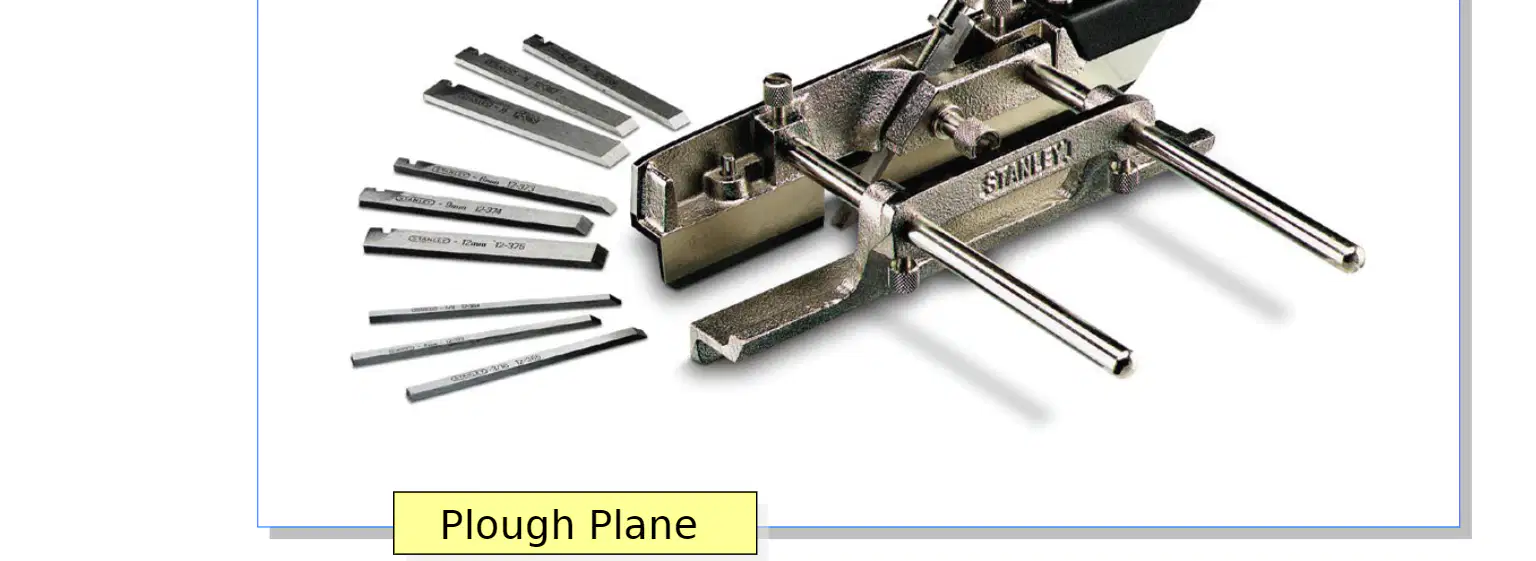

22.

What is the primary use of a plough plane?

a)

Forming grooves

b)

Cutting wood at an angle

c)

Sanding surfaces

d)

Drilling holes

23.

What additional feature does a combination plane offer compared to a standard plough plane?

a)

It can form other moulds using a selection of specialist cutting irons

b)

It can cut metal

c)

It can be used for painting

d)

It can be used for welding

24.

What is the tool shown in the image used for?

a)

Cutting straight lines in wood

b)

Forming curves with a flat sole for convex surfaces or rounded sole for concaved surfaces

c)

Drilling holes in metal

d)

Sanding wooden surfaces

25.

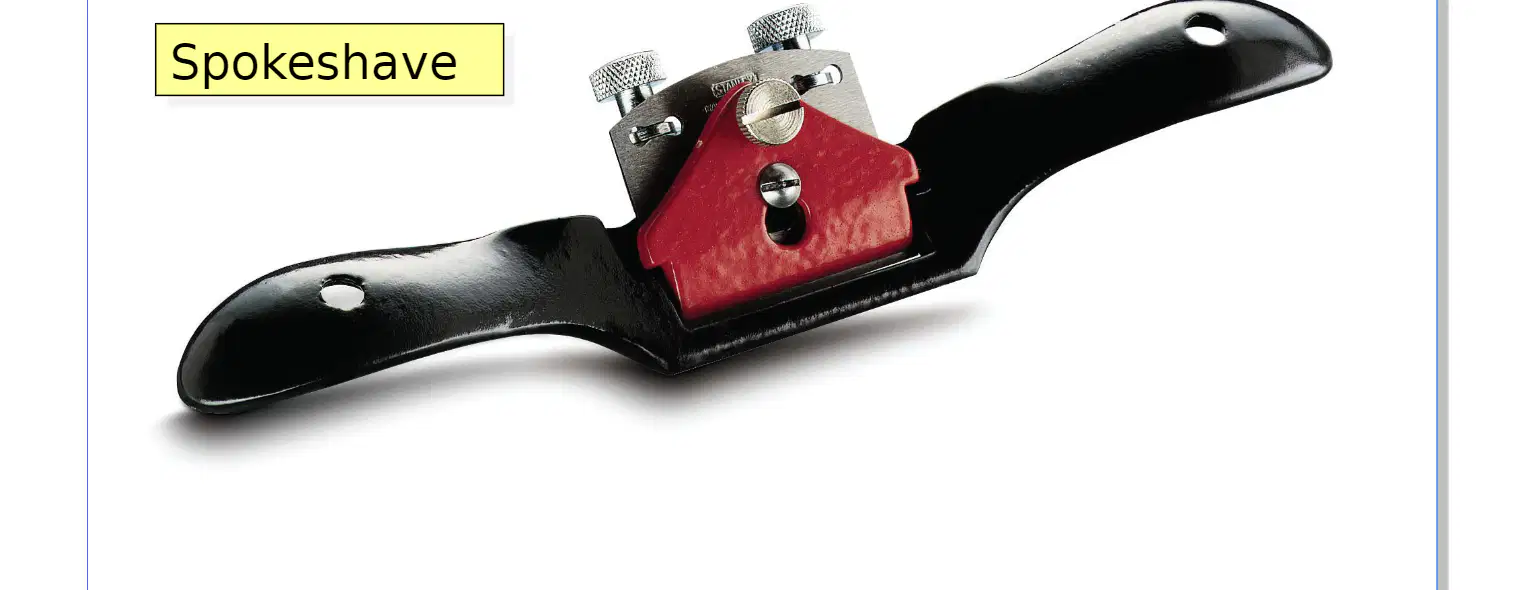

Name a tool that is commonly used for shaping arrisses on timber.

a)

Blockplane

b)

Handrouter

c)

Spokeshave

d)

Chisel

26.

Which tool is best used for cleaning up end grain?

a)

Spokeshave

b)

Blockplane

c)

Handrouter

d)

Chisel

27.

What is the correct name for a granny’s tooth and what is it used for?

a)

Spokeshave

b)

Blockplane

c)

Handrouter

d)

Chisel

Woodworking Tools Quiz

Total questions: 27

Worksheet time: 14mins
