WorksheetsAC1.6 Communication Pipe Quiz
Total questions: 15
Worksheet time: 8mins

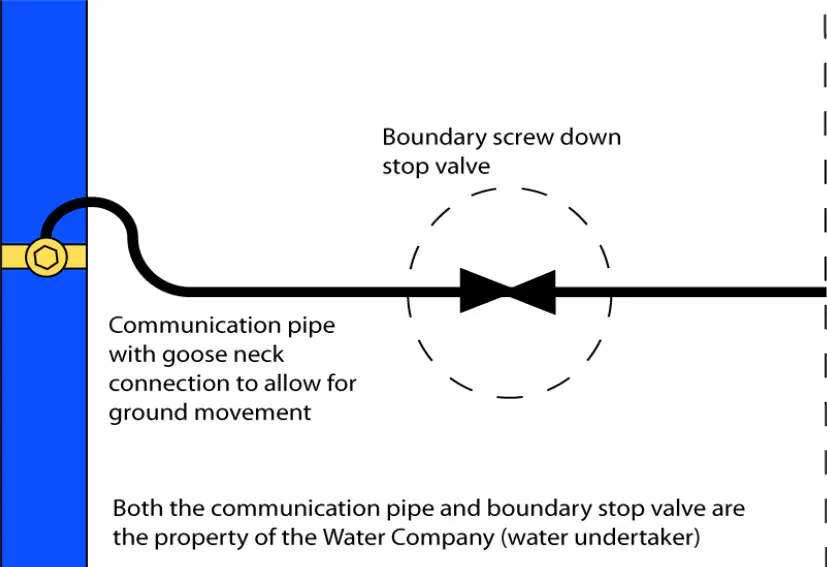

Who installs and owns the communication pipe?
The property owner
The water undertaker
The local government
The construction company
What is the main external stop valve also known as?
The property stop tap
The water main valve
The boundary stop tap
The ferrule stop
What type of ferrule is shown in the diagram?
Steel strap type ferrule
Brass strap type ferrule
Copper strap type ferrule
Aluminum strap type ferrule
What does the arrangement of the supply pipe to buildings sometimes reflect?
The size of the property
The age of the property
The location of the property
The type of water used
What type of meter box is used for externally fitted meters?
Breaker box
Groundbreaker type meter box
Underground box
Wall-mounted box
What is required for an internal water meter installation in existing properties and refurbishments?
It must be fitted according to the Water Supply (water fittings) Regulations 1999.
It can be installed without any regulations.
It should be installed below the drain-off valve.
It must be installed outside the property.
Why is it important to install the drain-off valve above the meter?
To prevent erroneous metering.
To allow water to be drawn before the meter.
To ensure the meter is easily accessible.
To comply with building aesthetics.
What should be avoided to prevent erroneous metering?
Installing the drain-off valve below the meter.
Using a plastic meter.
Painting the meter.
Installing the meter outside.
What is the key regulation mentioned for water meter installation?
Water Supply (water fittings) Regulations 1999
Building Code 2000
Plumbing Standards 2010
Electrical Safety Act 1995
Where should the stop valve be located in relation to floor level?
Below floor level
At floor level
Above floor level
On the ceiling
What is the required condition for a pipe laid in a duct with a solid floor when the distance is less than 750mm?
Duct sealed both ends, insulation required
Duct sealed both ends, no insulation required
Duct not sealed, insulation required
Duct not sealed, no insulation required
For a pipe laid in a duct with a solid floor and a distance of 750mm or more, what is the insulation requirement?
Insulation required
No insulation required
Partial insulation required
Insulation required only at ends
Which type of floor requires insulation for pipes laid in ducts regardless of distance?
Solid floor
Suspended wooden floor
Tiled floor
Concrete floor
Which regulation specifies the protection of water fittings from corrosion?
Schedule 1 Regulation 1
Schedule 2 Regulation 3
Schedule 3 Regulation 2
Schedule 4 Regulation 4
What materials should fittings be made of when installing cold water systems?
Steel or aluminum
Gunmetal or de-zincified brass
Plastic or rubber
Iron or copper
