MT QZ 3

Total questions: 50

Worksheet time: 1hrs 28mins

Name
Class
Date
1.
Which of the following is the MOST suitable foundation on very weak soils such as peat or clay?
a)
Raft
b)
Deep Strip
c)
Trench
d)

Piled

2.
The purpose of a DPM is to protect the;
a)
External wall
b)
Floor
c)
Cavity
d)
Internal wall
3.
Which of the following is the MOST suitable for a non-load bearing wall?
a)
Cavity masonry
b)
Monolithic
c)
Timber studding
d)
Concrete blockwork
4.
Which of the following is not a utility?
a)
Gas
b)
Electric
c)
Water
d)
WiFi
5.

It is a type of pile constructed by digging a hole in the ground by suitable means such as percussive or rotary method with the use of temporary or permanent casing or drilling. It is called?

a)

Precast Concrete Pile

b)

Displacement Pile

c)

Replacement Pile

d)

Timber Pile

6.

Below are the types of Soil Settlements that usually occurs particularly if the soil bearing capacity of the certain area is weak except

a)

Uniform

b)

Differential

c)

Cracking

d)

Tipping

7.

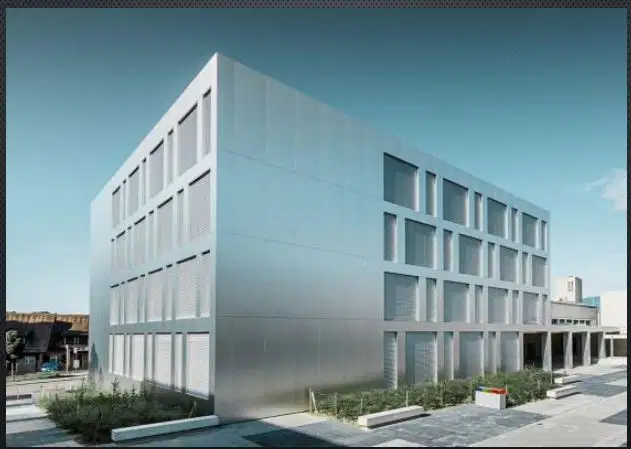

Identify the image
a)

ALUMINUM CLADDING

b)

WOOD SHINGLE ROOFING

c)

WOOD SHAKE ROOFING

d)

WIRED GLASS

e)

WIDE FLANGE

8.
Identify the image
a)

ASPHALT ROOF SHINGLES

b)

ARCHES

c)

APANTILE

d)

ANNEALED GLASS LEHR

e)

ANGLE BRACKET

9.
Identify the image
a)

BARREL OR MISSION TILE

b)

BARREL BOLT (SECURING DEVICE)

c)

BAMBOO ROOF FRAME

d)

ASPHALT ROOF SHINGLES

e)

ARCHES

10.
Identify the image
a)

BASEBOARD DOOR STOPPER (STOPPING DEVICE)

b)

BARREL OR MISSION TILE

c)

BARREL BOLT (SECURING DEVICE)

d)

BAMBOO ROOF FRAME

e)

ASPHALT ROOF SHINGLES

11.
Identify the image
a)

BATTEN SEAM

b)

BATCHING PLANT (BATCHING)

c)

BATCH MIXER

d)

BASEBOARD DOOR STOPPER (STOPPING DEVICE)

e)

BARREL OR MISSION TILE

12.

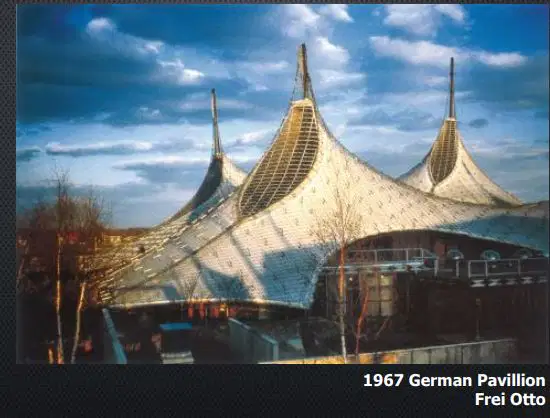

Identify the image
a)

CABLE NET STRUCTURE

b)

BUCKET ROPEWAY (MEANS OF TRANSPORTATION)

c)

BOX BEAM

d)

BOROSILICATE GLASS

e)

BOOM SHOTCRETE

13.
Identify the image
a)

COMPOSITE DECK

b)

CIRCULAR SAW

c)

CHUTE (MEANS OF TRANSPORTATION)

d)

CHIPBOARD FLOORING

e)

CHANNEL SECTION

14.

When renovating an existing building, which of the following material may contain asbestos?

a)

Asphalt Tile

b)

Vinyl Composition tile

c)

Rubber tile

d)

Linoleum

15.

Vernacular term for Laying of CHB

a)

Peleya

b)

Asintada

c)

Paupo

d)

Asinta

16.

How are framed panels assembled and installed on-site?

a)

Pre-fabrication

b)

Pre-casting

c)

Stack-up

d)

Tilt-up

17.

Type of construction method on mountain resorts and rural areas

a)

Clinked Style

b)

Stack log construction

c)

Rammed Earth

d)

Structural Liightweight steel

18.

Brand names of Hardboard:

I. Lawanit

II. Lawanex

III. Masonite

IV. Kalklain

a)

I, II, III

b)

I, II, III, IV,

c)

I, II

d)

I

19.

Compute actual board feet:

10pcs x 3/4'' x 6'' x 10'

a)

38 bf.

b)

39 bf.

c)

37 bf.

d)

36 bf.

20.

Wood processing:

I. Tree felling

II. Storage

III. Transport to sawmill

IV. Breaking down rough sawing in the sawmill

V. Seasoning

VI. Resawing to accurate sizes

VII. Manufacture a product

a)

I, II, III, IV, V, VI, VII

b)

II, III, IV, V,

c)

I, II, III, IV, V,

d)

I, II, III, IV, V, VI,

21.

It is made of small wood chips and base materials including cotton stalk, rice straw, bagasse, conventional wood chips and sawdust that have been pressed and glued together

a)

Particle board

b)

Gypsum board

c)

Cork board

d)

Core board

22.

What is the 'envelope' of a building?

a)

The internal structure of a building

b)

The materials and components that form the building's shell

c)

The decorative elements inside a building

d)

The electrical wiring system

23.

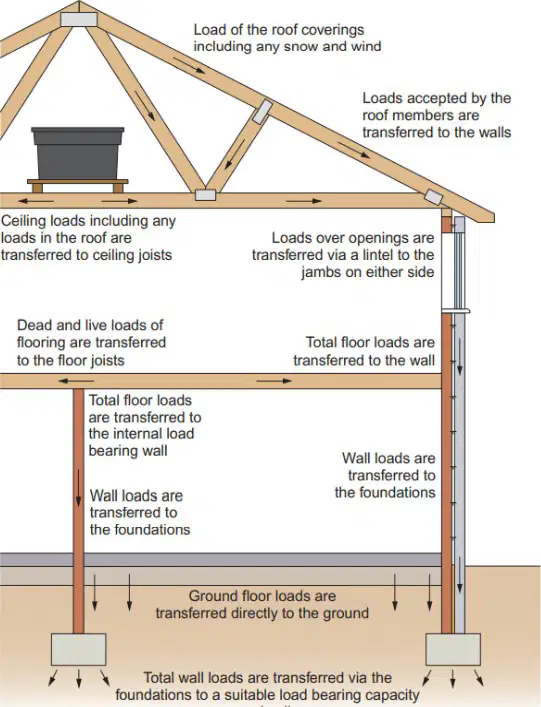

What do roof members transfer to the walls?

a)

Ceiling loads

b)

Floor loads

c)

Loads accepted by the roof members

d)

Ground floor loads

24.

Besides load-bearing, what is another purpose of lintels?

a)

Insulation

b)

Ventilation

c)

Decorative

d)

Soundproofing

25.

Where should weep holes be located in relation to windows?

a)

Below windows

b)

Above windows

c)

Beside windows

d)

Inside windows

26.

What are solid brick or block walls typically used for internally?

a)

Load-bearing walls

b)

Non-load-bearing walls

c)

Decorative walls

d)

Exterior walls

27.

Which of the following is considered a sustainable building material?

a)

Concrete

b)

Bamboo

c)

Aluminium

d)

Plastic

28.

In traditional stone masonry, what is the purpose of using mortar?

a)

To add colour

b)

To bind stones together

c)

To increase weight

d)

To waterproof the structure

29.

What is the main component of traditional lime mortar used in stone masonry?

a)

Cement

b)

Lime

c)

Sand

d)

Clay

30.

Which of the following is a traditional bricklaying technique?

a)

Dry stacking

b)

Flemish bond

c)

Prefabrication

d)

3D printing

31.

Roof slopes doesn’t affect the design loads and requirement of structure based on location and weather.

a)

True

b)

False

32.

The installation and process of a steel roof decking are similar to the steel floor decking, except with the application of waterproofing and additional insulation.

a)

True

b)

False

33.
a)

Steel spiral

b)

Structural spiral

c)

Bearing spiral

d)

Concrete spiral

34.

Pick work on masonry

a)

Piketa

b)

Ladrillo

c)

Lastillas

d)

Pastillas

35.

Drawbore pin

a)

Punsol

b)

Cabilla

c)

Bakal

d)

Tirante

36.

Flooring

a)

Suwelo

b)

Baldosa

c)

Tabla

d)

Balangkas

37.

Window sill

a)

Pasamano

b)

Sombrero

c)

Ladrilyo

d)

Plantilya

38.

Rabbeted door

a)

Vaciada

b)

Plantsa

c)

Kurbada

d)

Roestra

39.

Tread

a)

Baytang

b)

Takip silipan

c)

Tukod

d)

Gabay

40.

Newel post

a)

Tukod

b)

Barandilla

c)

Baytang

d)

Hardinera

41.

What activity is associated with determining site boundaries?

a)

Soil sampling

b)

Demolition methods

c)

Site investigation

d)

Hoarding materials

42.

An iron alloy usually including carbon and silicon which has high compressive strength but low tensile strength.

a)

Cast iron

b)

Wrought iron

c)

Pig iron

d)

Nickel iron

43.

Horizontal exterior roof overhang.

a)

Leader

b)

Downspout

c)

Rake

d)

Eave

44.

The most common material used for roofing of urban residential houses.

a)

CI Sheet

b)

GI sheet

c)

Corrugated sheet

d)

Plastic sheet

45.

Instrument or tool capable of vertical and horizontal line check.

a)

Plumb bob

b)

Levelling plane

c)

Spirit line

d)

Spirit level

46.

Which will you apply last before painting?

a)

Primer

b)

Coating

c)

Neutralizer

47.

What paint is not commonly used for spray painting?

a)

Enamel

b)

Eggshell

c)

Latex

d)

Water-based

48.

What area does not require waterproofing?

a)

Garage

b)

Dining area

c)

Kitchen

d)

Ground floor toilet

49.

Where should the waterproofing be installed?

a)

In between the slab and topping

b)

Above the topping

c)

Above the slab

d)

Under the slab

50.

Who prepares the Bill of Quantity (BOQ)?

a)

Engineer

b)

Architect

c)

Foreman

d)

Owner
