WorksheetsCircles Part 2 Test Review
Total questions: 51
Worksheet time: 27mins
Name
Class
Date
1.
Given the two arc length's, find the value of X -Connor Racine (DP)
a)
100
b)
25
c)
208
d)
50
2.
What is the measure of angle k - the magnificent Liam limbaugh
(a)
3.
Jules is cutting pie to share with her sister. She cuts across the pie twice, forming an X shape. Realizing she cut the slices unequally, she quickly tries to calculate which slice is bigger so she can grab it first.
She knows the X-slices form two opposite 63° angles and that the arc of the slice closest to her measures 70°. With this in mind, which slice should she take, #1 or #2? (OL 7th)
a)
56°
b)
#2
c)
Jules
d)
#1
4.

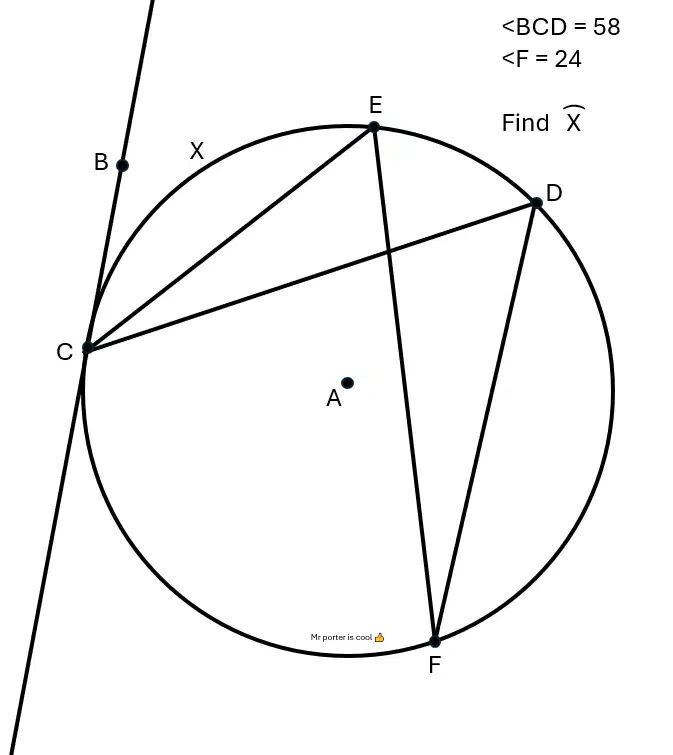

Find Arch X (Devon Ramirez, DDR)
a)
68
b)
123
c)
58
d)
36
e)
24
5.
John the Nefarious Circle has struck again!! all of the people in circle town's mouths have been moved from the edge to the center! but luckily, John the Admirable Circle has created the mouth reconstruction beam, which will return the mouth to its original position! can you help figure out the original angle of the mouth?
C is an inscribed angle
(question simplified in image)
a)
34
b)
68
c)
17
d)
none of the above
e)
sometimes
6.
a)
A - 112
b)
B - 224
c)
C - 56
d)
D - Answer not shown
7.
Question
a)
a)60 b)225 c)145
b)
a)70 b)220 c)140
c)
a)65 b)230 c)140
d)
a)70 b)220 c)145
8.
Find X and Y. - LH
4 lines
9.
DS
a)
a
b)
B
c)
C
d)
D
10.
(a)
11.
Find the length of IR. -JP
(a)
12.
Find the length of the minor arc. -JG
a)
120
b)
60
c)
240
d)
40
13.
IF Arc GB is 10 find x, find angle F the exterior angle. By LF
a)
X=32
b)
X=40
c)
X=8
d)
X=72
14.
Will Moffett-6th Period
Find Arc-BC
a)
45
b)
52
c)
105
d)
60
e)
75
15.
Find X and the measure of angle ADC, select all correct responses - Madison Barkley
a)
X=38
b)
ADC= 52
c)
X=40
d)
X=52
e)
ACD=104
16.
Find the measure of AD- Mia Dean
a)
48
b)
102
c)
24
d)
108
17.
How do you solve for an interior angle - MR
a)
(Arc1+ arc2) / 2 = interior angle
b)
(Big arc - small arc /2)= interior angle
c)
(Arc 1 + arc 2) = interior angle
d)
arc1 + arc2 / 2 = Interior angle
18.
Find minor arc CE, if the exterior angle I is equal to 37 degrees. PNB
a)
158
b)
143
c)
186
d)
217
19.
Find Arc Z -Caleb Sullivan
a)
188
b)
135
c)
167
d)
112
20.
What is the measure of angle BEA? By OUR
a)
75
b)
60
c)
30
d)
80
e)
21.
Find x, the two lines that look like tangents are tangents. by C.L
(a)
22.

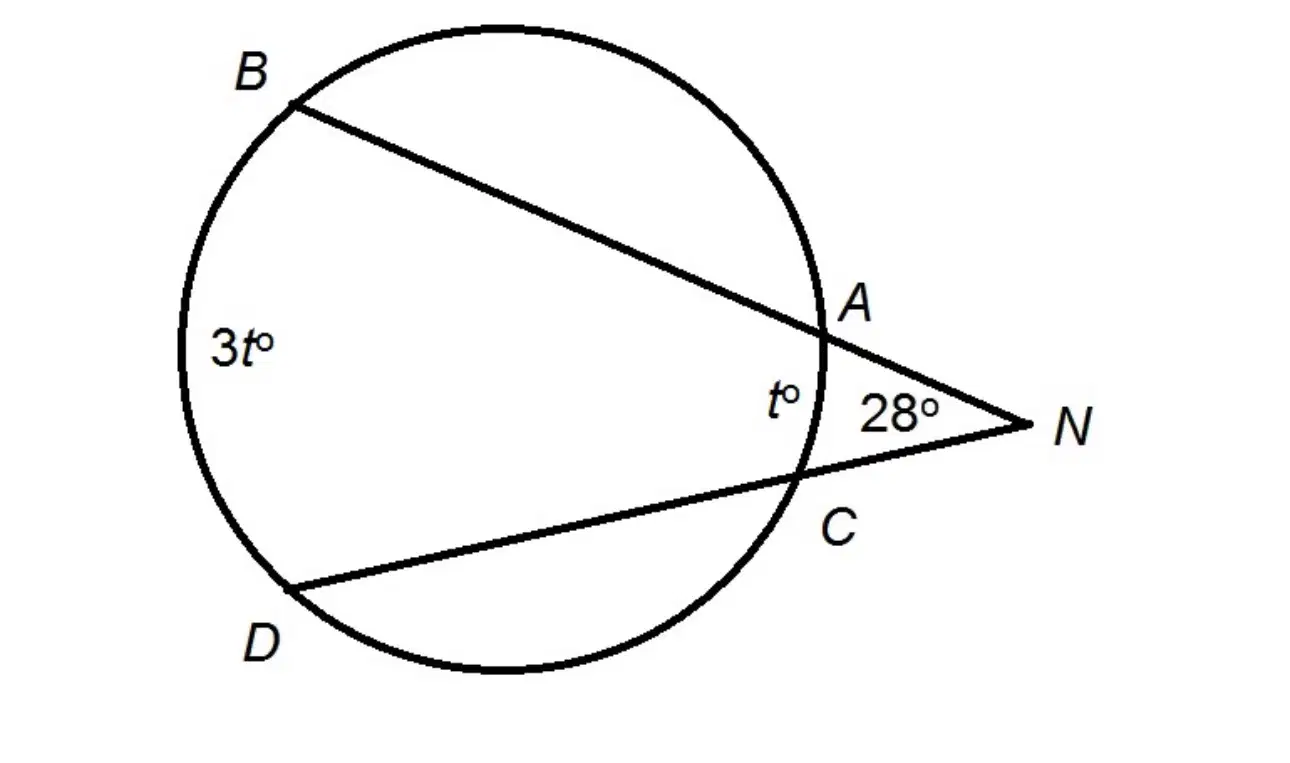

Find t and the angles of arc BD and arc AC
-Cullen M
a)
t=32, AC=32, BD=96
b)
t=28, BD=28, AC=84
c)
t=32, BD=32, AC=96
d)
t=28, AC=28, BD=84
23.
Given the image what is the measure of the Major Arc TDS?
a)
40°
b)
280°
c)
20°
d)
320°
24.

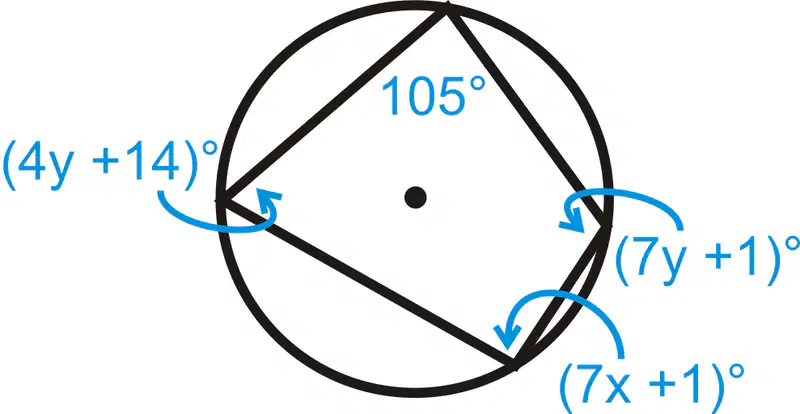

Solve for all angles
Marilyn M.
a)
105, 111, 89, 85
b)
105, 106, 74, 75
c)
105, 105, 75, 75
d)
105, 52.5, 106, 53
25.
What is the value of X? Corinne C
a)
90
b)
45
c)
15
d)
7
26.
Find angle G and angle F. G is the center point. AB is the diameter. By:CEH
a)
80 and 50
b)
40 and 25
c)
160 and 100
d)
8 and 5
27.
Find X (IF)
(a)
28.
What is the value of arc AC of circle O? by-GN
a)
75
b)
180
c)
360
d)
145
29.
a)
180°
b)
82°
c)
164°
d)
165°
30.
How did you get the answers 60 and 145 ?
4 lines
31.
Find the Arc:B and the length of GH
By Elliot Lake
a)
B=52 GH=7
b)
B=60 GH=5
c)
B=90 GH=10
d)
B=30 GH=6
32.
What are the measures of AD and BC?
a)
114 and 155
b)
36 and 72
c)
86 and 314
d)
NEI or not enough information
33.
If chord AC is the diameter, find the measure of angle B.
a)
56 degrees
b)
90 degrees
c)
42 degrees
d)
67 degrees
34.
Angles inside the circle equal twice the measure of the arc they create
a)
Sometimes
b)
Always
c)
Never
35.
Arc CB is (x-8) and arc AB is (3x+6). If angle D 48 find arc CA
a)
162
b)
96
c)
66
d)
41
36.
Mahirah’s question
a)
17.5
b)
18
c)
13.5
d)
4
37.
Find the sum of x+y+z
(a)
38.
Find x question by DT
(a)
39.
Zoe’s Question: Find the measure of the angle YZV
a)
129 degrees
b)
15 degrees
c)
236 degrees
d)
95 degrees
40.
What is the measure of angle AED? -JJ’s Question
a)
120
b)
60
c)
100
d)
55
e)
70
41.
Sometimes, Always or Never. Interior angles are congruent to Central Angles?
a)
Sometimes
b)
Always
c)
Never
d)
I hate these questions. (yes this is a wrong answer)
42.
M
a)
Greater than the angle FAB
b)
Less than the angle FAB
c)
Equal to the angle FAB
d)
Not Enough Information (No picture is given)
43.
Find x, arc RU, m
a)
10°, 101°, 110°
b)
8°, 50.5°, 56°
c)
8°, 101°, 112°
d)
13°, 112°, 101°
44.
there is a pizza split into 8 slices what is the arc angle of one of the crusts
(a)
45.
Mary Grayson’s Question
Jack swam in the circle shaped pool. He swam from point B to point A, then from point A he swam around the arc to point C. After that, he went back to his starting point. If the angle he made was 46 degrees, what is the measure of arc AC?
a)
46 degrees
b)
268 degrees
c)
96 degrees
d)
92 degrees
46.
The alligator makes an inscribed angle with a wheel when trying to have a bite of the wheel as shown in the picture. What is the angle that the alligator makes with the wheel?
- Ethan Bullman
a)
100 degrees
b)
80 degrees
c)
70 degrees
d)
60 degrees
47.
m<A=?
(a)
48.
Eva Hitchcock
Sally’s birthday cake was cut unevenly, she got a much larger slice than her friend Ann. She knows the arc of Ann’s slice is 34 degrees, and she knows the angle of her slice is 48 degrees. What is the arc of Sally’s slice?
a)
164 degrees
b)
22 degrees
c)
62 degrees
d)
96 degrees
e)
49.
Find angle A.
a)
63
b)
21
c)
44
d)
85
50.
Find c.
a)
95
b)
85
c)
47.5
d)
45
51.
Find the value of x in the given diagram.
a)
16
b)
115
c)
16.86
d)
none of these
