WorksheetsCylinder Head Assembly
Total questions: 61
Worksheet time: 33mins
What is one of the functions of a cylinder head assembly?
A) End cap for combustion chamber
B) Store fuel
C) Generate electricity
D) Control vehicle speed
Explain the difference between a two-valve and a five-valve cylinder head.
A two-valve cylinder head has two valves per cylinder, while a five-valve cylinder head has five valves per cylinder.
A two-valve cylinder head has five valves per cylinder, while a five-valve cylinder head has two valves per cylinder.
A two-valve cylinder head has three valves per cylinder, while a five-valve cylinder head has four valves per cylinder.
A two-valve cylinder head has four valves per cylinder, while a five-valve cylinder head has three valves per cylinder.
What is one of the functions of a camshaft?
To regulate the flow of air-fuel mixture and exhaust gases
To cool the engine
To increase fuel efficiency
To provide electrical power
What influences the engine's efficiency and power output?
Design of the cylinder head
Type of fuel used
Color of the car
Brand of the tires
What is the role of the air-fuel mixture in the cylinder head?
Intake and compression
Exhaust and cooling
Lubrication and sealing
Ignition and power generation
What component ignites the air-fuel mixture in the cylinder head?
Spark plug
Fuel injector
Piston
Valve
What pushes the pistons down the cylinder during the power stroke?
Power stroke
Combustion of fuel-air mixture
Intake of air-fuel mixture
Exhaust of burnt gases
What happens to the burned gases in the cylinder head?
Exhausted
Recycled
Compressed
Cooled
What is clamped between the cylinder head and engine block?
Head gasket
Piston
Crankshaft
Camshaft
Which of the following is a characteristic of a head gasket?
Thick metal sheet
Thin metal sheet
Plastic sheet
Rubber sheet
What does the head gasket keep inside?
Combustion pressure, coolant, and oil
Only coolant
Only oil
Only combustion pressure
What does the head gasket distribute?
Air and fuel
Oil
Coolant
Electricity
What are the two materials mentioned for cylinder head design?
A) Steel and Aluminum
B) Cast iron and Aluminum alloy
C) Copper and Aluminum
D) Cast iron and Steel
Why is aluminum alloy preferred for cylinder head design?
A) Heavier
B) Better fuel economy
C) Poor heat conduction
D) Expensive
Fill in the blank: Aluminum alloy is preferred for cylinder head design because it is ________ and offers better heat conduction.
lightweight
heavy
brittle
expensive
What is the purpose of soft plugs in cylinder heads?
To withstand freezing water
To plug holes from the casting process
To increase engine power
To reduce engine noise
What is the position of the valves in an overhead valve (OHV) engine?
Valves positioned directly over top of piston
Valves positioned beside the piston
Valves positioned below the piston
Valves positioned at the bottom of the engine
Which component operates the valves in an overhead valve (OHV) engine?
Camshaft
Crankshaft
Piston
Connecting Rod
In an overhead valve (OHV) engine, what transmits the movement to the rocker arm?
Valve lifter
Camshaft
Crankshaft
Piston
What moves the rocker arm in an overhead valve (OHV) engine?
Pushrod
Camshaft
Crankshaft
Timing Belt
Which of the following is a characteristic of an overhead valve (OHV) engine?
Complex and expensive
Simple and inexpensive
Operated by a belt
Valves positioned below the piston

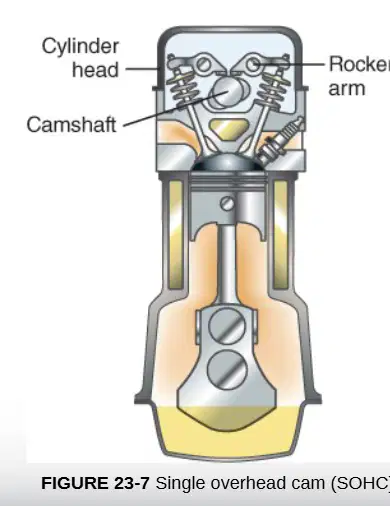

What type of engine is shown in the diagram?
Double overhead cam engine
Single overhead cam engine
Rotary engine
Diesel engine
In a Single Overhead Cam (SOHC) engine, where is the camshaft mounted?
On crossflow heads
On non-crossflow heads
Both A and B
None of the above
Fill in the blank: Non-crossflow heads have a ______ valve train.
compact
complex
simple
advanced

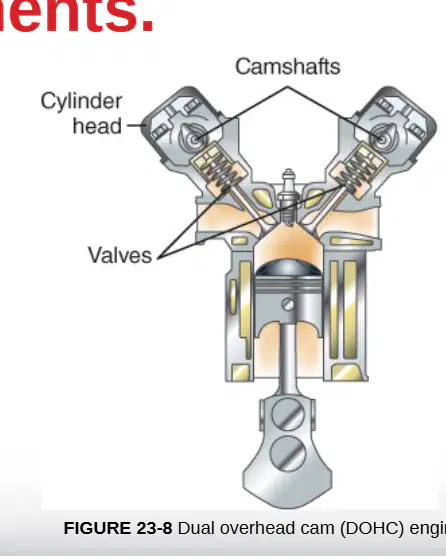

What does DOHC stand for in engine terminology?
Dual Overhead Cam
Single Overhead Cam
Camshaft Overhead Dual
Overhead Valve
How many camshafts are there per cylinder head in a DOHC engine?
Two camshafts
One camshaft
Three camshafts
Four camshafts
In a DOHC engine, one camshaft operates the intake valves. What does the other camshaft operate?
Exhaust valves
Fuel injectors
Spark plugs
Cooling system
In a DOHC engine, intake and exhaust valve timings are controlled together.
True
False
What is a challenge associated with mechanically adjusting a DOHC engine?
Adjusting and servicing valves is more difficult.
It requires less frequent maintenance.
It improves fuel efficiency.
It simplifies the engine design.
What is one factor that affects combustion chamber efficiency?
Shape
Size
Material
Temperature
Which component's positioning is crucial for combustion chamber efficiency?
Where should the spark plug be located for optimal combustion chamber efficiency?
At the center of the combustion chamber
Near the intake valves
Near the exhaust valves
At the edge of the combustion chamber
What placement is important for the efficiency of the combustion chamber?
Water jacket placement
Fuel injector placement
Spark plug placement
Exhaust valve placement
Fill in the blank: The shape of the top of the piston affects the ______ of the combustion chamber.
efficiency
color
size
weight
What does cylinder head design improve in an air-fuel mixture?
Swirl and turbulence
Temperature
Pressure
Volume
Swirl is created by the shape and angle of the ________.
intake port
exhaust valve
combustion chamber
spark plug
What is one type of combustion chamber design?
Hemispherical
Rectangular
Triangular
Cubical
What is one type of combustion chamber design?
Circular
Oval
Square
Hexagonal
What is one type of combustion chamber design?
Wedge
Pyramid
Cone
Cylinder
What is one type of combustion chamber design?
Gas direct injection (GDI)
Liquid injection
Solid injection
Plasma injection

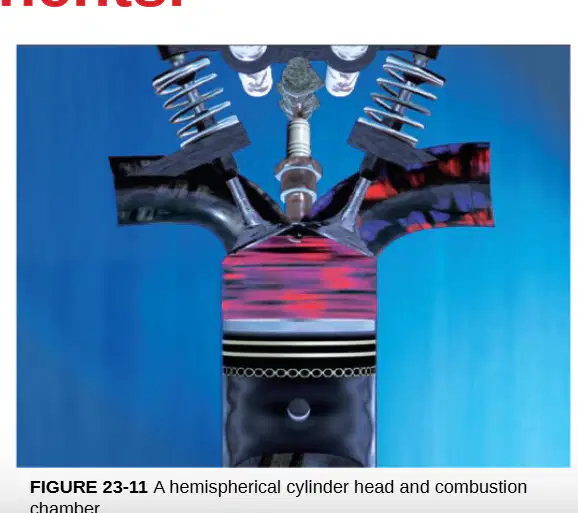

What is the shape of a hemispherical cylinder head?
Square
Semicircle
Triangle
Rectangle
How many valves are there per cylinder in a hemispherical combustion chamber?
One
Two
Three
Four
In a hemispherical combustion chamber, where is the intake valve located?
On the same side as the exhaust valve
On one side of the chamber
In the center of the chamber
Below the exhaust valve

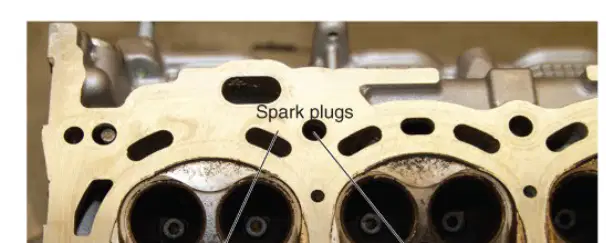

Which type of engines are associated with a Pent-roof cylinder?
SOHC engines
DOHC engines
Rotary engines
Diesel engines
What type of heads do Pent-roof cylinders have?
Single-valve heads
Multi-valve heads
No-valve heads
Dual-valve heads
Pent-roof cylinders have a similar ______ design. Fill in the blank.
crossflow
inline
rotary
turbine
How many valves per cylinder do Pent-roof cylinders typically have?
Two or three
Three or four
Four or five
Five or six
What shape is the pyramid in a Pent-roof cylinder?
A) Triangular
B) Circular
C) Flat rectangular
D) Hexagonal
Where is the spark plug located in a Pent-roof cylinder?
On the side
Centrally located
At the bottom
At the top
Pent-roof cylinders have multiple ______ and/or exhaust valves. Fill in the blank.
intake
spark
coolant
fuel

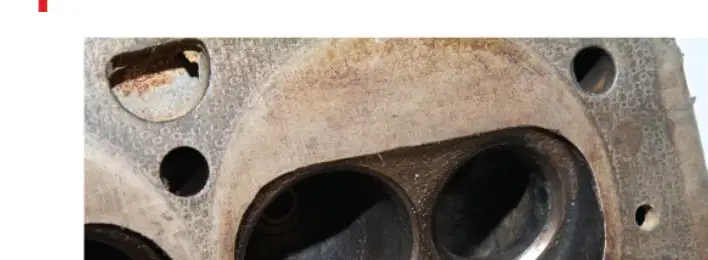

What shape is the oval combustion chamber compared to?
Bathtub
Circle
Rectangle
Triangle
How are the valves mounted in an oval combustion chamber?
Vertically
Horizontally
Diagonally
At an angle
Is the oval combustion chamber a crossflow head?
True
False
What issue can hot spots in the oval combustion chamber cause?
Pre-ignition
Knocking
Overheating
Incomplete combustion

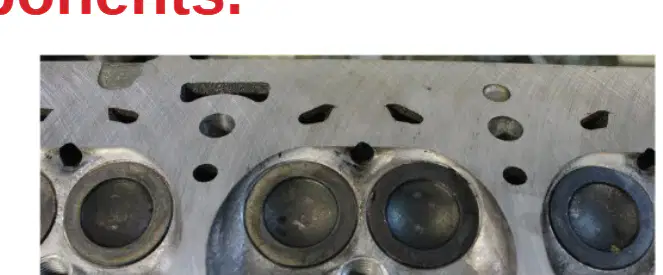

What is one characteristic of a wedge combustion chamber?
A) Tapers towards the spark plug
B) Tapers away from the spark plug
C) Larger combustion chamber surface area
D) Crossflow
The wedge combustion chamber has a (a) combustion chamber surface area.
Which of the following is true about the wedge combustion chamber?
Crossflow
Non-crossflow
Increases hydrocarbon emissions
Slows down velocity of the flame front
The wedge combustion chamber speeds up the velocity of the ______.
Flame front
Air intake
Exhaust gases
Fuel mixture
What is the latest cylinder head design mentioned in the image?
Gas direct injection (GDI) cylinder head
Turbocharged cylinder head
Variable valve timing (VVT) cylinder head
Multi-valve cylinder head
What controls the injection sequence in a GDI cylinder head?
Computer controlled injection sequence
Manual timing adjustment
Fuel pressure regulator
Ignition coil
What is one environmental benefit of using a GDI cylinder head?
Reduced emissions
Increased fuel consumption
Higher engine noise
More frequent maintenance
