WorksheetsReview
Total questions: 22
Worksheet time: 16mins
Name the tool
Marking blue
Scriber
Spring dividers
Vee block
name the tool
Surface gauge
Spring dividers
Vee block
Ball peen hammer
name the tool
Punch
Engineer’s square
Scriber
Angle plate
Which statement could represent the accuracy and precision of the results shown below when shooting arrows to a target?
High Accuracy and low precision
High Accuracy and High precision
Low Accuracy and low precision
Low Accuracy and low precision
To avoid back strain, the vice bench correct height should
be as ______________?
Head height
Knee height
Elbow height
shoulder height
Types of File Cut
Double cut
Curved
single cut
Rasp
Type of fire extinguisher Ingredient
Chemical
CO2
dry powder
water
Type of fire extinguisher Ingredien
Dry powder
water
CO2
Chemical

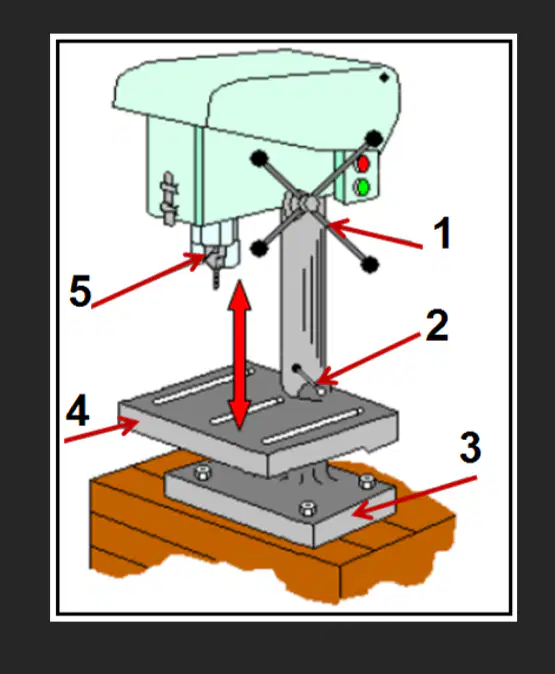

Identify the main parts of the drill machine. Name number 1
Handle
Base
Table
Vrtical handle

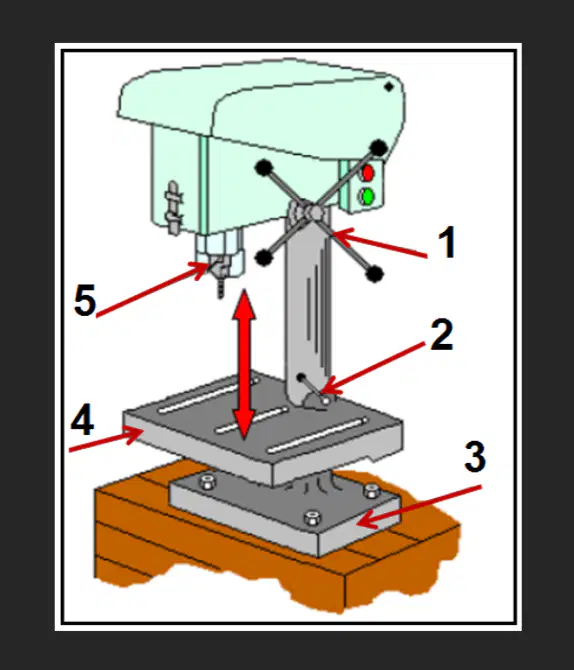

Identify the main parts of the drill machine. Name number 3
Table
Handle
Base
Vrtical handle
write me 2 typical injuries from using power tools?
Hammers are unsafe to use if they have __________ faces as shown in the picture below.
Flat
Mushroom
Pointed
Sharp
From the Fig. below what is the tolerance
70.1 mm
0.4 mm
69.7 mm
0.1mm
What is the primary purpose of a caliper?
Measuring weight
Measuring depth
Measuring angles
Measuring length
What is the function of a micrometer?
Measuring volume
Measuring thickness
Measuring temperature
Measuring weight
Which tool is primarily used for marking out materials?
Marking gauge
Chisel
Drill
File
What is the primary use of a protractor?
Measuring angles
Measuring temperature
Measuring weight
Measuring length
What is the primary use of a chisel?
Drilling holes
Marking lines
Measuring angles
Cutting materials
What is the primary function of a drill press?
Marking lines
Drilling holes
Cutting materials
Measuring angles
What is the primary use of a file?
Cutting materials
Measuring angles
Drilling holes
Marking lines
Which tool is used to measure the internal diameter of a hole?
Caliper
Micrometer
Vernier scale
Depth gauge
What is the function of a level?
To cut materials
To ensure surfaces are horizontal or vertical
To measure angles
To mark lines
