WorksheetsUnit 1 Robotics Learning Material Quiz
Total questions: 100
Worksheet time: 1hrs 15mins
What is the title of Unit 1 in the provided learning material?
Introduction to Programming
Introduction to Robotics
Introduction to Mathematics
Introduction to Physics
Which lesson is mentioned in the image?
Lesson 1: The Speedbot – Motors
Lesson 2: The Speedbot – Sensors
Lesson 3: The Speedbot – Frame
Lesson 4: The Speedbot – Programming
What is the primary function of the V5 Brain in a robot system?
To display information and run user programs, controlling devices connected to the brain.
To provide power to the robot's motors only.
To act as a remote control for the robot.
To store only one user program at a time.
Which processor does the V5 Brain use in combination with an FPGA?
Cortex A9
Intel i7
ARM Cortex M0
AMD Ryzen 5
How much faster is the V5 Brain compared to its predecessor?
15 times faster
2 times faster
5 times faster
10 times faster
What is the maximum number of user programs the V5 Brain can store?
8
2
16
4
What is the role of the FPGA in the V5 Brain?
To work with smart port devices and control the screen
To provide wireless communication
To power the robot's motors
To store user programs
What do the built-in sensors in V5 Smart Motors measure?
Rotation, rotational speed, current draw, power, temperature, and torque
Only temperature and torque
Only rotational speed and power
Only current draw and temperature
What is the function of the V5 Robot Radio?
It allows the V5 Robot Brain to communicate with other devices
It measures the temperature of the robot
It powers the V5 Smart Motors
It stores VEX Coding Studio programs
How is all wireless communication to the V5 Robot Brain accomplished?
Through the radio
Through the motors
Through a wired connection
Through the sensors
Which of the following is NOT measured by the V5 Smart Motor's built-in sensors?
Light intensity
Rotation
Power
Temperature
What is the main purpose of the V5 Robot Battery?
To work together with the V5 Robot Brain and Smart Motor(s) to power a consistent and reliable performance, even when the battery charge is low.
To provide wireless communication for the robot.
To store programming data for the robot.
To control the robot's sensors.
What type of battery is the V5 Robot Battery?
Li-Ion 1100mAh
NiMH 2000mAh
Alkaline 1500mAh
Lead-acid 1200mAh
How many V5 Smart Motors can the V5 Robot Battery power at full power continuously?
Ten
Five
Twenty
Fifteen
What is the function of Battery Clips in the V5 Robot system?
They allow the battery to be mounted on the robot.
They increase the battery's voltage.
They charge the battery.
They connect the battery to the motors.
What is the function of battery cables in a robot?
They connect the battery to the robot brain
They connect the robot brain to the computer
They connect the wheels to the robot brain
They connect the sensors to the robot brain
Which type of cable connects the robot brain to the computer?
HDMI cable
Micro-USB cable
Ethernet cable
Power cable
What does a port cable do in a robot system?
Connects the battery to the robot brain
Connects the brain to the computer
Connects many parts of the robot to the robot brain
Connects the robot to the internet
Why is cable management important in robot design?
To ensure cables do not interfere with robot operation
To make the robot look more colorful
To increase the weight of the robot
To reduce the number of cables needed
What is a recommended method for attaching cables to the structure of a robot?
Using zip ties
Using glue
Using rubber bands
Using magnets
Why is labeling cables helpful when working with robots?
It helps when making repairs or creating programs
It makes the cables heavier
It changes the color of the cables
It increases the cable length
What can happen if a cable used in a robot is too long?
It may get snagged on field elements or entangled with other robots
It will improve the robot's speed
It will make the robot more stable
It will reduce the need for cable management
What is a potential problem with using a cable that is too short in a robot?
It may become disconnected when the robot is moving
It will make the robot faster
It will increase the robot's battery life
It will make the robot more colorful
Which of the following parts do you need to collect only one of, according to the list?
V5 Smart Motor
V5 Battery Clip
Robot Brain
V5 Smart Motor
How many V5 Smart Motors are required to be collected?
1
2
3
4
Which part is needed in a quantity of two according to the list?
V5 Battery
V5 Radio
V5 Battery Clip
Battery Cable
Which of the following is NOT listed as a required part in the image?
V5 Battery
V5 Radio
Robot Arm
Battery Cable
Which of the following statements is true about larger wheels compared to smaller wheels in V5?
Larger wheels go slower than smaller wheels.
Larger wheels go the same distance as smaller wheels.
Larger wheels go farther and faster than smaller wheels.
Larger wheels cannot be used in V5.
What is a unique feature of omni-wheels?
They can only move forward and backward.
They have built-in rollers that allow side-to-side movement.
They are the largest wheels available.
They are only used for decoration.
What capability do mecanum wheels provide to a robot?
Only forward movement
Only backward movement
Forward, backward, strafe, and rotate in place
Only rotation in place
Which type of wheel allows a robot to move side-to-side with ease?
Standard wheels
4" wheels
Omni-wheels
2.75" wheels
How many analog joysticks and buttons does the V5 Controller have?
Two analog joysticks and 12 buttons
One analog joystick and 10 buttons
Three analog joysticks and 8 buttons
Two analog joysticks and 8 buttons
What type of screen does the V5 Controller have?
Monochrome LCD screen
Color LED screen
Touchscreen display
OLED screen
What is the primary function of the V5 Controller?
To control the robot and communicate wirelessly to the brain
To charge the robot’s battery
To display video games
To store programming code
Which wireless technologies can the V5 Controller use to communicate with the robot brain?
VEXnet or Bluetooth
Wi-Fi or NFC
Infrared or Zigbee
LTE or 5G
How many 4-inch wheels are required to be collected according to the instructions?
2
3
4
1
Which type of wheel is needed in a quantity of two, besides the regular 4-inch wheel?
4-inch Omni Wheel
5-inch Wheel
3-inch Wheel
6-inch Omni Wheel
How many 300mm V5 Smart Cables are required to be collected?
3
2
1
4
What is the name of the controller that needs to be collected?
V5 Controller
V4 Controller
VEX IQ Controller
VEX Pro Controller
Which of the following is NOT listed as a required part in the instructions?
VEX IQ Controller
4-inch Wheel
4-inch Omni Wheel
V5 Controller
Which part is shown in the image with a display screen and buttons?
V5 Controller
4-inch Wheel
4-inch Omni Wheel
300mm V5 Smart Cable

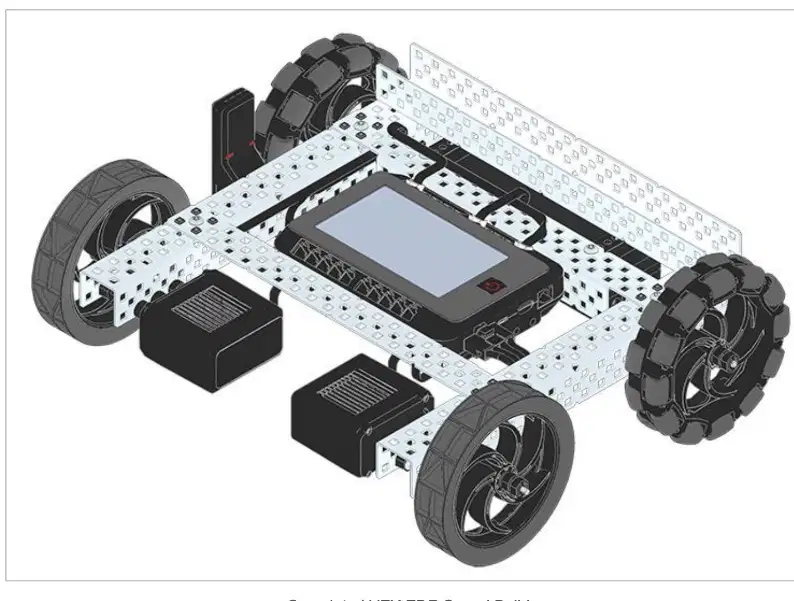

What is the primary purpose of the speedbot mentioned in the learning material?
To be used for multiple projects in the future.
To be used only for a single project.
To be used as a decorative item.
To be used for cooking demonstrations.
How is the speedbot designed to be operated?
It can be driven autonomously or with the V5 Controller.
It can only be driven manually.
It can only be operated by voice commands.
It can only be used underwater.
What is a key feature of the speedbot's design?
It can be built quickly.
It requires months to assemble.
It is designed for aerial flight.
It is only for display purposes.
What is the main purpose of technical drawings?
To show a design to scale
To create artistic images
To write instructions
To display advertisements
What does an exploded view in a technical drawing show?
All the parts and their relationship between other parts, and the order of assembly
Only the final assembled product
The color scheme of the design
The cost of each part
Which of the following is NOT typically shown in an exploded view?
The cost of each part
All the parts of the assembly
The relationship between parts
The order of assembly
Which material is used for the parts listed in the exploded view example?
Steel
Plastic
Wood
Aluminum

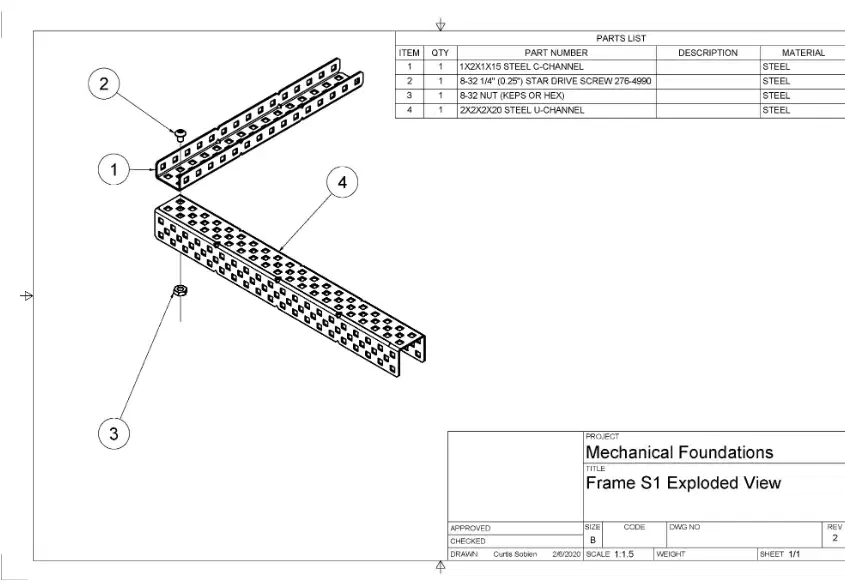

What is the title of the project shown in the exploded view example?
Mechanical Foundations
Electrical Circuits
Chemical Reactions
Architectural Design

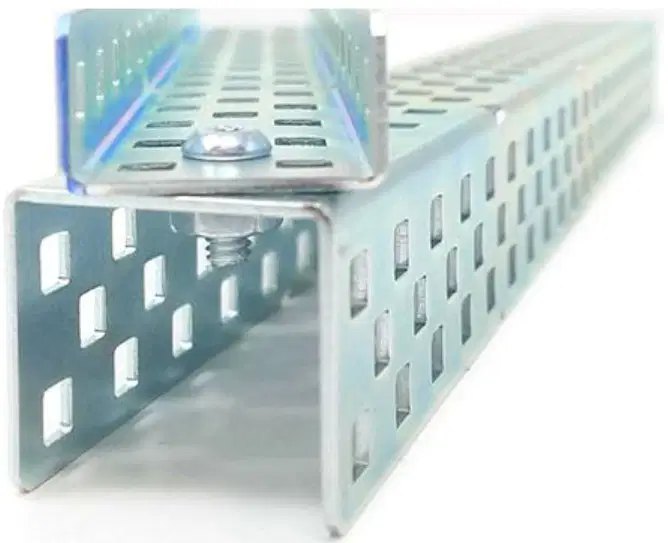

What is the main function of a nut and bolt when attached correctly?
To sandwich other pieces together and prevent them from coming apart.
To make the plates look more attractive.
To allow the plates to move freely.
To make the plates heavier.
Why does the threading on a screw make it difficult for plates to pull apart?
It increases friction and holds the plates together.
It makes the plates slippery.
It reduces the strength of the plates.
It allows the plates to rotate easily.
What can happen if you twist a nut and bolt that are holding plates together?
The nut may turn and come back off.
The plates will melt.
The screw will break in half.
The plates will become magnetic.
Why is it important to know the different types of malfunctions that can occur with nuts and bolts?
To be able to describe and watch out for them
To ignore them
To make repairs more difficult
To avoid using nuts and bolts altogether
What are some components mentioned that can malfunction in various ways?
Threaded components such as nuts and bolts
Plastic containers
Wooden planks
Rubber bands

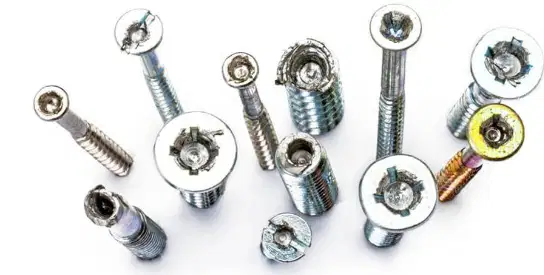

What does "stripping" generally refer to in the context of tools and fasteners?
The action of wearing a component down to the point where it is difficult to use
The process of painting a tool
The act of cleaning a fastener
The method of sharpening a tool
What can happen to tools after repeated or incorrect use?
They can get worn out and become ineffective
They become sharper
They get stronger
They change color
What is an example of a tool part that can wear down and become ineffective due to stripping?
The end of a star drive key
The handle of a hammer
The blade of a saw
The grip of a plier
What does it mean to "strip" the metal on a tool?
To remove enough metal so the tool no longer works
To polish the tool for better appearance
To add extra metal for strength
To paint the tool for protection
What is the ideal solution to fix a stripped tool according to the material?
Replace the tool altogether.
Sharpen the tool.
Paint the tool.
Use the tool with more force.
What temporary solution is suggested for star drive keys that have a stripped end?
Cut off the stripped end and use the shorter key.
Heat the key and reshape it.
Coat the key with oil.
Use the key upside down.
Why is it more difficult to fix a wrench once it has worn out?
Because it is best to simply replace the tool altogether.
Because it can be easily sharpened.
Because it can be painted.
Because it can be used for other purposes.
What can happen to parts and fasteners if they are tightened many times repeatedly?
They can become stripped and worn out.
They become stronger.
They change color.
They become magnetic.
Why do holes in the tops of socket or button head bolts, especially smaller ones, get stripped easily?
Because they are made of plastic.
Because star drive keys become ineffective.
Because they are too large.
Because they are painted.
What should you do when fasteners begin to strip?
Replace them to prevent getting stuck in an assembly.
Tighten them more.
Paint them.
Ignore the problem.
Why is it especially important to be careful with smaller bolts or screws?
They strip more easily and special tools may be needed to remove them.
They are more expensive.
They are always made of gold.
They are never used in assemblies.
What is recommended to do in case stripping of tools or parts occurs while working with them?
Ignore the problem and continue working
Be prepared by having extra parts and tools, and address it as soon as possible
Wait for someone else to fix it
Only replace the tool, not the part
Why is it important to be prepared for stripping of tools or parts?
Because it never happens
Because it only happens to beginners
Because stripping can happen accidentally or not, and being prepared helps address it quickly
Because tools are always faulty
What can help determine if stripping happened on the tool-side or the part-side?
Guessing based on experience
Using simple methods
Ignoring the issue
Replacing both the tool and the part without checking
What is a common sign that a tool or part is stripped?
The key doesn’t feel like it’s “catching” the screw and is turning loosely.
The tool makes a loud noise.
The screw becomes larger.
The tool changes color.
How can you test if your tool or part is stripped?
Test the tool on another part, such as using the star drive key on a different screw.
Shake the tool vigorously.
Heat the tool before use.
Paint the tool and observe changes.
If the tool is catching on other screws, what does this indicate?
The prior screw is affected, or vice versa.
The tool is brand new.
The screw is made of plastic.
The tool is too small for the screw.
What should you do whenever you are able to remove stripped tools or parts?
Replace them immediately.
Store them for future use.
Clean them and reuse.
Paint them for identification.
What should you do if the star drive key is spinning around a screw head much easier than usual, or if a screw seems more difficult to use?
Continue using the same tool or part
Stop and assess the situation, and use a different tool or part
Apply more force without changing anything
Ignore the problem and finish the task quickly
Why is it important to make sure you have enough tools or parts when working with screws?
To avoid having to stop and assess the situation
To ensure you can replace tools or parts if they become difficult to use
To make the task more challenging
To use up all available resources
What is cross threading?
Forcing a part into a hole against the direction of the threading
Screwing a part in the correct direction
Using a screwdriver to tighten a bolt
Removing a screw from a hole
What should you do if it is harder than usual to screw a part into a hole or it doesn’t look like it is going in straight?
Screw it back out and try again
Keep forcing it in
Use a hammer to push it in
Ignore it and continue
What is likely happening if a part is difficult to screw into a hole and does not appear to be going in straight?
The part is cross threading
The screw is too small
The hole is too large
The material is too soft
Why is it important to stop and try again if you suspect cross threading?
To prevent damage and ensure safety
To save time
To use fewer tools
To make the process faster
What is shearing in the context of parts and tools?
Putting a force on an object that causes a material to break or fail.
Heating a material until it melts.
Painting a surface to protect it.
Cooling a material to make it stronger.
Which of the following actions can cause shearing of parts and tools?
Overtightening, over twisting, or overusing them.
Painting them regularly.
Storing them in a cool place.
Cleaning them with water.
How can you help prevent shearing of components?
Recognize when components have been used for a long time and when they seem to be wearing out.
Always use the oldest components.
Never replace any parts.
Ignore signs of wear and tear.
What should you do if one of your components or fasteners shears?
Try your best to remove it and replace it.
Leave it in place and continue using it.
Paint over the sheared area.
Ignore the problem.
What might be necessary if a sheared piece is completely stuck?
Get an entirely new component or use tools like pliers to get the sheared piece completely unstuck.
Hit it with a hammer until it moves.
Pour water on it to loosen it.
Leave it and use the equipment as is.
What is the purpose of performing a basic hardware test using the VEX V5 Brain?
To ensure that the major robotic components are working properly.
To charge the battery.
To update the software.
To clean the components.
Which of the following is NOT listed as a part to find in your inventory?
V5 Smart Cable
V5 Traction Wheel
V5 Brain
Screwdriver
Which component is used to connect other parts to the VEX V5 Brain?
V5 Smart Cable
Battery Cord
Axel
V5 Traction Wheel
What is the function of the V5 Brain in a robotic system?
It controls and tests the major robotic components.
It provides power to the system.
It acts as a wheel for movement.
It connects cables together.
Which part is specifically mentioned as being present in a quantity of four?
V5 Motors
V5 Traction Wheel
Battery Cord
Axel
Which of the following images would you expect to see in a VEX V5 robotics inventory?
V5 Traction Wheel
Screwdriver
Light Bulb
Monitor
What is the first step when connecting the motor as described in the instructions?
Attach the axle and wheel to your motor.
Plug the motor into Port 1.
Connect the wires as shown below.
Turn on the control unit.
After plugging the motor into Port 1, what should you do next?
Disconnect the wires.
Attach the axle and wheel to your motor.
Plug the motor into Port 2.
Turn off the control unit.
What is the primary function of the built-in motor encoders in VEX V5 Smart Motors?
To track a robot's rotational position and velocity.
To increase the speed of the motor.
To reduce the power consumption of the motor.
To change the direction of the robot.
How can you view the data collected by your Smart Motor on the robot Brain?
By tapping the Devices option.
By pressing the power button.
By selecting the Settings menu.
By connecting to a computer.
What should you do after selecting the Devices option to test the motor?
Select the motor icon.
Turn off the robot.
Press the reset button.
Change the battery.
How do you run the motor using the robot Brain interface?
By tapping on the left or right blue arrows.
By pressing the red button.
By rotating the screen.
By disconnecting the motor.
What should you observe when you tap on the blue arrows on the robot brain's screen?
The wheel should move.
The screen should turn off.
The robot should make a sound.
The lights should blink.
After testing one motor using the Robot Brain, what should you do next?
Repeat the process for the remaining motor to ensure both work properly.
Turn off the Robot Brain immediately.
Disconnect all motors.
Change the battery.
What is the main responsibility of the "Seeker" in a team according to the build instructions?
Find the step’s parts
Hold/secure the parts while building
Use the tools to connect the parts together
Take charge of the group
Which team role is responsible for holding or securing the parts while building?
Seeker
Securer
Builder
Leader
Who is responsible for using the tools to connect the parts together?
Seeker
Securer
Builder
Leader
