Networking mapelead

Multiple Choice

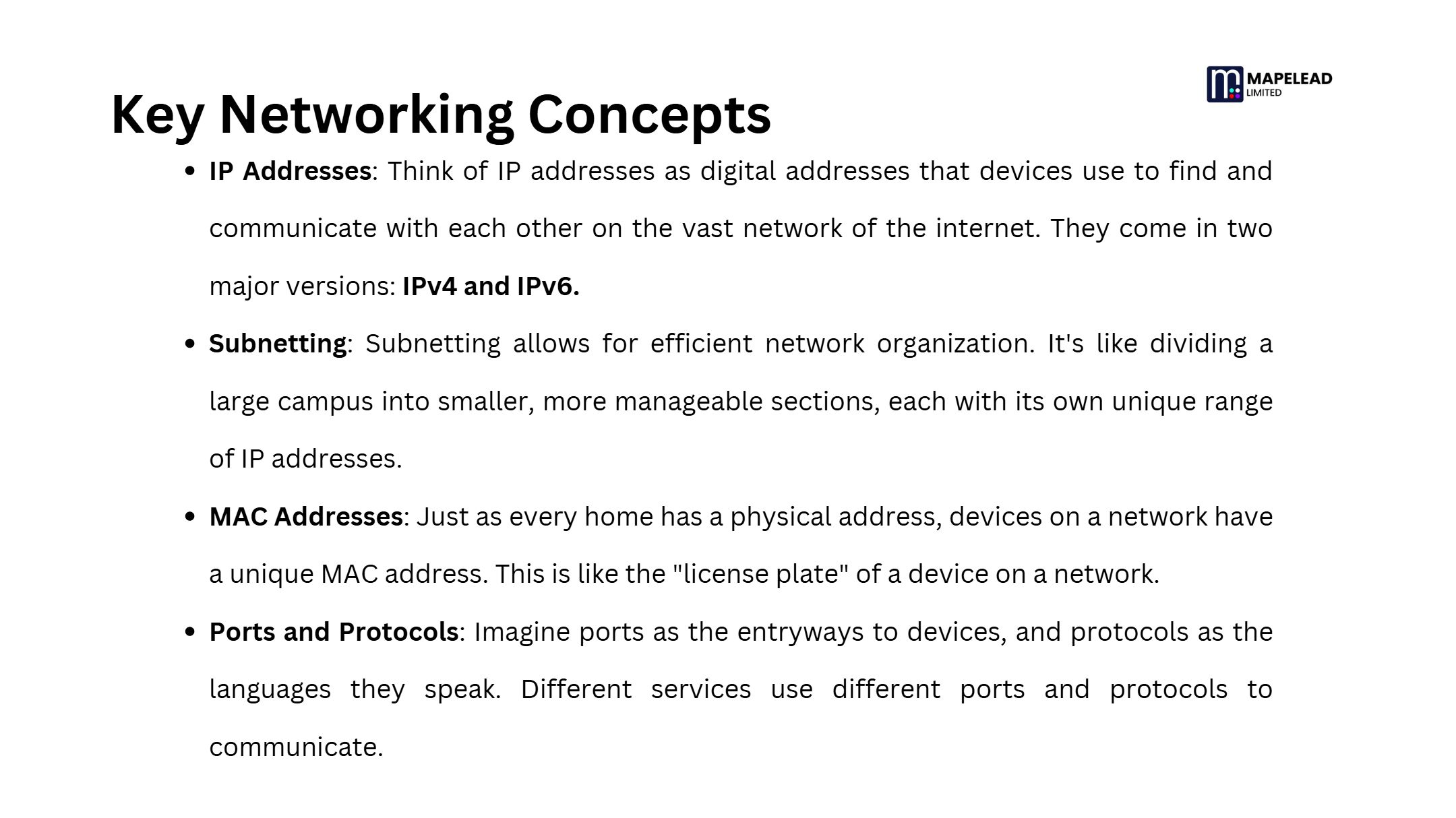

What are the key components of networking fundamentals that are essential for cybersecurity?

• Routers

• Firewalls

• Switches

• All of the above

Multiple Choice

What is the primary function of networking as described in the introduction?

• To connect devices and systems

• To store data

• To create software

• To manage user accounts

Multiple Choice

A computer network can share printers and software.

• True
• False

Multiple Choice

What is the purpose of subnetting as described in the text?

• To increase internet speed

• To divide a large network into smaller sections

• To assign MAC addresses

• To manage ports and protocols

Multiple Choice

The world is currently in a transition to using IPv6, a newer version of the IP protocol that uses 128-bit addresses instead of 32-bit addresses used by IPv4. What is the main problem that IPv6 was created to solve?

• IPv6 will allow problems with IPv4's address hierarchy to be resolved
• 32-bit addresses could not ensure that every internet-connected device can receive a unique IP address
• 32-bit addresses could not accommodate the increased size and amount of data traveling on the Internet as it has grown in popularity
• IPv4 proved unreliable in some cases where network redundancy could not be ensured

Multiple Choice

How many total number of hosts available in the Class C network?

• 65536

• 128

• 127

• 256

Multiple Choice

which one of the following is a Class D ip address?

• 237.0.0.8

• 240.0.0.5

• 10.0.0.5

• 171.0.0.10

Multiple Choice

What is the most frequently used communications protocol?

• IPv4

• IPv6

• IPv8

• IPv10

Multiple Choice

How many classes of IP addresses are there?

• 2

• 3

• 4

• 5

Multiple Choice

Which class of network addresses is used by government, ISPs and large universities.

• Class A

• Class B

• Class C

• Class D

Multiple Choice

What is a Wide Area Network (WAN)?

• A network that covers a larger geographic area than a LAN

• A network limited to a small geographic area

• A network connecting several campuses within a city

• A network that spans a larger geographical area

Multiple Choice

What is a major advantage of using a LAN?

• Easy global connectivity

• Large geographical coverage

• High data transfer speed at low cost

• Requires no setup

Multiple Choice

How does a switch differ from a hub in a network?

• A switch broadcasts data to all connected devices creating a single collision domain.

• A hub forwards data based on MAC addresses and creates separate collision domains.

• A switch and a hub both create separate collision domains in a network.

• A switch forwards data based on MAC addresses and creates separate collision domains, while a hub broadcasts data to all connected devices creating a single collision domain.

Multiple Choice

What are the characteristics of a Stateless/Packet Filtering Firewall?

• Stateless, efficient, limited complexity

• Stateful, context-aware

• Monitors active connections

• Allows all traffic

Multiple Choice

Which of the following best describes the function of a Next-Generation Firewall (NGFW)?

• It filters traffic based on state, port, and protocol.

• It enhances security by integrating intrusion prevention, deep packet inspection, and application awareness.

• It primarily focuses on filtering traffic based on IP addresses and ports.

• It is designed to protect against physical intrusions into the network.

Multiple Select

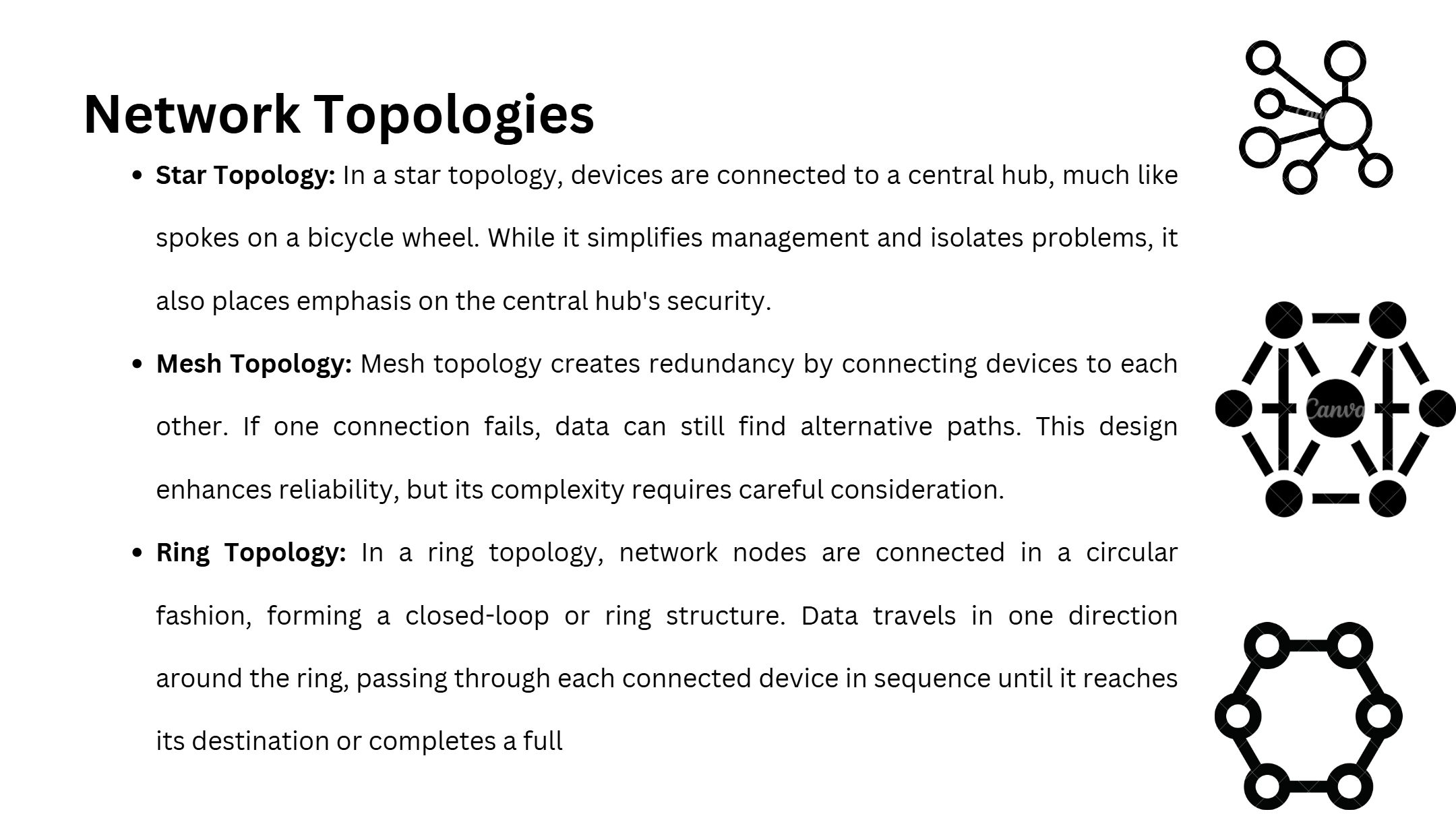

Which of the following are downsides of a bus topology (select all that apply)?

• If two (or more) devices try to transmit at the same time, it will cause a collision.

• Every device attached to the bus can "read" every message.

• A failure of the main bus cable will bring the whole network to a stop.

• If there is a failure in the cable that connects a single device to the bus, it will affect just that device.

Multiple Choice

What is the purpose of a port number in networking?

• To identify a specific process

• To connect devices

• To secure data transmission

• To manage network traffic

Match

Match the following port names with their range:

• Well-Known

• Registered

• Dynamic, Private, or Ephemeral Ports

0-1023

1024-49151

49151-63565

• 0-1023

• 1024-49151

• 49151-63565

Dropdown

HTTP and HTTPs: These are ​

Select answer

used for transferring web pages. ​

Select answer

is a ​

Select answer

of HTTP commonly used for online transactions.

Match

Match the following ports to their numbers: DNS, HTTPS, IMAP, TELNET

• DNS

• HTTPS

• IMAP

• TELNET

53

443

143

23

• 53
• 443
• 143
• 23

Multiple Choice

Imagine Aria and David have set up a small office network. What is the primary function of a firewall they installed to protect their network?

• To increase internet speed.

• To serve as a physical barrier against network intrusion.

• To monitor and control incoming and outgoing network traffic based on predetermined security rules.

• To detect and remove viruses and other malware.

Multiple Choice

What is the purpose of network segmentation in security?

• To increase network speed

• To limit the impact of breaches

• To simplify network management

• To eliminate all security risks

Multiple Choice

What are security protocols designed to ensure?

• Secure transmission of data

• Data storage

• Data analysis

• Data visualization

Multiple Choice

What is the purpose of SSL/TLS in security protocols?

• Encrypts data during transmission

• Provides security at the IP layer

• Secures email communication

• Authenticates users

Multiple Choice

I sit between the internet and the network. I protect the network, by blocking viruses, malware and worms. I can be both hardware and software

• Router

• Firewall

• Ethernet Cable

• Modem

Multiple Choice

Which of the following best describes the purpose of a Virtual Private Network (VPN) in terms of network security?

• To increase the speed of internet connections.

• To provide a secure, encrypted connection over a less secure network, such as the internet.

• To serve as the primary method for user authentication.

• To monitor and log all internet traffic for review.

Multiple Choice

What does OSI stand for?

• International Standards Organization

• Open Systems Interconnect

• Operating Standard Information

• Operating System Interconnection

• Open Systems Interface

Multiple Choice

What is layer 7 of the OSI model?

• Application

• Presentation

• Session

• Transport

Multiple Choice

What is layer 5 of the OSI model?

• Presentation

• Session

• Transport

• Network

Multiple Choice

What is layer 3 of the OSI model?

• Transport

• Network

• Data Link

• Physical

Multiple Choice

What is layer 4 of the OSI model?

• Session

• Transport

• Network

• Data Link

Multiple Choice

What are the main differences between the OSI model and the TCP/IP model?

• The OSI model has 7 layers, while TCP/IP has 4 layers.

• The OSI model is used for network security, while TCP/IP is not.

• The OSI model is more widely used than TCP/IP.

Open Ended

Why is the OSI model important?

Multiple Choice

What is the purpose of transport protocols in data transmission?

• To enhance data security

• To improve data transmission speed

• To manage network connections

• To ensure data integrity

Multiple Choice

What are the key differences between TCP and UDP?

• TCP is connection-oriented, while UDP is connectionless.

• TCP is faster than UDP.

• UDP ensures data integrity, while TCP does not.

• TCP does not manage flow and congestion, while UDP does.

Poll

How confident do you feel about this topic now?

• Very confident
• Somewhat confident
• Not confident
